AB197412

Canine Cytokine Antibody Array B (10 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197412 can be used for quantitative measurement of 10 Canine cytokines.
3 Images
Multiplex Protein Detection - Canine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197412)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Canine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197412)

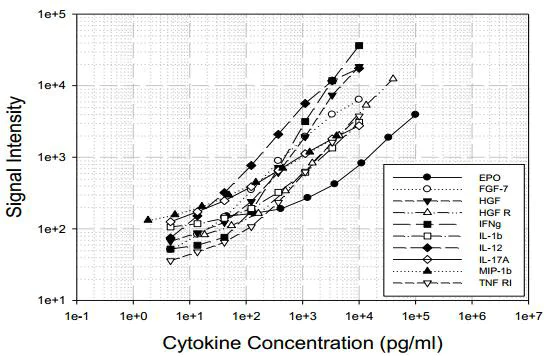

Standard Curve obtained with Canine Cytokine Antibody Array B - Quantitative (10 targets) (ab197412).

Multiplex Protein Detection - Canine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197412)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Canine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197412)

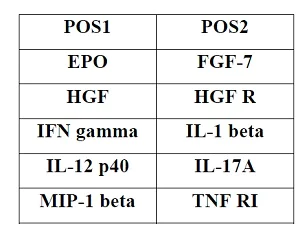

Array Map for Canine Cytokine Antibody Array B - Quantitative (10 targets) (ab197412).

Multiplex Protein Detection - Canine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197412)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Canine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197412)

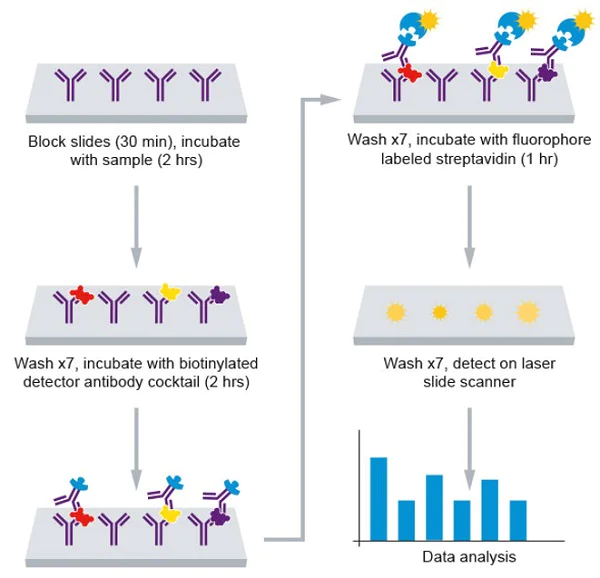

Assay Summary for Canine Cytokine Antibody Array B - Quantitative (10 targets) (ab197412).

Key facts

Assay type

Quantitative

Reacts with

Dog

Target

FGF7

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style
left-column

Product details

ab197412 can be used for quantitative measurement of 10 Canine cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.
Targets names: Erythropoietin (EPO), FGF-7, HGF, HGF R, IFN gamma, IL-1 beta, IL-12p40, IL-17A, MIP-1 beta and TNF RI.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. "

style
left-column

What's included?

{ "values": { "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197412-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197412-CMP09" }, { "size":"1 x 1 Slide", "name":"Canine Cytokine Array B (10 T) Glass Slide", "number":"AB197412-CMP04" }, { "size":"1 x 1 Vial", "name":"Canine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197412-CMP05" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197412-CMP08" }, { "size":"1 x 25 µL", "name":"Canine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197412-CMP03" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197412-CMP01" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197412-CMP06" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197412-CMP07" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197412-CMP02" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197412-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197412-CMP09" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197412-CMP07" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197412-CMP06" }, { "size":"4 x 25 µL", "name":"Canine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197412-CMP03" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197412-CMP01" }, { "size":"2 x 1 Vial", "name":"Canine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197412-CMP05" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197412-CMP02" }, { "size":"4 x 1 Slide", "name":"Canine Cytokine Array B (10 T) Glass Slide", "number":"AB197412-CMP04" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197412-CMP08" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197412-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197412-CMP09", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Canine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197412-CMP05", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197412-CMP07", "productcode":"" }, { "size":"2 x 1 Slide", "name":"Canine Cytokine Array B (10 T) Glass Slide", "number":"AB197412-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197412-CMP02", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197412-CMP01", "productcode":"" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197412-CMP08", "productcode":"" }, { "size":"2 x 25 µL", "name":"Canine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197412-CMP03", "productcode":"" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197412-CMP06", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

See full target information FGF7

Additional targets

EPOR,MET,IL12B
