Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets)
Be the first to review this product! Submit a review
|
(48 Publications)
Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets) ab133998 is a membrane based multiplex immunoassay for the simultaneous detection of 80 human cytokines in all sample types.
- More data, less sample: screen multiple cytokines with the same sample
- Global view of cytokine expression
- Chemiluminescent detection - no specific equipment required
- Highly sensitive (pg/mL)
View Alternative Names
RNASE5, ANG, Angiogenin, Ribonuclease 5, RNase 5, MCP1, SCYA2, CCL2, C-C motif chemokine 2, HC11, Monocyte chemoattractant protein 1, Monocyte chemotactic and activating factor, Monocyte chemotactic protein 1, Monocyte secretory protein JE, Small-inducible cytokine A2, MCAF, MCP-1, HPTA, HGF, Hepatocyte growth factor, Hepatopoietin-A, Scatter factor, SF, AMAC1, DCCK1, MIP4, PARC, SCYA18, CCL18, C-C motif chemokine 18, Alternative macrophage activation-associated CC chemokine 1, CC chemokine PARC, Dendritic cell chemokine 1, Macrophage inflammatory protein 4, Pulmonary and activation-regulated chemokine, Small-inducible cytokine A18, AMAC-1, DC-CK1, MIP-4, Neurotrophic factor BDNF precursor form, proBDNF, Abrineurin, Brain-derived neurotrophic factor, BDNF, BP2, IBP2, IGFBP2, Insulin-like growth factor-binding protein 2, IBP-2, IGF-binding protein 2, IGFBP-2, Glial cell line-derived neurotrophic factor, hGDNF, Astrocyte-derived trophic factor, ATF, GDNF, IFNB2, IL6, Interleukin-6, IL-6, B-cell stimulatory factor 2, CTL differentiation factor, Hybridoma growth factor, Interferon beta-2, BSF-2, CDF, IFN-beta-2, C17orf33, GCSF, CSF3, Granulocyte colony-stimulating factor, G-CSF, Pluripoietin, HILDA, LIF, Leukemia inhibitory factor, Differentiation-stimulating factor, Melanoma-derived LPL inhibitor, D factor, MLPLI, Fibroblast growth factor 9, FGF-9, Glia-activating factor, Heparin-binding growth factor 9, GAF, HBGF-9, FGF9, PDGF2, SIS, PDGFB, Platelet-derived growth factor subunit B, PDGF subunit B, PDGF-2, Platelet-derived growth factor B chain, Platelet-derived growth factor beta polypeptide, Proto-oncogene c-Sis, ENA78, SCYB5, CXCL5, C-X-C motif chemokine 5, ENA-78(1-78), Epithelial-derived neutrophil-activating protein 78, Neutrophil-activating peptide ENA-78, Small-inducible cytokine B5, GCP2, SCYB6, CXCL6, C-X-C motif chemokine 6, Chemokine alpha 3, Granulocyte chemotactic protein 2, Small-inducible cytokine B6, CKA-3, GCP-2, CTAP3, CXCL7, SCYB7, TGB1, THBGB1, PPBP, Platelet basic protein, PBP, C-X-C motif chemokine 7, Leukocyte-derived growth factor, Macrophage-derived growth factor, Small-inducible cytokine B7, LDGF, MDGF, Macrophage colony-stimulating factor 1, CSF-1, M-CSF, MCSF, Lanimostim, Proteoglycan macrophage colony-stimulating factor, PG-M-CSF, CSF1, D17S136E, SCYA5, CCL5, C-C motif chemokine 5, EoCP, Eosinophil chemotactic cytokine, SIS-delta, Small-inducible cytokine A5, T cell-specific protein P228, T-cell-specific protein RANTES, TCP228, SCYA17, TARC, CCL17, C-C motif chemokine 17, CC chemokine TARC, Small-inducible cytokine A17, Thymus and activation-regulated chemokine, MCP2, SCYA10, SCYA8, CCL8, C-C motif chemokine 8, HC14, Monocyte chemoattractant protein 2, Monocyte chemotactic protein 2, Small-inducible cytokine A8, MCP-2, Fms-related tyrosine kinase 3 ligand, Flt3 ligand, Flt3L, SL cytokine, FLT3LG, Transforming growth factor beta-2 proprotein, Cetermin, Glioblastoma-derived T-cell suppressor factor, G-TSF, TGFB2, TGFB, TGFB1, Transforming growth factor beta-1 proprotein, Transforming growth factor beta-3 proprotein, TGFB3, IBP4, IGFBP4, Insulin-like growth factor-binding protein 4, IBP-4, IGF-binding protein 4, IGFBP-4, MDC, SCYA22, A-152E5.1, CCL22, C-C motif chemokine 22, CC chemokine STCP-1, MDC(1-69), Macrophage-derived chemokine, Small-inducible cytokine A22, Stimulated T-cell chemotactic protein 1, CD258, HVEML, LIGHT, UNQ391/PRO726, TNFSF14, Tumor necrosis factor ligand superfamily member 14, Herpes virus entry mediator ligand, HVEM-L, Herpesvirus entry mediator ligand, MCP4, NCC1, SCYA13, CCL13, C-C motif chemokine 13, CK-beta-10, Monocyte chemoattractant protein 4, Monocyte chemotactic protein 4, NCC-1, Small-inducible cytokine A13, MCP-4, LAG1, MIP1B, SCYA4, CCL4, C-C motif chemokine 4, G-26 T-lymphocyte-secreted protein, HC21, Lymphocyte activation gene 1 protein, MIP-1-beta(1-69), Macrophage inflammatory protein 1-beta, PAT 744, Protein H400, SIS-gamma, Small-inducible cytokine A4, T-cell activation protein 2, LAG-1, MIP-1-beta, ACT-2, INP10, SCYB10, CXCL10, C-X-C motif chemokine 10, 10 kDa interferon gamma-induced protein, Small-inducible cytokine B10, Gamma-IP10, IP-10, Metalloproteinase inhibitor 2, CSC-21K, Tissue inhibitor of metalloproteinases 2, TIMP-2, TIMP2, SCYA1, CCL1, C-C motif chemokine 1, Small-inducible cytokine A1, T lymphocyte-secreted protein I-309, Interleukin-3, IL-3, Hematopoietic growth factor, Mast cell growth factor, Multipotential colony-stimulating factor, P-cell-stimulating factor, MCGF, IL3, Interleukin-2, IL-2, T-cell growth factor, TCGF, IL2, Interleukin-4, IL-4, B-cell stimulatory factor 1, Binetrakin, Lymphocyte stimulatory factor 1, Pitrakinra, BSF-1, IL4, IL1F2, IL1B, Interleukin-1 beta, IL-1 beta, Catabolin, TNFA, TNFSF2, TNF, Tumor necrosis factor, Cachectin, TNF-alpha, Tumor necrosis factor ligand superfamily member 2, TNF-a, HST2, HSTF2, FGF6, Fibroblast growth factor 6, FGF-6, Heparin secretory-transforming protein 2, Heparin-binding growth factor 6, HST-2, HSTF-2, HBGF-6, BCA1, BLC, SCYB13, CXCL13, C-X-C motif chemokine 13, Angie, B cell-attracting chemokine 1, B lymphocyte chemoattractant, CXC chemokine BLC, Small-inducible cytokine B13, BCA-1, MIP3, MPIF1, SCYA23, CCL23, C-C motif chemokine 23, CK-beta-8, Macrophage inflammatory protein 3, Myeloid progenitor inhibitory factor 1, Small-inducible cytokine A23, CKB-8, MIP-3, MPIF-1, Pro-epidermal growth factor, EGF, SCYA11, CCL11, Eotaxin, C-C motif chemokine 11, Eosinophil chemotactic protein, Small-inducible cytokine A11, MPIF2, SCYA24, CCL24, C-C motif chemokine 24, CK-beta-6, Eosinophil chemotactic protein 2, Myeloid progenitor inhibitory factor 2, Small-inducible cytokine A24, Eotaxin-2, MPIF-2, SCYA26, UNQ216/PRO242, CCL26, C-C motif chemokine 26, CC chemokine IMAC, Eotaxin-3, Macrophage inflammatory protein 4-alpha, Small-inducible cytokine A26, Thymic stroma chemokine-1, MIP-4-alpha, TSC-1, HST, HSTF1, KS3, FGF4, Fibroblast growth factor 4, FGF-4, Heparin secretory-transforming protein 1, Heparin-binding growth factor 4, Transforming protein KS3, HST-1, HSTF-1, HBGF-4, KGF, FGF7, Fibroblast growth factor 7, FGF-7, Heparin-binding growth factor 7, Keratinocyte growth factor, HBGF-7, FKN, NTT, SCYD1, A-152E5.2, CX3CL1, Fractalkine, C-X3-C motif chemokine 1, CX3C membrane-anchored chemokine, Neurotactin, Small-inducible cytokine D1, GMCSF, CSF2, Granulocyte-macrophage colony-stimulating factor, GM-CSF, Colony-stimulating factor, Molgramostin, Sargramostim, CSF, GRO, GRO1, GROA, MGSA, SCYB1, CXCL1, Growth-regulated alpha protein, C-X-C motif chemokine 1, GRO-alpha(1-73), Melanoma growth stimulatory activity, Neutrophil-activating protein 3, NAP-3, GRO3, GROG, SCYB3, CXCL3, C-X-C motif chemokine 3, GRO-gamma(1-73), Growth-regulated protein gamma, Macrophage inflammatory protein 2-beta, GRO-gamma, MIP2-beta, Interferon gamma, IFN-gamma, Immune interferon, IFNG, IBP1, IGF-1, IGF1, Insulin-like growth factor 1, Insulin-like growth factor I, Mechano growth factor, Somatomedin-C, IGF-I, MGF, IBP1, IGFBP1, Insulin-like growth factor-binding protein 1, IBP-1, IGF-binding protein 1, IGFBP-1, Placental protein 12, PP12, IBP3, IGFBP3, Insulin-like growth factor-binding protein 3, IBP-3, IGF-binding protein 3, IGFBP-3, IL1F1, IL1A, Interleukin-1 alpha, IL-1 alpha, Hematopoietin-1, Interleukin-10, IL-10, Cytokine synthesis inhibitory factor, CSIF, IL10, NC30, IL13, Interleukin-13, IL-13, Interleukin-15, IL-15, IL15, Pro-interleukin-16, IL16, Interleukin-5, IL-5, B-cell differentiation factor I, Eosinophil differentiation factor, T-cell replacing factor, TRF, IL5, Interleukin-7, IL-7, IL7, IL8, CXCL8, Interleukin-8, IL-8, C-X-C motif chemokine 8, Chemokine (C-X-C motif) ligand 8, Emoctakin, Granulocyte chemotactic protein 1, Monocyte-derived neutrophil chemotactic factor, Monocyte-derived neutrophil-activating peptide, Neutrophil-activating protein 1, Protein 3-10C, T-cell chemotactic factor, GCP-1, MDNCF, MONAP, NAP-1, OB, OBS, LEP, Leptin, Obese protein, Obesity factor, MCP3, SCYA6, SCYA7, CCL7, C-C motif chemokine 7, Monocyte chemoattractant protein 3, Monocyte chemotactic protein 3, NC28, Small-inducible cytokine A7, MCP-3, GLIF, MMIF, MIF, Macrophage migration inhibitory factor, Glycosylation-inhibiting factor, L-dopachrome isomerase, L-dopachrome tautomerase, Phenylpyruvate tautomerase, GIF, CMK, MIG, SCYB9, CXCL9, C-X-C motif chemokine 9, Gamma-interferon-induced monokine, Monokine induced by interferon-gamma, Small-inducible cytokine B9, HuMIG, MIP5, NCC3, SCYA15, CCL15, C-C motif chemokine 15, Chemokine CC-2, Leukotactin-1, MIP-1 delta, Macrophage inflammatory protein 5, Mrp-2b, NCC-3, Small-inducible cytokine A15, HCC-2, LKN-1, MIP-5, LARC, MIP3A, SCYA20, CCL20, C-C motif chemokine 20, Beta-chemokine exodus-1, CC chemokine LARC, Liver and activation-regulated chemokine, Macrophage inflammatory protein 3 alpha, Small-inducible cytokine A20, MIP-3-alpha, Neurotrophin-3, NT-3, HDNF, Nerve growth factor 2, Neurotrophic factor, NGF-2, NTF3, NTF5, NTF4, Neurotrophin-4, NT-4, Neurotrophin-5, Neutrophic factor 4, NT-5, Oncostatin-M, OSM, OCIF, OPG, TNFRSF11B, Tumor necrosis factor receptor superfamily member 11B, Osteoclastogenesis inhibitory factor, Osteoprotegerin, PGFL, PLGF, PGF, Placenta growth factor, PlGF, MGF, SCF, KITLG, Kit ligand, Mast cell growth factor, Stem cell factor, c-Kit ligand, SDF1, SDF1A, SDF1B, CXCL12, Stromal cell-derived factor 1, SDF-1, hSDF-1, C-X-C motif chemokine 12, Intercrine reduced in hepatomas, Pre-B cell growth-stimulating factor, IRH, hIRH, PBSF, MGDF, THPO, Thrombopoietin, C-mpl ligand, Megakaryocyte colony-stimulating factor, Megakaryocyte growth and development factor, Myeloproliferative leukemia virus oncogene ligand, ML, CLGI, TIMP, TIMP1, Metalloproteinase inhibitor 1, Erythroid-potentiating activity, Fibroblast collagenase inhibitor, Tissue inhibitor of metalloproteinases 1, EPA, Collagenase inhibitor, TIMP-1, TNFB, TNFSF1, LTA, Lymphotoxin-alpha, LT-alpha, TNF-beta, Tumor necrosis factor ligand superfamily member 1, VEGF, VEGFA, L-VEGF, Vascular permeability factor, VPF, BNSP, OPN, PSEC0156, SPP1, Osteopontin, Bone sialoprotein 1, Nephropontin, Secreted phosphoprotein 1, Urinary stone protein, Uropontin, SPP-1, NKSF1, IL12A, Interleukin-12 subunit alpha, IL-12A, Cytotoxic lymphocyte maturation factor 35 kDa subunit, IL-12 subunit p35, NK cell stimulatory factor chain 1, CLMF p35
- Multiplex Protein Detection
Lab
Multiplex Protein Detection - Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets) (AB133998)

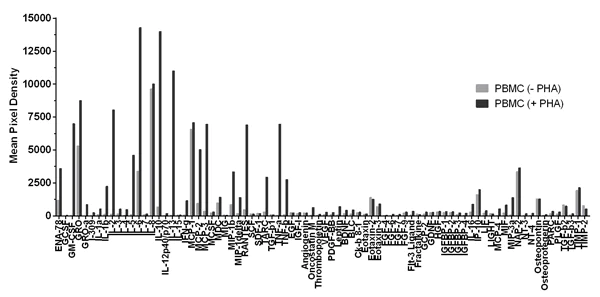

Quantification of Human Cytokine Antibody Array.
Cells were cultured unstimulated or stimulated with 10 mg/mL PHA. Conditioned media was harvested after 48 hours, aliquoted and assayed using ab133998. Mean pixel density was quantified using CCD camera software analysis.
- Multiplex Protein Detection
Lab
Multiplex Protein Detection - Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets) (AB133998)

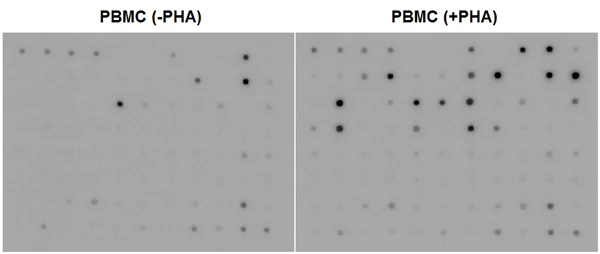

Human peripheral blood cells (1x106 cells/mL) were cultured in RPMI media supplemented with 10% fetal calf serum, 100 U/mL penicillin, and 100 mg/mL streptomycin sulfate.
Cells were cultured unstimulated or stimulated with 10 μg/mL PHA. Conditioned media was harvested after 48 hours, aliquoted and assayed using ab133998.
Reactivity data
Product details
ab133998 is for simultaneous detection of 80 Human Cytokines. Suitable for all sample types.
Targets: ENA-78, GCSF, GM-CSF, GRO, GRO-alpha, I-309, IL-1alpha, IL-1beta, IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-8, IL-10, IL-12 p40/p70, IL-13, IL-15, IFN-gamma, MCP-1, MCP-2, MCP-3, MCSF, MDC, MIG, MIP-1beta, MIP-1delta, RANTES, SCF, SDF-1, TARC, TGF-beta1, TNF-alpha, TNF-beta, EGF, IGF-I, Angiogenin, Oncostatin M, Thrombopoietin, VEGF-A, PDGF-BB, Leptin, BDNF, BLC, Ckß8-1, Eotaxin, Eotaxin-2, Eotaxin-3, FGF-4, FGF-6, FGF-7, FGF-9, Flt-3 Ligand, Fractalkine, GCP-2, GDNF, HGF, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IL-16, IP-10, LIF, LIGHT, MCP-4, MIF, MIP-3 alpha, NAP-2, NT-3, NT-4, Osteopontin, Osteoprotegerin, PARC, PLGF, TGF-beta2, TGF-beta3, TIMP-1, TIMP-2
Cytokine arrays are an antibody-pair-based assay, analogous to ELISA, but using a membrane as a substrate rather than a plate. Capture antibodies are supplied arrayed/spotted on a membrane with each pair of spots representing a different analyte. Sample is added (1mL/sample to each membrane), and then paired biotinylated detector antibodies and streptavidin HRP. The cytokine array is analyzed using the same methods as a chemiluminescent western blot. Comparison between samples can be by eye or using densitometry software for a semi-quantitative comparison.
If you are interested in this cytokine array, cytokine array ab133997, ab169817, ab133996, ab169811, ab169817, ab169812, ab134000, ab169803, ab134002, ab169804, ab169805, ab134003 and ab169819 may also be of interest.
A table listing all of our human membrane antibody cytokine arrays and other arrays and the analytes they measure is available here.
REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.
What's included?
Properties and storage information
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Storage information
Product protocols
- Visit the General protocols
- Visit the Troubleshooting
- Download websiteProtocolBooklet|en
Target data
Additional targets
Publications (48)
Recent publications for all applications. Explore the full list and refine your search
Inflammation and regeneration 45:9 PubMed40211386
2025
Applications
Unspecified application
Species
Unspecified reactive species
ACS infectious diseases 11:453-462 PubMed39761308
2025
Applications
Unspecified application
Species
Unspecified reactive species
CNS neuroscience & therapeutics 30:e70117 PubMed39563017
2024
Applications
Unspecified application
Species
Unspecified reactive species
Fluids and barriers of the CNS 21:89 PubMed39487455
2024
Applications
Unspecified application
Species
Unspecified reactive species
Stem cell research & therapy 15:363 PubMed39396003
2024
Applications
Unspecified application
Species
Unspecified reactive species
Stem cell research & therapy 15:230 PubMed39075600
2024
Applications
Unspecified application
Species
Unspecified reactive species
Biomedicines 12: PubMed38540205
2024
Applications
Unspecified application
Species
Unspecified reactive species
Advanced healthcare materials 13:e2304207 PubMed38175149
2024
Applications
Unspecified application
Species
Unspecified reactive species
Respiratory research 24:320 PubMed38111019
2023
Applications
Unspecified application
Species
Unspecified reactive species
International journal of molecular sciences 24: PubMed38069076
2023
Applications
Unspecified application
Species
Unspecified reactive species
Product promise
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
For licensing inquiries, please contact partnerships@abcam.com
