AB169810

Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 34 targets)

Be the first to review this product! Submit a review

|

(0 Publication)

ab169810 for the simultaneous dection of 34 mouse Cytokines in 4 or 8 samples.

View Alternative Names

Abcd1, Scya22, Ccl22, C-C motif chemokine 22, Activated B and dendritic cell-derived, CC chemokine ABCD-1, Small-inducible cytokine A22, CD32, Fcgr2b, Ly-17, Fcgr2, Low affinity immunoglobulin gamma Fc region receptor II, Fc gamma receptor IIB, IgG Fc receptor II beta, Lymphocyte antigen 17, Fc-gamma RII, Fc-gamma-RIIB, FcRII, CD54, Intercellular adhesion molecule 1, ICAM-1, MALA-2, MyD10, Icam1, Timp-2, Timp2, Metalloproteinase inhibitor 2, Tissue inhibitor of metalloproteinases 2, TIMP-2, Il-7, Il7, Interleukin-7, IL-7, Stromelysin-1, SL-1, EMS-2, Matrix metalloproteinase-3, Transin-1, MMP-3, Mmp3, CD309, Flk-1, Flk1, Kdr, Vascular endothelial growth factor receptor 2, VEGFR-2, Fetal liver kinase 1, Kinase NYK, Protein-tyrosine kinase receptor flk-1, FLK-1, CD62E, Elam-1, Sele, E-selectin, CD62 antigen-like family member E, Endothelial leukocyte adhesion molecule 1, Leukocyte-endothelial cell adhesion molecule 2, ELAM-1, LECAM2, CD26, Cd26, Dpp4, Dipeptidyl peptidase 4, Dipeptidyl peptidase IV, T-cell activation antigen CD26, Thymocyte-activating molecule, DPP IV, THAM, Flt-4, Vegfr3, Flt4, Vascular endothelial growth factor receptor 3, VEGFR-3, Fms-like tyrosine kinase 4, Tyrosine-protein kinase receptor FLT4, FLT-4, CD254, Opgl, Rankl, Trance, Tnfsf11, Tumor necrosis factor ligand superfamily member 11, Osteoclast differentiation factor, Osteoprotegerin ligand, Receptor activator of nuclear factor kappa-B ligand, TNF-related activation-induced cytokine, ODF, OPGL, RANKL, TRANCE, Sdf1, Cxcl12, Stromal cell-derived factor 1, SDF-1, 12-O-tetradecanoylphorbol 13-acetate repressed protein 1, C-X-C motif chemokine 12, Pre-B cell growth-stimulating factor, Thymic lymphoma cell-stimulating factor, TPAR1, PBSF, TLSF, Eta-1, Op, Spp-1, Spp1, Osteopontin, 2AR, Bone sialoprotein 1, Calcium oxalate crystal growth inhibitor protein, Early T-lymphocyte activation 1 protein, Minopontin, Secreted phosphoprotein 1, SPP-1, Thymic stromal lymphopoietin, Thymic stroma-derived lymphopoietin, Tslp, Hepatocyte growth factor receptor, HGF receptor, HGF/SF receptor, Proto-oncogene c-Met, Scatter factor receptor, Tyrosine-protein kinase Met, SF receptor, Met, Scyb15, Cxcl15, C-X-C motif chemokine 15, Lungkine, Small-inducible cytokine B15, Fizz3, Retn, Resistin, Adipose tissue-specific secretory factor, Adipose-specific cysteine-rich secreted protein A12-alpha, Cysteine-rich secreted protein FIZZ3, ADSF, Ocif, Opg, Tnfrsf11b, Tumor necrosis factor receptor superfamily member 11B, Osteoclastogenesis inhibitory factor, Osteoprotegerin, Flt3l, Flt3lg, Fms-related tyrosine kinase 3 ligand, Flt3 ligand, Flt3L, SL cytokine, 72 kDa type IV collagenase, 72 kDa gelatinase, Gelatinase A, Matrix metalloproteinase-2, MMP-2, Mmp2, Clg4b, Mmp9, Matrix metalloproteinase-9, MMP-9, 92 kDa gelatinase, 92 kDa type IV collagenase, Gelatinase B, GELB, Igf-2, Igf2, Insulin-like growth factor 2, Insulin-like growth factor II, Multiplication-stimulating polypeptide, IGF-II, Igf-1, Igf1, Insulin-like growth factor 1, Insulin-like growth factor I, Somatomedin, IGF-I, Fgf-2, Fgf2, Fibroblast growth factor 2, FGF-2, Basic fibroblast growth factor, Heparin-binding growth factor 2, bFGF, HBGF-2, Hhg1, Shh, Sonic hedgehog protein, SHH, HHG-1, Shh unprocessed N-terminal signaling and C-terminal autoprocessing domains, ShhNC, Igfbp-2, Igfbp2, Insulin-like growth factor-binding protein 2, IBP-2, IGF-binding protein 2, IGFBP-2, mIGFBP-2, Interleukin-15, IL-15, Il15, Evi27, Il17br, Il17rb, Interleukin-17 receptor B, IL-17 receptor B, IL-17RB, IL-17 receptor homolog 1, Interleukin-17B receptor, IL-17ER, IL-17Rh1, IL17Rh1, IL-17B receptor, Beta thromboglobulin, Beta-TG, C-X-C motif chemokine 7, CTAP 3, CTAP-III, CTAP-III(1-81), CXC chemokine ligand 7, CXCL7_HUMAN, Chemokine (C X C motif) ligand 7, Connective tissue activating peptide III, LA-PF4, LDGF, Leukocyte-derived growth factor, Low-affinity platelet factor IV, MDGF, Macrophage-derived growth factor, NAP-2, NAP-2(1-63), NAP-2(1-66), NAP-2(73), NAP-2(74), Neutrophil activating peptide 2, Neutrophil-activating peptide 2(1-63), PBP, PPBP, Platelet basic protein, Pro platelet basic protein, Pro platelet basic protein (chemokine (C-X-C motif) ligand 7), SCYB7, Small inducible cytokine subfamily B member 7, Small-inducible cytokine B7, TC2, TGB, TGB1, THBGB, THBGB1, Thrombocidin 1, Thrombocidin 2, Thromboglobulin, beta-1, CD357, Gitr, Tnfrsf18, Tumor necrosis factor receptor superfamily member 18, Glucocorticoid-induced TNFR-related protein, Figf, Vegfd, Vascular endothelial growth factor D, VEGF-D, c-Fos-induced growth factor, FIGF, Emrk2, Flt, Vegfr1, Flt1, Vascular endothelial growth factor receptor 1, VEGFR-1, Embryonic receptor kinase 2, Fms-like tyrosine kinase 1, Tyrosine-protein kinase receptor FLT, FLT-1, Taj, Troy, Tnfrsf19, Tumor necrosis factor receptor superfamily member 19, TRADE, Toxicity and JNK inducer, Dtk, Rse, Tif, Tyro3, Tyrosine-protein kinase receptor TYRO3, Etk2/tyro3, TK19-2, Tyrosine-protein kinase DTK, Tyrosine-protein kinase RSE, Tyrosine-protein kinase TIF

1 Images
Multiplex Protein Detection - Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 34 targets) (AB169810)
  • Multiplex Protein Detection

Unknown

Multiplex Protein Detection - Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 34 targets) (AB169810)

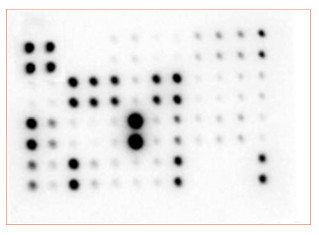

Typical images obtained with Abcam Mouse Cytokine Array. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at room temperature for 1 minute.

Key facts

Reacts with

Mouse

Target

Ccl22

target

Applications

Multiplex Protein Detection

applications

Sample types

Saliva, Urine, Plasma, Cell culture extracts, Tissue Extracts, Cell culture media, Cell culture supernatant, Milk, Serum, Other biological fluids, Whole Blood, Cell Lysate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

ab169810 for the simultaneous dection of 34 mouse Cytokines in 4 or 8 samples. Suitable for all liquid sample types.

Targets: bFGF, DPPIV/CD26, Dtk, E-Selectin, Fc gamma RIIB, Flt-3 Ligand, GITR, HGF R, ICAM-1, IGFBP-2, IGF-1, IGF-2, IL-15, IL-17B R, IL-7, I-TAC, Lungkine, MDC, MMP-2, MMP-3, Osteopontin, Osteoprotegerin, Pro-MMP-9, Resistin, Shh-N, Thymus CK-1, TIMP-2, TRANCE, TROY, TSLP, VEGFR1, VEGFR2, VEGFR3, VEGF-D

If you are interested in this cytokine array, a list of mouse cytokine membrane arrays is available here.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

What's included?

{ "values": { "1x2Membranes": { "sellingSize": "1 x 2 Membranes", "publicAssetCode":"ab169810-1x2Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB169810-CMP11" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C4)", "number":"AB169810-CMP06" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB169810-CMP08" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB169810-CMP09" }, { "size":"1 x 2 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C4)", "number":"AB169810-CMP01" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB169810-CMP03" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB169810-CMP10" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB169810-CMP05" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB169810-CMP04" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB169810-CMP07" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB169810-CMP02" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab169810-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB169810-CMP11" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB169810-CMP08" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB169810-CMP09" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB169810-CMP07" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C4)", "number":"AB169810-CMP06" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB169810-CMP02" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB169810-CMP04" }, { "size":"1 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C4)", "number":"AB169810-CMP01" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB169810-CMP03" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB169810-CMP10" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB169810-CMP05" } ] }, "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab169810-1x8Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB169810-CMP11", "productcode":"" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB169810-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB169810-CMP08", "productcode":"" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C4)", "number":"AB169810-CMP06", "productcode":"" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB169810-CMP09", "productcode":"" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB169810-CMP04", "productcode":"" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB169810-CMP02", "productcode":"" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB169810-CMP05", "productcode":"" }, { "size":"2 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C4)", "number":"AB169810-CMP01", "productcode":"" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB169810-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB169810-CMP10", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Chemotactic for activated T-lymphocytes. May play an important role in the collaboration of dendritic cells and B-lymphocytes with T-cells in immune responses.
See full target information Ccl22

Additional targets

Shh,Vegfd,Timp2,,Mmp9,Tnfrsf18,Tnfsf11,Met,Tyro3,Tnfrsf11b,Spp1,Il15,Cxcl15,Kdr,Flt1,Cxcl12,Dpp4,Fcgr2,Fgf2,Flt3lg,Flt4,Icam1,Igf1,Igf2,Igfbp2,Il17rb,Il7,Mmp2,Mmp3,CXCL7/PBP,Retn,Sele,Tslp
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
