AB197421

Human Angiogenesis Antibody Array B (30 Targets)- Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197421 can be used for quantitative measurement of 30 Human Angiogenesis proteins.

View Alternative Names

RNASE5, ANG, Angiogenin, Ribonuclease 5, RNase 5, Plasminogen, PLG, ITAC, SCYB11, SCYB9B, CXCL11, C-X-C motif chemokine 11, Beta-R1, H174, Interferon gamma-inducible protein 9, Interferon-inducible T-cell alpha chemoattractant, Small-inducible cytokine B11, IP-9, I-TAC, CD87, MO3, UPAR, PLAUR, Urokinase plasminogen activator surface receptor, U-PAR, uPAR, Monocyte activation antigen Mo3, TIE, TIE1, Tyrosine-protein kinase receptor Tie-1, CD202b, TIE2, VMCM, VMCM1, TEK, Angiopoietin-1 receptor, Endothelial tyrosine kinase, Tunica interna endothelial cell kinase, Tyrosine kinase with Ig and EGF homology domains-2, Tyrosine-protein kinase receptor TEK, Tyrosine-protein kinase receptor TIE-2, p140 TEK, hTIE2, CD309, FLK1, VEGFR2, KDR, Vascular endothelial growth factor receptor 2, VEGFR-2, Fetal liver kinase 1, Kinase insert domain receptor, Protein-tyrosine kinase receptor flk-1, FLK-1, VEGFR3, FLT4, Vascular endothelial growth factor receptor 3, VEGFR-3, Fms-like tyrosine kinase 4, Tyrosine-protein kinase receptor FLT4, FLT-4, C17orf33, GCSF, CSF3, Granulocyte colony-stimulating factor, G-CSF, Pluripoietin, CD31, Platelet endothelial cell adhesion molecule, PECAM-1, EndoCAM, GPIIA', PECA1, PECAM1, MCP2, SCYA10, SCYA8, CCL8, C-C motif chemokine 8, HC14, Monocyte chemoattractant protein 2, Monocyte chemotactic protein 2, Small-inducible cytokine A8, MCP-2, Transforming growth factor beta-3 proprotein, TGFB3, MCP4, NCC1, SCYA13, CCL13, C-C motif chemokine 13, CK-beta-10, Monocyte chemoattractant protein 4, Monocyte chemotactic protein 4, NCC-1, Small-inducible cytokine A13, MCP-4, NKSF2, IL12B, Interleukin-12 subunit beta, IL-12B, Cytotoxic lymphocyte maturation factor 40 kDa subunit, IL-12 subunit p40, NK cell stimulatory factor chain 2, CLMF p40, SCYA1, CCL1, C-C motif chemokine 1, Small-inducible cytokine A1, T lymphocyte-secreted protein I-309, Interleukin-4, IL-4, B-cell stimulatory factor 1, Binetrakin, Lymphocyte stimulatory factor 1, Pitrakinra, BSF-1, IL4, IL1F2, IL1B, Interleukin-1 beta, IL-1 beta, Catabolin, Pro-epidermal growth factor, EGF, HST, HSTF1, KS3, FGF4, Fibroblast growth factor 4, FGF-4, Heparin secretory-transforming protein 1, Heparin-binding growth factor 4, Transforming protein KS3, HST-1, HSTF-1, HBGF-4, GMCSF, CSF2, Granulocyte-macrophage colony-stimulating factor, GM-CSF, Colony-stimulating factor, Molgramostin, Sargramostim, CSF, Interleukin-10, IL-10, Cytokine synthesis inhibitory factor, CSIF, IL10, MCP3, SCYA6, SCYA7, CCL7, C-C motif chemokine 7, Monocyte chemoattractant protein 3, Monocyte chemotactic protein 3, NC28, Small-inducible cytokine A7, MCP-3, VEGF, VEGFA, L-VEGF, Vascular permeability factor, VPF, FIGF, VEGFD, Vascular endothelial growth factor D, VEGF-D, c-Fos-induced growth factor, SCYB16, SRPSOX, UNQ2759/PRO6714, CXCL16, C-X-C motif chemokine 16, Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein, Small-inducible cytokine B16, Transmembrane chemokine CXCL16, SR-PSOX, Follistatin, FS, Activin-binding protein, FST, CLG, MMP1, Interstitial collagenase, Fibroblast collagenase, Matrix metalloproteinase-1, MMP-1, Protransforming growth factor alpha, TGFA, NKSF1, IL12A, Interleukin-12 subunit alpha, IL-12A, Cytotoxic lymphocyte maturation factor 35 kDa subunit, IL-12 subunit p35, NK cell stimulatory factor chain 1, CLMF p35

2 Images
Multiplex Protein Detection - Human Angiogenesis Antibody Array B (30 Targets)- Quantitative (AB197421)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Angiogenesis Antibody Array B (30 Targets)- Quantitative (AB197421)

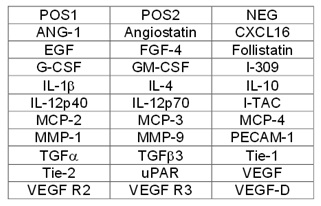

Array Map for Abcam Human Angiogenesis Antibody Array B (30 Targets) - Quantitative (ab197421)

Multiplex Protein Detection - Human Angiogenesis Antibody Array B (30 Targets)- Quantitative (AB197421)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Angiogenesis Antibody Array B (30 Targets)- Quantitative (AB197421)

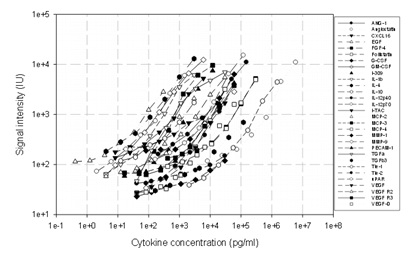

Standard Curves obtained from Abcam Human Angiogenesis Antibody Array B (30 Targets) - Quantitative (ab197421)

Key facts

Reacts with

Human

Target

ANG

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

Product details

ab197421 can be used for quantitative measurement of 30 Human Angiogenesis proteins. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.
Targets: ANG-1, Angiostatin, CXCL16, EGF, FGF-4, Follistatin, G-CSF, GM-CSF, I-309, IL-1β, IL-4, IL-10, IL-12p40, IL-12p70, I-TAC, MCP-2, MCP-3, MCP-4, MMP-1, MMP-9, PECAM-1, TGFα, TGFβ3, Tie-1, Tie-2, uPAR, VEGF, VEGF R2, VEGF R3, VEGF-D.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

What's included?

{ "values": { "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197421-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197421-CMP09" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197421-CMP02" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197421-CMP07" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197421-CMP01" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197421-CMP06" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197421-CMP08" }, { "size":"1 x 25 µL", "name":"Human Angiogenesis Array B (30 T) Biotinylated Antibody Cocktail", "number":"AB197421-CMP03" }, { "size":"1 x 1 Vial", "name":"Human Angiogenesis Array B (30 T) Lyophilized Cytokine Standard Mix", "number":"AB197421-CMP05" }, { "size":"1 x 1 Slide", "name":"Human Angiogenesis Array B (30 T) Glass Slide", "number":"AB197421-CMP04" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197421-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197421-CMP09" }, { "size":"2 x 1 Vial", "name":"Human Angiogenesis Array B (30 T) Lyophilized Cytokine Standard Mix", "number":"AB197421-CMP05" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197421-CMP06" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197421-CMP02" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197421-CMP01" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197421-CMP07" }, { "size":"4 x 25 µL", "name":"Human Angiogenesis Array B (30 T) Biotinylated Antibody Cocktail", "number":"AB197421-CMP03" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197421-CMP08" }, { "size":"4 x 1 Slide", "name":"Human Angiogenesis Array B (30 T) Glass Slide", "number":"AB197421-CMP04" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197421-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197421-CMP09", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197421-CMP07", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197421-CMP01", "productcode":"" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197421-CMP08", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Angiogenesis Array B (30 T) Lyophilized Cytokine Standard Mix", "number":"AB197421-CMP05", "productcode":"" }, { "size":"2 x 25 µL", "name":"Human Angiogenesis Array B (30 T) Biotinylated Antibody Cocktail", "number":"AB197421-CMP03", "productcode":"" }, { "size":"2 x 1 Slide", "name":"Human Angiogenesis Array B (30 T) Glass Slide", "number":"AB197421-CMP04", "productcode":"" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197421-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197421-CMP02", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Secreted ribonuclease that can either promote or restrict cell proliferation of target cells, depending on the context (PubMed : 12051708, PubMed : 1400510, PubMed : 19332886, PubMed : 20129916, PubMed : 21855800, PubMed : 23047679, PubMed : 23843625, PubMed : 2424496, PubMed : 2459697, PubMed : 2730651, PubMed : 27518564, PubMed : 28176817, PubMed : 29100074, PubMed : 29748193, PubMed : 3122207, PubMed : 32510170, PubMed : 38718836, PubMed : 8159680, PubMed : 8570639, PubMed : 8622921, PubMed : 9578571). Endocytosed in target cells via its receptor PLXNB2 and translocates to the cytoplasm or nucleus (PubMed : 29100074, PubMed : 32510170). Under stress conditions, localizes to the cytoplasm and promotes the assembly of stress granules (SGs) : specifically cleaves a subset of tRNAs within anticodon loops to produce tRNA-derived stress-induced fragments (tiRNAs), resulting in translation repression and inhibition of cell proliferation (PubMed : 1400510, PubMed : 19332886, PubMed : 20129916, PubMed : 21855800, PubMed : 23047679, PubMed : 27518564, PubMed : 29100074, PubMed : 29748193, PubMed : 32510170, PubMed : 38718836). tiRNas also prevent formation of apoptosome, thereby promoting cell survival (By similarity). Preferentially cleaves RNAs between a pyrimidine and an adenosine residue, suggesting that it cleaves the anticodon loop of tRNA(Ala) (32-UUAGCAU-38) after positions 33 and 36 (PubMed : 3289612, PubMed : 38718836). Cleaves a subset of tRNAs, including tRNA(Ala), tRNA(Glu), tRNA(Gly), tRNA(Lys), tRNA(Val), tRNA(His), tRNA(Asp) and tRNA(Sec) (PubMed : 31582561). Under growth conditions and in differentiated cells, translocates to the nucleus and stimulates ribosomal RNA (rRNA) transcription, including that containing the initiation site sequences of 45S rRNA, thereby promoting cell growth and proliferation (PubMed : 12051708, PubMed : 15735021, PubMed : 27518564, PubMed : 29100074, PubMed : 8127865). Angiogenin induces vascularization of normal and malignant tissues via its ability to promote rRNA transcription (PubMed : 19354288, PubMed : 4074709, PubMed : 8448182). Involved in hematopoietic stem and progenitor cell (HSPC) growth and survival by promoting rRNA transcription in growth conditions and inhibiting translation in response to stress, respectively (PubMed : 27518564). Mediates the crosstalk between myeloid and intestinal epithelial cells to protect the intestinal epithelial barrier integrity : secreted by myeloid cells and promotes intestinal epithelial cells proliferation and survival (PubMed : 32510170). Also mediates osteoclast-endothelial cell crosstalk in growing bone : produced by osteoclasts and protects the neighboring vascular cells against senescence by promoting rRNA transcription (By similarity).
See full target information ANG

Additional targets

PLG,CXCL16,EGF,FGF4,FST,CSF3,CSF2,CCL1,IL1B,IL10,IL12B,IL12A,IL4,CXCL11,CCL8,CCL7,CCL13,MMP1,PECAM1,Protransforming growth factor alpha,TGFB3,TIE1,TEK,PLAUR,VEGFA,VEGFD,KDR,FLT4
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
