AB197423

Human Bone Metabolism Antibody Array (31 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197423 can be used for quantitative measurement of 31 Human Bone Metabolism proteins.
2 Images
Multiplex Protein Detection - Human Bone Metabolism Antibody Array (31 Targets) - Quantitative (AB197423)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Bone Metabolism Antibody Array (31 Targets) - Quantitative (AB197423)

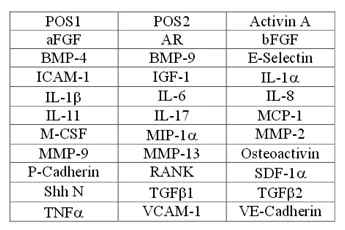

Array Map for Abcam Human Bone Metabolism Antibody Array (31 Targets) - Quantitative (ab197423).

Multiplex Protein Detection - Human Bone Metabolism Antibody Array (31 Targets) - Quantitative (AB197423)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Bone Metabolism Antibody Array (31 Targets) - Quantitative (AB197423)

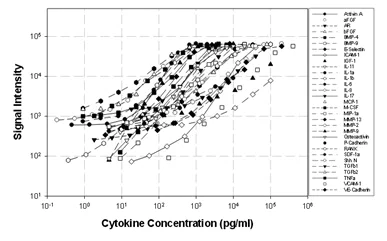

Standard Curve obtained using Abcam Human Bone Metabolism Antibody Array (31 Targets) - Quantitative (ab197423).

Key facts

Reacts with

Human

Target

Inhibin beta A chain

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

Product details

ab197423 can be used for quantitative measurement of 31 Human Bone Metabolism proteins. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.
Targets: Activin A, aFGF, AR, bFGF, BMP-4, BMP-9, E-Selectin, ICAM-1, IGF-1, IL-1α, IL-1β, IL-6, IL-8, IL-11, IL-17, MCP-1, M-CSF, MIP-1α, MMP-2, MMP-9, MMP-13, Osteoactivin, P-Cadherin, RANK, SDF-1α, ShhN, TGFβ1, TGFβ2, TNFα, VCAM-1, VE-Cadherin.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

What's included?

{ "values": { "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197423-50Test", "assetComponentDetails": [ { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197423-CMP07" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197423-CMP06" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197423-CMP01" }, { "size":"4 x 1 Slide", "name":"Human Bone Metabolism Array (31 T) Glass Slide", "number":"AB197423-CMP04" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197423-CMP02" }, { "size":"4 x 25 µL", "name":"Human Bone Metabolism Array (31 T) Biotinylated Antibody Cocktail", "number":"AB197423-CMP03" }, { "size":"2 x 1 Vial", "name":"Human Bone Metabolism Array (31 T) Lyophilized Cytokine Standard Mix", "number":"AB197423-CMP05" }, { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197423-CMP09" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197423-CMP08" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197423-22Test", "assetComponentDetails": [ { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197423-CMP01" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197423-CMP06" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197423-CMP07" }, { "size":"2 x 1 Slide", "name":"Human Bone Metabolism Array (31 T) Glass Slide", "number":"AB197423-CMP04" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197423-CMP02" }, { "size":"2 x 25 µL", "name":"Human Bone Metabolism Array (31 T) Biotinylated Antibody Cocktail", "number":"AB197423-CMP03" }, { "size":"1 x 1 Vial", "name":"Human Bone Metabolism Array (31 T) Lyophilized Cytokine Standard Mix", "number":"AB197423-CMP05" }, { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197423-CMP09" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197423-CMP08" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197423-8Test", "assetComponentDetails": [ { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197423-CMP01", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197423-CMP07", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Bone Metabolism Array (31 T) Glass Slide", "number":"AB197423-CMP04", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197423-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197423-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Bone Metabolism Array (31 T) Lyophilized Cytokine Standard Mix", "number":"AB197423-CMP05", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Bone Metabolism Array (31 T) Biotinylated Antibody Cocktail", "number":"AB197423-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197423-CMP09", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197423-CMP08", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Inhibins/activins are involved in regulating a number of diverse functions such as hypothalamic and pituitary hormone secretion, gonadal hormone secretion, germ cell development and maturation, erythroid differentiation, insulin secretion, nerve cell survival, embryonic axial development or bone growth, depending on their subunit composition.. Activin A is a homodimer of INHBA that plays a role in several essential biological processes including embryonic development, stem cell maintenance and differentiation, haematopoiesis, cell proliferation and tissue fibrosis (PubMed : 3194407, PubMed : 16440334). Signals through type I (such as ACVR1B or ACVR1C) and type II receptors (such as ACVR2A, ACVR2B or BMPR2) which, upon ligand binding, phosphorylate SMAD2 and SMAD3 intracellular signaling mediators that form a complex with SMAD4, translocate to the nucleus and modulate gene expression (PubMed : 10652306, PubMed : 24018044). Can also activate alternative non-canonical intracellular signaling pathways including the p38 MAPK, extracellular signal-regulated kinases 1/2 (ERK1/2) and c-Jun N-terminal kinases (JNKs) to modulate cell migration and differentiation (PubMed : 16440334). Alternatively, promotes osteoblastic differentiation via ACVRL1-SMAD1/5/9 pathway (PubMed : 34948289). In addition, can engage the type I receptor ACVR1 to form an ACVR1-activin A-type II receptor non-signaling complex (NSC) that renders receptors unavailable for engagement with BMPs, hence resulting in an apparent inhibition of ACVR1-mediated BMP signaling (PubMed : 26333933).. Inhibin A is a dimer of alpha/INHA and beta-A/INHBA that functions as a feedback regulator in the hypothalamic-pituitary-gonadal (HPG) axis. Inhibits the secretion of FSH from the anterior pituitary gland by acting on pituitary gonadotrope cells. Antagonizes activin A by binding to the proteoglycan, betaglycan, and forming a stable complex with and, thereby, sequestering type II activin receptors while excluding type I receptor.
See full target information Inhibin beta A chain

Additional targets

FGF1,AREG,FGF2,BMP4,GDF2,SELE,ICAM1,IGF1,IL1A,IL1B,IL11,IL17A,IL6,CXCL8,CCL2,CSF1,CCL3,MMP13,MMP2,GPNMB,CDH3,TNFRSF11A,CXCL12,SHH,TGFB1,TGFB2,TNF,VCAM1,CDH5

Alternative Names

Inhibin beta A chain, Activin beta-A chain, Erythroid differentiation protein, EDF, INHBA, MCP1, SCYA2, CCL2, C-C motif chemokine 2, HC11, Monocyte chemoattractant protein 1, Monocyte chemotactic and activating factor, Monocyte chemotactic protein 1, Monocyte secretory protein JE, Small-inducible cytokine A2, MCAF, MCP-1, CDHP, CDH3, Cadherin-3, Placental cadherin, P-cadherin, IFNB2, IL6, Interleukin-6, IL-6, B-cell stimulatory factor 2, CTL differentiation factor, Hybridoma growth factor, Interferon beta-2, BSF-2, CDF, IFN-beta-2, FGFB, FGF2, Fibroblast growth factor 2, FGF-2, Basic fibroblast growth factor, Heparin-binding growth factor 2, bFGF, HBGF-2, Sonic hedgehog protein, SHH, HHG-1, Shh unprocessed N-terminal signaling and C-terminal autoprocessing domains, ShhNC, CD62E, ELAM1, SELE, E-selectin, CD62 antigen-like family member E, Endothelial leukocyte adhesion molecule 1, Leukocyte-endothelial cell adhesion molecule 2, ELAM-1, LECAM2, Macrophage colony-stimulating factor 1, CSF-1, M-CSF, MCSF, Lanimostim, Proteoglycan macrophage colony-stimulating factor, PG-M-CSF, CSF1, Interleukin-11, IL-11, Adipogenesis inhibitory factor, AGIF, IL11, IL 11, Interleukin 11, Transforming growth factor beta-2 proprotein, Cetermin, Glioblastoma-derived T-cell suppressor factor, G-TSF, TGFB2, TGFB, TGFB1, Transforming growth factor beta-1 proprotein, CLG4A, MMP2, 72 kDa type IV collagenase, 72 kDa gelatinase, Gelatinase A, Matrix metalloproteinase-2, TBE-1, MMP-2, CTLA8, IL17, IL17A, Interleukin-17A, IL-17, IL-17A, Cytotoxic T-lymphocyte-associated antigen 8, CTLA-8, BMP9, GDF2, Growth/differentiation factor 2, GDF-2, Bone morphogenetic protein 9, BMP-9, CD265, RANK, TNFRSF11A, Tumor necrosis factor receptor superfamily member 11A, Osteoclast differentiation factor receptor, Receptor activator of NF-KB, ODFR, IL1F2, IL1B, Interleukin-1 beta, IL-1 beta, Catabolin, TNFA, TNFSF2, TNF, Tumor necrosis factor, Cachectin, TNF-alpha, Tumor necrosis factor ligand superfamily member 2, TNF-a, G0S19-1, MIP1A, SCYA3, CCL3, C-C motif chemokine 3, G0/G1 switch regulatory protein 19-1, Macrophage inflammatory protein 1-alpha, PAT 464.1, SIS-beta, Small-inducible cytokine A3, Tonsillar lymphocyte LD78 alpha protein, MIP-1-alpha, Collagenase 3, Matrix metalloproteinase-13, MMP-13, MMP13, AREGB, SDGF, AREG, Amphiregulin, AR, Colorectum cell-derived growth factor, CRDGF, BMP2B, DVR4, BMP4, Bone morphogenetic protein 4, BMP-4, Bone morphogenetic protein 2B, BMP-2B, CD54, Intercellular adhesion molecule 1, ICAM-1, Major group rhinovirus receptor, ICAM1, IBP1, IGF-1, IGF1, Insulin-like growth factor 1, Insulin-like growth factor I, Mechano growth factor, Somatomedin-C, IGF-I, MGF, IL1F1, IL1A, Interleukin-1 alpha, IL-1 alpha, Hematopoietin-1, IL8, CXCL8, Interleukin-8, IL-8, C-X-C motif chemokine 8, Chemokine (C-X-C motif) ligand 8, Emoctakin, Granulocyte chemotactic protein 1, Monocyte-derived neutrophil chemotactic factor, Monocyte-derived neutrophil-activating peptide, Neutrophil-activating protein 1, Protein 3-10C, T-cell chemotactic factor, GCP-1, MDNCF, MONAP, NAP-1, SDF1, SDF1A, SDF1B, CXCL12, Stromal cell-derived factor 1, SDF-1, hSDF-1, C-X-C motif chemokine 12, Intercrine reduced in hepatomas, Pre-B cell growth-stimulating factor, IRH, hIRH, PBSF, CD144, Cadherin-5, 7B4 antigen, Vascular endothelial cadherin, VE-cadherin, CDH5, CD106, Vascular cell adhesion protein 1, V-CAM 1, VCAM-1, INCAM-100, VCAM1, HGFIN, NMB, UNQ1725/PRO9925, GPNMB, Transmembrane glycoprotein NMB, Hematopoietic growth factor inducible neurokinin-1 type, FGFA, FGF1, Fibroblast growth factor 1, FGF-1, Acidic fibroblast growth factor, Endothelial cell growth factor, Heparin-binding growth factor 1, aFGF, ECGF, HBGF-1
