AB197435

Human Chemokine Antibody Array (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197435 can be used for quantitative measurement of 40 Human cytokines.

View Alternative Names

SCYA21, UNQ784/PRO1600, CCL21, C-C motif chemokine 21, 6Ckine, Beta-chemokine exodus-2, Secondary lymphoid-tissue chemokine, Small-inducible cytokine A21, SLC

3 Images
Multiplex Protein Detection - Human Chemokine Antibody Array (40 Targets) - Quantitative (AB197435)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Chemokine Antibody Array (40 Targets) - Quantitative (AB197435)

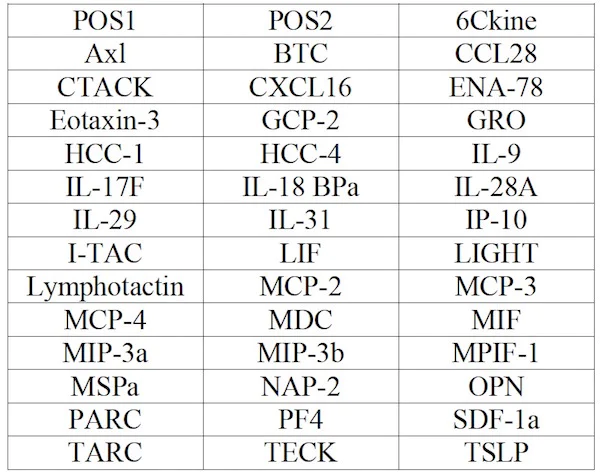

Array map for Abcam Human Chemokine Antibody Array (40 Targets) - Quantitative (ab197435).

Multiplex Protein Detection - Human Chemokine Antibody Array (40 Targets) - Quantitative (AB197435)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Chemokine Antibody Array (40 Targets) - Quantitative (AB197435)

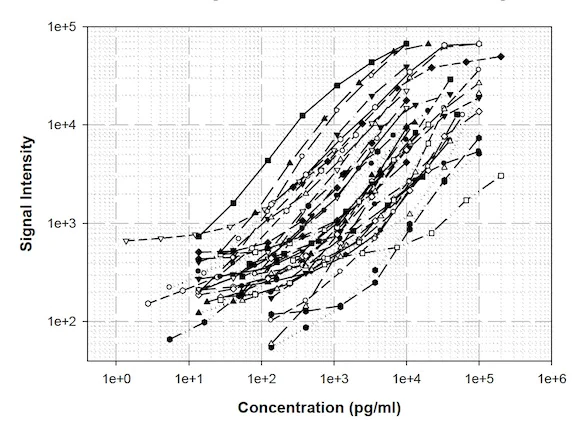

Standard Curves obtained using Abcam Human Chemokine Antibody Array (40 Targets) - Quantitative (ab197435).

Multiplex Protein Detection - Human Chemokine Antibody Array (40 Targets) - Quantitative (AB197435)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Chemokine Antibody Array (40 Targets) - Quantitative (AB197435)

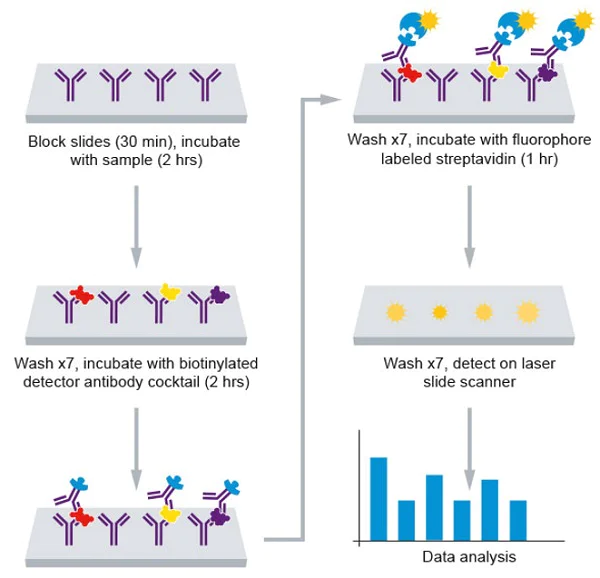

Assay summary for Abcam Human Chemokine Antibody Array (40 Targets) - Quantitative (ab197435).

Key facts

Assay type

Quantitative

Reacts with

Human

Target

CCL21

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style
left-column

Product details

ab197435 can be used for quantitative measurement of 40 Human cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.

Target names: 6Ckine, Axl, BTC, CCL28, CTACK, CXCL16, ENA-78, Eotaxin-3, GCP-2, GRO, HCC-1, HCC-4, IL-9, IL-17F, IL-18 BPa, IL-28A, IL-29, IL-31, IP-10, I-TAC, LIF, LIGHT, Lymphotactin, MCP-2, MCP-3, MCP-4, MDC, MIF, MIP-3α, MIP-3β, MPIF-1, MSPα, NAP-2, OPN, PARC, PF4, SDF-1α, TARC, TECK, TSLP.

The analytes measured by this kit are split across a single array on the same slide, provided in the kit.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array.Each antibody is spotted in quadruplicate on each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate (not supplied), allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners (see scanner requirements at ). If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. See below for a schematic protocol, the fluorophore is a dye with equivalent to excitation/ emission to Cy3. The standard is affinity purified.

style
left-column

What's included?

{ "values": { "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197435-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197435-CMP09" }, { "size":"1 x 1 Vial", "name":"Human Chemokine Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197435-CMP05" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197435-CMP08" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197435-CMP02" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197435-CMP06" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197435-CMP01" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197435-CMP07" }, { "size":"1 x 25 µL", "name":"Human Chemokine Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197435-CMP03" }, { "size":"1 x 1 Slide", "name":"Human Chemokine Array (40 T) Glass Slide", "number":"AB197435-CMP04" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197435-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197435-CMP09" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197435-CMP08" }, { "size":"1 x 1 Vial", "name":"Human Chemokine Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197435-CMP05" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197435-CMP06" }, { "size":"2 x 25 µL", "name":"Human Chemokine Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197435-CMP03" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197435-CMP02" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197435-CMP07" }, { "size":"2 x 1 Slide", "name":"Human Chemokine Array (40 T) Glass Slide", "number":"AB197435-CMP04" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197435-CMP01" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197435-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197435-CMP09", "productcode":"" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197435-CMP01", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197435-CMP07", "productcode":"" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197435-CMP06", "productcode":"" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197435-CMP08", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Human Chemokine Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197435-CMP05", "productcode":"" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197435-CMP02", "productcode":"" }, { "size":"4 x 1 Slide", "name":"Human Chemokine Array (40 T) Glass Slide", "number":"AB197435-CMP04", "productcode":"" }, { "size":"4 x 25 µL", "name":"Human Chemokine Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197435-CMP03", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Inhibits hemopoiesis and stimulates chemotaxis. Chemotactic in vitro for thymocytes and activated T-cells, but not for B-cells, macrophages, or neutrophils. Shows preferential activity towards naive T-cells. May play a role in mediating homing of lymphocytes to secondary lymphoid organs. Binds to atypical chemokine receptor ACKR4 and mediates the recruitment of beta-arrestin (ARRB1/2) to ACKR4.
See full target information CCL21

Additional targets

AXL,Probetacellulin,CCL28,CCL27,CXCL16,CXCL5,CCL26,CXCL6,CXCL3,CCL14,CCL16,IL17F,Interleukin-18-binding protein,IFNL2,IFNL1,IL31,IL9,CXCL10,CXCL11,LIF,TNFSF14,XCL1,CCL8,CCL7,CCL13,CCL22,MIF,CCL20,CCL19,CCL23,MST1,PPBP,SPP1,CCL18,PF4,CXCL12,CCL17,CCL25,TSLP
