AB197428

Human Cytokine Antibody Array (200 Targets) - Quantitative

Name: Human Cytokine Antibody Array (200 Targets) - Quantitative (ab197428) | Abcam
Brand: Abcam Limited
SKU: AB197428
Price: 9630 USD
Availability: InStock

Be the first to review this product! Submit a review

(0 Publication)

ab197428 can be used for quantitative measurement of 200 Human cytokines.

View Alternative Names

CD137, ILA, TNFRSF9, Tumor necrosis factor receptor superfamily member 9, 4-1BB ligand receptor, CDw137, T-cell antigen 4-1BB homolog, T-cell antigen ILA

1 Images

Multiplex Protein Detection - Human Cytokine Antibody Array (200 Targets) - Quantitative (AB197428)

Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Cytokine Antibody Array (200 Targets) - Quantitative (AB197428)

Assay summary for Abcam Human Cytokine Antibody Array (200 Targets) - Quantitative (ab197428).

Key facts

Assay type

Quantitative

Reacts with

Human

Target

TNFRSF9

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style

left-column

Product details

ab197428 can be used for quantitative measurement of 200 Human cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.

Target names: BLC, Eotaxin, Eotaxin-2, G-CSF, GM-CSF, I-309, ICAM-1, IFNγ, IL-1α, IL-1β, IL-1ra, IL-2, IL-4, IL-5, IL-6, IL-6 sR, IL-7, IL-8, IL-10, IL-11, IL-12p40, IL-12p70, IL-13, IL-15, IL-16, IL-17, MCP-1, M-CSF, MIG, MIP-1α, MIP-1β, MIP-1δ, PDGF-BB, RANTES, TIMP-1, TIMP-2, TNFα, TNFβ, TNF sRI, TNF sRII.

AR, BDNF, bFGF, BMP-4, BMP-5, BMP-7, β-NGF, EGF, EGF R, EG-VEGF, FGF-4, FGF-7, GDF-15, GDNF, GH, HB-EGF, HGF, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-6, IGF-I, Insulin, MCSF R, NGF R, NT-3, NT-4, OPG, PDGF-AA, PIGF, SCF, SCF R, TGFα, TGFβ1, TGFβ3, VEGF, VEGF R2, VEGF R3, VEGF-D.

6Ckine, Axl, BTC, CCL28, CTACK, CXCL16, ENA-78, Eotaxin-3, GCP-2, GRO, HCC-1, HCC-4, IL-9, IL-17F, IL-18 BPa, IL-28A, IL-29, IL-31, IP-10, I-TAC, LIF, LIGHT, Lymphotactin, MCP-2, MCP-3, MCP-4, MDC, MIF, MIP-3α, MIP-3β, MPIF-1, MSPα, NAP-2, OPN, PARC, PF4, SDF-1α, TARC, TECK, TSLP.

4-1BB, ALCAM, B7-1, BCMA, CD14, CD30, CD40L, CEACAM-1, DR6, Dtk, Endoglin, ErbB3, E-Selectin, Fas, Flt-3L, GITR, HVEM, ICAM-3, IL-1 R4, IL-1 RI, IL-10 Rβ, IL-17R, IL-2Rγ, IL-21R, LIMPII, Lipocalin-2, L-Selectin, LYVE-1, MICA, MICB, NRG1-β1, PDGF Rβ, PECAM-1, RAGE, TIM-1, TRAIL R3, Trappin-2, uPAR, VCAM-1, XEDAR.

Activin A, AgRP, Angiogenin, ANG-1, Angiostatin, Cathepsin S, CD40, Cripto-1, DAN, DKK-1, E-Cadherin, EpCAM, Fas L, Fcγ RIIB/C, Follistatin, Galectin-7, ICAM-2, IL-13 R1, IL-13R2, IL-17B, IL-2 Rα, IL-2 Rβ, IL-23, LAP, NrCAM, PAI-1, PDGF-AB, Resistin, SDF-1β, sgp130, Shh N, Siglec-5, ST2, TGF-β2, Tie-2, TPO, TRAIL R4, TREM-1, VEGF-C, VEGF R1.

The analytes measured by this kit are split across five different arrays on different slides, all of which are provided in the kit.

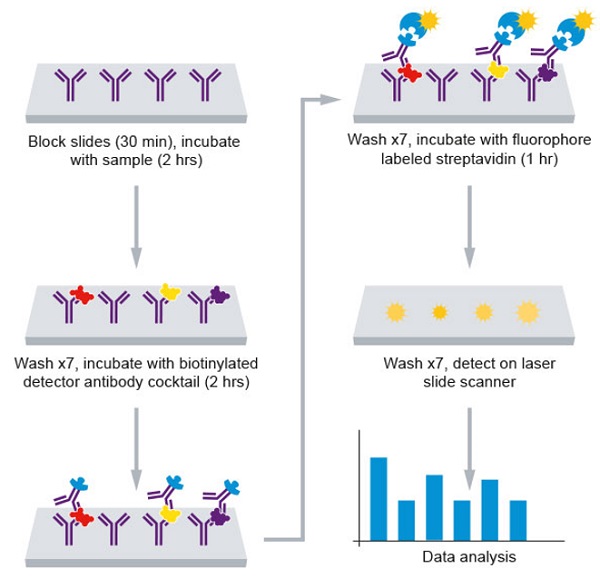

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array.Each antibody is spotted in quadruplicate on each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate (not supplied), allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified.

style

left-column

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197428-22Test", "assetComponentDetails": [ { "size":"10 x 1 Unit", "name":"Adhesive Film", "number":"AB197428-CMP21" }, { "size":"2 x 25 µL", "name":"Human Cytokine Array A (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP12" }, { "size":"2 x 25 µL", "name":"Human Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP15" }, { "size":"2 x 1 Slide", "name":"Human Growth Factor Array (40 T) Glass Slide", "number":"AB197428-CMP02" }, { "size":"15 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197428-CMP18" }, { "size":"1 x 1 Vial", "name":"Human Receptor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP08" }, { "size":"5 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197428-CMP19" }, { "size":"2 x 1 Slide", "name":"Human Receptor Array (40 T) Glass Slide", "number":"AB197428-CMP07" }, { "size":"5 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197428-CMP05" }, { "size":"2 x 1 Slide", "name":"Human Inflammation Array (40 T) Glass Slide", "number":"AB197428-CMP16" }, { "size":"2 x 1 Slide", "name":"Human Chemokine Array (40 T) Glass Slide", "number":"AB197428-CMP10" }, { "size":"5 x 15 mL", "name":"Sample Diluent", "number":"AB197428-CMP04" }, { "size":"2 x 25 µL", "name":"Human Receptor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP06" }, { "size":"2 x 25 µL", "name":"Human Chemokine Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP09" }, { "size":"10 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197428-CMP20" }, { "size":"1 x 1 Vial", "name":"Human Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP17" }, { "size":"1 x 1 Vial", "name":"Human Chemokine Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP11" }, { "size":"1 x 1 Vial", "name":"Human Cytokine Array A (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP14" }, { "size":"1 x 1 Vial", "name":"Human Growth Factor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP03" }, { "size":"2 x 25 µL", "name":"Human Growth Factor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP01" }, { "size":"2 x 1 Slide", "name":"Human Cytokine Array A (40 T) Glass Slide", "number":"AB197428-CMP13" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197428-50Test", "assetComponentDetails": [ { "size":"20 x 1 Unit", "name":"Adhesive Film", "number":"AB197428-CMP21" }, { "size":"4 x 25 µL", "name":"Human Growth Factor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP01" }, { "size":"4 x 25 µL", "name":"Human Cytokine Array A (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP12" }, { "size":"4 x 1 Slide", "name":"Human Receptor Array (40 T) Glass Slide", "number":"AB197428-CMP07" }, { "size":"10 x 15 mL", "name":"Sample Diluent", "number":"AB197428-CMP04" }, { "size":"4 x 25 µL", "name":"Human Chemokine Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP09" }, { "size":"4 x 1 Slide", "name":"Human Cytokine Array A (40 T) Glass Slide", "number":"AB197428-CMP13" }, { "size":"4 x 1 Slide", "name":"Human Growth Factor Array (40 T) Glass Slide", "number":"AB197428-CMP02" }, { "size":"2 x 1 Vial", "name":"Human Chemokine Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP11" }, { "size":"4 x 1 Slide", "name":"Human Inflammation Array (40 T) Glass Slide", "number":"AB197428-CMP16" }, { "size":"4 x 25 µL", "name":"Human Receptor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP06" }, { "size":"4 x 25 µL", "name":"Human Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP15" }, { "size":"20 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197428-CMP20" }, { "size":"2 x 1 Vial", "name":"Human Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP17" }, { "size":"4 x 1 Slide", "name":"Human Chemokine Array (40 T) Glass Slide", "number":"AB197428-CMP10" }, { "size":"2 x 1 Vial", "name":"Human Receptor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP08" }, { "size":"2 x 1 Vial", "name":"Human Cytokine Array A (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP14" }, { "size":"10 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197428-CMP05" }, { "size":"10 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197428-CMP19" }, { "size":"30 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197428-CMP18" }, { "size":"2 x 1 Vial", "name":"Human Growth Factor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP03" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197428-8Test", "assetComponentDetails": [ { "size":"5 x 1 Unit", "name":"Adhesive Film", "number":"AB197428-CMP21", "productcode":"" }, { "size":"5 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197428-CMP05", "productcode":"" }, { "size":"5 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197428-CMP19", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Chemokine Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP09", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Growth Factor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP01", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP15", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Chemokine Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP11", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Receptor Array (40 T) Glass Slide", "number":"AB197428-CMP07", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Inflammation Array (40 T) Glass Slide", "number":"AB197428-CMP16", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Chemokine Array (40 T) Glass Slide", "number":"AB197428-CMP10", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Cytokine Array A (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP14", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Cytokine Array A (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP12", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Receptor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP08", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP17", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Cytokine Array A (40 T) Glass Slide", "number":"AB197428-CMP13", "productcode":"" }, { "size":"5 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197428-CMP20", "productcode":"" }, { "size":"10 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197428-CMP18", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Receptor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197428-CMP06", "productcode":"" }, { "size":"5 x 15 mL", "name":"Sample Diluent", "number":"AB197428-CMP04", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Growth Factor Array (40 T) Glass Slide", "number":"AB197428-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Growth Factor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197428-CMP03", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

-20°C

Appropriate long-term storage conditions

-20°C

Storage information

-20°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Receptor for TNFSF9/4-1BBL. Conveys a signal that enhances CD8(+) T-cell survival, cytotoxicity, and mitochondrial activity, thereby promoting immunity against viruses and tumors (Probable).

See full target information TNFRSF9

Additional targets

CCL21,Inhibin beta A chain,AGRP,ALCAM,AREG,ANG,ANGPT1,PLG,AXL,TNFRSF17,BDNF,Probetacellulin,NGF,FGF2,CXCL13,BMP4,Bone morphogenetic protein 5,BMP7,CTSS,CCL28,CD14,TNFRSF8,CD40,CD40LG,CD80,CEACAM1,CNTN2,CRIPTO,CCL27,CXCL16,CXCL5,PARN,DKK1,TNFRSF21,CDH1,EGF,EGFR,PROK1,ENG,CCL11,CCL24,CCL26,ERBB3,SELE,FAS,FASLG,,FGF4,FGF7,FLT3LG,FST,LGALS7,CXCL6,CSF3,GDF15,GDNF,TNFRSF18,CSF2,IL6ST,CXCL3,GH1,HBEGF,CCL14,CCL16,HGF,TNFRSF14,CCL1,ICAM1,ICAM2,ICAM3,IFNG,IGF1,IGFBP1,IGFBP2,IGFBP3,IGFBP4,IGFBP6,IL1A,IL1B,IL1R1,IL1RL1,IL1RN,IL10,IL10RB,IL11,IL12B,IL12A,IL13,IL13RA1,IL13RA2,IL15,IL16,IL17RA,IL17A,IL17B,IL17F,Interleukin-18-binding protein,IL2,IL2RA,IL2RB,IL2RG,IL21R,IL12B,IFNL2,IFNL1,IL31,IL4,IL5,IL6,IL6R,IL7,CXCL8,IL9,INS,CXCL10,CXCL11,TGFB1,LIF,TNFSF14,SCARB2,LCN2,SELL,XCL1,LYVE1,CCL2,CCL8,CCL7,CCL13,CSF1,CSF1R,CCL22,MICA,MICB,MIF,CXCL9,CCL3,CCL4,CCL15,CCL20,CCL19,CCL23,MST1,PPBP,NGFR,NRCAM,NRG1,NTF3,NTF4,SPP1,TNFRSF11B,SERPINE1,CCL18,PDGFRB,PDGFA,PDGFB,PDGFB,PECAM1,PF4,PGF,MOK,CCL5,RETN,KITLG,KIT,CXCL12,CXCL12,SIGLEC5,SHH,CCL17,CCL25,Protransforming growth factor alpha,TGFB1,TGFB2,TGFB3,THPO,TEK,HAVCR1,TIMP1,TIMP2,TNF,LTA,TNFRSF1A,TNFRSF1B,TNFRSF10C,TNFRSF10D,PI3,TREM1,EPCAM,TSLP,PLAUR,VCAM1,VEGFA,VEGFC,VEGFD,FLT1,KDR,FLT4,EDA2R

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
