AB197439

Human Cytokine Antibody Array B (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197439 can be used for quantitative measurement of 40 Human cytokines.

View Alternative Names

CDABP0092, HDCMA22P, B2M, Beta-2-microglobulin, Prolactin, PRL, CA125, MUC16, Mucin-16, MUC-16, Ovarian cancer-related tumor marker CA125, Ovarian carcinoma antigen CA125, CA-125, CD56, NCAM, NCAM1, Neural cell adhesion molecule 1, N-CAM-1, NCAM-1, FTH, FTHL6, OK/SW-cl.84, PIG15, FTH1, Ferritin heavy chain, Ferritin H subunit, Cell proliferation-inducing gene 15 protein, APS, KLK3, Prostate-specific antigen, PSA, Gamma-seminoprotein, Kallikrein-3, P-30 antigen, Semenogelase, Seminin, CD340, HER2, MLN19, NEU, NGL, ERBB2, Receptor tyrosine-protein kinase erbB-2, Metastatic lymph node gene 19 protein, Proto-oncogene Neu, Proto-oncogene c-ErbB-2, Tyrosine kinase-type cell surface receptor HER2, p185erbB2, MLN 19, CD221, Insulin-like growth factor 1 receptor, Insulin-like growth factor I receptor, IGF-I receptor, IGF1R, CD66e, CEA, CEACAM5, Cell adhesion molecule CEACAM5, Carcinoembryonic antigen, Carcinoembryonic antigen-related cell adhesion molecule 5, Meconium antigen 100, CEA cell adhesion molecule 5, CD329, UNQ668/PRO1302, SIGLEC9, Sialic acid-binding Ig-like lectin 9, Siglec-9, CDw329, Protein FOAP-9, CD227, PUM, MUC1, Mucin-1, MUC-1, Breast carcinoma-associated antigen DF3, Cancer antigen 15-3, Carcinoma-associated mucin, Episialin, H23AG, Krebs von den Lungen-6, PEMT, Peanut-reactive urinary mucin, Polymorphic epithelial mucin, Tumor-associated epithelial membrane antigen, Tumor-associated mucin, CA 15-3, KL-6, PEM, EMA, CALC1, CALCA, Calcitonin, CLG4A, MMP2, 72 kDa type IV collagenase, 72 kDa gelatinase, Gelatinase A, Matrix metalloproteinase-2, TBE-1, MMP-2, CD121b, IL1RB, IL1R2, Interleukin-1 receptor type 2, IL-1R-2, IL-1RT-2, IL-1RT2, CD121 antigen-like family member B, CDw121b, IL-1 type II receptor, Interleukin-1 receptor beta, Interleukin-1 receptor type II, IL-1R-beta, CGB, CGB5, CGB8, CGB3, Choriogonadotropin subunit beta 3, Choriogonadotropin subunit beta, Chorionic gonadotropin chain beta, CG-beta, CD239, LU, MSK19, BCAM, Basal cell adhesion molecule, Auberger B antigen, B-CAM cell surface glycoprotein, F8/G253 antigen, Lutheran antigen, Lutheran blood group glycoprotein, PTX1, CRP, C-reactive protein, Metalloproteinase inhibitor 4, Tissue inhibitor of metalloproteinases 4, TIMP-4, TIMP4, Interleukin-3, IL-3, Hematopoietic growth factor, Mast cell growth factor, Multipotential colony-stimulating factor, P-cell-stimulating factor, MCGF, IL3, CD156b, CSVP, TACE, ADAM17, Disintegrin and metalloproteinase domain-containing protein 17, ADAM 17, Snake venom-like protease, TNF-alpha convertase, TNF-alpha-converting enzyme, STMY1, MMP3, Stromelysin-1, SL-1, Matrix metalloproteinase-3, Transin-1, MMP-3, Interleukin-21, IL-21, Za11, IL21, Gamma-enolase, 2-phospho-D-glycerate hydro-lyase, Enolase 2, Neural enolase, Neuron-specific enolase, NSE, ENO2, Collagenase 3, Matrix metalloproteinase-13, MMP-13, MMP13, GRO, GRO1, GROA, MGSA, SCYB1, CXCL1, Growth-regulated alpha protein, C-X-C motif chemokine 1, GRO-alpha(1-73), Melanoma growth stimulatory activity, Neutrophil-activating protein 3, NAP-3, OB, OBS, LEP, Leptin, Obese protein, Obesity factor, Oncostatin-M, OSM, ARP4, HFARP, PGAR, PP1158, PSEC0166, UNQ171/PRO197, ANGPTL4, Angiopoietin-related protein 4, Angiopoietin-like protein 4, Hepatic fibrinogen/angiopoietin-related protein, CLG, MMP1, Interstitial collagenase, Fibroblast collagenase, Matrix metalloproteinase-1, MMP-1, HPAFP, AFP, Alpha-fetoprotein, Alpha-1-fetoprotein, Alpha-fetoglobulin, CLG1, MMP8, Neutrophil collagenase, Matrix metalloproteinase-8, PMNL collagenase, MMP-8, PMNL-CL, CD218b, IL1R7, IL18RAP, Interleukin-18 receptor accessory protein, IL-18 receptor accessory protein, IL-18RAcP, Accessory protein-like, CD218 antigen-like family member B, CDw218b, IL-1R accessory protein-like, Interleukin-1 receptor 7, Interleukin-18 receptor accessory protein-like, Interleukin-18 receptor beta, AcPL, IL-1RAcPL, IL-1R-7, IL-1R7, IL-18R-beta, IL-18Rbeta, NID, NID1, Nidogen-1, NID-1, Entactin, STMY2, MMP10, Stromelysin-2, SL-2, Matrix metalloproteinase-10, Transin-2, MMP-10, Glycoprotein hormones alpha chain, Anterior pituitary glycoprotein hormones common subunit alpha, Choriogonadotropin alpha chain, Chorionic gonadotrophin subunit alpha, Follicle-stimulating hormone alpha chain, Follitropin alpha chain, Luteinizing hormone alpha chain, Lutropin alpha chain, Thyroid-stimulating hormone alpha chain, Thyrotropin alpha chain, CG-alpha, FSH-alpha, LSH-alpha, TSH-alpha, CGA, Thyroglobulin, Tg, TG

3 Images
Multiplex Protein Detection - Human Cytokine Antibody Array B (40 Targets) - Quantitative (AB197439)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Cytokine Antibody Array B (40 Targets) - Quantitative (AB197439)

Array map for Abcam Human Cytokine Antibody Array B (40 Targets) - Quantitative (ab197439).

Multiplex Protein Detection - Human Cytokine Antibody Array B (40 Targets) - Quantitative (AB197439)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Cytokine Antibody Array B (40 Targets) - Quantitative (AB197439)

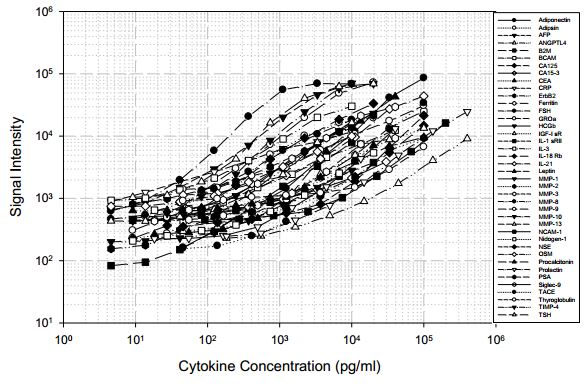

Standard Curve obtained using Abcam Human Cytokine Antibody Array B (40 Targets) - Quantitative (ab197439).

Multiplex Protein Detection - Human Cytokine Antibody Array B (40 Targets) - Quantitative (AB197439)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Cytokine Antibody Array B (40 Targets) - Quantitative (AB197439)

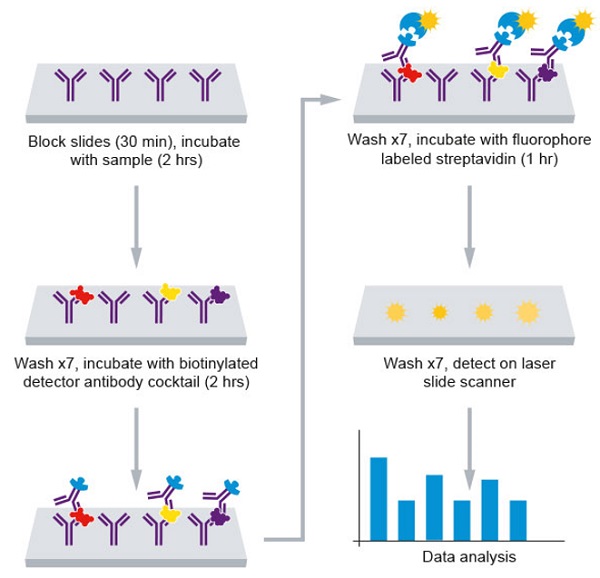

Assay summary for Abcam Human Cytokine Antibody Array B (40 Targets) - Quantitative (ab197439).

Key facts

Reacts with

Human

Target

B2M

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

Product details

ab197439 can be used for quantitative measurement of 40 Human cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.

Targets names: Adiponectin, Adipsin, AFP, ANGPTL4, B2M, BCAM, CA125, CA15-3, CEA, CRP, ErbB2, Ferritin, FSH, GROα, HCGβ, IGF-1 SR, IL-1 sRII, IL-3, IL-18 Rβ, IL-21, Leptin, MMP-1, MMP-2, MMP-3, MMP-8, MMP-9, MMP-10, MMP-13, NCAM-1, Nidogen-1, NSE, OSM, Procalcitonin, Prolactin, PSA, Siglec-9, TACE, Thyroglobulin, TIMP-4, TSH.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified.

What's included?

{ "values": { "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197439-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197439-CMP09" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197439-CMP07" }, { "size":"2 x 1 Vial", "name":"Human Cytokine Array B (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197439-CMP05" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197439-CMP06" }, { "size":"4 x 1 Slide", "name":"Human Cytokine Array B (40 T) Glass Slide", "number":"AB197439-CMP04" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197439-CMP08" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197439-CMP01" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197439-CMP02" }, { "size":"4 x 25 µL", "name":"Human Cytokine Array B (40 T) Biotinylated Antibody Cocktail", "number":"AB197439-CMP03" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197439-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197439-CMP09" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197439-CMP08" }, { "size":"1 x 1 Vial", "name":"Human Cytokine Array B (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197439-CMP05" }, { "size":"1 x 25 µL", "name":"Human Cytokine Array B (40 T) Biotinylated Antibody Cocktail", "number":"AB197439-CMP03" }, { "size":"1 x 1 Slide", "name":"Human Cytokine Array B (40 T) Glass Slide", "number":"AB197439-CMP04" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197439-CMP01" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197439-CMP07" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197439-CMP06" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197439-CMP02" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197439-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197439-CMP09", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197439-CMP01", "productcode":"" }, { "size":"2 x 25 µL", "name":"Human Cytokine Array B (40 T) Biotinylated Antibody Cocktail", "number":"AB197439-CMP03", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Cytokine Array B (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197439-CMP05", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197439-CMP02", "productcode":"" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197439-CMP08", "productcode":"" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197439-CMP06", "productcode":"" }, { "size":"2 x 1 Slide", "name":"Human Cytokine Array B (40 T) Glass Slide", "number":"AB197439-CMP04", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197439-CMP07", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Component of the class I major histocompatibility complex (MHC). Involved in the presentation of peptide antigens to the immune system. Exogenously applied M.tuberculosis EsxA or EsxA-EsxB (or EsxA expressed in host) binds B2M and decreases its export to the cell surface (total protein levels do not change), probably leading to defects in class I antigen presentation (PubMed : 25356553).
See full target information B2M

Additional targets

AFP,ANGPTL4,CGA,CXCL1,CGB3,IGF1R,IL1R2,IL18RAP,IL21,IL3,LEP,MMP1,BCAM,MMP10,MMP13,MMP2,MMP3,MMP8,NCAM1,NID1,ENO2,OSM,CALCA,PRL,KLK3,SIGLEC9,ADAM17,Thyroglobulin,Metalloproteinase inhibitor 4,MUC16,MUC1,CEACAM5,CRP,ERBB2,FTH1
