AB193656

Human Cytokine Antibody Array - Membrane (120 Targets)

Name: Human Cytokine Antibody Array - Membrane (120 Targets) (ab193656) | Abcam
Brand: Abcam Limited
SKU: AB193656
Price: 1070 USD
Availability: InStock

Be the first to review this product! Submit a review

(10 Publications)

Human Cytokine Antibody Array - Membrane (120 Targets) ab193656 is a membrane based multiplex immunoassay for the simultaneous detection of 120 human cytokines in all sample types.

- More data, less sample: screen multiple cytokines with the same sample
- Global view of cytokine expression
- Chemiluminescent detection - no specific equipment required
- Highly sensitive (pg/mL)

View Alternative Names

AGRT, ART, AGRP, Agouti-related protein

1 Images

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (120 Targets) (AB193656)

Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (120 Targets) (AB193656)

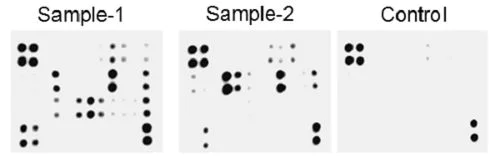

Typical images obtained with Abcam Human Cytokine Antibody Array - Membrane C7 (120 Targets) ab193656. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at room temperature for 1 minute.

Key facts

Assay type

Semi-quantitative

Reacts with

Human

Target

AGRP

target

Applications

Multiplex Protein Detection

applications

Detection method

Luminescent

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

ab193656 can be used for the simultaneous detection of 120 Human Cytokine proteins in serum, plasma, cell culture media and other liquid samples types. It comes as 1 kit including 2 separate membranes labelled C6 and C7 (see below for images showing the array layout on each membrane)."
Targets names: Adiponectin (ACRP30), AgRP, Amphiregulin, Angiogenin, Angiopoietin-2, Axl, BDNF, bFGF, BLC (CXCL13), BMP-4, BMP-6, beta-NGF, Betacellulin (BTC), CCL28 (MEC), CK beta 8-1 (CCL23), CNTF, CTACK (CCL27), Dtk, EGF, EGFR, ENA-78 (CXCL5), Eotaxin-1 (CCL11), Eotaxin-2 (MPIF-2/CCL24), Eotaxin-3 (CCL26), Fas,(TNFRSF6/Apo-1), FGF-4, FGF-6, FGF-7 (KGF), FGF-9, Flt-3 Ligand, Fractalkine (CX3CL1), GCP-2 (CXCL6), GCSF, GDNF, GITR (TNFRSF18), GITR Ligand (TNFSF18), GM-CSF, GRO alpha/beta/gamma, GRO alpha (CXCL1), HCC-4 (CCL16), HGF, I-309 (TCA-3/CCL1), CCAM-1 (CD54), ICAM-3 (CD50), IFN-gamma, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-6, IGF-1, IGF-1 R, IL-1 R4 (ST2), IL-1 R1, IL-10, IL-11, IL-12 p40, IL-12 p70, IL-13, IL-15, IL-16 IL-17A, IL-1 alpha (IL-1 F1), IL-1 beta (IL-1 F2), IL-1 ra (IL-1 F3), IL-2, IL-2 R alpha, IL-3, IL-4, IL-5, IL-6, IL-6 R, IL-7, IL-8 (CXCL8), I-TAC (CXCL11), Leptin Light (TNFSF14), Lymphotactin (XCL1), MCP-1 (CCL2), MCP-2 (CCL8), MCP-3 (MARC/CCL7), MCP-4 (CCL13), M-CSF, MDC (CCL22), MIF, MIG (CXCL9), MIP-1 alpha (CCL3), MIP-1 beta (CCL4), MIP-1 delta (CCL15), MIP-3 alpha (CCL20), MIP-3 beta (CCL19), MSP alpha/beta, NAP-2 (PPBP/CXCL7), NT-3, NT-4, Oncostatin M, Osteoprotegerin (TNFRSF11B), PARC (CCL18), PDGF-BB, PLGF, RANTES (CCL5), SCF, SDF-1 alpha (CXCL12 alpha), gp130, TNF RII (TNFRSF1B), TNF RI (TNFRSF1A), TARC (CCL17), TECK (CCL25), TGF beta 3, TGF beta 1, Thrombopoietin (TPO), TIMP-1, TIMP-2, TNF alpha, TNF beta (TNFSF1B), TRAIL R3 (TNFRSF10C), TRAIL R4 (TNFRSF10D), uPAR, VEGF-A, VEGF-D.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

What's included?

{ "values": { "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab193656-1x8Membranes", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Plastic sheets", "number":"AB193656-CMP13" }, { "size":"2 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193656-CMP09" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C7)", "number":"AB193656-CMP11" }, { "size":"2 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193656-CMP04" }, { "size":"2 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193656-CMP06" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C6)", "number":"AB193656-CMP10" }, { "size":"2 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C7)", "number":"AB193656-CMP03" }, { "size":"2 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193656-CMP05" }, { "size":"2 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193656-CMP08" }, { "size":"2 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193656-CMP07" }, { "size":"2 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C6)", "number":"AB193656-CMP02" }, { "size":"4 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193656-CMP01" }, { "size":"2 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193656-CMP12" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab193656-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB193656-CMP13" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C7)", "number":"AB193656-CMP11" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193656-CMP07" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193656-CMP09" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193656-CMP01" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193656-CMP08" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193656-CMP06" }, { "size":"1 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C7)", "number":"AB193656-CMP03" }, { "size":"1 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C6)", "number":"AB193656-CMP02" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C6)", "number":"AB193656-CMP10" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193656-CMP04" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193656-CMP05" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193656-CMP12" } ] }, "1x2Membranes": { "sellingSize": "1 x 2 Membranes", "publicAssetCode":"ab193656-1x2Membranes", "assetComponentDetails": [ { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB193656-CMP06", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB193656-CMP05", "productcode":"" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193656-CMP04", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C6)", "number":"AB193656-CMP10", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB193656-CMP07", "productcode":"" }, { "size":"1 x 2 Unit", "name":"Human Cytokine Antibody Array Membranes (C6)", "number":"AB193656-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C7)", "number":"AB193656-CMP11", "productcode":"" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB193656-CMP09", "productcode":"" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193656-CMP01", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB193656-CMP08", "productcode":"" }, { "size":"1 x 2 Unit", "name":"Human Cytokine Antibody Array Membranes (C7)", "number":"AB193656-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193656-CMP12", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB193656-CMP13", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

-20°C

Appropriate long-term storage conditions

-20°C

Storage information

-20°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Plays a role in weight homeostasis. Involved in the control of feeding behavior through the central melanocortin system. Acts as alpha melanocyte-stimulating hormone antagonist by inhibiting cAMP production mediated by stimulation of melanocortin receptors within the hypothalamus and adrenal gland. Has very low activity with MC5R (By similarity). Is an inverse agonist for MC3R and MC4R being able to suppress their constitutive activity. It promotes MC3R and MC4R endocytosis in an arrestin-dependent manner.

See full target information AGRP

Additional targets

AREG,ANG,ANGPT2,AXL,BDNF,Probetacellulin,NGF,FGF2,CXCL13,BMP4,BMP6,CCL28,CCL23,CNTF,CCL27,CXCL5,EGF,EGFR,CCL11,CCL24,CCL26,FAS,FGF4,FGF6,FGF7,Fibroblast growth factor 9,FLT3LG,CX3CL1,CXCL6,CSF3,GDNF,TNFRSF18,TNFSF18,CSF2,IL6ST,CXCL1,CXCL3,CCL16,HGF,CCL1,ICAM1,ICAM3,IFNG,IGF1,IGF1R,IGFBP1,IGFBP2,IGFBP3,IGFBP4,IGFBP6,IL1A,IL1B,IL1R1,IL1RL1,IL1RN,IL10,IL11,IL12B,IL12A,IL13,IL15,IL16,IL17A,IL2,IL2RA,IL3,IL4,IL5,IL6,IL6R,IL7,CXCL8,CXCL11,LEP,TNFSF14,XCL1,CCL2,CCL8,CCL7,CCL13,CSF1,CCL22,MIF,CXCL9,CCL3,CCL4,CCL15,CCL20,CCL19,CCL23,MST1,PPBP,NTF3,NTF4,OSM,TNFRSF11B,CCL18,PDGFB,PGF,CCL5,KITLG,CXCL12,CCL17,CCL25,TGFB1,TGFB3,THPO,TIMP1,TIMP2,TNF,LTA,TNFRSF1A,TNFRSF1B,TNFRSF10C,TNFRSF10D,PLAUR,VEGFA,VEGFD

style

left-column

Publications (10)

Recent publications for all applications. Explore the full list and refine your search

Stem cell research & therapy 16:172 PubMed40221757

2025

Assembly of MSCs into a spheroid configuration increases poly(I:C)-mediated TLR3 activation and the immunomodulatory potential of MSCs for alleviating murine colitis.

Applications

Unspecified application

Species

Unspecified reactive species

Chao-Ting Ho,Ying-Chi Kao,Yueh-Ming Shyu,I-Ching Wang,Qiao-Xuan Liu,Shao-Wen Liu,Shih-Chen Huang,Han Chiu,Li-Wen Hsu,Tzu-Sheng Hsu,Wan-Chen Hsieh,Chieh-Cheng Huang

Journal of cellular and molecular medicine 29:e70470 PubMed40118773

2025

TIMP-2 Modulates 5-Fu Resistance in Colorectal Cancer Through Regulating JAK-STAT Signalling Pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Chuchu Xu,Renjun Zhu,Qingfeng Dai,Yaoqing Li,Gengyuan Hu,Kelong Tao,Yuhong Xu,Guangen Xu,Guolin Zhang

International journal of molecular sciences 25: PubMed38928452

2024

Bone Marrow Mesenchymal Stem Cells Promote Ovarian Cancer Cell Proliferation via Cytokine Interactions.

Applications

Unspecified application

Species

Unspecified reactive species

Kai-Hung Wang,Yu-Hsun Chang,Dah-Ching Ding

International orthopaedics 47:2409-2417 PubMed36764942

2023

Meniscus repair via collagen matrix wrapping and bone marrow injection: clinical and biomolecular study.

Applications

Unspecified application

Species

Unspecified reactive species

Paweł Bąkowski,Adam Aron Mieloch,Filip Porzucek,Monika Mańkowska,Kinga Ciemieniewska-Gorzela,Jakub Naczk,Tomasz Piontek,Jakub Dalibor Rybka

Cell transplantation 31:9636897221104452 PubMed35712817

2022

Endometrial Cancer-Infiltrating Mesenchymal Stem Cells Exhibit Immunosuppressive Effects.

Applications

Unspecified application

Species

Unspecified reactive species

Kai-Hung Wang,Yu-Hsun Chang,Tomor Harnod,Dah-Ching Ding

Aging 14:297-315 PubMed35022331

2022

TIMP-2 regulates 5-Fu resistance via the ERK/MAPK signaling pathway in colorectal cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Guolin Zhang,Xin Luo,Zian Wang,Jianbin Xu,Wei Zhang,Engeng Chen,Qing Meng,Di Wang,Xuefeng Huang,Wei Zhou,Zhangfa Song

The Journal of allergy and clinical immunology 149:275-291 PubMed34111449

2021

P17 induces chemotaxis and differentiation of monocytes via MRGPRX2-mediated mast cell-line activation.

Applications

Unspecified application

Species

Unspecified reactive species

Karthi Duraisamy,Kailash Singh,Mukesh Kumar,Benjamin Lefranc,Elsa Bonnafé,Michel Treilhou,Jérôme Leprince,Billy K C Chow

PloS one 15:e0228015 PubMed31999765

2020

Necroptosis in pancreatic cancer promotes cancer cell migration and invasion by release of CXCL5.

Applications

Unspecified application

Species

Unspecified reactive species

Yohei Ando,Kenoki Ohuchida,Yoshiki Otsubo,Shin Kibe,Shin Takesue,Toshiya Abe,Chika Iwamoto,Koji Shindo,Taiki Moriyama,Kohei Nakata,Yoshihiro Miyasaka,Takao Ohtsuka,Yoshinao Oda,Masafumi Nakamura

Journal of bone and mineral research : the official journal of the American Society for Bone and Mineral Research 35:396-412 PubMed31610048

2019

Extracellular Vesicles From Osteotropic Breast Cancer Cells Affect Bone Resident Cells.

Applications

Unspecified application

Species

Unspecified reactive species

Alexander Loftus,Alfredo Cappariello,Christopher George,Argia Ucci,Kirsty Shefferd,Alice Green,Riccardo Paone,Marco Ponzetti,Simona Delle Monache,Maurizio Muraca,Anna Teti,Nadia Rucci

Pharmacological research 144:377-389 PubMed31028903

2019

Elafibranor restricts lipogenic and inflammatory responses in a human skin stem cell-derived model of NASH.

Applications

Unspecified application

Species

Unspecified reactive species

Joost Boeckmans,Karolien Buyl,Alessandra Natale,Valerie Vandenbempt,Steven Branson,Veerle De Boe,Vera Rogiers,Joery De Kock,Robim M Rodrigues,Tamara Vanhaecke

View all publications

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
