AB193657

Human Cytokine Antibody Array - Membrane (174 Targets)

Name: Human Cytokine Antibody Array - Membrane (174 Targets) (ab193657) | Abcam
Brand: Abcam Limited
SKU: AB193657
Price: 2015 USD
Availability: InStock

Be the first to review this product! Submit a review

(0 Publication)

ab193657 can be used for the simultaneous detection of 174 Human Cytokine proteins in serum, plasma, cell culture media and other liquid samples types.

View Alternative Names

Inhibin beta A chain, Activin beta-A chain, Erythroid differentiation protein, EDF, INHBA

1 Images

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (174 Targets) (AB193657)

Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (174 Targets) (AB193657)

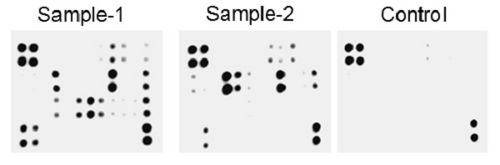

Typical images obtained with Abcam Human Cytokine Antibody Array - Membrane C6 (174 Targets) ab193657. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at room temperature for 1 minute.

Key facts

Assay type

Semi-quantitative

Reacts with

Human

Target

Inhibin beta A chain

target

Applications

Multiplex Protein Detection

applications

Detection method

Luminescent

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

ab193657 can be used for the simultaneous detection of 174 Human Cytokine proteins in serum, plasma, cell culture media and other liquid samples types. It comes as 1 kit including 3 separate membranes labelled C6, C7 and C8 (see below for images showing the array layout on each membrane).

Targets names: Adiponectin (ACRP30), Activin A, AgRP, ALCAM (CD166), Amphiregulin, Angiogenin, Angiopoietin-2, Axl, CD80 (B7-1), BDNF, bFGF, BLC (CXCL13), BMP-4, BMP-5, BMP-6, BMP-7, beta-NGF, Betacellulin (BTC), Cardiotrophin-1 (CT-1), CCL28 (MEC), CD14, Ck beta 8-1 (CCL23), CNTF, CTACK (CCL27), CXCL16, DR6 (TNFRSF21), Dtk, EGF, EGFR, ENA-78 (CXCL5), Endoglin (CD105), Eotaxin-1 (CCL11), Eotaxin-2 (MPIF-2/CCL24), Eotaxin-3 (CCL26), ErbB3, E-Selectin, Fas (TNFRSF6/Apo-1), Fas Ligand (TNFSF6), FGF-4, FGF-6, FGF-7 (KGF), FGF-9, Flt-3 Ligand, Fractalkine (CX3CL1), GCP-2 (CXCL6), GCSF, GDNF, GITR (TNFRSF18), GITR Ligand (TNFSF18), GM-CSF, GRO alpha/beta/gamma, GRO alpha (CXCL1), HCC-4 (CCL16), HGF, I-309 (TCA-3/CCL1), ICAM-1 (CD54), ICAM-2 (CD102), ICAM-3 (CD50), IFN-gamma, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-6, IGF-1, IGF-1 R, IGF-2, IL-1 R2, IL-1 R4 (ST2), IL-1 R1, IL-10, IL-10 R beta, IL-11, IL-12 p40, IL-12 p70, IL-13, IL-13 R alpha 2, IL-15, IL-16, IL-17A, IL-18, BP alpha, IL-18 R beta (AcPL), IL-1 alpha (IL-1 F1), IL-1 beta (IL-1 F2), IL-1 ra (IL-1 F3), IL-2, IL-2 R beta (CD122), IL-2 R gamma (Common gamma Chain), IL-2 R alpha, IL-21 R, IL-3, IL-4, IL-5, IL-5 R alpha, IL-6, IL-6 R, IL-7, IL-8 (CXCL8), IL-9, IP-10 (CXCL10), I-TAC (CXCL11), LAP/TGF beta 1, Leptin, Leptin R LIF, Light (TNFSF14), L-Selectin (CD62L), Lymphotactin (XCL1), MCP-1 (CCL2), MCP-2 (CCL8), MCP-3 (MARC/CCL7), MCP-4 (CCL13), M-CSF, M-CSF R, MDC (CCL22), MIF, MIG (CXCL9), MIP-1 alpha (CCL3), MIP-1 beta (CCL4), MIP-1 delta (CCL15), MIP-3 alpha (CCL20), MIP-3 beta (CCL19), MMP-1, MMP-13, MMP-3, MMP-9, MPIF-1 (CCL23), MSP alpha/beta, NAP-2 (PPBP/CXCL7), NGFR, (TNFRSF16), NT-3, NT-4, Oncostatin M, Osteoprotegerin (TNFRSF11B), PARC (CCL18), PDGF-AA, PDGF R alpha, PDGF R beta, PDGF-AB, PDGF-BB, PECAM-1 (CD31), PLGF, Prolactin, RANTES (CCL5), SCF, SCF R (CD117/c-kit), SDF-1 alpha (CXCL12 alpha), SDF-1 beta (CXCL12 beta), gp130, Siglec-5 (CD170), TNF RII (TNFRSF1B), TNF RI (TNFRSF1A), TARC (CCL17), TECK (CCL25), TGF beta 2, TGF alpha, TGF beta 3, TGF beta 1, Thrombopoietin (TPO), Tie-1, Tie-2, TIMP-1, TIMP-2, TIMP-4, TNF alpha, TNF beta (TNFSF1B), TRAIL R3 (TNFRSF10C), TRAIL R4 (TNFRSF10D), uPAR, VE-Cadherin (CDH5), VEGF-A, VEGFR2, VEGFR3,VEGF-D.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

What's included?

{ "values": { "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab193657-1x4Membranes", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Plastic sheets", "number":"AB193657-CMP15" }, { "size":"2 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193657-CMP07" }, { "size":"2 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193657-CMP05" }, { "size":"1 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C7)", "number":"AB193657-CMP03" }, { "size":"2 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193657-CMP10" }, { "size":"2 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193657-CMP11" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C8)", "number":"AB193657-CMP08" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C7)", "number":"AB193657-CMP13" }, { "size":"1 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C8)", "number":"AB193657-CMP04" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C6)", "number":"AB193657-CMP12" }, { "size":"1 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C6)", "number":"AB193657-CMP02" }, { "size":"2 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193657-CMP06" }, { "size":"3 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193657-CMP01" }, { "size":"2 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193657-CMP09" }, { "size":"2 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193657-CMP14" } ] }, "1x2Membranes": { "sellingSize": "1 x 2 Membranes", "publicAssetCode":"ab193657-1x2Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB193657-CMP15" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193657-CMP05" }, { "size":"1 x 2 Unit", "name":"Human Cytokine Antibody Array Membranes (C8)", "number":"AB193657-CMP04" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193657-CMP01" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193657-CMP14" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193657-CMP06" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C7)", "number":"AB193657-CMP13" }, { "size":"1 x 2 Unit", "name":"Human Cytokine Antibody Array Membranes (C7)", "number":"AB193657-CMP03" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193657-CMP10" }, { "size":"1 x 2 Unit", "name":"Human Cytokine Antibody Array Membranes (C6)", "number":"AB193657-CMP02" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193657-CMP07" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C8)", "number":"AB193657-CMP08" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C6)", "number":"AB193657-CMP12" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193657-CMP09" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193657-CMP11" } ] }, "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab193657-1x8Membranes", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Plastic sheets", "number":"AB193657-CMP15", "productcode":"" }, { "size":"4 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193657-CMP10", "productcode":"" }, { "size":"4 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193657-CMP06", "productcode":"" }, { "size":"4 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193657-CMP07", "productcode":"" }, { "size":"2 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C6)", "number":"AB193657-CMP02", "productcode":"" }, { "size":"2 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C8)", "number":"AB193657-CMP04", "productcode":"" }, { "size":"4 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193657-CMP05", "productcode":"" }, { "size":"4 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193657-CMP14", "productcode":"" }, { "size":"4 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193657-CMP11", "productcode":"" }, { "size":"4 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193657-CMP09", "productcode":"" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C6)", "number":"AB193657-CMP12", "productcode":"" }, { "size":"2 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C7)", "number":"AB193657-CMP03", "productcode":"" }, { "size":"8 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193657-CMP01", "productcode":"" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C7)", "number":"AB193657-CMP13", "productcode":"" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C8)", "number":"AB193657-CMP08", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

-20°C

Appropriate long-term storage conditions

-20°C

Storage information

-20°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Inhibins and activins inhibit and activate, respectively, the secretion of follitropin by the pituitary gland. Inhibins/activins are involved in regulating a number of diverse functions such as hypothalamic and pituitary hormone secretion, gonadal hormone secretion, germ cell development and maturation, erythroid differentiation, insulin secretion, nerve cell survival, embryonic axial development or bone growth, depending on their subunit composition. Inhibins appear to oppose the functions of activins.

See full target information Inhibin beta A chain

Additional targets

AGRP,ALCAM,AREG,ANG,ANGPT2,AXL,BDNF,Probetacellulin,NGF,FGF2,CXCL13,BMP4,Bone morphogenetic protein 5,BMP6,BMP7,CTF1,CCL28,CD14,CD80,CCL23,CNTF,CCL27,CXCL16,CXCL5,TNFRSF21,EGF,EGFR,ENG,CCL11,CCL24,CCL26,ERBB3,SELE,FASLG,FGF4,FGF6,FGF7,Fibroblast growth factor 9,FLT3LG,CX3CL1,CXCL6,CSF3,GDNF,TNFRSF18,TNFSF18,CSF2,IL6ST,CXCL1,CXCL3,CCL16,HGF,CCL1,ICAM1,ICAM2,ICAM3,IFNG,IGF1,IGF1R,IGF2,IGFBP1,IGFBP2,IGFBP3,IGFBP4,IGFBP6,IL1A,IL1B,IL1R1,IL1R2,IL1RL1,IL1RN,IL10,IL10RB,IL11,IL12B,IL12A,IL13,IL13RA2,IL15,IL16,IL17A,Interleukin-18-binding protein,IL18RAP,IL2,IL2RA,IL2RB,IL2RG,IL21R,IL3,IL4,IL5,IL5RA,IL6,IL6R,IL7,CXCL8,IL9,CXCL10,CXCL11,TGFB1,LEP,LEPR,LIF,TNFSF14,SELL,XCL1,CCL2,CCL8,CCL7,CCL13,CSF1,CSF1R,CCL22,MIF,CXCL9,CCL3,CCL4,CCL15,CCL20,CCL19,MMP1,MMP13,MMP3,CCL23,MST1,PPBP,NGFR,NTF3,NTF4,OSM,TNFRSF11B,CCL18,PDGFRA phospho Y572 + Y574,PDGFRB,PDGFA,PDGFB,PDGFB,PECAM1,PGF,PRL,CCL5,KITLG,KIT,CXCL12,CXCL12,SIGLEC5,CCL17,CCL25,Protransforming growth factor alpha,TGFB1,TGFB2,TGFB3,THPO,TIE1,TEK,TIMP1,TIMP2,Metalloproteinase inhibitor 4,TNF,LTA,TNFRSF1A,TNFRSF1B,TNFRSF10C,TNFRSF10D,PLAUR,CDH5,VEGFA,VEGFD,KDR,FLT4

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
