AB169816

Human Cytokine Antibody Array - Membrane (54 targets)

Be the first to review this product! Submit a review

|

(2 Publications)

ab169816 is for the simultaneous detection of 54 Human Cytokines in 4 or 8 samples.

View Alternative Names

Inhibin beta A chain, Activin beta-A chain, Erythroid differentiation protein, EDF, INHBA, Prolactin, PRL, CD358, DR6, UNQ437/PRO868, TNFRSF21, Tumor necrosis factor receptor superfamily member 21, Death receptor 6, CD132, Cytokine receptor common subunit gamma, Interleukin-2 receptor subunit gamma, gammaC, p64, IL-2 receptor subunit gamma, IL-2R subunit gamma, IL-2RG, IL2RG, CD166, MEMD, ALCAM, CD166 antigen, Activated leukocyte cell adhesion molecule, CD14, Monocyte differentiation antigen CD14, My23 antigen, Myeloid cell-specific leucine-rich glycoprotein, CD140b, PDGFR, PDGFR1, PDGFRB, Platelet-derived growth factor receptor beta, PDGF-R-beta, PDGFR-beta, Beta platelet-derived growth factor receptor, Beta-type platelet-derived growth factor receptor, CD140 antigen-like family member B, Platelet-derived growth factor receptor 1, PDGFR-1, HER3, ERBB3, Receptor tyrosine-protein kinase erbB-3, Proto-oncogene-like protein c-ErbB-3, Tyrosine kinase-type cell surface receptor HER3, CD115, FMS, CSF1R, Macrophage colony-stimulating factor 1 receptor, CSF-1 receptor, Proto-oncogene c-Fms, CSF-1-R, CSF-1R, M-CSF-R, CD271, TNFRSF16, NGFR, Tumor necrosis factor receptor superfamily member 16, Gp80-LNGFR, Low affinity neurotrophin receptor p75NTR, Low-affinity nerve growth factor receptor, Low-affinity nerve growth factor receptor p75NGFR, Low-affinity nerve growth factor receptor p75NGR, p75 ICD, NGF receptor, CD117, SCFR, KIT, Mast/stem cell growth factor receptor Kit, Piebald trait protein, Proto-oncogene c-Kit, Tyrosine-protein kinase Kit, p145 c-kit, v-kit Hardy-Zuckerman 4 feline sarcoma viral oncogene homolog, PBT, TIE, TIE1, Tyrosine-protein kinase receptor Tie-1, CD202b, TIE2, VMCM, VMCM1, TEK, Angiopoietin-1 receptor, Endothelial tyrosine kinase, Tunica interna endothelial cell kinase, Tyrosine kinase with Ig and EGF homology domains-2, Tyrosine-protein kinase receptor TEK, Tyrosine-protein kinase receptor TIE-2, p140 TEK, hTIE2, CD309, FLK1, VEGFR2, KDR, Vascular endothelial growth factor receptor 2, VEGFR-2, Fetal liver kinase 1, Kinase insert domain receptor, Protein-tyrosine kinase receptor flk-1, FLK-1, VEGFR3, FLT4, Vascular endothelial growth factor receptor 3, VEGFR-3, Fms-like tyrosine kinase 4, Tyrosine-protein kinase receptor FLT4, FLT-4, HILDA, LIF, Leukemia inhibitory factor, Differentiation-stimulating factor, Melanoma-derived LPL inhibitor, D factor, MLPLI, CD62E, ELAM1, SELE, E-selectin, CD62 antigen-like family member E, Endothelial leukocyte adhesion molecule 1, Leukocyte-endothelial cell adhesion molecule 2, ELAM-1, LECAM2, CD125, IL5R, IL5RA, Interleukin-5 receptor subunit alpha, IL-5 receptor subunit alpha, IL-5R subunit alpha, IL-5R-alpha, IL-5RA, CDw125, PDGF2, SIS, PDGFB, Platelet-derived growth factor subunit B, PDGF subunit B, PDGF-2, Platelet-derived growth factor B chain, Platelet-derived growth factor beta polypeptide, Proto-oncogene c-Sis, CD105, END, ENG, Endoglin, CD31, Platelet endothelial cell adhesion molecule, PECAM-1, EndoCAM, GPIIA', PECA1, PECAM1, CD62L, LNHR, LYAM1, SELL, L-selectin, CD62 antigen-like family member L, Leukocyte adhesion molecule 1, Leukocyte surface antigen Leu-8, Leukocyte-endothelial cell adhesion molecule 1, Lymph node homing receptor, TQ1, gp90-MEL, LAM-1, LECAM1, Transforming growth factor beta-2 proprotein, Cetermin, Glioblastoma-derived T-cell suppressor factor, G-TSF, TGFB2, TGFB, TGFB1, Transforming growth factor beta-1 proprotein, CD121b, IL1RB, IL1R2, Interleukin-1 receptor type 2, IL-1R-2, IL-1RT-2, IL-1RT2, CD121 antigen-like family member B, CDw121b, IL-1 type II receptor, Interleukin-1 receptor beta, Interleukin-1 receptor type II, IL-1R-beta, CD170, CD33L2, OBBP2, SIGLEC5, Sialic acid-binding Ig-like lectin 5, Siglec-5, CD33 antigen-like 2, Obesity-binding protein 2, OB-BP2, OB-binding protein 2, INP10, SCYB10, CXCL10, C-X-C motif chemokine 10, 10 kDa interferon gamma-induced protein, Small-inducible cytokine B10, Gamma-IP10, IP-10, Metalloproteinase inhibitor 4, Tissue inhibitor of metalloproteinases 4, TIMP-4, TIMP4, STMY1, MMP3, Stromelysin-1, SL-1, Matrix metalloproteinase-3, Transin-1, MMP-3, OP1, BMP7, Bone morphogenetic protein 7, BMP-7, Osteogenic protein 1, OP-1, CD178, APT1LG1, CD95L, FASL, TNFSF6, FASLG, Tumor necrosis factor ligand superfamily member 6, Apoptosis antigen ligand, CD95 ligand, Fas antigen ligand, APTL, CD95-L, Fas ligand, FasL, Collagenase 3, Matrix metalloproteinase-13, MMP-13, MMP13, MIP3, MPIF1, SCYA23, CCL23, C-C motif chemokine 23, CK-beta-8, Macrophage inflammatory protein 3, Myeloid progenitor inhibitory factor 1, Small-inducible cytokine A23, CKB-8, MIP-3, MPIF-1, SDF1, SDF1A, SDF1B, CXCL12, Stromal cell-derived factor 1, SDF-1, hSDF-1, C-X-C motif chemokine 12, Intercrine reduced in hepatomas, Pre-B cell growth-stimulating factor, IRH, hIRH, PBSF, IGF-2, PP1446, IGF2, Insulin-like growth factor 2, Insulin-like growth factor II, Somatomedin-A, T3M-11-derived growth factor, IGF-II, SCYB16, SRPSOX, UNQ2759/PRO6714, CXCL16, C-X-C motif chemokine 16, Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein, Small-inducible cytokine B16, Transmembrane chemokine CXCL16, SR-PSOX, CLG, MMP1, Interstitial collagenase, Fibroblast collagenase, Matrix metalloproteinase-1, MMP-1, Protransforming growth factor alpha, TGFA, Bone morphogenetic protein 5, BMP-5, BMP5, PDGF1, PDGFA, Platelet-derived growth factor subunit A, PDGF subunit A, PDGF-1, Platelet-derived growth factor A chain, Platelet-derived growth factor alpha polypeptide, CD102, Intercellular adhesion molecule 2, ICAM-2, ICAM2, CD122, IL15RB, IL2RB, Interleukin-2 receptor subunit beta, IL-2 receptor subunit beta, IL-2R subunit beta, IL-2RB, High affinity IL-2 receptor subunit beta, Interleukin-15 receptor subunit beta, p70-75, p75, CD213a2, IL13R, IL13RA2, Interleukin-13 receptor subunit alpha-2, IL-13 receptor subunit alpha-2, IL-13R subunit alpha-2, IL-13R-alpha-2, IL-13RA2, Interleukin-13-binding protein, Cardiotrophin-1, CT-1, CTF1, CD80, CD28LG, CD28LG1, LAB7, T-lymphocyte activation antigen CD80, Activation B7-1 antigen, BB1, CTLA-4 counter-receptor B7.1, B7, CDw210b, CRFB4, D21S58, D21S66, IL10RB, Interleukin-10 receptor subunit beta, IL-10 receptor subunit beta, IL-10R subunit beta, IL-10RB, Cytokine receptor class-II member 4, Cytokine receptor family 2 member 4, Interleukin-10 receptor subunit 2, CRF2-4, IL-10R subunit 2, IL-10R2, Interleukin-18-binding protein, IL-18BP, Tadekinig-alfa, IL18BP, CD218b, IL1R7, IL18RAP, Interleukin-18 receptor accessory protein, IL-18 receptor accessory protein, IL-18RAcP, Accessory protein-like, CD218 antigen-like family member B, CDw218b, IL-1R accessory protein-like, Interleukin-1 receptor 7, Interleukin-18 receptor accessory protein-like, Interleukin-18 receptor beta, AcPL, IL-1RAcPL, IL-1R-7, IL-1R7, IL-18R-beta, IL-18Rbeta, CD360, NILR, UNQ3121/PRO10273, IL21R, Interleukin-21 receptor, IL-21 receptor, IL-21R, Novel interleukin receptor, Interleukin-9, IL-9, Cytokine P40, T-cell growth factor P40, IL9, CD295, DB, OBR, LEPR, Leptin receptor, LEP-R, HuB219, OB receptor, OB-R, CD144, Cadherin-5, 7B4 antigen, Vascular endothelial cadherin, VE-cadherin, CDH5, CD140a, PDGFR2, RHEPDGFRA, PDGFRA, Platelet-derived growth factor receptor alpha, PDGF-R-alpha, PDGFR-alpha, Alpha platelet-derived growth factor receptor, Alpha-type platelet-derived growth factor receptor, CD140 antigen-like family member A, CD140a antigen, Platelet-derived growth factor alpha receptor, Platelet-derived growth factor receptor 2, PDGFR-2

2 Images
Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (54 targets) (AB169816)
  • Multiplex Protein Detection

Unknown

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (54 targets) (AB169816)

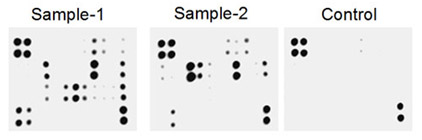

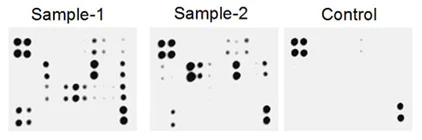

Typical images obtained with Abcam Human Cytokine Antibody Array. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at room temperature for 1 minute.

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (54 targets) (AB169816)
  • Multiplex Protein Detection

Unknown

Multiplex Protein Detection - Human Cytokine Antibody Array - Membrane (54 targets) (AB169816)

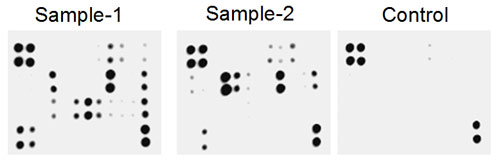

Typical images obtained with Abcam Human Cytokine Antibody Array. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at room temperature for 1 minute.

Key facts

Reacts with

Human

Target

Inhibin beta A chain

target

Applications

Multiplex Protein Detection

applications

Sample types

Saliva, Urine, Plasma, Cell culture extracts, Tissue Extracts, Cell culture media, Cell culture supernatant, Milk, Serum, Other biological fluids, Whole Blood, Cell Lysate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

ab169816 is for the simultaneous detection of 54 Human Cytokines in 4 or 8 samples. Suitable for all liquid sample types.

Targets: Activin A, ALCAM, CD80, BMP-5, BMP-7, Cardiotrophin-1, CD14, CXCL16/ DR6 , TNFRSF21, Endoglin, ErbB3, E-Selectin, Fas Ligand, ICAM-2, IGF-2, IL-1 RII, IL-10 R beta, IL-13 R alpha 2, IL-18 BP alpha, IL-18 R beta, MMP-3, IL-2 R beta, IL-2 R gamma, IL-21R, IL-5 R alpha, IL-9, IP-10, TGF beta 1, Leptin R, LIF, L-Selectin, M-CSF R, MMP-1, MMP-13, MMP-9, MPIF-1, NGF R, PDGF-AA, PDGF-AB, PDGF R alpha, PDGF R beta, PECAM-1, Prolactin, SCF R, SDF-1 beta, Siglec-5, TGF alpha, TGF beta 2, Tie-1, Tie-2, TIMP-4, VE-Cadherin, VEGFR2, VEGFR3

If you are interested in this cytokine array, array ab134004 may also be of interest. A list of human antibody membrane arrays is available here.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

What's included?

{ "values": { "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab169816-1x8Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB169816-CMP11" }, { "size":"2 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C8)", "number":"AB169816-CMP02" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C8)", "number":"AB169816-CMP06" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB169816-CMP07" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB169816-CMP09" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB169816-CMP05" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB169816-CMP04" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB169816-CMP10" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB169816-CMP03" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB169816-CMP01" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB169816-CMP08" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab169816-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB169816-CMP11" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C8)", "number":"AB169816-CMP06" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB169816-CMP04" }, { "size":"1 x 4 Unit", "name":"Human Cytokine Antibody Array Membranes (C8)", "number":"AB169816-CMP02" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB169816-CMP07" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB169816-CMP09" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB169816-CMP05" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB169816-CMP08" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB169816-CMP10" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB169816-CMP01" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB169816-CMP03" } ] }, "1x2Membranes": { "sellingSize": "1 x 2 Membranes", "publicAssetCode":"ab169816-1x2Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB169816-CMP11", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C8)", "number":"AB169816-CMP06", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB169816-CMP05", "productcode":"" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB169816-CMP03", "productcode":"" }, { "size":"1 x 2 Unit", "name":"Human Cytokine Antibody Array Membranes (C8)", "number":"AB169816-CMP02", "productcode":"" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB169816-CMP01", "productcode":"" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB169816-CMP09", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB169816-CMP07", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB169816-CMP04", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB169816-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB169816-CMP10", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Inhibins/activins are involved in regulating a number of diverse functions such as hypothalamic and pituitary hormone secretion, gonadal hormone secretion, germ cell development and maturation, erythroid differentiation, insulin secretion, nerve cell survival, embryonic axial development or bone growth, depending on their subunit composition.. Activin A is a homodimer of INHBA that plays a role in several essential biological processes including embryonic development, stem cell maintenance and differentiation, haematopoiesis, cell proliferation and tissue fibrosis (PubMed : 3194407, PubMed : 16440334). Signals through type I (such as ACVR1B or ACVR1C) and type II receptors (such as ACVR2A, ACVR2B or BMPR2) which, upon ligand binding, phosphorylate SMAD2 and SMAD3 intracellular signaling mediators that form a complex with SMAD4, translocate to the nucleus and modulate gene expression (PubMed : 10652306, PubMed : 24018044). Can also activate alternative non-canonical intracellular signaling pathways including the p38 MAPK, extracellular signal-regulated kinases 1/2 (ERK1/2) and c-Jun N-terminal kinases (JNKs) to modulate cell migration and differentiation (PubMed : 16440334). Alternatively, promotes osteoblastic differentiation via ACVRL1-SMAD1/5/9 pathway (PubMed : 34948289). In addition, can engage the type I receptor ACVR1 to form an ACVR1-activin A-type II receptor non-signaling complex (NSC) that renders receptors unavailable for engagement with BMPs, hence resulting in an apparent inhibition of ACVR1-mediated BMP signaling (PubMed : 26333933).. Inhibin A is a dimer of alpha/INHA and beta-A/INHBA that functions as a feedback regulator in the hypothalamic-pituitary-gonadal (HPG) axis. Inhibits the secretion of FSH from the anterior pituitary gland by acting on pituitary gonadotrope cells. Antagonizes activin A by binding to the proteoglycan, betaglycan, and forming a stable complex with and, thereby, sequestering type II activin receptors while excluding type I receptor.
See full target information Inhibin beta A chain

Additional targets

ALCAM,Bone morphogenetic protein 5,SELE,FASLG,ICAM2,IGF2,IL1R2,IL10RB,IL13RA2,Interleukin-18-binding protein,IL18RAP,IL2RB,BMP7,IL2RG,IL21R,IL5RA,IL9,CXCL10,TGFB1,LEPR,LIF,SELL,CSF1R,CTF1,MMP1,MMP13,MMP3,CCL23,NGFR,PDGFRA phospho Y572 + Y574,PDGFRB,PDGFA,PDGFB,PECAM1,CD14,PRL,KIT,CXCL12,SIGLEC5,Protransforming growth factor alpha,TGFB2,TIE1,TEK,Metalloproteinase inhibitor 4,CD80,CDH5,KDR,FLT4,CXCL16,TNFRSF21,ENG,ERBB3

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Materials today. Bio 25:101004 PubMed38420142

2024

Programming temporal stiffness cues within extracellular matrix hydrogels for modelling cancer niches.

Applications

Unspecified application

Species

Unspecified reactive species

Gretel Major,Minjun Ahn,Won-Woo Cho,Miguel Santos,Jessika Wise,Elisabeth Phillips,Steven G Wise,Jinah Jang,Jelena Rnjak-Kovacina,Tim Woodfield,Khoon S Lim

Hypertension (Dallas, Tex. : 1979) 77:1559-1570 PubMed33677981

2021

Pressure Overload-Mediated Sustained PKR2 (Prokineticin-2 Receptor) Signaling in Cardiomyocytes Contributes to Cardiac Hypertrophy and Endotheliopathies.

Applications

Unspecified application

Species

Unspecified reactive species

Ferda Demir,Kyoji Urayama,Anais Audebrand,Ayca Toprak-Semiz,Marja Steenman,Hitoshi Kurose,Canan G Nebigil
View all publications
