AB197445

Human Growth Factor Antibody Array (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197445 can be used for quantitative measurement of 40 Human Growth Factors.

View Alternative Names

Neurotrophic factor BDNF precursor form, proBDNF, Abrineurin, Brain-derived neurotrophic factor, BDNF, ERBB, ERBB1, HER1, EGFR, Epidermal growth factor receptor, Proto-oncogene c-ErbB-1, Receptor tyrosine-protein kinase erbB-1, HPTA, HGF, Hepatocyte growth factor, Hepatopoietin-A, Scatter factor, SF, BP2, IBP2, IGFBP2, Insulin-like growth factor-binding protein 2, IBP-2, IGF-binding protein 2, IGFBP-2, Glial cell line-derived neurotrophic factor, hGDNF, Astrocyte-derived trophic factor, ATF, GDNF, CD115, FMS, CSF1R, Macrophage colony-stimulating factor 1 receptor, CSF-1 receptor, Proto-oncogene c-Fms, CSF-1-R, CSF-1R, M-CSF-R, CD271, TNFRSF16, NGFR, Tumor necrosis factor receptor superfamily member 16, Gp80-LNGFR, Low affinity neurotrophin receptor p75NTR, Low-affinity nerve growth factor receptor, Low-affinity nerve growth factor receptor p75NGFR, Low-affinity nerve growth factor receptor p75NGR, p75 ICD, NGF receptor, CD117, SCFR, KIT, Mast/stem cell growth factor receptor Kit, Piebald trait protein, Proto-oncogene c-Kit, Tyrosine-protein kinase Kit, p145 c-kit, v-kit Hardy-Zuckerman 4 feline sarcoma viral oncogene homolog, PBT, CD309, FLK1, VEGFR2, KDR, Vascular endothelial growth factor receptor 2, VEGFR-2, Fetal liver kinase 1, Kinase insert domain receptor, Protein-tyrosine kinase receptor flk-1, FLK-1, VEGFR3, FLT4, Vascular endothelial growth factor receptor 3, VEGFR-3, Fms-like tyrosine kinase 4, Tyrosine-protein kinase receptor FLT4, FLT-4, FGFB, FGF2, Fibroblast growth factor 2, FGF-2, Basic fibroblast growth factor, Heparin-binding growth factor 2, bFGF, HBGF-2, TGFB, TGFB1, Transforming growth factor beta-1 proprotein, Transforming growth factor beta-3 proprotein, TGFB3, NGFB, NGF, Beta-nerve growth factor, Beta-NGF, IBP4, IGFBP4, Insulin-like growth factor-binding protein 4, IBP-4, IGF-binding protein 4, IGFBP-4, DTR, DTS, HEGFL, HBEGF, Proheparin-binding EGF-like growth factor, UNQ600/PRO1186, PROK1, Prokineticin-1, Endocrine-gland-derived vascular endothelial growth factor, Mambakine, EG-VEGF, Insulin, INS, OP1, BMP7, Bone morphogenetic protein 7, BMP-7, Osteogenic protein 1, OP-1, AREGB, SDGF, AREG, Amphiregulin, AR, Colorectum cell-derived growth factor, CRDGF, BMP2B, DVR4, BMP4, Bone morphogenetic protein 4, BMP-4, Bone morphogenetic protein 2B, BMP-2B, Pro-epidermal growth factor, EGF, HST, HSTF1, KS3, FGF4, Fibroblast growth factor 4, FGF-4, Heparin secretory-transforming protein 1, Heparin-binding growth factor 4, Transforming protein KS3, HST-1, HSTF-1, HBGF-4, KGF, FGF7, Fibroblast growth factor 7, FGF-7, Heparin-binding growth factor 7, Keratinocyte growth factor, HBGF-7, IBP1, IGF-1, IGF1, Insulin-like growth factor 1, Insulin-like growth factor I, Mechano growth factor, Somatomedin-C, IGF-I, MGF, IBP1, IGFBP1, Insulin-like growth factor-binding protein 1, IBP-1, IGF-binding protein 1, IGFBP-1, Placental protein 12, PP12, IBP3, IGFBP3, Insulin-like growth factor-binding protein 3, IBP-3, IGF-binding protein 3, IGFBP-3, Neurotrophin-3, NT-3, HDNF, Nerve growth factor 2, Neurotrophic factor, NGF-2, NTF3, NTF5, NTF4, Neurotrophin-4, NT-4, Neurotrophin-5, Neutrophic factor 4, NT-5, OCIF, OPG, TNFRSF11B, Tumor necrosis factor receptor superfamily member 11B, Osteoclastogenesis inhibitory factor, Osteoprotegerin, PGFL, PLGF, PGF, Placenta growth factor, PlGF, MGF, SCF, KITLG, Kit ligand, Mast cell growth factor, Stem cell factor, c-Kit ligand, VEGF, VEGFA, L-VEGF, Vascular permeability factor, VPF, FIGF, VEGFD, Vascular endothelial growth factor D, VEGF-D, c-Fos-induced growth factor, Protransforming growth factor alpha, TGFA, Bone morphogenetic protein 5, BMP-5, BMP5, Somatotropin, Growth hormone, Growth hormone 1, Pituitary growth hormone, GH, GH-N, GH1, PDGF1, PDGFA, Platelet-derived growth factor subunit A, PDGF subunit A, PDGF-1, Platelet-derived growth factor A chain, Platelet-derived growth factor alpha polypeptide, MIC1, PDF, PLAB, PTGFB, GDF15, Growth/differentiation factor 15, GDF-15, Macrophage inhibitory cytokine 1, NSAID-activated gene 1 protein, NSAID-regulated gene 1 protein, Placental TGF-beta, Placental bone morphogenetic protein, Prostate differentiation factor, MIC-1, NAG-1, NRG-1, IBP6, IGFBP6, Insulin-like growth factor-binding protein 6, IBP-6, IGF-binding protein 6, IGFBP-6

3 Images
Multiplex Protein Detection - Human Growth Factor Antibody Array (40 Targets) - Quantitative (AB197445)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Growth Factor Antibody Array (40 Targets) - Quantitative (AB197445)

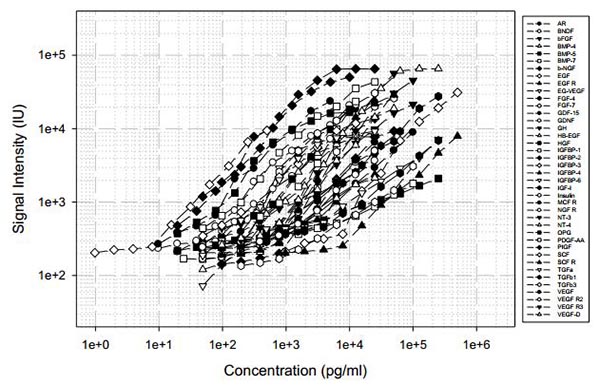

Standard Curve obtained using Abcam Human Growth Factor Antibody Array (40 Targets) - Quantitative (ab197445).

Multiplex Protein Detection - Human Growth Factor Antibody Array (40 Targets) - Quantitative (AB197445)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Growth Factor Antibody Array (40 Targets) - Quantitative (AB197445)

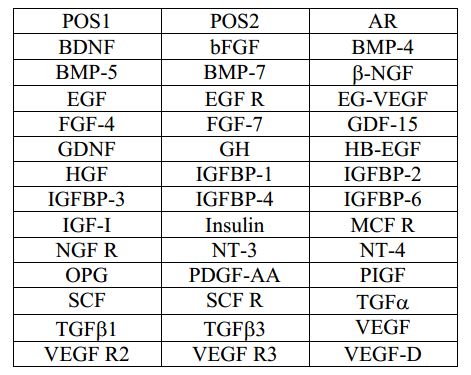

Array map for Abcam Human Growth Factor Antibody Array (40 Targets) - Quantitative (ab197445).

Multiplex Protein Detection - Human Growth Factor Antibody Array (40 Targets) - Quantitative (AB197445)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Growth Factor Antibody Array (40 Targets) - Quantitative (AB197445)

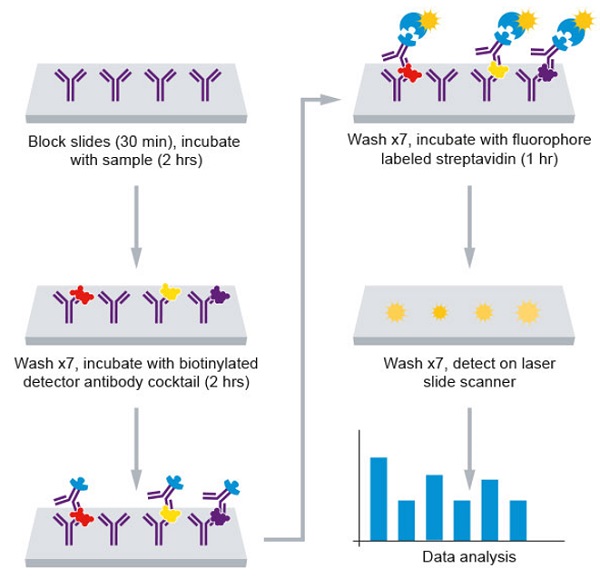

Assay summary for Abcam Human Growth Factor Antibody Array (40 Targets) - Quantitative (ab197445).

Key facts

Reacts with

Human

Target

BDNF

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

Product details

ab197445 can be used for quantitative measurement of 40 Human Growth Factors. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.

Targets names: AR, BDNF, bFGF, BMP-4, BMP-5, BMP-7, β-NGF, EGF, EGF R, EG-VEGF, FGF-4, FGF-7, GDF-15, GDNF, GH, HB-EGF, HGF, IGFBP-1, IGFBP-2, IGFBP-3, IGFBP-4, IGFBP-6, IGF-I, Insulin, MCSF R, NGF R, NT-3, NT-4, OPG, PDGF-AA, PIGF, SCF, SCF R, TGFα, TGFβ1, TGFβ3, VEGF, VEGF R2, VEGF R3, VEGF-D.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197445-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197445-CMP09" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197445-CMP08" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197445-CMP07" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197445-CMP06" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197445-CMP04" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197445-CMP05" }, { "size":"2 x 25 µL", "name":"Human Growth Factor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197445-CMP01" }, { "size":"1 x 1 Vial", "name":"Human Growth Factor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197445-CMP03" }, { "size":"2 x 1 Slide", "name":"Human Growth Factor Array (40 T) Glass Slide", "number":"AB197445-CMP02" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197445-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197445-CMP09" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197445-CMP05" }, { "size":"2 x 1 Vial", "name":"Human Growth Factor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197445-CMP03" }, { "size":"4 x 25 µL", "name":"Human Growth Factor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197445-CMP01" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197445-CMP07" }, { "size":"4 x 1 Slide", "name":"Human Growth Factor Array (40 T) Glass Slide", "number":"AB197445-CMP02" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197445-CMP06" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197445-CMP08" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197445-CMP04" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197445-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197445-CMP09", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197445-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197445-CMP05", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Growth Factor Array (40 T) Glass Slide", "number":"AB197445-CMP02", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Growth Factor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197445-CMP01", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197445-CMP06", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197445-CMP08", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197445-CMP04", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Growth Factor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197445-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Important signaling molecule that activates signaling cascades downstream of NTRK2 (PubMed : 11152678). During development, promotes the survival and differentiation of selected neuronal populations of the peripheral and central nervous systems. Participates in axonal growth, pathfinding and in the modulation of dendritic growth and morphology. Major regulator of synaptic transmission and plasticity at adult synapses in many regions of the CNS. The versatility of BDNF is emphasized by its contribution to a range of adaptive neuronal responses including long-term potentiation (LTP), long-term depression (LTD), certain forms of short-term synaptic plasticity, as well as homeostatic regulation of intrinsic neuronal excitability.. Neurotrophic factor BDNF precursor form. Important signaling molecule that activates signaling cascades downstream of NTRK2. Activates signaling cascades via the heterodimeric receptor formed by NGFR and SORCS2 (PubMed : 24908487, PubMed : 29909994). Signaling via NGFR and SORCS2 plays a role in synaptic plasticity and long-term depression (LTD). Binding to NGFR and SORCS2 promotes neuronal apoptosis. Promotes neuronal growth cone collapse (By similarity).
See full target information BDNF

Additional targets

AREG,NGF,FGF2,BMP4,Bone morphogenetic protein 5,BMP7,EGF,EGFR,PROK1,FGF4,FGF7,GDF15,GDNF,GH1,HBEGF,HGF,IGF1,IGFBP1,IGFBP2,IGFBP3,IGFBP4,IGFBP6,INS,CSF1R,NGFR,NTF3,NTF4,TNFRSF11B,PDGFA,PGF,KITLG,KIT,Protransforming growth factor alpha,TGFB1,TGFB3,VEGFA,VEGFD,KDR,FLT4
websiteProtocolBooklet
en
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
