AB197451

Human Inflammation Antibody Array (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(1 Publication)

ab197451 can be used for quantitative measurement of 40 Human Inflammatory Factors.

View Alternative Names

BCA1, BLC, SCYB13, CXCL13, C-X-C motif chemokine 13, Angie, B cell-attracting chemokine 1, B lymphocyte chemoattractant, CXC chemokine BLC, Small-inducible cytokine B13, BCA-1, MCP1, SCYA2, CCL2, C-C motif chemokine 2, HC11, Monocyte chemoattractant protein 1, Monocyte chemotactic and activating factor, Monocyte chemotactic protein 1, Monocyte secretory protein JE, Small-inducible cytokine A2, MCAF, MCP-1, CD126, Interleukin-6 receptor subunit alpha, IL-6 receptor subunit alpha, IL-6R subunit alpha, IL-6R-alpha, IL-6RA, IL-6R 1, Membrane glycoprotein 80, gp80, IL6R, CD120a, TNFAR, TNFR1, TNFRSF1A, Tumor necrosis factor receptor superfamily member 1A, Tumor necrosis factor receptor 1, Tumor necrosis factor receptor type I, p55, p60, TNF-R1, TNF-RI, TNFR-I, IFNB2, IL6, Interleukin-6, IL-6, B-cell stimulatory factor 2, CTL differentiation factor, Hybridoma growth factor, Interferon beta-2, BSF-2, CDF, IFN-beta-2, C17orf33, GCSF, CSF3, Granulocyte colony-stimulating factor, G-CSF, Pluripoietin, PDGF2, SIS, PDGFB, Platelet-derived growth factor subunit B, PDGF subunit B, PDGF-2, Platelet-derived growth factor B chain, Platelet-derived growth factor beta polypeptide, Proto-oncogene c-Sis, Macrophage colony-stimulating factor 1, CSF-1, M-CSF, MCSF, Lanimostim, Proteoglycan macrophage colony-stimulating factor, PG-M-CSF, CSF1, D17S136E, SCYA5, CCL5, C-C motif chemokine 5, EoCP, Eosinophil chemotactic cytokine, SIS-delta, Small-inducible cytokine A5, T cell-specific protein P228, T-cell-specific protein RANTES, TCP228, Interleukin-11, IL-11, Adipogenesis inhibitory factor, AGIF, IL11, IL 11, Interleukin 11, LAG1, MIP1B, SCYA4, CCL4, C-C motif chemokine 4, G-26 T-lymphocyte-secreted protein, HC21, Lymphocyte activation gene 1 protein, MIP-1-beta(1-69), Macrophage inflammatory protein 1-beta, PAT 744, Protein H400, SIS-gamma, Small-inducible cytokine A4, T-cell activation protein 2, LAG-1, MIP-1-beta, ACT-2, CTLA8, IL17, IL17A, Interleukin-17A, IL-17, IL-17A, Cytotoxic T-lymphocyte-associated antigen 8, CTLA-8, NKSF2, IL12B, Interleukin-12 subunit beta, IL-12B, Cytotoxic lymphocyte maturation factor 40 kDa subunit, IL-12 subunit p40, NK cell stimulatory factor chain 2, CLMF p40, Metalloproteinase inhibitor 2, CSC-21K, Tissue inhibitor of metalloproteinases 2, TIMP-2, TIMP2, SCYA1, CCL1, C-C motif chemokine 1, Small-inducible cytokine A1, T lymphocyte-secreted protein I-309, Interleukin-2, IL-2, T-cell growth factor, TCGF, IL2, Interleukin-4, IL-4, B-cell stimulatory factor 1, Binetrakin, Lymphocyte stimulatory factor 1, Pitrakinra, BSF-1, IL4, IL1F2, IL1B, Interleukin-1 beta, IL-1 beta, Catabolin, TNFA, TNFSF2, TNF, Tumor necrosis factor, Cachectin, TNF-alpha, Tumor necrosis factor ligand superfamily member 2, TNF-a, G0S19-1, MIP1A, SCYA3, CCL3, C-C motif chemokine 3, G0/G1 switch regulatory protein 19-1, Macrophage inflammatory protein 1-alpha, PAT 464.1, SIS-beta, Small-inducible cytokine A3, Tonsillar lymphocyte LD78 alpha protein, MIP-1-alpha, SCYA11, CCL11, Eotaxin, C-C motif chemokine 11, Eosinophil chemotactic protein, Small-inducible cytokine A11, MPIF2, SCYA24, CCL24, C-C motif chemokine 24, CK-beta-6, Eosinophil chemotactic protein 2, Myeloid progenitor inhibitory factor 2, Small-inducible cytokine A24, Eotaxin-2, MPIF-2, GMCSF, CSF2, Granulocyte-macrophage colony-stimulating factor, GM-CSF, Colony-stimulating factor, Molgramostin, Sargramostim, CSF, CD54, Intercellular adhesion molecule 1, ICAM-1, Major group rhinovirus receptor, ICAM1, Interferon gamma, IFN-gamma, Immune interferon, IFNG, IL1F1, IL1A, Interleukin-1 alpha, IL-1 alpha, Hematopoietin-1, IL1F3, IL1RA, IL1RN, Interleukin-1 receptor antagonist protein, IL-1RN, IL-1ra, IRAP, ICIL-1RA, IL1 inhibitor, Interleukin-10, IL-10, Cytokine synthesis inhibitory factor, CSIF, IL10, NC30, IL13, Interleukin-13, IL-13, Interleukin-15, IL-15, IL15, Pro-interleukin-16, IL16, Interleukin-5, IL-5, B-cell differentiation factor I, Eosinophil differentiation factor, T-cell replacing factor, TRF, IL5, Interleukin-7, IL-7, IL7, IL8, CXCL8, Interleukin-8, IL-8, C-X-C motif chemokine 8, Chemokine (C-X-C motif) ligand 8, Emoctakin, Granulocyte chemotactic protein 1, Monocyte-derived neutrophil chemotactic factor, Monocyte-derived neutrophil-activating peptide, Neutrophil-activating protein 1, Protein 3-10C, T-cell chemotactic factor, GCP-1, MDNCF, MONAP, NAP-1, CMK, MIG, SCYB9, CXCL9, C-X-C motif chemokine 9, Gamma-interferon-induced monokine, Monokine induced by interferon-gamma, Small-inducible cytokine B9, HuMIG, MIP5, NCC3, SCYA15, CCL15, C-C motif chemokine 15, Chemokine CC-2, Leukotactin-1, MIP-1 delta, Macrophage inflammatory protein 5, Mrp-2b, NCC-3, Small-inducible cytokine A15, HCC-2, LKN-1, MIP-5, CLGI, TIMP, TIMP1, Metalloproteinase inhibitor 1, Erythroid-potentiating activity, Fibroblast collagenase inhibitor, Tissue inhibitor of metalloproteinases 1, EPA, Collagenase inhibitor, TIMP-1, TNFB, TNFSF1, LTA, Lymphotoxin-alpha, LT-alpha, TNF-beta, Tumor necrosis factor ligand superfamily member 1, NKSF1, IL12A, Interleukin-12 subunit alpha, IL-12A, Cytotoxic lymphocyte maturation factor 35 kDa subunit, IL-12 subunit p35, NK cell stimulatory factor chain 1, CLMF p35, CD120b, TNFBR, TNFR2, TNFRSF1B, Tumor necrosis factor receptor superfamily member 1B, Tumor necrosis factor receptor 2, Tumor necrosis factor receptor type II, p75, p80 TNF-alpha receptor, TNF-R2, TNF-RII, TNFR-II

2 Images
Multiplex Protein Detection - Human Inflammation Antibody Array (40 Targets) - Quantitative (AB197451)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Inflammation Antibody Array (40 Targets) - Quantitative (AB197451)

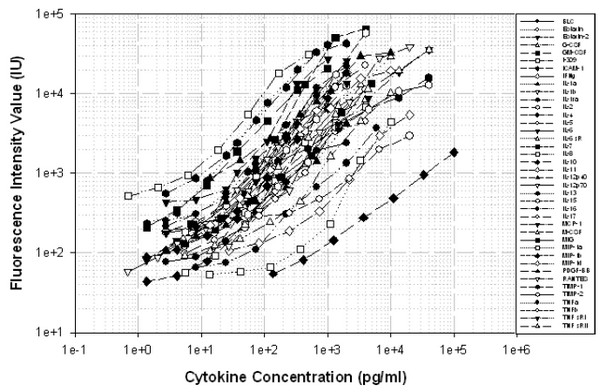

Standard Curve obtained with Human Inflammation Antibody Array (40 Targets)- Quantitative (ab197451)

Multiplex Protein Detection - Human Inflammation Antibody Array (40 Targets) - Quantitative (AB197451)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Inflammation Antibody Array (40 Targets) - Quantitative (AB197451)

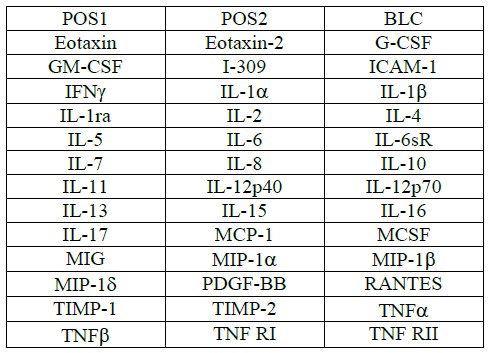

Array Map for Human Inflammation Antibody Array (40 Targets) - Quantitative (ab197451)

Key facts

Reacts with

Human

Target

CXCL13

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

Product details

ab197451 can be used for quantitative measurement of 40 Human Inflammatory Factors. Suitable for serum, plasma, cell culture media, other body fluid, cell and tissue lysates.
Targets names: BLC, Eotaxin, Eotaxin-2, G-CSF, GM-CSF, I-309, ICAM-1, IFNγ, IL-1α, IL-1β, IL-1ra, IL-2, IL-4, IL-5, IL-6, IL-6 sR, IL-7, IL-8, IL-10, IL-11, IL-12p40, IL-12p70, IL-13, IL-15, IL-16, IL-17, MCP-1, M-CSF, MIG, MIP-1α, MIP-1β, MIP-1δ, PDGF-BB, RANTES, TIMP-1, TIMP-2, TNFα, TNFβ, TNF sRI, TNF sRII.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197451-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197451-CMP09" }, { "size":"2 x 25 µL", "name":"Human Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197451-CMP03" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197451-CMP06" }, { "size":"2 x 1 Slide", "name":"Human Inflammation Array (40 T) Glass Slide", "number":"AB197451-CMP04" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197451-CMP07" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197451-CMP02" }, { "size":"1 x 1 Vial", "name":"Human Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197451-CMP05" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197451-CMP01" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197451-CMP08" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197451-50Test", "assetComponentDetails": [ { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197451-CMP06" }, { "size":"2 x 1 Vial", "name":"Human Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197451-CMP05" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197451-CMP07" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197451-CMP01" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197451-CMP02" }, { "size":"4 x 25 µL", "name":"Human Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197451-CMP03" }, { "size":"4 x 1 Slide", "name":"Human Inflammation Array (40 T) Glass Slide", "number":"AB197451-CMP04" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197451-CMP08" }, { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197451-CMP09" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197451-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197451-CMP09", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197451-CMP07", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197451-CMP06", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197451-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197451-CMP02", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Inflammation Array (40 T) Glass Slide", "number":"AB197451-CMP04", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197451-CMP01", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197451-CMP05", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197451-CMP08", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Chemotactic for B-lymphocytes but not for T-lymphocytes, monocytes and neutrophils. Does not induce calcium release in B-lymphocytes. Binds to BLR1/CXCR5.
See full target information CXCL13

Additional targets

CCL11,CCL24,CSF3,CSF2,CCL1,ICAM1,IFNG,IL1A,IL1B,IL1RN,IL10,IL11,IL12B,IL12A,IL13,IL15,IL16,IL17A,IL2,IL4,IL5,IL6,IL6R,IL7,CXCL8,CCL2,CSF1,CXCL9,CCL3,CCL4,CCL15,PDGFB,CCL5,TIMP1,TIMP2,TNF,LTA,TNFRSF1A,TNFRSF1B

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Aging 12:17713-17737 PubMed32855358

2020

Sex specific inflammatory profiles of cerebellar mitochondria are attenuated in Parkinson's disease.

Applications

Unspecified application

Species

Unspecified reactive species

Thomas L Ingram,Freya Shephard,Sarir Sarmad,Catherine A Ortori,David A Barrett,Lisa Chakrabarti
