AB134004

Human MMP Antibody Array - Membrane (10 Targets)

Be the first to review this product! Submit a review

|

(21 Publications)

Human MMP Antibody Array - Membrane (10 Targets) ab134004 is a membrane based multiplex immunoassay for the simultaneous detection of 10 human Matrix Metalloproteinasea (MMPs) in all sample types.

- More data, less sample: screen multiple MMPs with the same sample
- Global view of MMPs expression
- Chemiluminescent detection - no specific equipment required
- Highly sensitive (pg/mL)

View Alternative Names

CLG, MMP1, Interstitial collagenase, Fibroblast collagenase, Matrix metalloproteinase-1, MMP-1, CLG4A, MMP2, 72 kDa type IV collagenase, 72 kDa gelatinase, Gelatinase A, Matrix metalloproteinase-2, TBE-1, MMP-2, Metalloproteinase inhibitor 2, CSC-21K, Tissue inhibitor of metalloproteinases 2, TIMP-2, TIMP2, Metalloproteinase inhibitor 4, Tissue inhibitor of metalloproteinases 4, TIMP-4, TIMP4, STMY1, MMP3, Stromelysin-1, SL-1, Matrix metalloproteinase-3, Transin-1, MMP-3, Collagenase 3, Matrix metalloproteinase-13, MMP-13, MMP13, CLGI, TIMP, TIMP1, Metalloproteinase inhibitor 1, Erythroid-potentiating activity, Fibroblast collagenase inhibitor, Tissue inhibitor of metalloproteinases 1, EPA, Collagenase inhibitor, TIMP-1, CLG1, MMP8, Neutrophil collagenase, Matrix metalloproteinase-8, PMNL collagenase, MMP-8, PMNL-CL, STMY2, MMP10, Stromelysin-2, SL-2, Matrix metalloproteinase-10, Transin-2, MMP-10

5 Images
Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)
  • Multiplex Protein Detection

Lab

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)

Quantification of Human MMP Antibody Array.

Human serum and plasma from a pooled donor (n=50) sample was diluted to 25% and assayed using ab134004. Mean pixel density was quantified using CCD camera software analysis.

Dot Blot - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)
  • Dot

Supplier Data

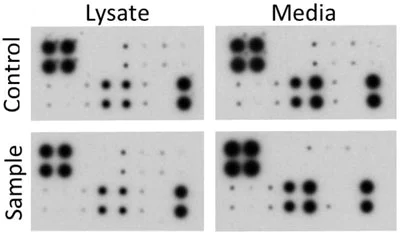

Dot Blot - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)

Membranes were probed with media and cell lysate from control and treated MCF-7 cells. These membranes were exposed to film for 1 minute.

This image is courtesy of an anonymous customer.

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)
  • Multiplex Protein Detection

Lab

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)

143B cells (Human osteosarcoma) were seeded at 1x106 cells/mL and cultured in EMEM media supplemented with 10% fetal calf serum, 100 U/mL penicillin, and 100 μg/mL streptomycin sulfate.

Cells were cultured for 48 hours, washed and harvested. Cell and tissue extracts were prepared and 250 μg of total protein was assayed using ab134004.

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)
  • Multiplex Protein Detection

Lab

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)

Quantification of Human MMP Antibody Array.

Cells were cultured for 48 hours, washed and harvested. Cell and tissue extracts were prepared and 250 μg of total protein was assayed using ab134004. Mean pixel density was quantified using CCD camera software analysis.

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)
  • Multiplex Protein Detection

Lab

Multiplex Protein Detection - Human MMP Antibody Array - Membrane (10 Targets) (AB134004)

Human serum and plasma from a pooled donor (n=50) sample was diluted to 25% and assayed using ab134004.

Key facts

Reacts with

Human

Target

MMP1

target

Applications

Multiplex Protein Detection

applications

Sample types

Saliva, Urine, Plasma, Cell culture extracts, Tissue Extracts, Cell culture media, Cell culture supernatant, Milk, Serum, Other biological fluids, Whole Blood, Cell Lysate

style
left-column

Complementary Products

Reagents, Controls & Accessories

AB270055

Protease Inhibitor Cocktail EDTA Free (100X)

  • 0
  • 0
Multiplex Kits

AB133997

Cytokine Array - Human Cytokine Antibody Array (Membrane, 42 Targets)

Multiplex Protein Detection - Cytokine Array - Human Cytokine Antibody Array (Membrane, 42 Targets) (AB133997)

  • 0
  • 0
Multiplex Kits

AB133998

Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets)

Multiplex Protein Detection - Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets) (AB133998)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Multiplex Kits

AB134001

Human Apoptosis Antibody Array - Membrane (43 Targets)

Multiplex Protein Detection - Human Apoptosis Antibody Array - Membrane (43 Targets) (AB134001)

  • 1
  • 1
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

ab134004 is for simultaneous detection of 7 Human MMPs and 3 TIMPs. Suitable for all sample types.

Targets: MMP-1, MMP-2, MMP-3, MMP-8, MMP-9, MMP-10, MMP-13, TIMP-1, TIMP-2, TIMP-4

Antibody arrays are an antibody-pair-based assay, analogous to ELISA, but using a membrane as a substrate rather than a plate. Capture antibodies are supplied arrayed/spotted on a membrane with each pair of spots representing a different analyte. Sample is added (0.2-1ml of 1 sample to each membrane), and then paired biotinylated detector antibodies and streptavidin HRP. The antibody array is analyzed using the same methods as a chemiluminescent western blot. Comparison between samples can be by eye or using densitometry software for a semi-quantitative comparison.

If you are interested in this antibody array, array ab169816 may also be of interest.

A table of human antibody membrane arrays and the analytes they measure is available here.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

What's included?

{ "values": { "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab134004-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB134004-CMP03" }, { "size":"1 x 4 Unit", "name":"Antibody Array Membranes", "number":"AB134004-CMP13" }, { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB134004-CMP11" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB134004-CMP10" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB134004-CMP06" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB134004-CMP04" }, { "size":"2 x 1 Vial", "name":"Biotin-Conjugated Antibody Cocktail", "number":"AB134004-CMP12" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB134004-CMP08" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB134004-CMP07" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB134004-CMP05" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB134004-CMP01" } ] }, "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab134004-1x8Membranes", "assetComponentDetails": [ { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB134004-CMP06" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB134004-CMP08" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB134004-CMP10" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB134004-CMP01" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB134004-CMP05" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB134004-CMP04" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB134004-CMP03" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB134004-CMP07" }, { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB134004-CMP11" }, { "size":"4 x 1 Vial", "name":"Biotin-Conjugated Antibody Cocktail", "number":"AB134004-CMP12" }, { "size":"2 x 4 Unit", "name":"Antibody Array Membranes", "number":"AB134004-CMP13" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab134004-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB134004-CMP11" }, { "size":"1 x 4 Unit", "name":"Cytokine Antibody Array Membranes", "number":"AB134004-CMP09" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB134004-CMP05" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB134004-CMP06" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB134004-CMP01" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB134004-CMP04" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB134004-CMP08" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB134004-CMP07" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB134004-CMP10" }, { "size":"2 x 1 Vial", "name":"Biotin-Conjugated Anti-Cytokines", "number":"AB134004-CMP02" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB134004-CMP03" } ] }, "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab134004-1x8Membranes", "assetComponentDetails": [ { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB134004-CMP06", "productcode":"" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB134004-CMP08", "productcode":"" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB134004-CMP10", "productcode":"" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB134004-CMP01", "productcode":"" }, { "size":"2 x 4 Unit", "name":"Cytokine Antibody Array Membranes", "number":"AB134004-CMP09", "productcode":"" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB134004-CMP05", "productcode":"" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB134004-CMP04", "productcode":"" }, { "size":"4 x 1 Vial", "name":"Biotin-Conjugated Anti-Cytokines", "number":"AB134004-CMP02", "productcode":"" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB134004-CMP03", "productcode":"" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB134004-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB134004-CMP11", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Cleaves collagens of types I, II, and III at one site in the helical domain. Also cleaves collagens of types VII and X (PubMed : 1645757, PubMed : 2153297, PubMed : 2557822). In case of HIV infection, interacts and cleaves the secreted viral Tat protein, leading to a decrease in neuronal Tat's mediated neurotoxicity (PubMed : 16807369).
See full target information MMP1

Additional targets

MMP2,MMP3,MMP8,MMP10,MMP13,TIMP1,TIMP2,Metalloproteinase inhibitor 4
