AB197455

Human Receptor Antibody Array (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197455 can be used for quantitative measurement of 40 Human cytokines.

View Alternative Names

CD137, ILA, TNFRSF9, Tumor necrosis factor receptor superfamily member 9, 4-1BB ligand receptor, CDw137, T-cell antigen 4-1BB homolog, T-cell antigen ILA

2 Images
Multiplex Protein Detection - Human Receptor Antibody Array (40 Targets) - Quantitative (AB197455)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Receptor Antibody Array (40 Targets) - Quantitative (AB197455)

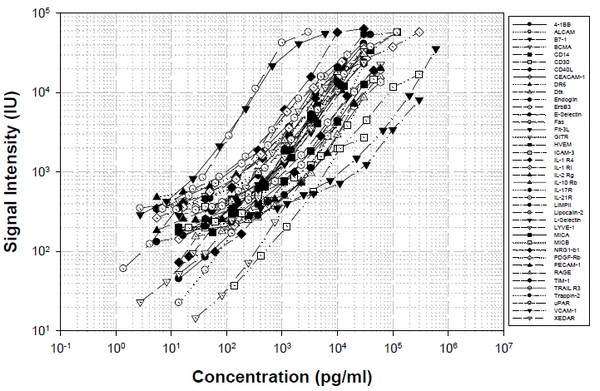

Standard Curve obtained with Abcam Human Receptor Antibody (40 targets) - Quantitative (ab197455)

Multiplex Protein Detection - Human Receptor Antibody Array (40 Targets) - Quantitative (AB197455)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Human Receptor Antibody Array (40 Targets) - Quantitative (AB197455)

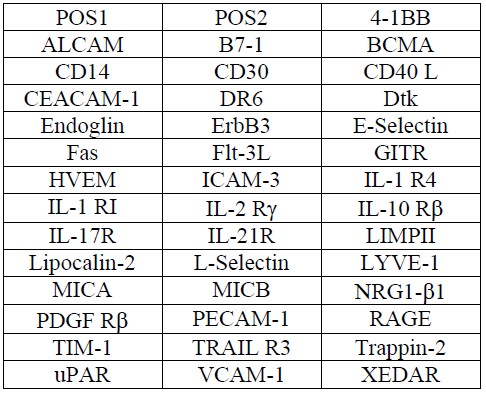

Array Map for Abcam Human Receptor Antibody (40 targets) - Quantitative (ab197455)

Key facts

Assay type

Quantitative

Reacts with

Human

Target

TNFRSF9

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style
left-column

Product details

ab197455 can be used for quantitative measurement of 40 Human cytokines. Suitable for serum, plasma, cell culture media, other body fluid, cell and tissue lysates.
Target names: 4-1BB, ALCAM, B7-1, BCMA, CD14, CD30, CD40L, CEACAM-1, DR6, Dtk, Endoglin, ErbB3, E-Selectin, Fas, Flt-3L, GITR, HVEM, ICAM-3, IL-1 R4, IL-1 RI, IL-10 Rβ, IL-17R, IL-2Rγ, IL-21R, LIMPII, Lipocalin-2, L-Selectin, LYVE-1, MICA, MICB, NRG1-β1, PDGF Rβ, PECAM-1, RAGE, TIM-1, TRAIL R3, Trappin-2, uPAR, VCAM-1, XEDAR.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

style
left-column

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197455-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197455-CMP09" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197455-CMP06" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197455-CMP02" }, { "size":"2 x 25 µL", "name":"Human Receptor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197455-CMP03" }, { "size":"1 x 1 Vial", "name":"Human Receptor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197455-CMP05" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197455-CMP01" }, { "size":"2 x 1 Slide", "name":"Human Receptor Array (40 T) Glass Slide", "number":"AB197455-CMP04" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197455-CMP08" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197455-CMP07" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197455-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197455-CMP09" }, { "size":"2 x 1 Vial", "name":"Human Receptor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197455-CMP05" }, { "size":"4 x 1 Slide", "name":"Human Receptor Array (40 T) Glass Slide", "number":"AB197455-CMP04" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197455-CMP08" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197455-CMP07" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197455-CMP01" }, { "size":"4 x 25 µL", "name":"Human Receptor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197455-CMP03" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197455-CMP06" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197455-CMP02" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197455-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197455-CMP09", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197455-CMP02", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197455-CMP08", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197455-CMP07", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197455-CMP06", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Human Receptor Array (40 T) Glass Slide", "number":"AB197455-CMP04", "productcode":"" }, { "size":"1 x 25 µL", "name":"Human Receptor Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197455-CMP03", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197455-CMP01", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Human Receptor Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197455-CMP05", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Receptor for TNFSF9/4-1BBL. Conveys a signal that enhances CD8(+) T-cell survival, cytotoxicity, and mitochondrial activity, thereby promoting immunity against viruses and tumors (Probable).
See full target information TNFRSF9

Additional targets

ALCAM,TNFRSF17,CD14,TNFRSF8,CD40LG,CD80,CEACAM1,CNTN2,TNFRSF21,ENG,ERBB3,SELE,FAS,FLT3LG,TNFRSF18,TNFRSF14,ICAM3,IL1R1,IL10RB,IL17RA,IL2RG,IL21R,SCARB2,LCN2,SELL,LYVE1,MICA,MICB,NRG1,PDGFRB,PECAM1,MOK,HAVCR1,TNFRSF10C,PI3,PLAUR,VCAM1,EDA2R
