AB139697

Mouse Angiogenesis Antibody Array - Membrane (24 Targets)

Be the first to review this product! Submit a review

|

(3 Publications)

ab139697 is for simultaneous detection of 24 Mouse Angiogenic factors.

View Alternative Names

Mig, Scyb9, Cxcl9, C-X-C motif chemokine 9, Gamma-interferon-induced monokine, Monokine induced by interferon-gamma, Protein m119, Small-inducible cytokine B9, MIG, MuMIG, Timp-2, Timp2, Metalloproteinase inhibitor 2, Tissue inhibitor of metalloproteinases 2, TIMP-2, CD131, Aic2b, Csf2rb1, Il3rb1, Csf2rb, Cytokine receptor common subunit beta, GM-CSF/IL-3/IL-5 receptor common beta subunit, Csfg, Csf3, Granulocyte colony-stimulating factor, G-CSF, Interferon gamma, IFN-gamma, Ifng, Interleukin-12 subunit alpha, IL-12A, Cytotoxic lymphocyte maturation factor 35 kDa subunit, IL-12 subunit p35, CLMF p35, Il12a, Interleukin-12 subunit beta, IL-12B, Cytotoxic lymphocyte maturation factor 40 kDa subunit, IL-12 subunit p40, CLMF p40, Il12b, Il-13, Il13, Interleukin-13, IL-13, T-cell activation protein P600, Il-6, Il6, Interleukin-6, IL-6, B-cell hybridoma growth factor, Interleukin HP-1, Interleukin-9, IL-9, Cytokine P40, T-cell growth factor P40, Il9, Ob, Lep, Leptin, Obesity factor, Thrombopoietin, C-mpl ligand, Megakaryocyte colony-stimulating factor, Megakaryocyte growth and development factor, Myeloproliferative leukemia virus oncogene ligand, ML, MGDF, Thpo, Timp, Timp-1, Timp1, Metalloproteinase inhibitor 1, Collagenase inhibitor 16C8 fibroblast, Erythroid-potentiating activity, TPA-S1, TPA-induced protein, Tissue inhibitor of metalloproteinases 1, EPA, TIMP-1, Interleukin-1 beta, IL-1 beta, Il1b, Tnfa, Tnfsf2, Tnf, Tumor necrosis factor, Cachectin, TNF-alpha, Tumor necrosis factor ligand superfamily member 2, TNF-a, Je, Mcp1, Scya2, Ccl2, C-C motif chemokine 2, Monocyte chemoattractant protein 1, Monocyte chemotactic protein 1, Platelet-derived growth factor-inducible protein JE, Small-inducible cytokine A2, MCP-1, Interleukin-1 alpha, IL-1 alpha, Il1a, Cxcl4, Scyb4, Pf4, Platelet factor 4, PF-4, C-X-C motif chemokine 4, Csfm, Csf1, Macrophage colony-stimulating factor 1, CSF-1, MCSF, Proteoglycan macrophage colony-stimulating factor, PG-M-CSF, Igf-2, Igf2, Insulin-like growth factor 2, Insulin-like growth factor II, Multiplication-stimulating polypeptide, IGF-II, Fgf-2, Fgf2, Fibroblast growth factor 2, FGF-2, Basic fibroblast growth factor, Heparin-binding growth factor 2, bFGF, HBGF-2, CD178, Apt1lg1, Cd95l, Fasl, gld, Tnfsf6, Faslg, Tumor necrosis factor ligand superfamily member 6, CD95 ligand, Fas antigen ligand, CD95-L, Fas ligand, FasL

1 Images
Multiplex Protein Detection - Mouse Angiogenesis Antibody Array - Membrane (24 Targets) (AB139697)
  • Multiplex Protein Detection

Unknown

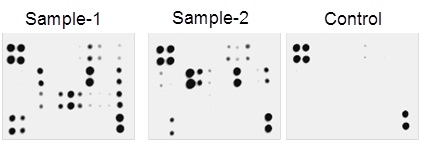

Multiplex Protein Detection - Mouse Angiogenesis Antibody Array - Membrane (24 Targets) (AB139697)

Typical results obtained with Abcam Membrane Antibody Arrays. Image above presents typical images obtained with Abcam Human Cytokine Membrane Antibody Array. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at RT for 1 min.

Key facts

Reacts with

Mouse

Target

Cxcl9

target

Applications

Multiplex Protein Detection

applications

Sample types

Saliva, Urine, Plasma, Cell culture extracts, Tissue Extracts, Cell culture media, Cell culture supernatant, Milk, Serum, Other biological fluids, Whole Blood, Cell Lysate

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

Product details

ab139697 is for simultaneous detection of 24 Mouse Angiogenic factors. Suitable for all sample types.

Targets: Eotaxin, Fas Ligand, bFGF, G-CSF, GM-CSF, IFN-gamma, IGF-II, IL-1 alpha, IL-1 beta, IL-12 p40/p70, IL-12 p70, IL-13, IL-6, IL-9, Leptin, MCP-1, M-CSF, MIG, PF-4, TIMP-1, TIMP-2, TNF-alpha, Thrombopoietin.

Cytokine arrays are an antibody-pair-based assay, analogous to ELISA, but using a membrane as a substrate rather than a plate. Capture antibodies are supplied arrayed/spotted on a membrane with each pair of spots representing a different analyte. Sample is added (0.2-1ml of 1 sample to each membrane), and then paired biotinylated detector antibodies and streptavidin HRP. The cytokine array is analyzed using the same methods as a chemiluminescent western blot. Comparison between samples can be by eye or using densitometry software for a semi-quantitative comparison.

A table listing all of our mouse membrane antibody cytokine arrays and other arrays and the analytes they measure is available here.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

What's included?

{ "values": { "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab139697-1x8Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB139697-CMP11" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB139697-CMP08" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB139697-CMP01" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB139697-CMP07" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB139697-CMP03" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB139697-CMP04" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB139697-CMP05" }, { "size":"2 x 4 Unit", "name":"Angiogenesis Antibody Array Membranes", "number":"AB139697-CMP10" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB139697-CMP06" }, { "size":"4 x 1 Vial", "name":"Biotin-Conjugated Anti-Cytokines", "number":"AB139697-CMP02" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB139697-CMP09" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab139697-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB139697-CMP11", "productcode":"" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB139697-CMP01", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotin-Conjugated Anti-Cytokines", "number":"AB139697-CMP02", "productcode":"" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB139697-CMP03", "productcode":"" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB139697-CMP08", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB139697-CMP04", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB139697-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB139697-CMP09", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB139697-CMP07", "productcode":"" }, { "size":"1 x 4 Unit", "name":"Angiogenesis Antibody Array Membranes", "number":"AB139697-CMP10", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB139697-CMP05", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

May be a cytokine that affects the growth, movement, or activation state of cells that participate in immune and inflammatory response.
See full target information Cxcl9

Additional targets

Csf2rb,Csf3,Faslg,Fgf2,Ifng,Igf2,Il12a,Il12b,Il13,IL1A_MOUSE,Il1b,Tnf,Il6,Il9,Lep,Pf4,Thpo,Timp1,Timp2,Ccl2,Csf1

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

Science advances 3:e1701350 PubMed29075670

2017

Melanoma topology reveals a stem-like phenotype that promotes angiogenesis.

Applications

Unspecified application

Species

Unspecified reactive species

Junmin Lee,Amr A Abdeen,Jamila Hedhli,Kathryn L Wycislo,Iwona T Dobrucka,Timothy M Fan,Lawrence W Dobrucki,Kristopher A Kilian

Theranostics 7:3876-3888 PubMed29109784

2017

Multimodal Assessment of Mesenchymal Stem Cell Therapy for Diabetic Vascular Complications.

Applications

Unspecified application

Species

Unspecified reactive species

Jamila Hedhli,Christian J Konopka,Sarah Schuh,Hannah Bouvin,John A Cole,Heather D Huntsman,Kristopher A Kilian,Iwona T Dobrucki,Marni D Boppart,Lawrence W Dobrucki

Scientific reports 6:31572 PubMed27514308

2016

Morphine decreases the pro-angiogenic interaction between breast cancer cells and macrophages in vitro.

Applications

Unspecified application

Species

Unspecified reactive species

Samira Khabbazi,Zeyad D Nassar,Yannick Goumon,Marie-Odile Parat
View all publications
