AB197464

Mouse Chemokine Antibody Array (25 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197464 can be used for quantitative measurement of 25 Mouse chemokines.

View Alternative Names

Scya11, Ccl11, Eotaxin, C-C motif chemokine 11, Eosinophil chemotactic protein, Small-inducible cytokine A11, Abcd1, Scya22, Ccl22, C-C motif chemokine 22, Activated B and dendritic cell-derived, CC chemokine ABCD-1, Small-inducible cytokine A22, Mip1a, Scya3, Ccl3, C-C motif chemokine 3, Heparin-binding chemotaxis protein, L2G25B, Macrophage inflammatory protein 1-alpha, SIS-alpha, Small-inducible cytokine A3, TY-5, MIP-1-alpha, Mcp5, Scya12, Ccl12, C-C motif chemokine 12, MCP-1-related chemokine, Monocyte chemoattractant protein 5, Monocyte chemotactic protein 5, Small-inducible cytokine A12, MCP-5, Scya21, Scya21b, Ccl21b, C-C motif chemokine 21b, 6Ckine, Beta-chemokine exodus-2, Small-inducible cytokine A21b, Thymus-derived chemotactic agent 4, TCA4, Tarc, Ccl17, C-C motif chemokine 17, ABCD-2, CC chemokine TARC, Small-inducible cytokine A17, Thymus and activation-regulated chemokine, Elc, Scya19, Ccl19, C-C motif chemokine 19, Epstein-Barr virus-induced molecule 1 ligand chemokine, Small-inducible cytokine A19, EBI1 ligand chemokine, ELC, Ilc, Scya27, Ccl27, C-C motif chemokine 27, CC chemokine ILC, Cutaneous T-cell-attracting chemokine, ESkine, IL-11 R-alpha-locus chemokine, Skinkine, Small-inducible cytokine A27, CTACK, ALP, mILC, Scya5, Ccl5, C-C motif chemokine 5, MuRantes, SIS-delta, Small-inducible cytokine A5, T-cell-specific protein RANTES, Gro, Gro1, Mgsa, Scyb1, Cxcl1, Growth-regulated alpha protein, C-X-C motif chemokine 1, Platelet-derived growth factor-inducible protein KC, Secretory protein N51, Mip-2, Mip2, Scyb2, Cxcl2, C-X-C motif chemokine 2, Macrophage inflammatory protein 2, MIP2, Mig, Scyb9, Cxcl9, C-X-C motif chemokine 9, Gamma-interferon-induced monokine, Monokine induced by interferon-gamma, Protein m119, Small-inducible cytokine B9, MIG, MuMIG, Je, Mcp1, Scya2, Ccl2, C-C motif chemokine 2, Monocyte chemoattractant protein 1, Monocyte chemotactic protein 1, Platelet-derived growth factor-inducible protein JE, Small-inducible cytokine A2, MCP-1, Sdf1, Cxcl12, Stromal cell-derived factor 1, SDF-1, 12-O-tetradecanoylphorbol 13-acetate repressed protein 1, C-X-C motif chemokine 12, Pre-B cell growth-stimulating factor, Thymic lymphoma cell-stimulating factor, TPAR1, PBSF, TLSF, Scyb5, Cxcl5, C-X-C motif chemokine 5, Cytokine LIX, Small-inducible cytokine B5, Scya25, Teck, Ccl25, C-C motif chemokine 25, Chemokine TECK, Small-inducible cytokine A25, Thymus-expressed chemokine, Larc, Scya20, Ccl20, C-C motif chemokine 20, Beta-chemokine exodus-1, CC chemokine LARC, CC chemokine ST38, Liver and activation-regulated chemokine, Macrophage inflammatory protein 3 alpha, Small-inducible cytokine A20, MIP-3-alpha, Scya24, Ccl24, C-C motif chemokine 24, Eosinophil chemotactic protein 2, Small-inducible cytokine A24, Eotaxin-2, Cx3c, Fkn, Scyd1, Cx3cl1, Fractalkine, FK, ABCD-3, C-X3-C motif chemokine 1, CX3C membrane-anchored chemokine, Neurotactin, Small-inducible cytokine D1, Scyb11, Cxcl11, C-X-C motif chemokine 11, Interferon-inducible T-cell alpha chemoattractant, Small-inducible cytokine B11, I-TAC, Blc, Scyb13, Cxcl13, C-X-C motif chemokine 13, B lymphocyte chemoattractant, CXC chemokine BLC, Small-inducible cytokine B13, Mrp2, Scya10, Scya9, Ccl9, C-C motif chemokine 9, CCF18, Macrophage inflammatory protein 1-gamma, Macrophage inflammatory protein-related protein 2, Small-inducible cytokine A9, MIP-1-gamma, MRP-2, Srpsox, Cxcl16, C-X-C motif chemokine 16, Scavenger receptor for phosphatidylserine and oxidized low density lipoprotein, Small-inducible cytokine B16, Transmembrane chemokine CXCL16, SR-PSOX, Scya1, Tca3, Ccl1, C-C motif chemokine 1, P500, SIS-epsilon, Small-inducible cytokine A1, T-cell activation protein 3, TCA-3, TCA3

2 Images
Multiplex Protein Detection - Mouse Chemokine Antibody Array (25 Targets) - Quantitative (AB197464)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Chemokine Antibody Array (25 Targets) - Quantitative (AB197464)

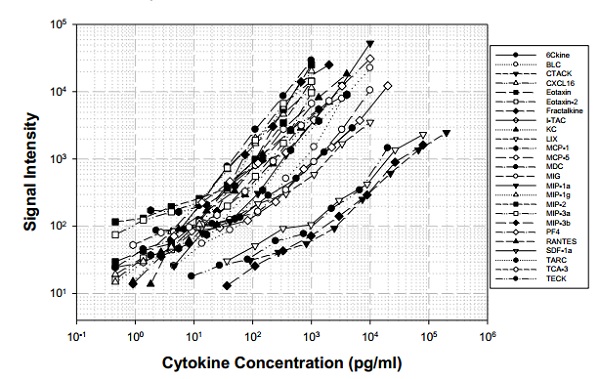

Standard Curve obtained with Abcam Mouse Chemokine Antibody Array (25 targets) - Quantitative (ab197464)

Multiplex Protein Detection - Mouse Chemokine Antibody Array (25 Targets) - Quantitative (AB197464)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Chemokine Antibody Array (25 Targets) - Quantitative (AB197464)

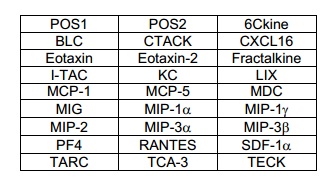

Array Map for Abcam Mouse Chemokine Antibody Array (25 targets) - Quantitative (ab197464)

Key facts

Reacts with

Mouse

Target

Ccl11

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

Product details

ab197464 can be used for quantitative measurement of 25 Mouse chemokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.
Targets names: 6Ckine, BLC, CTACK, CXCL16, Eotaxin, Eotaxin-2, Fractalkine, I-TAC, KC, LIX, MCP-1, MCP-5, MDC, MIG, MIP-1α, MIP-1γ, MIP-2, MIP-3α, MIP-3β, PF-4, RANTES, SDF-1α, TARC, TCA-3, TECK.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197464-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197464-CMP09" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197464-CMP06" }, { "size":"2 x 25 µL", "name":"Mouse Chemokine Array (25 T) Biotinylated Antibody Cocktail", "number":"AB197464-CMP01" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197464-CMP07" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197464-CMP04" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197464-CMP05" }, { "size":"1 x 1 Vial", "name":"Mouse Chemokine Array (25 T) Lyophilized Cytokine Standard Mix", "number":"AB197464-CMP03" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197464-CMP08" }, { "size":"2 x 1 Slide", "name":"Mouse Chemokine Array (25 T) Glass Slide", "number":"AB197464-CMP02" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197464-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197464-CMP09" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197464-CMP07" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197464-CMP05" }, { "size":"1 x 1 Slide", "name":"Mouse Chemokine Array (25 T) Glass Slide", "number":"AB197464-CMP02" }, { "size":"1 x 25 µL", "name":"Mouse Chemokine Array (25 T) Biotinylated Antibody Cocktail", "number":"AB197464-CMP01" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197464-CMP08" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197464-CMP04" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197464-CMP06" }, { "size":"1 x 1 Vial", "name":"Mouse Chemokine Array (25 T) Lyophilized Cytokine Standard Mix", "number":"AB197464-CMP03" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197464-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197464-CMP09", "productcode":"" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197464-CMP06", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Mouse Chemokine Array (25 T) Lyophilized Cytokine Standard Mix", "number":"AB197464-CMP03", "productcode":"" }, { "size":"4 x 25 µL", "name":"Mouse Chemokine Array (25 T) Biotinylated Antibody Cocktail", "number":"AB197464-CMP01", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197464-CMP07", "productcode":"" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197464-CMP05", "productcode":"" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197464-CMP04", "productcode":"" }, { "size":"4 x 1 Slide", "name":"Mouse Chemokine Array (25 T) Glass Slide", "number":"AB197464-CMP02", "productcode":"" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197464-CMP08", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Chemokine that plays a central role in both allergic and non-allergic inflammatory reactions by inducing the migration of different leukocyte types including eosinophils, basophils, macrophages and dendritic cells (PubMed : 7568052, PubMed : 8574847). Exerts its effects primarily by binding to the CCR3 receptor. Induces also chemotaxis of endothelial cells and promotes angiogenesis by activating the PI3K/Akt pathway.
See full target information Ccl11

Additional targets

Ccl21b,Ccl3,Cxcl16,Ccl9,Ccl12,Ccl2,Ccl17,Ccl19,Ccl20,Ccl22,Ccl24,Ccl25,Ccl1,Ccl27,Ccl5,Cx3cl1,Cxcl1,Cxcl11,Cxcl12,Cxcl13,Cxcl2,Cxcl5,Cxcl9
