AB197470

Mouse Cytokine Antibody Array C (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197470 can be used for quantitative measurement of 40 mouse cytokines.

View Alternative Names

Elc, Scya19, Ccl19, C-C motif chemokine 19, Epstein-Barr virus-induced molecule 1 ligand chemokine, Small-inducible cytokine A19, EBI1 ligand chemokine, ELC

2 Images
Multiplex Protein Detection - Mouse Cytokine Antibody Array C (40 Targets) - Quantitative (AB197470)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Cytokine Antibody Array C (40 Targets) - Quantitative (AB197470)

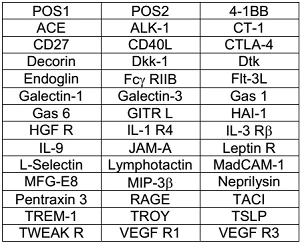

Array map for Mouse Cytokine Antibody Array C - Quantitative (40 targets) (ab197470)

Multiplex Protein Detection - Mouse Cytokine Antibody Array C (40 Targets) - Quantitative (AB197470)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Cytokine Antibody Array C (40 Targets) - Quantitative (AB197470)

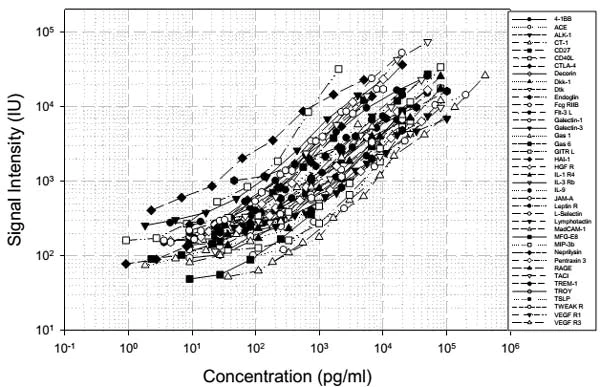

Standard Curve obtained with abcam Mouse Cytokine Antibody Array C - Quantitative (40 targets) (ab197470)

Key facts

Assay type

Quantitative

Reacts with

Mouse

Target

Ccl19

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture supernatant, Serum, Other biological fluids, Cell Lysate

style
left-column

Product details

ab197470 can be used for quantitative measurement of 40 mouse cytokines. Suitable for cell culture supernatants, plasma, serum, cell and tissue lysates, and other biological fluids.

Targets names: 4-1BB, ACE, ALK-1, CT-1, CD27, CD40L, CTLA-4, Decorin, Dkk-1, Dtk, Endoglin, Fcγ RIIB, Flt-3 L, Galectin-1, Galectin-3, Gas 1, Gas 6, GITR L, HAI-1, HGF R, IL-1 R4, IL-3 Rβ, IL-9, JAM-A, Leptin R, LSelectin, Lymphotactin, MadCAM-1, MFG-E8, MIP-3β, Neprilysin, Pentraxin 3, RAGE, TACI, TREM-1, TROY, TSLP, TWEAK R, VEGF R1, VEGF R3.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

style
left-column

What's included?

{ "values": { "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197470-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197470-CMP09" }, { "size":"1 x 25 µL", "name":"Mouse Cytokine Array C (40 T) Biotinylated Antibody Cocktail", "number":"AB197470-CMP01" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197470-CMP04" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197470-CMP05" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197470-CMP06" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197470-CMP08" }, { "size":"1 x 1 Slide", "name":"Mouse Cytokine Array C (40 T) Glass Slide", "number":"AB197470-CMP02" }, { "size":"1 x 1 Vial", "name":"Mouse Cytokine Array C (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197470-CMP03" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197470-CMP07" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197470-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197470-CMP09" }, { "size":"4 x 25 µL", "name":"Mouse Cytokine Array C (40 T) Biotinylated Antibody Cocktail", "number":"AB197470-CMP01" }, { "size":"2 x 1 Vial", "name":"Mouse Cytokine Array C (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197470-CMP03" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197470-CMP04" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197470-CMP07" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197470-CMP05" }, { "size":"4 x 1 Slide", "name":"Mouse Cytokine Array C (40 T) Glass Slide", "number":"AB197470-CMP02" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197470-CMP06" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197470-CMP08" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197470-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197470-CMP09", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197470-CMP04", "productcode":"" }, { "size":"2 x 1 Slide", "name":"Mouse Cytokine Array C (40 T) Glass Slide", "number":"AB197470-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Mouse Cytokine Array C (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197470-CMP03", "productcode":"" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197470-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197470-CMP05", "productcode":"" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197470-CMP08", "productcode":"" }, { "size":"2 x 25 µL", "name":"Mouse Cytokine Array C (40 T) Biotinylated Antibody Cocktail", "number":"AB197470-CMP01", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197470-CMP07", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Strongly chemotactic for naive (L-selectinhi) CD4 T-cells and for CD8 T-cells and weakly attractive for resting B-cells and memory (L-selectinlo) CD4 T-cells. May play a role in promoting encounters between recirculating T-cells and dendritic cells and in the migration of activated B-cells into the T-zone of secondary lymphoid tissues. Binds to chemokine receptor CCR7. Binds to atypical chemokine receptor ACKR4 and mediates the recruitment of beta-arrestin (ARRB1/2) to ACKR4.
See full target information Ccl19

Additional targets

Csf2rb,Mok,Met,Tyro3,Slpi,Lgals1,Ace,Il1rl1,Trem1,Sell,Lepr,Madcam1,Flt1,Mme,Tnfrsf19,Dickkopf-related protein 1,Galectin-3,F11r,Growth arrest-specific protein 6,Tnfrsf13b,Ctla4,Mfge8,Met,Tyro3,Slpi,Lgals1,Ace,Il1rl1,Trem1,Sell,Lepr,Madcam1,Flt1,Mme,Tnfrsf19,Dickkopf-related protein 1,Galectin-3,F11r,Growth arrest-specific protein 6,Tnfrsf13b,Ctla4,Mfge8,Cd27,Cd40lg,Ctf1,Dcn,Eng,Fcgr2,Flt3lg,Flt4,Gas1,Il9,Ptx3,Spint1,Tnfrsf9,Tnfsf12,Tnfsf18,Tslp,Xcl1
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Complementary Products

Multiplex Kits

AB197469

Mouse Cytokine Antibody Array B (40 Targets) - Quantitative

Multiplex Protein Detection - Mouse Cytokine Antibody Array B (40 Targets) - Quantitative (AB197469)

  • 0
  • 0
Multiplex Kits

AB193659

Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 96 Targets)

Multiplex Protein Detection - Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 96 Targets) (AB193659)

  • 0
  • 0
Multiplex Kits

AB133995

Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 62 Targets)

Multiplex Protein Detection - Cytokine Array - Mouse Cytokine Antibody Array (Membrane, 62 Targets) (AB133995)

  • 0
  • 0
Multiplex Kits

AB197471

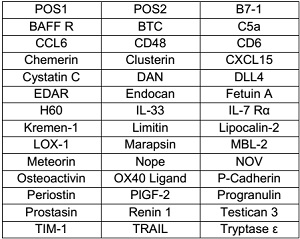

Mouse Cytokine Antibody Array D (40 Targets) - Quantitative
