AB197471

Mouse Cytokine Antibody Array D (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197471 can be used for quantitative measurement of 40 mouse cytokines.

View Alternative Names

Fetua, Ahsg, Alpha-2-HS-glycoprotein, Countertrypin, Fetuin-A, Progranulin, PGRN, Acrogranin, Epithelin/granulin precursor, Glycoprotein of 88 Kda, PC cell-derived growth factor, Proepithelin, GP88, Glycoprotein 88, PCDGF, PEPI, Grn, Bcn, Btc, Probetacellulin, Lox1, Olr1, Oxidized low-density lipoprotein receptor 1, Ox-LDL receptor 1, Lectin-like oxidized LDL receptor 1, Lectin-type oxidized LDL receptor 1, LOX-1, Lectin-like oxLDL receptor 1, Retinoic acid receptor responder protein 2, Chemerin, Rarres2, Neutrophil gelatinase-associated lipocalin, NGAL, Lipocalin-2, Oncogene 24p3, SV-40-induced 24p3 protein, Siderocalin LCN2, p25, 24p3, Lcn2, Apoj, Msgp-2, Clu, Clusterin, Apolipoprotein J, Clustrin, Sulfated glycoprotein 2, Apo-J, SGP-2, CD6, T-cell differentiation antigen CD6, Cd6, CD365, Kim1, Tim1, Timd1, Havcr1, Hepatitis A virus cellular receptor 1 homolog, HAVcr-1, Kidney injury molecule 1, T cell immunoglobulin and mucin domain-containing protein 1, T cell membrane protein 1, T-cell immunoglobulin mucin receptor 1, KIM-1, TIMD-1, TIM-1, Hc, C5, Complement C5, Hemolytic complement, Scyb15, Cxcl15, C-X-C motif chemokine 15, Lungkine, Small-inducible cytokine B15, CD268, Baffr, Bcmd, Br3, Tnfrsf13c, Tumor necrosis factor receptor superfamily member 13C, B-cell maturation defect, B-cell-activating factor receptor, BAFF receptor, BLyS receptor 3, BAFF-R, CD80, B7, Cd80, T-lymphocyte activation antigen CD80, Activation B7-1 antigen, CD253, Trail, Tnfsf10, Tumor necrosis factor ligand superfamily member 10, TNF-related apoptosis-inducing ligand, Protein TRAIL, Interleukin-33, IL-33, Il33, Dchil, Hgfin, Nmb, Gpnmb, Transmembrane glycoprotein NMB, DC-HIL, Dendritic cell-associated transmembrane protein, Osteoactivin, Testican-3, Spock3, C10, Scya6, Ccl6, C-C motif chemokine 6, Protein C10, Small-inducible cytokine A6, CD48, Bcm-1, Cd48, CD48 antigen, BCM1 surface antigen, BLAST-1, HM48-1, MRC OX-45 surface antigen, SLAM family member 2, Signaling lymphocytic activation molecule 2, sgp-60, SLAMF2, Mannose-binding protein C, MBP-C, Mannan-binding protein, RA-reactive factor P28A subunit, RARF/P28A, Mbl2, Plgf, Pgf, Placenta growth factor, PlGF, Osf2, Postn, Periostin, PN, Osteoblast-specific factor 2, OSF-2, Hyrac, Metrn, Meteorin, Hypoxia/reoxygenation regulatory factor, CD127, Interleukin-7 receptor subunit alpha, IL-7 receptor subunit alpha, IL-7R subunit alpha, IL-7R-alpha, IL-7RA, Il7r, Interferon alpha-11, IFN-alpha-11, Limitin, Ifna11, CD252, Ox40l, Txgp1l, Tnfsf4, Tumor necrosis factor ligand superfamily member 4, OX40 ligand, OX40L, Delta-like protein 4, Drosophila Delta homolog 4, Delta4, Dll4, Nov, Ccn3, CCN family member 3, Cellular communication network factor 3, Nephroblastoma-overexpressed gene protein homolog, Protein NOV homolog, NovH, Endothelial cell-specific molecule 1, ESM-1, Esm1, Cap1, Prss8, Prostasin, Channel-activating protease 1, Serine protease 8, CAP1, Cdhp, Cdh3, Cadherin-3, Placental cadherin, P-cadherin, Ren, Ren-1, Ren1, Renin-1, Angiotensinogenase, Kidney renin, Bssp4, Prss26, Prss22, Brain-specific serine protease 4, BSSP-4, Serine protease 22, Serine protease 26, Tryptase epsilon, Cystatin-C, Cystatin-3, Cst3, Mpn, Prss27, Serine protease 27, Marapsin, Pancreasin, Kremen, Kremen1, Kremen protein 1, Dickkopf receptor, Kringle domain-containing transmembrane protein 1, Kringle-containing protein marking the eye and the nose, Dl, Edar, Tumor necrosis factor receptor superfamily member EDAR, Anhidrotic ectodysplasin receptor 1, Downless, Ectodermal dysplasia receptor, Ectodysplasin-A receptor, Poly(A)-specific ribonuclease PARN, Polyadenylate-specific ribonuclease, Parn, Ddm36, Kiaa1628, Nope, Igdcc4, Immunoglobulin superfamily DCC subclass member 4, Neighbor of punc e11, Protein DDM36

2 Images
Multiplex Protein Detection - Mouse Cytokine Antibody Array D (40 Targets) - Quantitative (AB197471)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Cytokine Antibody Array D (40 Targets) - Quantitative (AB197471)

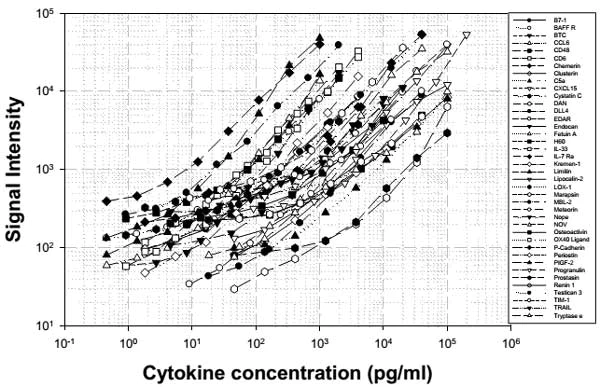

Standard Curve obtained with abcam Mouse Cytokine Antibody Array D - Quantitative (40 targets) (ab197471)

Multiplex Protein Detection - Mouse Cytokine Antibody Array D (40 Targets) - Quantitative (AB197471)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Cytokine Antibody Array D (40 Targets) - Quantitative (AB197471)

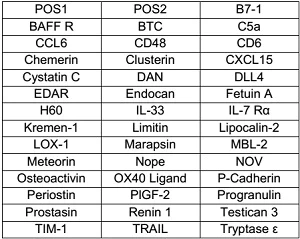

Array map for Mouse Cytokine Antibody Array D - Quantitative (40 targets) (ab197471)

Key facts

Reacts with

Mouse

Target

Ahsg

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture supernatant, Serum, Other biological fluids, Cell Lysate

Product details

ab197471 can be used for quantitative measurement of 40 mouse cytokines. Suitable for cell culture supernatants, plasma, serum, cell and tissue lysates, and other biological fluids.

Targets names: B7-1, BAFF R, BTC, C5a, CCL6, CD48, CD6, Chemerin, Clusterin, CXCL15, Cystatin C, DAN, DLL4, EDAR, Endocan, Fetuin A, H60, IL-33, IL-7 Rα, Kremen-1, Limitin, Lipocalin-2, LOX-1, Marapsin, MBL-2, Meteorin, Nope, NOV, Osteoactivin, OX40 Ligand, P-Cadherin, Periostin, PlGF-2, Progranulin, Prostasin, Renin 1, Testican 3, TIM-1, TRAIL, Tryptase ε.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. The standard is affinity purified. "

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197471-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197471-CMP09" }, { "size":"1 x 1 Vial", "name":"Mouse Cytokine Array D (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197471-CMP03" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197471-CMP04" }, { "size":"2 x 25 µL", "name":"Mouse Cytokine Array D (40 T) Biotinylated Antibody Cocktail", "number":"AB197471-CMP01" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197471-CMP06" }, { "size":"2 x 1 Slide", "name":"Mouse Cytokine Array D (40 T) Glass Slide", "number":"AB197471-CMP02" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197471-CMP07" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197471-CMP08" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197471-CMP05" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197471-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197471-CMP09" }, { "size":"2 x 1 Vial", "name":"Mouse Cytokine Array D (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197471-CMP03" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197471-CMP05" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197471-CMP04" }, { "size":"4 x 1 Slide", "name":"Mouse Cytokine Array D (40 T) Glass Slide", "number":"AB197471-CMP02" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197471-CMP08" }, { "size":"4 x 25 µL", "name":"Mouse Cytokine Array D (40 T) Biotinylated Antibody Cocktail", "number":"AB197471-CMP01" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197471-CMP06" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197471-CMP07" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197471-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197471-CMP09", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197471-CMP04", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197471-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197471-CMP05", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Mouse Cytokine Array D (40 T) Glass Slide", "number":"AB197471-CMP02", "productcode":"" }, { "size":"1 x 25 µL", "name":"Mouse Cytokine Array D (40 T) Biotinylated Antibody Cocktail", "number":"AB197471-CMP01", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197471-CMP08", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Mouse Cytokine Array D (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197471-CMP03", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197471-CMP07", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Probably involved in differentiation.. (Microbial infection) Facilitates invasion of hepatocytes by Plasmodium berghei sporozoites.
See full target information Ahsg

Additional targets

Igdcc4,Kremen1,Cdh3,Parn,Retinoic acid receptor responder protein 2,Metrn,Havcr1,Prss8,Edar,Il7r,Prss27,H60a,Ren1,Lcn2,Cxcl15,Cystatin-C,Cd48,Testican-3,Btc,C5,Ccl6,T-cell differentiation antigen CD6,Cd80,Clu,Dll4,Endothelial cell-specific molecule 1,Gpnmb,Grn,Ifna11,Il33,Mbl2,Ccn3,Olr1,Pgf,Postn,Prss22,Tnfrsf13c,Tnfsf10,Tnfsf4
websiteProtocolBooklet
en
websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
