AB193660

Mouse Cytokine Antibody Array - Membrane (144 Targets)

Name: Mouse Cytokine Antibody Array - Membrane (144 Targets) (ab193660) | Abcam
Brand: Abcam Limited
SKU: AB193660
Price: 4295 USD
Availability: InStock

Be the first to review this product! Submit a review

(3 Publications)

ab193660 can be used for the simultaneous detection of 144 mouse cytokine proteins in serum, plasma, cell culture media and other liquid samples types.

View Alternative Names

Sdgf, Areg, Amphiregulin, AR, Schwannoma-derived growth factor, SDGF

1 Images

Multiplex Protein Detection - Mouse Cytokine Antibody Array - Membrane (144 Targets) (AB193660)

Multiplex Protein Detection

Unknown

Multiplex Protein Detection - Mouse Cytokine Antibody Array - Membrane (144 Targets) (AB193660)

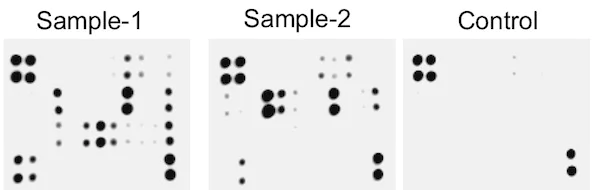

Typical images obtained with Abcam Mouse Cytokine Antibody Array - Membrane (144 Targets) ab193660. These membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at room temperature for 1 minute.

Key facts

Assay type

Semi-quantitative

Reacts with

Mouse

Target

Areg

target

Applications

Multiplex Protein Detection

applications

Detection method

Fluorescent

Assay Platform

Microplate

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }

style

left-column

Product details

ab193660 can be used for the simultaneous detection of 144 mouse cytokine proteins in serum, plasma, cell culture media and other liquid samples types. It comes as 1 kit including 3 separate membranes labelled C3, C4 and C5 (see below for images showing the array layout on each membrane).

Target Names: 4-1BB (TNFRSF9/CD137), 6Ckine (CCL21), ACE, ALK-1, Amphiregulin, Axl, bFGF, BLC (CXCL13), Cardiotrophin-1 (CT-1), CD27 (TNFRSF7), CD27 Ligand (TNFSF7), CD30 Ligand (TNFSF8), CD30 (TNFRSF8), CD36 (SR-B3), CD40 (TNFRSF5), CD40 Ligand (TNFSF5), Chordin, CRG-2, CTACK (CCL27), CTLA-4 (CD152), CXCL16, Decorin, DKK-1, CD26 (DPPIV), Dtk, E-Cadherin, EGF, Endoglin CD105), Eotaxin-1 (CCL11), Eotaxin-2 (MPIF-2/CCL24), Epigen, Epiregulin, E-Selectin, Fas Ligand (TNFSF6), Fc gamma RIIB (CD32b), Flt-3 Ligand, Fractalkine (CX3CL1), Galectin-1, GCSF, GITR TNFRSF18), GITR Ligand (TNFSF18), GM-CSF, Granzyme B, Gas 1, Gas 6, HAI-1, HGF, HGFR, ICAM-1 (CD54), IFN-gamma, IGFBP-2, IGFBP-3, IGFBP-5, IGFBP-6, IGF-1, IGF-2, IL-1 beta (IL-1 F2), IL-1 R4 (ST2), IL-10, IL-11, IL-12 p40/p70, IL-12 p70, IL-13, IL-15, IL-17A, IL-17B, IL-17 RB, IL-17E (IL-25), IL-17F, IL-1 alpha (IL-1 F1), IL-1 RA (IL-1 F3), IL-2, IL-2 R alpha, IL-20, IL-21, IL-28A (IFN-LAMBDA 2), IL-3, IL-3 R beta, IL-4, IL-5, IL-6, IL-6 R, IL-7, IL-9, I-TAC (CXCL11), JAM-A (CD321/F11R), KC (CXCL1), Leptin, Leptin R, LIX, L-Selectin (CD62L), Lungkine (CXCL15), Lymphotactin (XCL1), MAdCAM-1, MCP-1, MCP-5, M-CSF, MDC, MFG-E8, MIG (CXCL9), MIP-1 alpha (CCL3), MIP-1 gamma, MIP-2, MIP-3 beta (CCL19), MIP-3 alpha (CCL20), MMP-2, MMP-3, Neprilysin, Osteopontin (SPP1), Osteoprotegerin (TNFRSF11B), Pentraxin-3 (TSG-14), Platelet Factor 4 (CXCL4), Prolactin, Pro-MMP-9, P-Selectin, RAGE, RANTES (CCL5), Resistin, SCF, SDF-1 alpha (CXCL12 alpha), Sonic Hedgehog N-Terminal (Shh-N), TNF RI (TNFRSF1A), TNF RII (TNFRSF1B), TACI (TNFRSF13B), TARC (CCL17), I-309 (TCA-3/CCL1), TECK (CCL25), TCK-1 (CXCL7), TIMP-1, TIMP-2, TNF alpha, Thrombopoietin (TPO), TRANCE (TNFSF11), TREM-1, TROY (TNFRSF19), TSLP, TWEAK (TNFSF12), TWEAK R (TNFRSF12), VCAM-1 (CD106), VEGF-A, VEGFR1, VEGFR2, VEGFR3, VEGF-D

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style

left-column

What's included?

{ "values": { "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab193660-1x8Membranes", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Plastic sheets", "number":"AB193660-CMP15" }, { "size":"2 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C4)", "number":"AB193660-CMP02" }, { "size":"2 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C3)", "number":"AB193660-CMP01" }, { "size":"2 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C5)", "number":"AB193660-CMP03" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C3)", "number":"AB193660-CMP13" }, { "size":"4 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193660-CMP12" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C4)", "number":"AB193660-CMP08" }, { "size":"4 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193660-CMP11" }, { "size":"4 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193660-CMP05" }, { "size":"8 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193660-CMP04" }, { "size":"4 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193660-CMP14" }, { "size":"4 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193660-CMP10" }, { "size":"4 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193660-CMP06" }, { "size":"4 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C5)", "number":"AB193660-CMP09" }, { "size":"4 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193660-CMP07" } ] }, "1x2Membranes": { "sellingSize": "1 x 2 Membranes", "publicAssetCode":"ab193660-1x2Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB193660-CMP15" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193660-CMP05" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193660-CMP07" }, { "size":"1 x 2 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C3)", "number":"AB193660-CMP01" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193660-CMP12" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193660-CMP06" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C3)", "number":"AB193660-CMP13" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193660-CMP14" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C4)", "number":"AB193660-CMP08" }, { "size":"1 x 2 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C5)", "number":"AB193660-CMP03" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193660-CMP04" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193660-CMP11" }, { "size":"1 x 2 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C4)", "number":"AB193660-CMP02" }, { "size":"1 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C5)", "number":"AB193660-CMP09" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193660-CMP10" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab193660-1x4Membranes", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Plastic sheets", "number":"AB193660-CMP15", "productcode":"" }, { "size":"3 x 25 mL", "name":"1X Blocking Buffer", "number":"AB193660-CMP04", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C3)", "number":"AB193660-CMP13", "productcode":"" }, { "size":"1 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C3)", "number":"AB193660-CMP01", "productcode":"" }, { "size":"2 x 20 mL", "name":"20X Wash Buffer II", "number":"AB193660-CMP11", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C4)", "number":"AB193660-CMP08", "productcode":"" }, { "size":"2 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB193660-CMP14", "productcode":"" }, { "size":"2 x 2.5 mL", "name":"Detection Buffer C", "number":"AB193660-CMP06", "productcode":"" }, { "size":"2 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB193660-CMP05", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotinylated Antibody Cocktail (C5)", "number":"AB193660-CMP09", "productcode":"" }, { "size":"1 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C5)", "number":"AB193660-CMP03", "productcode":"" }, { "size":"2 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB193660-CMP12", "productcode":"" }, { "size":"2 x 20 mL", "name":"20X Wash Buffer I", "number":"AB193660-CMP10", "productcode":"" }, { "size":"1 x 4 Unit", "name":"Mouse Cytokine Antibody Arrays Membranes (C4)", "number":"AB193660-CMP02", "productcode":"" }, { "size":"2 x 2.5 mL", "name":"Detection Buffer D", "number":"AB193660-CMP07", "productcode":"" } ] } } }

style

left-column

Properties and storage information

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

-20°C

Appropriate long-term storage conditions

-20°C

Storage information

-20°C

style

left-column

style

left-column

Product protocols

style

left-column

Target data

Ligand of the EGF receptor/EGFR. Autocrine growth factor as well as a mitogen for a broad range of target cells including astrocytes, Schwann cells and fibroblasts.

See full target information Areg

Additional targets

Shh,Mok,Tyro3,Ccl12,Ccl2,Ctla4,Mfge8,Tnfsf11,Ccl17,Axl,Ccl11,Ccl19,Ccl20,Slpi,Ccl22,Ccl24,Ccl25,Ccl27,Ccl5,Cd27,Cd36,Cd40lg,CD70,Cdh1,Tnfrsf11b,Csf1,Csf3,Ctf1,Cx3cl1,Cxcl1,Cxcl11,Cxcl12,Cxcl13,Cxcl2,Tnfrsf1b,Cxcl5,Cxcl9,Dcn,Dpp4,Eng,Faslg,Fcgr2,Fgf2,Flt3lg,Flt4,Ccl3,Gas1,Icam1,Ifng,Ifnl2,Igf1,Igf2,Igfbp2,Igfbp3,Igfbp5,Il11,Ccl1,Il12a,Il12b,Il13,Il17f,Il17rb,IL1A_MOUSE,Il1b,Il1rn,Il20,IL-25,Lgals1,Il3,Il4,Il5,Il6,Il6ra,Il7,Il9,Kitlg,Lep,Mmp2,Spp1,Mmp3,Pf4,CXCL7/PBP,Prl,Ptx3,Retn,Sele,Selp,Spint1,Thpo,Ace,Timp1,Tnfrsf12a,Tnfrsf8,Tnfrsf9,Tnfsf12,Tnfsf18,Tnfsf8,Tslp,Vcam1,Vegfa,Il1rl1,Xcl1,Tnfrsf1a,Ccl21b,Il10,Il15,,Sell,Cxcl15,Kdr,Gzmd,Hepatocyte growth factor,Cxcl16,Ccl9,Chrd,Il17a,Lepr,Madcam1,Flt1,Il2ra,Tnf,Timp2,Mme,Il2,,Csf2rb,Dickkopf-related protein 1,Mmp9,Epgn,F11r,Igfbp6,Gas6,Il17b,Cd40,Tnfrsf13b,Tnfrsf18,Ereg,Vegfd,Met,Il21,Pro-epidermal growth factor

style

left-column

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

Cancer cell 42:885-903.e4 PubMed38608702

2024

The crosstalk between macrophages and cancer cells potentiates pancreatic cancer cachexia.

Applications

Unspecified application

Species

Unspecified reactive species

Mingyang Liu,Yu Ren,Zhijun Zhou,Jingxuan Yang,Xiuhui Shi,Yang Cai,Alex X Arreola,Wenyi Luo,Kar-Ming Fung,Chao Xu,Ryan D Nipp,Michael S Bronze,Lei Zheng,Yi-Ping Li,Courtney W Houchen,Yuqing Zhang,Min Li

iScience 24:103022 PubMed34522864

2021

Cellular senescence promotes cancer metastasis by enhancing soluble E-cadherin production.

Applications

Unspecified application

Species

Unspecified reactive species

Koichiro Kawaguchi,Kaori Komoda,Ryuta Mikawa,Azusa Asai,Masataka Sugimoto

The American journal of pathology 190:412-425 PubMed31783006

2019

Effect of Inhibition of Colony-Stimulating Factor 1 Receptor on Choroidal Neovascularization in Mice.

Applications

Unspecified application

Species

Unspecified reactive species

Petra Schwarzer,Despina Kokona,Andreas Ebneter,Martin S Zinkernagel

View all publications

style

left-column

style

left-column

websiteProtocolBooklet

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
