Mouse Inflammation Antibody Array (40 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197473 can be used for quantitative measurement of 40 mouse inflammatory factors.

View Alternative Names

Scya11, Ccl11, Eotaxin, C-C motif chemokine 11, Eosinophil chemotactic protein, Small-inducible cytokine A11, CD120a, Tnfr-1, Tnfr1, Tnfrsf1a, Tumor necrosis factor receptor superfamily member 1A, Tumor necrosis factor receptor 1, Tumor necrosis factor receptor type I, p55, p60, TNF-R1, TNF-RI, TNFR-I, Mip1a, Scya3, Ccl3, C-C motif chemokine 3, Heparin-binding chemotaxis protein, L2G25B, Macrophage inflammatory protein 1-alpha, SIS-alpha, Small-inducible cytokine A3, TY-5, MIP-1-alpha, CD54, Intercellular adhesion molecule 1, ICAM-1, MALA-2, MyD10, Icam1, Il-7, Il7, Interleukin-7, IL-7, Mcp5, Scya12, Ccl12, C-C motif chemokine 12, MCP-1-related chemokine, Monocyte chemoattractant protein 5, Monocyte chemotactic protein 5, Small-inducible cytokine A12, MCP-5, CD131, Aic2b, Csf2rb1, Il3rb1, Csf2rb, Cytokine receptor common subunit beta, GM-CSF/IL-3/IL-5 receptor common beta subunit, Tarc, Ccl17, C-C motif chemokine 17, ABCD-2, CC chemokine TARC, Small-inducible cytokine A17, Thymus and activation-regulated chemokine, Scya5, Ccl5, C-C motif chemokine 5, MuRantes, SIS-delta, Small-inducible cytokine A5, T-cell-specific protein RANTES, Csfg, Csf3, Granulocyte colony-stimulating factor, G-CSF, Gro, Gro1, Mgsa, Scyb1, Cxcl1, Growth-regulated alpha protein, C-X-C motif chemokine 1, Platelet-derived growth factor-inducible protein KC, Secretory protein N51, Interferon gamma, IFN-gamma, Ifng, Interleukin-12 subunit alpha, IL-12A, Cytotoxic lymphocyte maturation factor 35 kDa subunit, IL-12 subunit p35, CLMF p35, Il12a, Il-13, Il13, Interleukin-13, IL-13, T-cell activation protein P600, Csfmu, Il-3, Il3, Interleukin-3, IL-3, Hematopoietic growth factor, Mast cell growth factor, Multipotential colony-stimulating factor, P-cell-stimulating factor, MCGF, Il-4, Il4, Interleukin-4, IL-4, B-cell IgG differentiation factor, B-cell growth factor 1, B-cell stimulatory factor 1, IGG1 induction factor, Lymphocyte stimulatory factor 1, BSF-1, Il-5, Il5, Interleukin-5, IL-5, B-cell growth factor II, Cytotoxic T-lymphocyte inducer, Eosinophil differentiation factor, T-cell replacing factor, BCGF-II, TRF, Il-6, Il6, Interleukin-6, IL-6, B-cell hybridoma growth factor, Interleukin HP-1, Ob, Lep, Leptin, Obesity factor, Timp, Timp-1, Timp1, Metalloproteinase inhibitor 1, Collagenase inhibitor 16C8 fibroblast, Erythroid-potentiating activity, TPA-S1, TPA-induced protein, Tissue inhibitor of metalloproteinases 1, EPA, TIMP-1, Mig, Scyb9, Cxcl9, C-X-C motif chemokine 9, Gamma-interferon-induced monokine, Monokine induced by interferon-gamma, Protein m119, Small-inducible cytokine B9, MIG, MuMIG, Ctla8, Il17, Il17a, Interleukin-17A, IL-17, IL-17A, Cytotoxic T-lymphocyte-associated antigen 8, CTLA-8, Interleukin-1 beta, IL-1 beta, Il1b, Tnfa, Tnfsf2, Tnf, Tumor necrosis factor, Cachectin, TNF-alpha, Tumor necrosis factor ligand superfamily member 2, TNF-a, Je, Mcp1, Scya2, Ccl2, C-C motif chemokine 2, Monocyte chemoattractant protein 1, Monocyte chemotactic protein 1, Platelet-derived growth factor-inducible protein JE, Small-inducible cytokine A2, MCP-1, Interleukin-1 alpha, IL-1 alpha, Il1a, Il-10, Il10, Interleukin-10, IL-10, Cytokine synthesis inhibitory factor, CSIF, Scyb5, Cxcl5, C-X-C motif chemokine 5, Cytokine LIX, Small-inducible cytokine B5, Cxcl4, Scyb4, Pf4, Platelet factor 4, PF-4, C-X-C motif chemokine 4, Il-2, Il2, Interleukin-2, IL-2, T-cell growth factor, TCGF, CD120b, Tnfr-2, Tnfr2, Tnfrsf1b, Tumor necrosis factor receptor superfamily member 1B, Tumor necrosis factor receptor 2, Tumor necrosis factor receptor type II, p75, p80 TNF-alpha receptor, TNF-R2, TNF-RII, TNFR-II, CD153, Cd30l, Cd30lg, Tnfsf8, Tumor necrosis factor ligand superfamily member 8, CD30 ligand, CD30-L, Csfm, Csf1, Macrophage colony-stimulating factor 1, CSF-1, MCSF, Proteoglycan macrophage colony-stimulating factor, PG-M-CSF, Scya24, Ccl24, C-C motif chemokine 24, Eosinophil chemotactic protein 2, Small-inducible cytokine A24, Eotaxin-2, Blc, Scyb13, Cxcl13, C-X-C motif chemokine 13, B lymphocyte chemoattractant, CXC chemokine BLC, Small-inducible cytokine B13, Mrp2, Scya10, Scya9, Ccl9, C-C motif chemokine 9, CCF18, Macrophage inflammatory protein 1-gamma, Macrophage inflammatory protein-related protein 2, Small-inducible cytokine A9, MIP-1-gamma, MRP-2, Interleukin-21, IL-21, Il21, Interleukin-15, IL-15, Il15, CD178, Apt1lg1, Cd95l, Fasl, gld, Tnfsf6, Faslg, Tumor necrosis factor ligand superfamily member 6, CD95 ligand, Fas antigen ligand, CD95-L, Fas ligand, FasL, Scya1, Tca3, Ccl1, C-C motif chemokine 1, P500, SIS-epsilon, Small-inducible cytokine A1, T-cell activation protein 3, TCA-3, TCA3

2 Images
Multiplex Protein Detection - Mouse Inflammation Antibody Array (40 Targets) - Quantitative (AB197473)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Inflammation Antibody Array (40 Targets) - Quantitative (AB197473)

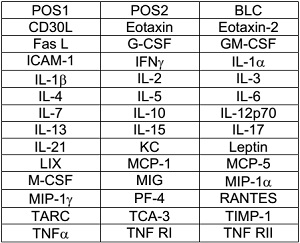

Array map for Mouse Inflammation Antibody Array - Quantitative (40 targets) (ab197473)

Multiplex Protein Detection - Mouse Inflammation Antibody Array (40 Targets) - Quantitative (AB197473)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Inflammation Antibody Array (40 Targets) - Quantitative (AB197473)

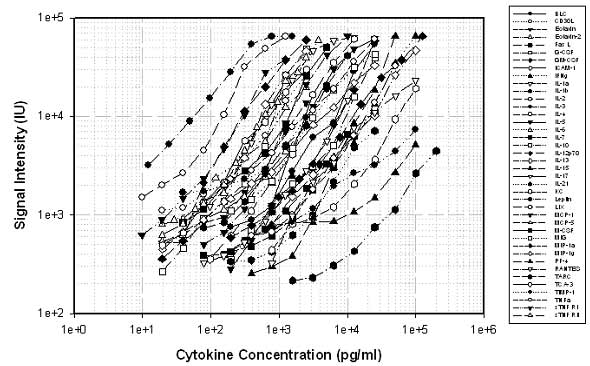

Standard Curve obtained with abcam Mouse Inflammation Antibody Array - Quantitative (40 targets) (ab197473)

Key facts

Reacts with

Mouse

Target

Ccl11

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture supernatant, Serum, Other biological fluids, Cell Lysate

Product details

ab197473 can be used for quantitative measurement of 40 mouse inflammatory factors. Suitable for cell culture supernatants, plasma, serum, cell and tissue lysates, and other biological fluids.

Targets names: BLC, CD30L, Eotaxin, Eotaxin-2, Fas L, G-CSF, GM-CSF, ICAM-1, IFNγ, IL-1α, IL-1β, IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-10, IL-12 p70, IL-13, IL-15, IL-17, IL-21, KC, Leptin, LIX, MCP-1, MCP-5, M-CSF, MIG, MIP-1α, MIP-1γ, PF-4, RANTES, TARC, TCA-3, TIMP-1, TNFα, TNFRI, TNFRII.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. "

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197473-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197473-CMP09" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197473-CMP06" }, { "size":"2 x 1 Slide", "name":"Mouse Inflammation Array (40 T) Glass Slide", "number":"AB197473-CMP04" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197473-CMP08" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197473-CMP07" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197473-CMP02" }, { "size":"2 x 25 µL", "name":"Mouse Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197473-CMP03" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197473-CMP01" }, { "size":"1 x 1 Vial", "name":"Mouse Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197473-CMP05" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197473-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197473-CMP09" }, { "size":"2 x 1 Vial", "name":"Mouse Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197473-CMP05" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197473-CMP07" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197473-CMP01" }, { "size":"4 x 1 Slide", "name":"Mouse Inflammation Array (40 T) Glass Slide", "number":"AB197473-CMP04" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197473-CMP02" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197473-CMP06" }, { "size":"4 x 25 µL", "name":"Mouse Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197473-CMP03" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197473-CMP08" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197473-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197473-CMP09", "productcode":"" }, { "size":"1 x 25 µL", "name":"Mouse Inflammation Array (40 T) Biotinylated Antibody Cocktail", "number":"AB197473-CMP03", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197473-CMP01", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197473-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197473-CMP02", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197473-CMP06", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197473-CMP08", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Mouse Inflammation Array (40 T) Lyophilized Cytokine Standard Mix", "number":"AB197473-CMP05", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Mouse Inflammation Array (40 T) Glass Slide", "number":"AB197473-CMP04", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Chemokine that plays a central role in both allergic and non-allergic inflammatory reactions by inducing the migration of different leukocyte types including eosinophils, basophils, macrophages and dendritic cells (PubMed : 7568052, PubMed : 8574847). Exerts its effects primarily by binding to the CCR3 receptor. Induces also chemotaxis of endothelial cells and promotes angiogenesis by activating the PI3K/Akt pathway.
See full target information Ccl11

Additional targets

Csf2rb,Il21,Il2,Ccl12,Ccl2,Ccl17,Tnfrsf1b,Ccl3,Ccl1,Il10,Il15,Ccl9,Il17a,Tnf,Ccl24,Ccl5,Csf1,Csf3,Cxcl1,Cxcl13,Cxcl5,Cxcl9,Faslg,Icam1,Ifng,Il12a,Il13,IL1A_MOUSE,Il1b,Il3,Il4,Il5,Il6,Il7,Lep,Pf4,Timp1,Tnfrsf1a,Tnfsf8
