AB133999

Mouse Inflammation Antibody Array - Membrane (40 Targets)

Be the first to review this product! Submit a review

|

(33 Publications)

Mouse Inflammation Antibody Array - Membrane (40 Targets) ab133999 is a membrane based multiplex immunoassay for the simultaneous detection of 40 mouse inflammation factors in all sample types.

- More data, less sample: screen multiple inflammatory markers with the same sample
- Global view of inflammatory markers
- Chemiluminescent detection - no specific equipment required
- Highly sensitive (pg/mL)

View Alternative Names

Scya11, Ccl11, Eotaxin, C-C motif chemokine 11, Eosinophil chemotactic protein, Small-inducible cytokine A11

1 Images
Multiplex Protein Detection - Mouse Inflammation Antibody Array - Membrane (40 Targets) (AB133999)
  • Multiplex Protein Detection

Unknown

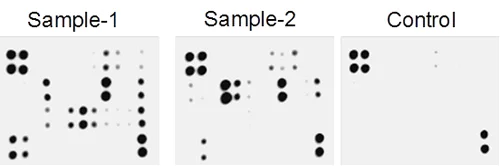

Multiplex Protein Detection - Mouse Inflammation Antibody Array - Membrane (40 Targets) (AB133999)

Typical results obtained with Abcam Membrane Antibody Arrays.
Membranes were probed with conditioned media from two different cell lines. Membranes were exposed to film at RT for 1 min.

Key facts

Assay type

Semi-quantitative

Reacts with

Mouse

Target

Ccl11

target

Applications

Multiplex Protein Detection

applications

Sample types

Saliva, Urine, Plasma, Cell culture extracts, Tissue Extracts, Cell culture media, Cell culture supernatant, Milk, Serum, Other biological fluids, Whole Blood, Cell Lysate

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Multiplex Protein Detection": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

ab133999 is for simultaneous detection of 40 Mouse inflammatory factors. Suitable for all sample types.

Targets: BLC, CD30L, Eotaxin, Eotaxin-2, Fas Ligand, Fractalkine, GCSF, GM-CSF, IFN-gamma, IL-1alpha, IL-1beta, IL-2, IL-3, IL-4, IL-6, IL-9, IL-10, IL-12 p40/p70, IL-12 p70, IL-13, IL-17, I-TAC, KC/CXCL1, Leptin/OB, LIX, Lymphotactin, MCP-1, MCSF, MIG, MIP-1 alpha, MIP-1 gamma, RANTES, SDF-1, TCA-3, TECK, TIMP-1, TIMP-2, TNF-alpha, sTNF RI, sTNF-RII

Cytokine arrays are an antibody-pair-based assay, analogous to ELISA, but using a membrane as a substrate rather than a plate. Capture antibodies are supplied arrayed/spotted on a membrane with each pair of spots representing a different analyte. Sample is added (0.2-1ml of 1 sample to each membrane), and then paired biotinylated detector antibodies and streptavidin HRP. The cytokine array is analyzed using the same methods as a chemiluminescent western blot. Comparison between samples can be by eye or using densitometry software for a semi-quantitative comparison.

A table listing all of our mouse membrane antibody cytokine arrays and other arrays and the analytes they measure is available here.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

style
left-column

What's included?

{ "values": { "1x8Membranes": { "sellingSize": "1 x 8 Membranes", "publicAssetCode":"ab133999-1x8Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB133999-CMP11" }, { "size":"2 x 4 Unit", "name":"Inflammation Antibody Array Membranes", "number":"AB133999-CMP10" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer C", "number":"AB133999-CMP04" }, { "size":"1 x 2.5 mL", "name":"Detection Buffer D", "number":"AB133999-CMP05" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB133999-CMP03" }, { "size":"4 x 1 Vial", "name":"Biotin-Conjugated Anti-Cytokines", "number":"AB133999-CMP02" }, { "size":"1 x 16 mL", "name":"2X Cell Lysis Buffer", "number":"AB133999-CMP08" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer II", "number":"AB133999-CMP07" }, { "size":"1 x 20 mL", "name":"20X Wash Buffer I", "number":"AB133999-CMP06" }, { "size":"2 x 25 mL", "name":"1X Blocking Buffer", "number":"AB133999-CMP01" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB133999-CMP09" } ] }, "1x4Membranes": { "sellingSize": "1 x 4 Membranes", "publicAssetCode":"ab133999-1x4Membranes", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Plastic sheets", "number":"AB133999-CMP11", "productcode":"" }, { "size":"1 x 4 Unit", "name":"Inflammation Antibody Array Membranes", "number":"AB133999-CMP10", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer D", "number":"AB133999-CMP05", "productcode":"" }, { "size":"1 x 50 µL", "name":"1,000X HRP-Conjugated Streptavidin", "number":"AB133999-CMP03", "productcode":"" }, { "size":"1 x 1 Unit", "name":"8-Well Incubation Tray (with Lid)", "number":"AB133999-CMP09", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Detection Buffer C", "number":"AB133999-CMP04", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer II", "number":"AB133999-CMP07", "productcode":"" }, { "size":"2 x 1 Vial", "name":"Biotin-Conjugated Anti-Cytokines", "number":"AB133999-CMP02", "productcode":"" }, { "size":"1 x 10 mL", "name":"20X Wash Buffer I", "number":"AB133999-CMP06", "productcode":"" }, { "size":"1 x 25 mL", "name":"1X Blocking Buffer", "number":"AB133999-CMP01", "productcode":"" }, { "size":"1 x 10 mL", "name":"2X Cell Lysis Buffer", "number":"AB133999-CMP08", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

In response to the presence of allergens, this protein directly promotes the accumulation of eosinophils (a prominent feature of allergic inflammatory reactions), but not lymphocytes, macrophages or neutrophils (PubMed : 7568052, PubMed : 8574847). Binds to CCR3 (By similarity).
See full target information Ccl11

Additional targets

Csf2rb,Tnfrsf1b,Ccl3,Ccl1,Il10,Ccl9,Il17a,Tnf,Timp2,Il2,Ccl2,Tnfrsf1b,Ccl3,Ccl1,Il10,Ccl9,Il17a,Tnf,Timp2,Il2,Ccl2,Ccl24,Ccl25,Ccl5,Csf1,Csf3,Cx3cl1,Cxcl1,Cxcl11,Cxcl12,Cxcl13,Cxcl5,Cxcl9,Faslg,Ifng,Il12a,Il12b,Il13,IL1A_MOUSE,Il1b,Il3,Il4,Il6,Il9,Lep,Timp1,Tnfrsf1a,Tnfsf8,Xcl1
