AB197475

Mouse Interleukin Antibody Array (20 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(0 Publication)

ab197475 can be used for quantitative measurement of 40 mouse interleukins.

View Alternative Names

Csfg, Csf3, Granulocyte colony-stimulating factor, G-CSF

2 Images
Multiplex Protein Detection - Mouse Interleukin Antibody Array (20 Targets) - Quantitative (AB197475)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Mouse Interleukin Antibody Array (20 Targets) - Quantitative (AB197475)

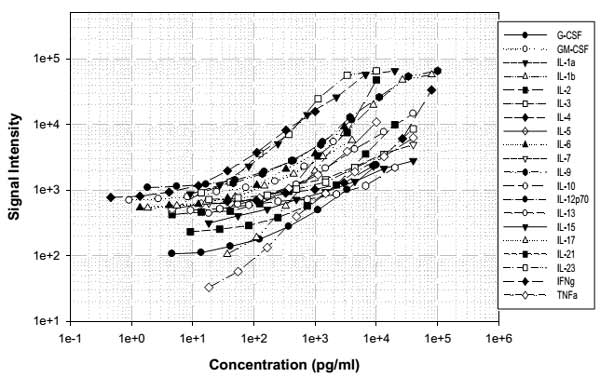

Standard Curve obtained with abcam Mouse Interleukin Antibody Array - Quantitative (20 targets) (ab197475)

Multiplex Protein Detection - Mouse Interleukin Antibody Array (20 Targets) - Quantitative (AB197475)
  • Multiplex Protein Detection

Unknown

Multiplex Protein Detection - Mouse Interleukin Antibody Array (20 Targets) - Quantitative (AB197475)

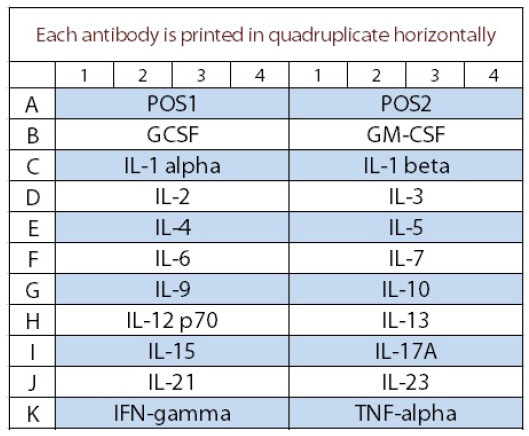

Array map for Mouse Interleukin Antibody Array - Quantitative (20 targets) (ab197475)

Key facts

Assay type

Quantitative

Reacts with

Mouse

Target

Csf3

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture supernatant, Serum, Other biological fluids, Cell Lysate

style
left-column

Product details

ab197475 can be used for quantitative measurement of 40 mouse interleukins. Suitable for cell culture supernatants, plasma, serum, cell and tissue lysates, and other biological fluids.

Targets names: G-CSF, GM-CSF, IFNγ, IL-1α, IL-1β, IL-2, IL-3, IL-4, IL-5, IL-6, IL-7, IL-9, IL-10, IL-12p70, IL-13, IL-15, IL-17, IL-21, IL-23, TNFα

Quantitative antibody arrays can be used to quantitate up to 40 interleukins with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. "

style
left-column

What's included?

{ "values": { "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197475-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197475-CMP09" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197475-CMP07" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197475-CMP08" }, { "size":"2 x 25 µL", "name":"Mouse Interleukin Array (20 T) Biotinylated Antibody Cocktail", "number":"AB197475-CMP03" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197475-CMP01" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197475-CMP06" }, { "size":"2 x 1 Slide", "name":"Mouse Interleukin Array (20 T) Glass Slide", "number":"AB197475-CMP04" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197475-CMP02" }, { "size":"1 x 1 Vial", "name":"Mouse Interleukin Array (20 T) Lyophilized Cytokine Standard Mix", "number":"AB197475-CMP05" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197475-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197475-CMP09" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197475-CMP08" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197475-CMP07" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197475-CMP01" }, { "size":"2 x 1 Vial", "name":"Mouse Interleukin Array (20 T) Lyophilized Cytokine Standard Mix", "number":"AB197475-CMP05" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197475-CMP02" }, { "size":"4 x 25 µL", "name":"Mouse Interleukin Array (20 T) Biotinylated Antibody Cocktail", "number":"AB197475-CMP03" }, { "size":"4 x 1 Slide", "name":"Mouse Interleukin Array (20 T) Glass Slide", "number":"AB197475-CMP04" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197475-CMP06" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197475-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197475-CMP09", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197475-CMP08", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197475-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197475-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Mouse Interleukin Array (20 T) Lyophilized Cytokine Standard Mix", "number":"AB197475-CMP05", "productcode":"" }, { "size":"1 x 25 µL", "name":"Mouse Interleukin Array (20 T) Biotinylated Antibody Cocktail", "number":"AB197475-CMP03", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197475-CMP01", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Mouse Interleukin Array (20 T) Glass Slide", "number":"AB197475-CMP04", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197475-CMP06", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

Granulocyte/macrophage colony-stimulating factors are cytokines that act in hematopoiesis by controlling the production, differentiation, and function of 2 related white cell populations of the blood, the granulocytes and the monocytes-macrophages. This CSF induces granulocytes.
See full target information Csf3

Additional targets

Csf2rb,Il21,Il17a,Tnf,Il2,Ifng,Il12a,Il13,IL1A_MOUSE,Il1b,Il23a,Il3,Il10,Il4,Il5,Il6,Il7,Il9,Il15
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Complementary Products

Reagents, Controls & Accessories

AB270055

Protease Inhibitor Cocktail EDTA Free (100X)

  • 0
  • 0
Multiplex Kits

AB197476

Mouse Interleukin Antibody Array (10 Targets) - Quantitative

Multiplex Protein Detection - Mouse Interleukin Antibody Array (10 Targets) - Quantitative (AB197476)

  • 0
  • 0
Multiplex Kits

AB197474

Mouse Interleukin Antibody Array (30 Targets) - Quantitative

  • 0
  • 0
Multiplex Kits

AB197465

Mouse Cytokine Antibody Array A (20 Targets) - Quantitative

Multiplex Protein Detection - Mouse Cytokine Antibody Array A (20 Targets) - Quantitative (AB197465)

  • 0
  • 0
Multiplex Kits

AB133999

Mouse Inflammation Antibody Array - Membrane (40 Targets)

Multiplex Protein Detection - Mouse Inflammation Antibody Array - Membrane (40 Targets) (AB133999)

  • 0
  • 0

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
