AB197480

Porcine Cytokine Antibody Array B (10 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(1 Publication)

ab197480 can be used for quantitative measurement of 10 Porcine Cytokines.
2 Images
Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)

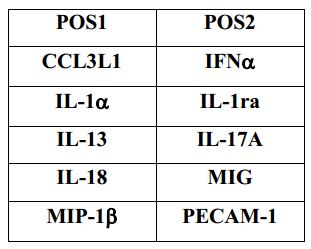

Array Map for Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (ab197480)

Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (AB197480)

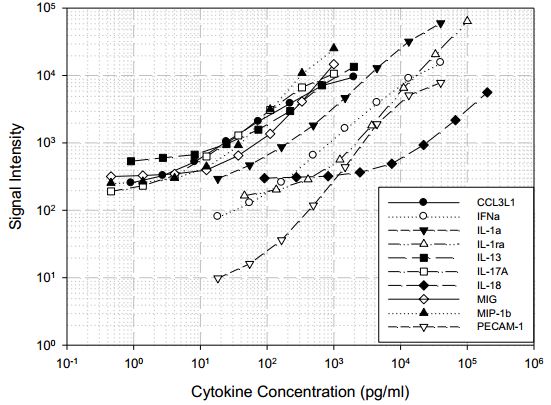

Standard Curve obtained with Porcine Cytokine Antibody Array B (10 Targets) - Quantitative (ab197480).

Key facts

Reacts with

Pig

Target

C-C motif chemokine

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style
left-column

Complementary Products

Reagents, Controls & Accessories

AB270055

Protease Inhibitor Cocktail EDTA Free (100X)

  • 0
  • 0
Multiplex Kits

AB197479

Porcine Cytokine Antibody Array A (10 Targets) - Quantitative

Multiplex Protein Detection - Porcine Cytokine Antibody Array A (10 Targets) - Quantitative (AB197479)

  • 0
  • 0
Multiplex Kits

AB197459

Rabbit Cytokine Antibody Array (10 Targets) - Quantitative

Multiplex Protein Detection - Rabbit Cytokine Antibody Array (10 Targets) - Quantitative (AB197459)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Assay Kits

AB178013

Human IL-6 ELISA Kit

KO Validated|Recombinant|SimpleStep

Sandwich ELISA - Human IL-6 ELISA Kit (AB178013)

  • 5
  • 2
style
left-column

Product details

ab197480 can be used for quantitative measurement of 10 Porcine Cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.

Targets names: CCL3L1, IFNα, IL-1α, IL-1ra, IL-13, IL-17A, IL-18, MIG, MIP-1β, PECAM-1

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. "

style
left-column

What's included?

{ "values": { "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197480-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197480-CMP09" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197480-CMP06" }, { "size":"1 x 25 µL", "name":"Porcine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197480-CMP03" }, { "size":"1 x 1 Slide", "name":"Porcine Cytokine Array B (10 T) Glass Slide", "number":"AB197480-CMP04" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197480-CMP01" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197480-CMP07" }, { "size":"1 x 1 Vial", "name":"Porcine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197480-CMP05" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197480-CMP02" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197480-CMP08" } ] }, "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197480-50Test", "assetComponentDetails": [ { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197480-CMP09" }, { "size":"4 x 25 µL", "name":"Porcine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197480-CMP03" }, { "size":"2 x 1 Vial", "name":"Porcine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197480-CMP05" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197480-CMP08" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197480-CMP07" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197480-CMP06" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197480-CMP02" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197480-CMP01" }, { "size":"4 x 1 Slide", "name":"Porcine Cytokine Array B (10 T) Glass Slide", "number":"AB197480-CMP04" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197480-22Test", "assetComponentDetails": [ { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197480-CMP09", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Porcine Cytokine Array B (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197480-CMP05", "productcode":"" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197480-CMP08", "productcode":"" }, { "size":"2 x 1 Slide", "name":"Porcine Cytokine Array B (10 T) Glass Slide", "number":"AB197480-CMP04", "productcode":"" }, { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197480-CMP06", "productcode":"" }, { "size":"2 x 25 µL", "name":"Porcine Cytokine Array B (10 T) Biotinylated Antibody Cocktail", "number":"AB197480-CMP03", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197480-CMP07", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197480-CMP02", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197480-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

See full target information C-C motif chemokine

Additional targets

CCL4,IL1RN,IL1A,IL18,IFNA1_PIG
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Journal of virology 92: PubMed29925651

2018

Pigs Lacking the Scavenger Receptor Cysteine-Rich Domain 5 of CD163 Are Resistant to Porcine Reproductive and Respiratory Syndrome Virus 1 Infection.

Applications

Unspecified application

Species

Unspecified reactive species

Christine Burkard,Tanja Opriessnig,Alan J Mileham,Tomasz Stadejek,Tahar Ait-Ali,Simon G Lillico,C Bruce A Whitelaw,Alan L Archibald
