AB197459

Rabbit Cytokine Antibody Array (10 Targets) - Quantitative

Be the first to review this product! Submit a review

|

(1 Publication)

ab197459 can be used for quantitative measurement of 10 Rabbit cytokines.
2 Images
Multiplex Protein Detection - Rabbit Cytokine Antibody Array (10 Targets) - Quantitative (AB197459)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Rabbit Cytokine Antibody Array (10 Targets) - Quantitative (AB197459)

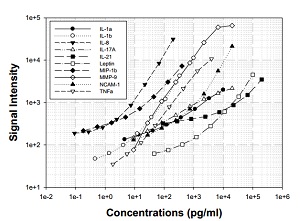

Standard Curve obtained with Abcam Rabbit Cytokine Antibody Array (10 targets)- Quantitative (ab197459)

Multiplex Protein Detection - Rabbit Cytokine Antibody Array (10 Targets) - Quantitative (AB197459)
  • Multiplex Protein Detection

Supplier Data

Multiplex Protein Detection - Rabbit Cytokine Antibody Array (10 Targets) - Quantitative (AB197459)

Array Map for Abcam Rabbit Cytokine Antibody Array (10 targets)- Quantitative (ab197459)

Key facts

Reacts with

Rabbit

Target

IL17A

target

Detection method

Fluorescent

Assay Platform

Multiplex

Sample types

Tissue Lysate, Plasma, Cell culture media, Serum, Other biological fluids, Cell Lysate

style
left-column

Complementary Products

Reagents, Controls & Accessories

AB270055

Protease Inhibitor Cocktail EDTA Free (100X)

  • 0
  • 0
Multiplex Kits

AB133999

Mouse Inflammation Antibody Array - Membrane (40 Targets)

Multiplex Protein Detection - Mouse Inflammation Antibody Array - Membrane (40 Targets) (AB133999)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Multiplex Kits

AB133998

Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets)

Multiplex Protein Detection - Cytokine Array - Human Cytokine Antibody Array (Membrane, 80 Targets) (AB133998)

  • 0
  • 0
Multiplex Kits

AB133997

Cytokine Array - Human Cytokine Antibody Array (Membrane, 42 Targets)

Multiplex Protein Detection - Cytokine Array - Human Cytokine Antibody Array (Membrane, 42 Targets) (AB133997)

  • 0
  • 0
style
left-column

Product details

ab197459 can be used for quantitative measurement of 10 Rabbit cytokines. Suitable for serum, plasma, cell culture media, other body fluids, cell and tissue lysates.
Targets names: IL-1alpha, IL-1beta, IL-8, IL-17A, IL-21, Leptin, MIP-1beta, MMP-9, NCAM-1, TNF alpha.

Quantitative antibody arrays can be used to quantitate up to 40 cytokines with as little as 50 µL of sample. Arrays are available for 400 human and 200 mouse proteins. Each glass slide is spotted with 16 identical antibody arrays and is provided with a 16 well gasket to allow separate samples to be applied to each array. Each antibody is spotted in quadruplicate in each array. For reproducible quantitation, eight of the arrays are used with a cocktail of protein standards to produce a standard curve. The same 8 standard curve arrays can be used across multiple slides, allowing measurement of 22 experimental samples with 2 slides, 36 with 3 slides etc. For high through-put, 4 slides can be nested into a tray matching a standard microplate, allowing automated processing with a liquid handling workstation. Array processing can be completed within one working day (see workflow diagram below) and arrays can be analyzed with a wide number of laser glass slide array / gene microarray scanners. If you don’t have a suitable scanner then we recommend our membrane antibody arrays, which can be analyzed with any WB chemiluminescent reader. "

style
left-column

What's included?

{ "values": { "50Test": { "sellingSize": "50 Test", "publicAssetCode":"ab197459-50Test", "assetComponentDetails": [ { "size":"4 x 25 µL", "name":"Rabbit Cytokine Array (10 T) Biotinylated Antibody Cocktail", "number":"AB197459-CMP03" }, { "size":"4 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197459-CMP08" }, { "size":"4 x 1 Unit", "name":"Adhesive Film", "number":"AB197459-CMP09" }, { "size":"6 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197459-CMP06" }, { "size":"2 x 1 Vial", "name":"Rabbit Cytokine Array (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197459-CMP05" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197459-CMP07" }, { "size":"2 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197459-CMP02" }, { "size":"4 x 1 Slide", "name":"Rabbit Cytokine Array (10 T) Glass Slide", "number":"AB197459-CMP04" }, { "size":"2 x 15 mL", "name":"Sample Diluent", "number":"AB197459-CMP01" } ] }, "22Test": { "sellingSize": "22 Test", "publicAssetCode":"ab197459-22Test", "assetComponentDetails": [ { "size":"3 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197459-CMP06" }, { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197459-CMP02" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197459-CMP01" }, { "size":"1 x 1 Vial", "name":"Rabbit Cytokine Array (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197459-CMP05" }, { "size":"2 x 25 µL", "name":"Rabbit Cytokine Array (10 T) Biotinylated Antibody Cocktail", "number":"AB197459-CMP03" }, { "size":"2 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197459-CMP08" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197459-CMP07" }, { "size":"2 x 1 Unit", "name":"Adhesive Film", "number":"AB197459-CMP09" }, { "size":"2 x 1 Slide", "name":"Rabbit Cytokine Array (10 T) Glass Slide", "number":"AB197459-CMP04" } ] }, "8Test": { "sellingSize": "8 Test", "publicAssetCode":"ab197459-8Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Slide Washer/Dryer (30 mL Centrifuge Tube)", "number":"AB197459-CMP02", "productcode":"" }, { "size":"1 x 5 µL", "name":"Cy3 equivalent dye-conjugated Streptavidin", "number":"AB197459-CMP08", "productcode":"" }, { "size":"1 x 15 mL", "name":"Sample Diluent", "number":"AB197459-CMP01", "productcode":"" }, { "size":"1 x 30 mL", "name":"20X Wash Buffer II", "number":"AB197459-CMP07", "productcode":"" }, { "size":"1 x 1 Slide", "name":"Rabbit Cytokine Array (10 T) Glass Slide", "number":"AB197459-CMP04", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Adhesive Film", "number":"AB197459-CMP09", "productcode":"" }, { "size":"2 x 30 mL", "name":"20X Wash Buffer I", "number":"AB197459-CMP06", "productcode":"" }, { "size":"1 x 1 Vial", "name":"Rabbit Cytokine Array (10 T) Lyophilized Cytokine Standard Mix", "number":"AB197459-CMP05", "productcode":"" }, { "size":"1 x 25 µL", "name":"Rabbit Cytokine Array (10 T) Biotinylated Antibody Cocktail", "number":"AB197459-CMP03", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

See full target information IL17A

Additional targets

IL12A,TNF,MMP9,IL1B,IL1A,CCL4,TGFB1,IL6,IL1B
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

NPJ vaccines 9:248 PubMed39702587

2024

The adjuvant effect of manganese on tuberculosis subunit vaccine Bfrb-GrpE.

Applications

Unspecified application

Species

Unspecified reactive species

Shuai Zhou,Qianqian Cao,Zunjing Zhang,Yunjie Du,Yilin Hou,Xiaojuan Zhang,Zhijun Xie,Yuan Zhou,Bingdong Zhu,Ying Zhang,Aisong Zhu,Hongxia Niu
View all publications
style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
