Acetylated Histone H4 Antibody Sampler Pack

6 product images

•

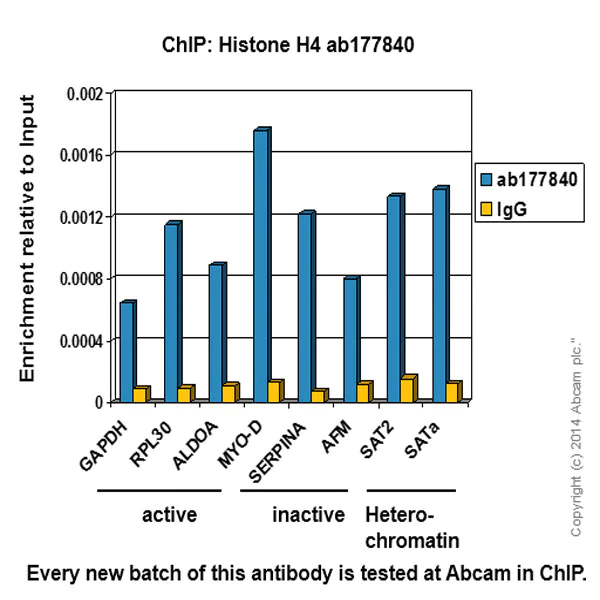

  ChIP - Acetylated Histone H4 Antibody Sampler Pack (ab218056)

  Chromatin was prepared from Hela cells according to the Abcam X-ChIP protocol. Cells were fixed with 0.75% formaldehyde for 10min. The ChIP was performed with 25μg of chromatin, 2μg of Anti-Histone H4 antibody [EPR16599] - ChIP Grade ab177840 (blue), and 20μl of Anti rabbit IgG sepharose beads. 2μg of rabbit normal IgG was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (SYBR approach). Primers are located in the first kb of the transcribed region.

•

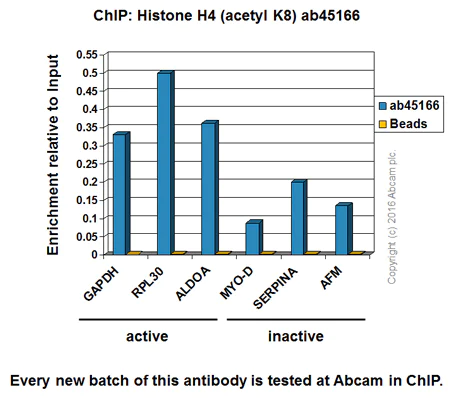

  ChIP - Acetylated Histone H4 Antibody Sampler Pack (ab218056)

  Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 2μg of Anti-Histone H4 (acetyl K8) antibody [EP1002Y] - ChIP Grade ab45166 (blue), and 20μl of Protein A/G sepharose beads. No antibody was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Taqman approach). Primers and probes are located in the first kb of the transcribed region.

•

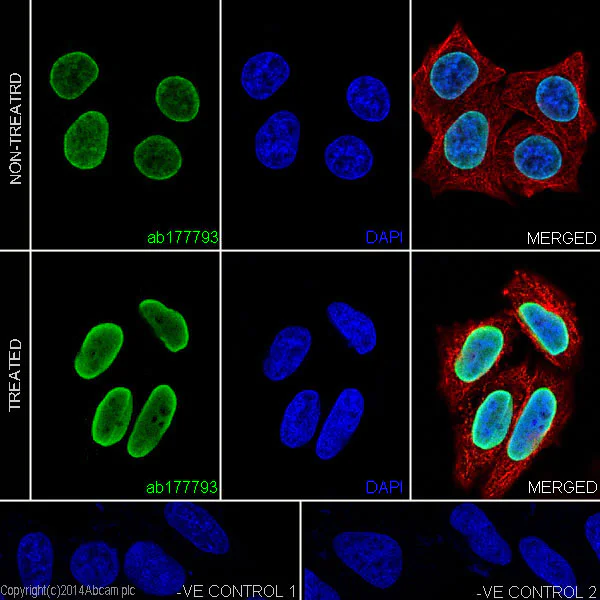

  Immunocytochemistry/ Immunofluorescence - Acetylated Histone H4 Antibody Sampler Pack (ab218056)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells, treated with Trichostatin A (500 ng/ml) for 4 hours or untreated, labeling Histone H4 (acetyl K12) with Anti-Histone H4 (acetyl K12) antibody [EPR17906] ab177793 at 1/2000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing nuclear staining on HeLa cell line is observed. Acetylation level increased after treatment with Trichostatin A (500 ng/ml) for 4 hours. The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).
  The negative controls are as follows;
  1. Anti-Histone H4 (acetyl K12) antibody [EPR17906] ab177793 at 1/2000 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
  2. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

•

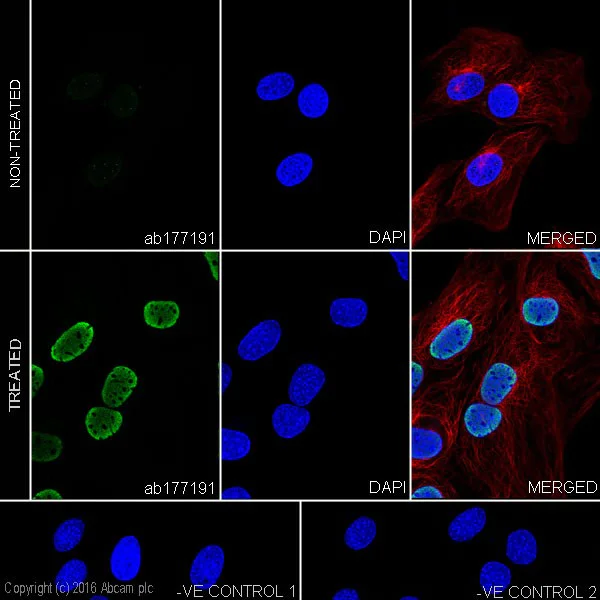

  Immunocytochemistry/ Immunofluorescence - Acetylated Histone H4 Antibody Sampler Pack (ab218056)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling Histone H4 (acetyl K20) with Anti-Histone H4 (acetyl K20) antibody [EPR16998(2)] - ChIP Grade ab177191 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).


  The expression increased on NIH/3T3 cells after treatment with Trichostatin A (500 ng/ml) for 4 hours.

  The nuclear counter stain is DAPI (blue).

  Tubulin is detected with Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor^®594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution (red).

  The negative controls are as follows:
  -ve control 1: Anti-Histone H4 (acetyl K20) antibody [EPR16998(2)] - ChIP Grade ab177191 at 1/500 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution.
  -ve control 2: Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^®488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

•

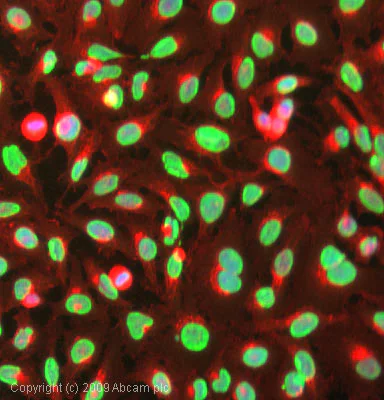

  Immunocytochemistry/ Immunofluorescence - Acetylated Histone H4 Antibody Sampler Pack (ab218056)

  ICC/IF image of Anti-Histone H4 (acetyl K5) antibody [EP1000Y] - ChIP Grade ab51997 stained HeLa cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (Anti-Histone H4 (acetyl K5) antibody [EP1000Y] - ChIP Grade ab51997, 1/1000 dilution) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.

•

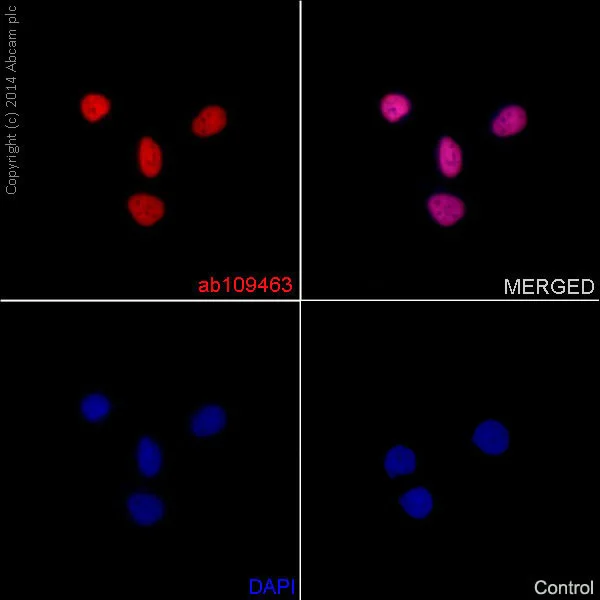

  Immunocytochemistry/ Immunofluorescence - Acetylated Histone H4 Antibody Sampler Pack (ab218056)

  Immunocytochemistry/Immunofluorescence analysis of HeLa cells treated with TSA labelling Histone H4 (acetyl K16) with purified Anti-Histone H4 (acetyl K16) antibody [EPR1004] ab109463 (red) at 1/150. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor^® 555-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.


  Control: primary antibody (1/150) and secondary antibody Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^®594-conjugated goat anti-mouse IgG (1/500).
