Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

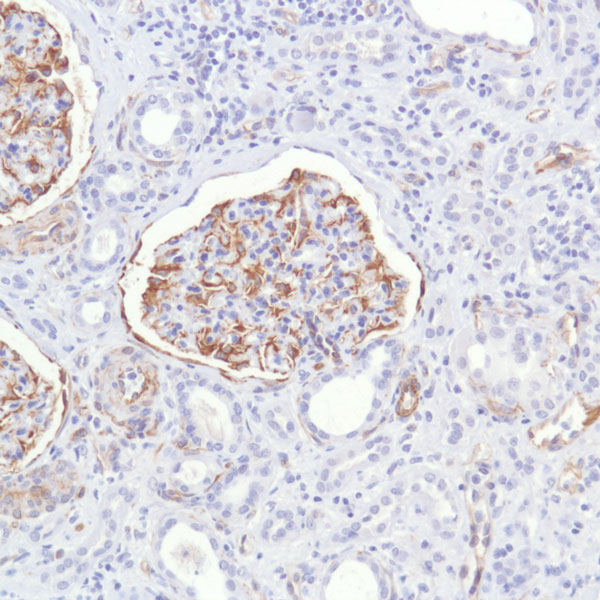

Formalin-fixed paraffin-embedded human kidney tissue stained for Nestin using ab105389 at 1/100 dilution in immunohistochemical analysis.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

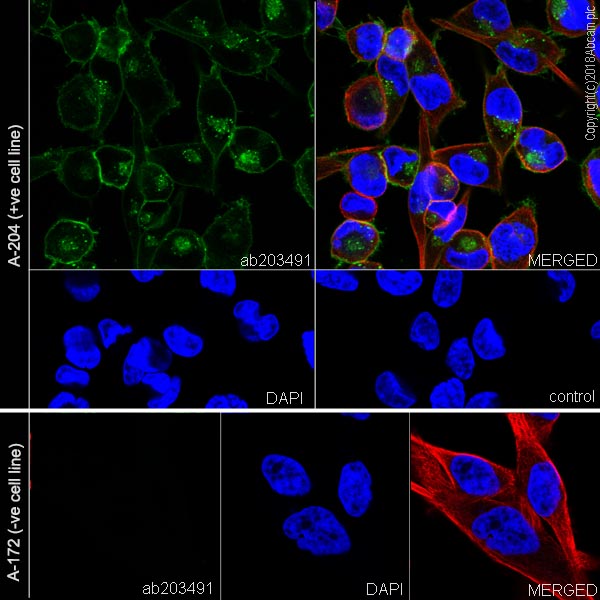

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A-204 (human muscle rhabdomyosarcoma cell line) cells and A-172 (human brain glioblastoma cell line) labeling PDGFR alpha with ab203491 at 1/500 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing membranous and cytoplasmic staining in A-204 cell line.

Negative control : A-172 (PMID : 8425771.

The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) (red) at 1/200 dilution.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

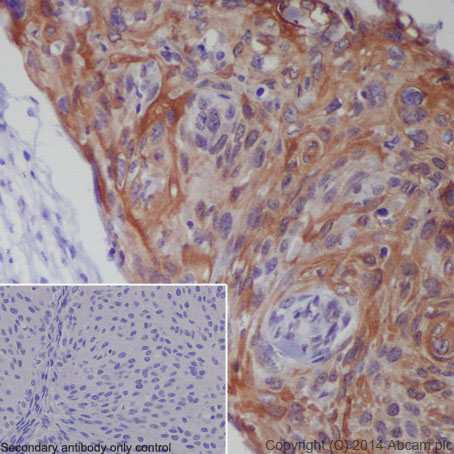

Immunohistochemical staining of paraffin embedded human cervical carcinoma with purified ab92547 at a working dilution of 1/250. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

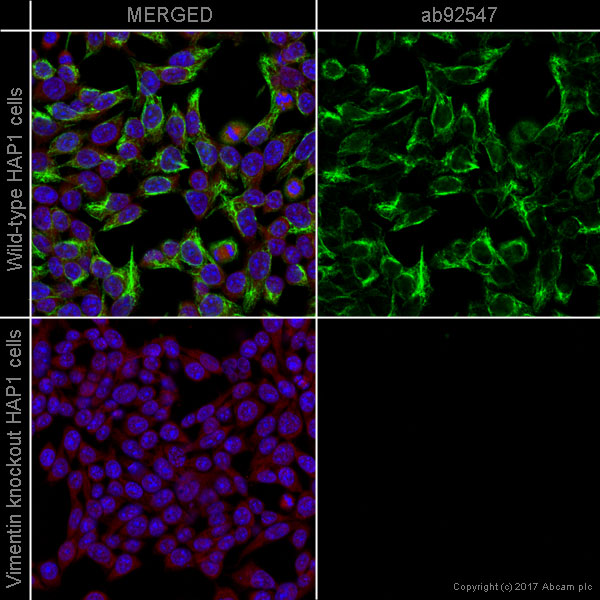

ab92547 staining Vimentin in wild-type HAP1 cells (top panel) and VIM knockout HAP1 cells (bottom panel). The cells were fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab92547 at 0.5μg/ml and ab195889 at 1/250 dilution (shown in pseudocolour red) overnight at +4°C, followed by a further incubation at room temperature for 1h with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed (ab150081) secondary antibody at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

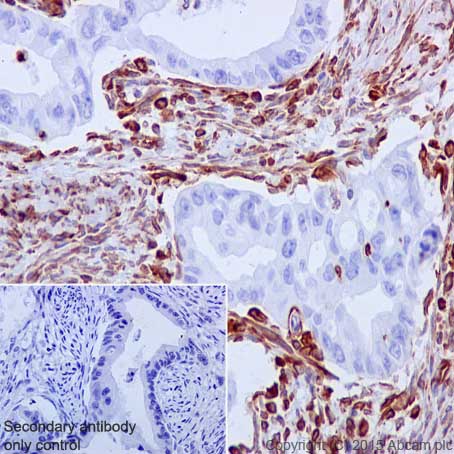

Immunohistochemical staining of paraffin embedded human bladder cancer with purified ab124824 at a working dilution of 1/500. The secondary antibody used is ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L), at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

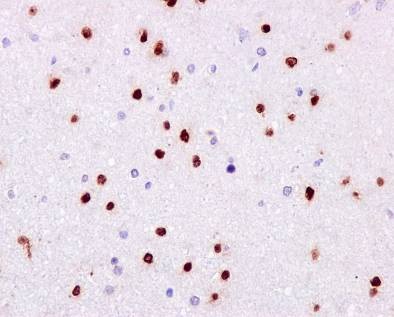

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human gliocytoma tissue labelling SOX2 with purified ab92494 at 1/100. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Counterstained with Hematoxylin.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

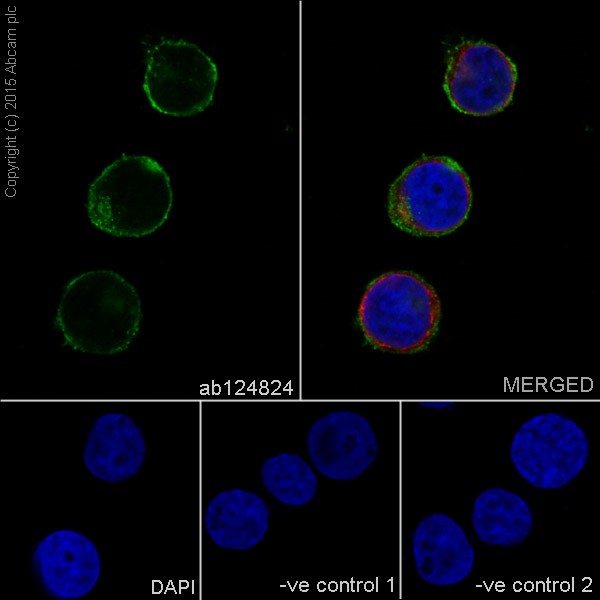

Immunofluorescence staining of Jurkat cells with purified ab124824 at a working dilution of 1 in 250, counter-stained with DAPI. Tubulin was stained with mouse anti-tubulin at a dilution of 1/1000 (ab7291) and Alexa Fluor^® 594 goat anti-mouse at a dilution of 1/500 (ab150120) . The secondary antibody was ab150077 Alexa Fluor^® 488 goat anti rabbit, used at a dilution of 1 in 500. The cells were fixed in 4% PFA and permeabilized using 0.1% Triton X 100. The negative controls are shown in the bottom middle and right hand panels - for the first negative control, purified ab124824 was used at a dilution of 1/200 followed by an Alexa Fluor^® 555 goat anti-mouse antibody at a dilution of 1/500 and for the second negative control mouse primary antibody (ab7291) and anti-rabbit secondary antibody (ab15007) were used.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

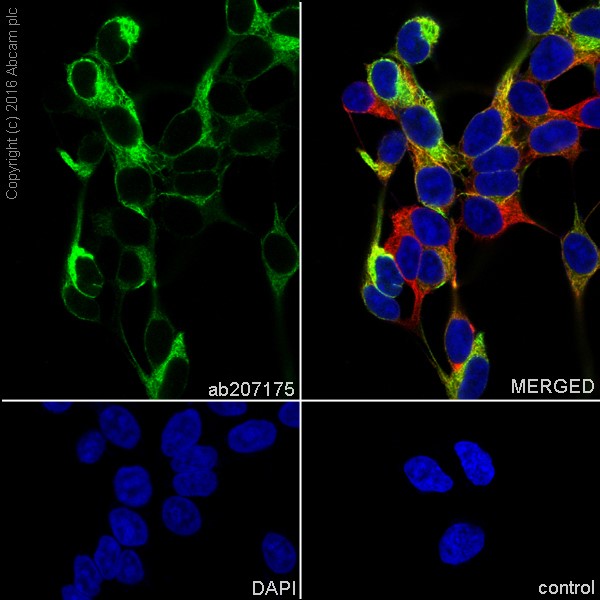

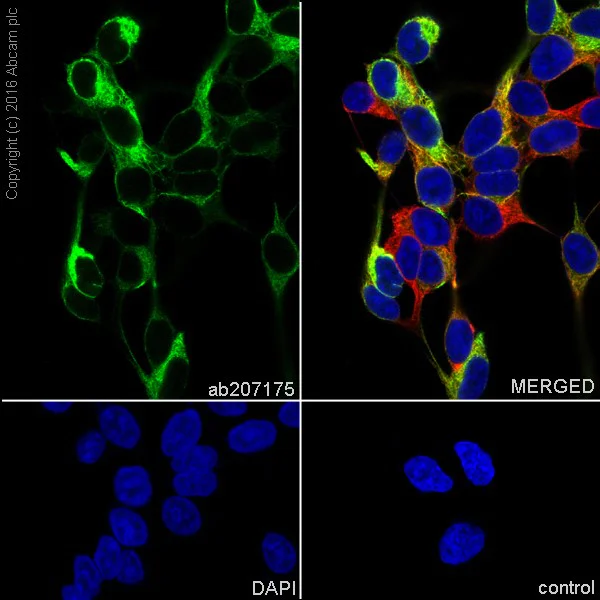

Immunofluorescent analysis of 100% Methanol-fixed SH-SY5Y (Human neuroblastoma cell line from bone marrow) cells labeling Doublecortin with ab207175 at 1/250 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing cytoplasmic staining on SH-SY5Y cell line.

The nuclear counter stain is DAPI (blue). Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

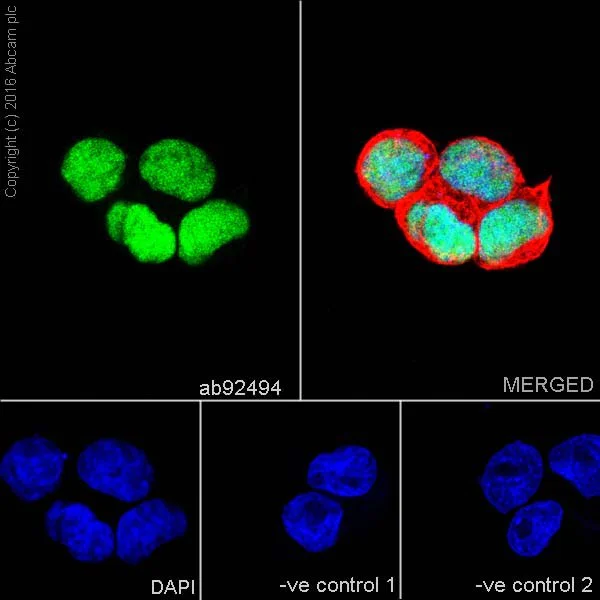

Confocal image showing nuclear staining on NCCIT cells

ab92494 staining SOX2 in NCCIT cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 4% PFA, permeabilized with 0.1% Triton-X. Samples were incubated with primary antibody (1/200). An Alexa Fluor^® 488-conjugated Goat anti-Rabbit IgG, ab150077 (1/1000) was used as the secondary antibody. Counterstained with ab7291 anti-Tubulin (1/1000), ab150120 AlexaFluor^®594 Goat anti-Mouse secondary (1/1000). DAPI was used as a nuclear counter stain.

Negative control 1 ab92494 was used as the primary antibody at 1/200 and ab150120 was used as the secondary at 1/1000.

Negative control 2 Ab7291was used as the primary antibody at 1/1000 and ab150077 was used as the secondary at 1/1000.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Neural Progenitor Cell Marker (CXCR4, Nestin, PDGFR, SOX2, Vimentin, Doublecortin) Antibody Panel (AB263461)

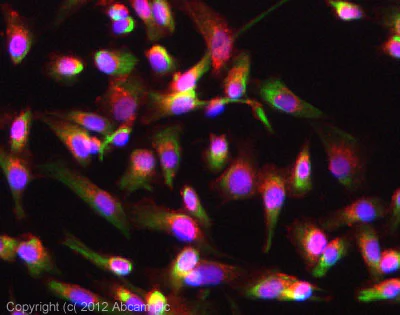

ICC/IF image of ab105389 stained SKNSH cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab105389, 1/200 dilution) overnight at +4°C. The secondary antibody (green) was ab96899, DyLight® 488 goat anti-rabbit IgG (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.
