AB290021

Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7]

Be the first to review this product! Submit a review

|

(0 Publication)

ab290021 is the same product as ab110322.

View Alternative Names

AAC1, ANT1, SLC25A4, ADP/ATP translocase 1, Adenine nucleotide translocator 1, Solute carrier family 25 member 4, ANT 1, AAC2, ANT2, SLC25A5, ADP/ATP translocase 2, Adenine nucleotide translocator 2, Solute carrier family 25 member 5, ANT 2

3 Images
Immunocytochemistry - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] (AB290021)
  • ICC

Supplier Data

Immunocytochemistry - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] (AB290021)

Immunocytochemistry - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7].

ab290021 at 10μg/ml staining Adenine Nucleotide Translocase 1/ANT 1 in cultured Human fibroblasts (fixed and permeabilized) by Immunocytochemistry, followed by a fluorescent goat-anti-mouse IgG.

Western blot - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] (AB290021)
  • WB

Supplier Data

Western blot - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] (AB290021)

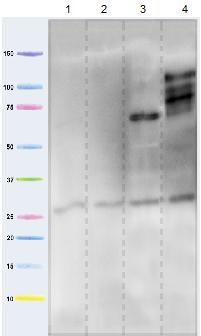

Western blot - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7].

All lanes : ab290021 at 1 μg/ml

Lane 1 : Human heart mitochondria isolate at 5 μg
Lane 2 : Bovine heart mitochondria isolate at 1 μg
Lane 3 : Rat heart mitochondria isolate at 10 μg
Lane 4 : Mouse heart mitochondria isolate at 10 μg

Predicted band size : 33 kDa

Extra bands in the mouse sample (lane 4) are due to the reaction of the IgG-specific goat anti-mouse secondary antibody with residual mouse blood in the heart tissue, as it is very difficult to entirely remove the blood from these small organs.

false

Western blot - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] (AB290021)
  • WB

Supplier Data

Western blot - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] (AB290021)

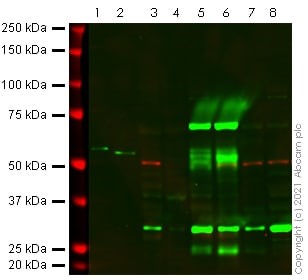

Western Blot - Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7].

All lanes : ab290021 at 1 μg/ml

Lane 1 : SLC25A4 (Human) Recombinant Protein (ANT1) cell lysate at 0.1 μg
Lane 2 : Recombinant Human Adenine Nucleotide Translocator 2/ANT 2 protein (ab157891) cell lysate at 0.1 μg
Lane 3 : Human Skeletal Muscle cell lysate at 20 μg
Lane 4 : Human Liver cell lysate at 20 μg
Lane 5 : Mouse Skeletal Muscle cell lysate at 20 μg
Lane 6 : Mouse Liver cell lysate at 20 μg
Lane 7 : Rat Skeletal Muscle cell lysate at 20 μg
Lane 8 : Rat Liver cell lysate at 20 μg

Predicted band size : 33 kDa
Observed band size : 33 kDa

False colour image of Western blot : Anti-Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2 antibody [5F51BB5AG7] staining at 1 μg/ml, shown in green; Rabbit anti-alpha Tubulin antibody [EP1332Y] (ab52866) loading control staining at 1/20000 dilution, shown in red. In Western blot, ab290021 was shown to bind specifically to Adenine Nucleotide Translocator 1 + 2/ANT 1 + 2. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed (ab216772) and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed (ab216777) at 1/20000 dilution.

false

Key facts

Reacts with

Human, Caenorhabditis elegans, Mouse, Cow, Rat

style
left-column

Complementary Products

Primary Antibodies

AB186735

Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker

RabMAb|Recombinant|Lab Essentials|20ul selling size

Western blot - Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (AB186735)

  • 5
  • 12
Primary Antibodies

AB14730

Anti-ATPB antibody [3D5] - Mitochondrial Marker

Lab Essentials

Western blot - Anti-ATPB antibody [3D5] - Mitochondrial Marker (AB14730)

  • 5
  • 42
Primary Antibodies

AB181243

Anti-ATP synthase C antibody [EPR13907]

RabMAb|Recombinant|20ul selling size

Immunocytochemistry/ Immunofluorescence - Anti-ATP synthase C antibody [EPR13907] (AB181243)

  • 0
  • 0
Primary Antibodies

AB109272

Anti-NAK/TBK1 (phospho S172) antibody [EPR2867(2)]

20ul selling size|RabMAb|Recombinant

Western blot - Anti-NAK/TBK1 (phospho S172) antibody [EPR2867(2)] (AB109272)

  • 5
  • 1
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"1 µg/mL", "notes":"<p></p>" }, "ICC": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"10 µg/mL", "notes":"<p></p>" } } }
style
left-column

Product details

ab290021 is the same product as ab110322. All associated reference to ab110322 apply to ab290021.

This antibody can also recognise ADP/ATP translocase 2, SLC25A31, SLC25A5 and SLC25A6 due to homology of 93% in immunogen sequence.

ab290021 was produced in vitro using hybridomas grown in serum-free medium, and then purified by biochemical fractionation.

This antibody comes with an Incubation Solution which should be used as the diluent for Western blot (the antibody should not be diluted in milk for incubations). The lab has found that diluting the antibody in this solution gives optimal results. Dilute the antibody to 1 ug/mL in neat Incubation Solution before use.

The following is a quick reference procedure guide for Western Blot, specific for ab290021:

1. Solubilize samples in SDS-PAGE sample buffer.

2. Heat sample to 37°C for 30 minutes.

3. Separate proteins on Tris-glycine 10-22% gradient gel 150 V ~ 2 hrs.

4. Soak gel in 50 mL CAPS buffer for 30 minutes.

5. Transfer to 0.45 μm PVDF membrane in CAPS buffer for 2 hrs at 0.15 A CAPS buffer : 10 mM 3-[cyclohexylamino]-1-propane sulfonic acid, pH 11 w/NaOH, 10% methanol ice cold throughout.

6. Block membrane for 3 hrs - overnight in 5% milk/PBS 4°C.

7. Wash blot 3 times for 5 mins PBS/0.05% Tween-20 with agitation. Followed by a final rinse in PBS.

8. Antibody diluted to concentration specified in supplied incubation solution for 2 hrs.

9. Wash blot 3 times in PBS/0.05% Tween-20 for 5 mins.

10. Incubate blot with secondary anti-mouse antibody diluted according to manufacturer's instructions in 1% milk/PBS for 2 hrs.

11. Wash blot 3 times in PBS/0.05% Tween-20 for 5 mins. Rinse blot in PBS.

12. Develop Blot: For alkaline phosphatase we recommend BCIP/NBT. For horseradish peroxidase we recommend ECL+.

style
left-column

What's included?

{ "values": { "100g": { "sellingSize": "100 µg", "publicAssetCode":"ab290021-100ug", "assetComponentDetails": [ { "size":"1 x 100 mL", "name":"Incubation Solution", "number":"AB290021-CMP02", "productcode":"" }, { "size":"1 x 100 µg", "name":"Anti-Adenine Nucleotide Translocase (ANT) monoclonal antibody", "number":"AB290021-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

ADP : ATP antiporter that mediates import of ADP into the mitochondrial matrix for ATP synthesis, and export of ATP out to fuel the cell (PubMed : 21586654, PubMed : 27693233). Cycles between the cytoplasmic-open state (c-state) and the matrix-open state (m-state) : operates by the alternating access mechanism with a single substrate-binding site intermittently exposed to either the cytosolic (c-state) or matrix (m-state) side of the inner mitochondrial membrane (By similarity). In addition to its ADP : ATP antiporter activity, also involved in mitochondrial uncoupling and mitochondrial permeability transition pore (mPTP) activity (PubMed : 31883789). Plays a role in mitochondrial uncoupling by acting as a proton transporter : proton transport uncouples the proton flows via the electron transport chain and ATP synthase to reduce the efficiency of ATP production and cause mitochondrial thermogenesis (By similarity). Proton transporter activity is inhibited by ADP : ATP antiporter activity, suggesting that SLC25A4/ANT1 acts as a master regulator of mitochondrial energy output by maintaining a delicate balance between ATP production (ADP : ATP antiporter activity) and thermogenesis (proton transporter activity) (By similarity). Proton transporter activity requires free fatty acids as cofactor, but does not transport it (By similarity). Also plays a key role in mPTP opening, a non-specific pore that enables free passage of the mitochondrial membranes to solutes of up to 1.5 kDa, and which contributes to cell death (PubMed : 31883789). It is however unclear if SLC25A4/ANT1 constitutes a pore-forming component of mPTP or regulates it (By similarity). Acts as a regulator of mitophagy independently of ADP : ATP antiporter activity : promotes mitophagy via interaction with TIMM44, leading to inhibit the presequence translocase TIMM23, thereby promoting stabilization of PINK1 (By similarity).
See full target information SLC25A4

Additional targets

SLC25A5
style
left-column
style
left-column
style
right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
