AB219916

Annexin V-iFluor 488 Apoptosis Detection Kit

Be the first to review this product! Submit a review

|

(1 Publication)

Annexin V-iFluor 488 Apoptosis Detection Kit (ab219916) contains Annexin V labeled with our proprietary green fluorescent dye iFluor 488, which allows the identification and quantitation of apoptotic cells on a single-cell basis by flow cytometry.

View Alternative Names

ANX5, ENX2, PP4, ANXA5, Annexin A5, Anchorin CII, Annexin V, Annexin-5, Calphobindin I, Endonexin II, Lipocortin V, Placental anticoagulant protein 4, Placental anticoagulant protein I, Thromboplastin inhibitor, Vascular anticoagulant-alpha, CPB-I, PAP-I, VAC-alpha

1 Images
Flow Cytometry - Annexin V-iFluor 488 Apoptosis Detection Kit (AB219916)
  • Flow Cyt

Supplier Data

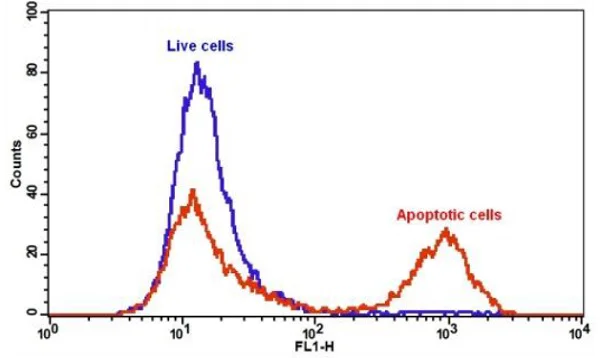

Flow Cytometry - Annexin V-iFluor 488 Apoptosis Detection Kit (AB219916)

The detection of binding activity of Annexin V-iFluor 488 to phosphatidylserine in Jurkat cells.

Annexin V-iFluor 488 Apoptosis Detection Kit (ab219916). Detection of phosphatidylserine (PS) exposure in Jurkat cells. Jurkat cells were left untreated (blue) or treated with 20 μM camptothecin (red) in a 37°C, 5% CO2 incubator for 4-5 hours. Cells were then incubated with Annexin V-iFluor reagent and PI for 30 minutes. The fluorescence intensitiy of Annexin V-iFluor 488 was measured with a FACSCalibur (BD Systems) flow cytometer using the FL1channel.

In live non-apoptotic cells, Annexin V-iFluor 488 conjugate detects innate apoptosis in non-induced cells, which is typically 2-6% of all cells. In apoptotic cells Annexin V-iFluor 488 conjugate binds to phosphatidylserine, which is located on the outer leaflet of the cell membrane, resulted in increased staining intensity.

Key facts

Detection method

Fluorescent

Sample types

Suspension cells, Adherent cells

Results type

Quantitative

Assay Platform

Flow cytometer, Fluorescence microscope

Product details

Annexin V-iFluor 488 Apoptosis Detection Kit (ab219916) contains Annexin V labeled with our proprietary green fluorescent dye iFluor 488, which allows the identification and quantitation of apoptotic cells on a single-cell basis by flow cytometry. Optionally, it can be used for simultaneous staining of cells with Annexin V-iFluor488 (green fluorescence) and the nonvital dye propidium iodide (PI) (orange fluorescence) which allows the discrimination of intact cells (Annexin V-iFluor 488 negative, PI Staining Solution negative), early apoptotic (Annexin V-iFluor 488 positive, PI Staining Solution negative) and late apoptotic or necrotic cells (Annexin V-iFluor 488 positive, PI Staining Solution positive).

The iFluor 488 dye (Ex/Em = 490/525 nm) has spectral properties almost identical to those of FITC or Alexa Fluor® 488, making it convenient to be used with the common fluorescence instruments equipped with the light sources and filters for FITC, the most common fluorophore.

Apoptosis is a regulated process of cell death that occurs during embryonic development as well as maintenance of tissue homeostasis. Inappropriately regulated apoptosis is implicated in different disease states, such as neurodegeneration disease and cancer. The apoptosis program is characterized by morphologic features, including loss of plasma membrane asymmetry and attachment, condensation off the cytoplasm and nucleus, and compaction and fragmentation of the nuclear chromatin. Exposure of phosphatidylserine (PS) on the external surface of the cell membrane has been reported to occur in the early phases of apoptotic cell death, during which the cell membrane remains intact. In leukocyte apoptosis, PS on the outer surface of the cell marks the cell for recognition and phagocytosis by macrophages. The human vascular anticoagulant, annexin V, is a 35-36 kDa Ca2+ dependent phospholipid binding protein that has a high affinity for PS, and shows minimal binding to phosphatidylcholine and sphingomyelin. Changes in PS asymmetry, which can be analyzed by measuring annexin V binding to the cell membrane, are generally observed before morphological changes associated with apoptosis occurred and before membrane integrity is lost.

Alexa Fluor® 488 is the trademark of Invitrogen.

What's included?

{ "values": { "100Test": { "sellingSize": "100 Test", "publicAssetCode":"ab219916-100Test", "assetComponentDetails": [ { "size":"1 x 200 µL", "name":"Annexin 488 (100X stock solution)", "number":"AB219916-CMP01", "productcode":"" }, { "size":"1 x 50 mL", "name":"Assay Buffer", "number":"AB219916-CMP02", "productcode":"" }, { "size":"1 x 100 µL", "name":"100X Propidium Iodide", "number":"AB219916-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
Multi
Storage information
Please refer to protocols

Product protocols

Target data

This protein is an anticoagulant protein that acts as an indirect inhibitor of the thromboplastin-specific complex, which is involved in the blood coagulation cascade.
See full target information ANXA5

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

iScience 25:105064 PubMed36147946

2022

Small molecule SJ572946 activates BAK to initiate apoptosis.

Applications

Unspecified application

Species

Unspecified reactive species

Giridhar Sekar,Geetika Singh,Xingping Qin,Cristina D Guibao,Brittany Schwam,Zintis Inde,Christy R Grace,Weixing Zhang,P Jake Slavish,Wenwei Lin,Taosheng Chen,Richard E Lee,Zoran Rankovic,Kristopher Sarosiek,Tudor Moldoveanu
View all publications
