AB235696

Cell Migration/Chemotaxis Assay Kit (12-tests, 5 µm)

Be the first to review this product! Submit a review

|

(6 Publications)

Cell Migration/Chemotaxis Assay Kit (24-well, 5 µm) (ab235696) is a trans-well migration assay using a Boyden chamber, where cells migrate through a semi-permeable membrane under different stimuli.

- Ready-to-use buffers, dissociation solution, migration inducer, and cell dye
- Includes Boyden cell migration chamber
2 Images
Functional Studies - Cell Migration/Chemotaxis Assay Kit (12-tests, 5 µm) (AB235696)
  • FuncS

Supplier Data

Functional Studies - Cell Migration/Chemotaxis Assay Kit (12-tests, 5 µm) (AB235696)

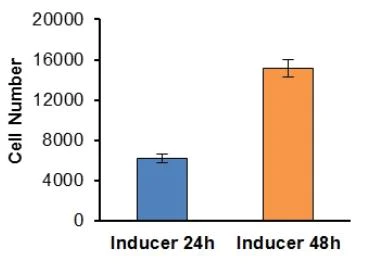

Cell Invasion.

Monocytes/macrophage cells were starved overnight and treated with Control (Cnt) Invasion Inducer for 24 or 48 hours or left untreated. Treatment with Control Invasion Inducer demonstrated a significant increase in invasion with time. Control reading was subtracted from inducer reading.

Functional Studies - Cell Migration/Chemotaxis Assay Kit (12-tests, 5 µm) (AB235696)
  • FuncS

Supplier Data

Functional Studies - Cell Migration/Chemotaxis Assay Kit (12-tests, 5 µm) (AB235696)

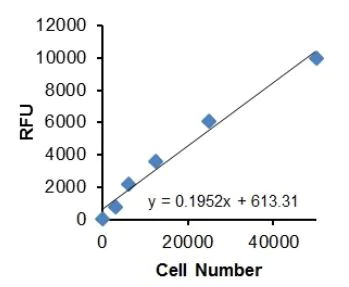

Standard Curve.

Monocytes/macrophage cells were harvested, counted and serially diluted to obtain desired cell number. Cells were incubated according to the protocol.

Key facts

Detection method

Fluorescent

Sample types

Adherent cells, Suspension cells

Assay Platform

Microplate reader

Product details

Cell Migration/Chemotaxis Assay Kit (24-well, 5 μm) (ab235696) is a trans-well migration assay using a Boyden chamber, where the cells migrate through a semi-permeable membrane under different stimuli. Cell migration can be analyzed directly by reading fluorescence (Ex/Em = 530/590 nm) in a plate reader. Our assay is easy to use, sensitive and adaptable to high-throughput systems.

Cell migration / chemotaxis assay protocol summary
- Grow cells.
- Add cell culture media containing desired chemoattractant to the bottom part of the Boyden chamber (bottom chamber).
- Add cell culture media containing positive control Migration Inducer to control wells in the bottom chamber.
- Add cells to the top part of the Boyden chamber (top chamber) with any desired treatment.
- Incubate at 37°C in cell culture incubator for 2-48 h.
- Cells will migrate through the polycarbonate membrane from the top chamber to the bottom chamber.
- Remove the top chamber and remove media and remaining cells.
- Centrifuge the bottom chamber and wash cells with Wash Buffer, repeat.
- Add Cell Dye / Cell Disassociation Solution to bottom chamber and incubate for 60-min in cell culture incubator.
- Transfer to 96-well plate and analyze with fluorometric (Ex/Em 530/590 nm) plate reader.
- Prepare a separate standard curve with known numbers of cells in a 96-well plate with Cell Dye, incubate for 1-hr, and analyze with fluorometric (Ex/Em 530/590 nm) plate reader to allow quantitation.

Other notes
This product was previously called K910 Biovision EZCell™ Cell Migration/Chemotaxis Assay Kit (24-well, 5 μm). Biovision was acquired by Abcam in 2021.

Cell invasion is the ability of cells to migrate from one area to another through an extracellular matrix. Cell invasion is exhibited by both normal cells as well as cancerous cells in response to specific external signals, including chemical and mechanical stimuli. During invasion, extracellular matrix is enzymatically degraded by cellular proteases before cells migrate to the new location. Cell invasion is required for normal processes such as wound repair, vasculature formation and the inflammatory response as well as the abnormal invasion of tissues by tumor cells during metastasis.

The Safety Datasheet for this product has been updated for certain countries. Please check the current version in the Support and downloads section.

What's included?

{ "values": { "12Test": { "sellingSize": "12 Test", "publicAssetCode":"ab235696-12Test", "assetComponentDetails": [ { "size":"1 x 1 Unit", "name":"Cell Migration Chamber, 12-Inserts (5 μm)", "number":"AB235696-CMP04", "productcode":"" }, { "size":"1 x 25 mL", "name":"Wash Buffer I", "number":"AB235696-CMP05", "productcode":"" }, { "size":"1 x 7 mL", "name":"Cell Dissociation Solution II", "number":"AB235696-CMP01", "productcode":"" }, { "size":"1 x 1.5 mL", "name":"Cell Dye I", "number":"AB235696-CMP02", "productcode":"" }, { "size":"1 x 300 µL", "name":"Control Migration Inducer", "number":"AB235696-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Publications (6)

Recent publications for all applications. Explore the full list and refine your search

Glia 73:251-270 PubMed39448549

2024

Splicing dysregulation in glioblastoma alters the function of cell migration-related genes.

Applications

Unspecified application

Species

Unspecified reactive species

Minu Seong,Pedro Bak-Gordon,Zhaoqi Liu,Peter D Canoll,James L Manley

STAR protocols 5:103333 PubMed39306853

2024

Protocol for preparing metabolically reprogrammed human CAR T cells and evaluating their in vitro effects.

Applications

Unspecified application

Species

Unspecified reactive species

Yue Hu,Abhijit Sarkar,Xiaotong Song

Cell reports. Medicine 5:101530 PubMed38688275

2024

Selective refueling of CAR T cells using ADA1 and CD26 boosts antitumor immunity.

Applications

Unspecified application

Species

Unspecified reactive species

Yue Hu,Abhijit Sarkar,Kevin Song,Sara Michael,Magnus Hook,Ruoning Wang,Andras Heczey,Xiaotong Song

Journal of translational medicine 21:367 PubMed37286997

2023

Characterization of chimeric antigen receptor modified T cells expressing scFv-IL-13Rα2 after radiolabeling with Zirconium oxine for PET imaging.

Applications

Unspecified application

Species

Unspecified reactive species

Pamela Leland,Dhiraj Kumar,Sridhar Nimmagadda,Steven R Bauer,Raj K Puri,Bharat H Joshi

Journal of inflammation research 14:5337-5347 PubMed34703272

2021

A Novel Modified-Curcumin Promotes Resolvin-Like Activity and Reduces Bone Loss in Diabetes-Induced Experimental Periodontitis.

Applications

Unspecified application

Species

Unspecified reactive species

Jie Deng,Lorne M Golub,Hsi-Ming Lee,Veena Raja,Francis Johnson,Allan Kucine,Wonsae Lee,Tian-Min Xu,Ying Gu

mBio 12:e0257921 PubMed34634942

2021

Identification and Functional Analysis of Cytokine-Like Protein CLEC-47 in Caenorhabditis elegans.

Applications

Unspecified application

Species

Unspecified reactive species

Wen Pan,Xiaowen Huang,Zeyuan Guo,Rekha Nagarajan,Eleftherios Mylonakis
