AB186029

Cellular ROS Assay Kit (Deep Red)

Be the first to review this product! Submit a review

|

(70 Publications)

Cellular ROS Assay Kit (Deep Red) ab186029 uses a Reactive oxygen species (ROS) sensor to quantify ROS in live cells.

- Sensitive one-step fluorimetric assay to detect intracellular ROS (especially superoxide and hydroxyl radical) in live cells within 1 hour incubation
- Suitable for microplate reader and fluorescence microscope
- Flexible formats: use with 96-well or 384-well microtiter plate
- Cited in over 55 publications
3 Images
Functional Studies - Cellular ROS Assay Kit (Deep Red) (AB186029)
  • FuncS

Unknown

Functional Studies - Cellular ROS Assay Kit (Deep Red) (AB186029)

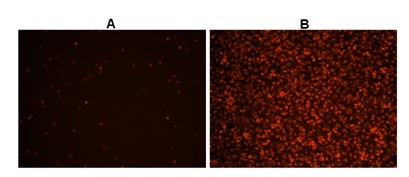

Images of Hela cells stained with the Cellular Reactive Oxygen Species Detection Assay Kit (Deep Red Fluorescence) (ab186029) in a black wall/clear bottom 96-well plate. A : Untreated control cells. B : Cells treated with 100 μM TBHP for 30min before staining.

Functional Studies - Cellular ROS Assay Kit (Deep Red) (AB186029)
  • FuncS

Unknown

Functional Studies - Cellular ROS Assay Kit (Deep Red) (AB186029)

Detection of ROS in Hela cells.

Hela cells were seeded overnight at 15,000 cells/90 μl/well in a black wall/clear bottom 96-well plate. The cells were untreated (control) or treated with1 mM H2O2 or 100 μM TBHP for 30 minutes at 37 °C. The ROS Deep Red assay solution (100 μl/well) was added and incubated in a 5% CO2, 37°C incubator for 1 hour. The fluorescence signal was monitored at Ex/Em = 650/675 nm (cut off = 665 nm) with bottom read mode.

Functional Studies - Cellular ROS Assay Kit (Deep Red) (AB186029)
  • FuncS

Unknown

Functional Studies - Cellular ROS Assay Kit (Deep Red) (AB186029)

Detection of ROS in Jurkat Cells.

Jurkat cells were treated without (Blue) or with 100μM TBHP (Red) for 30min at 37 °C, and then loaded with ROS Deep Red in a 5% CO2, 37 °C incubator for 1 hour. The fluorescent intensities were measured with a flow cytometer using FL2 channel

Key facts

Sample types

Suspension cells, Adherent cells

Assay time

1h

Assay Platform

Microplate reader, Fluor. microscope, Flow cyt.

Product details

Cellular ROS Assay Kit (Deep Red) ab186029 uses an ROS sensor to quantify ROS in live cells. The ROS Deep Red dye is cell-permeable and generates Deep Red fluorescence when it reacts with ROS. The fluorescence signal of the ROS Deep Red Dye can be measured by fluorescence microscopy, high-content imaging, microplate fluorometry, or flow cytometry.

ab186029 provides a sensitive fluorometric, one-step assay to detect intracellular ROS (especially superoxide and hydroxyl radical) in live cells within 1 hour. The assay can be performed in a convenient 96-well or 384-well microtiter-plate format using either a fluorescence microplate reader at Ex/Em = 650/675 nm or a fluorescent microscope with with Cy5 filter.

Previously called Cellular Reactive Oxygen Species Detection Assay Kit (Deep Red Fluorescence).

Reactive oxygen species (ROS) are natural byproducts of the normal metabolism of oxygen and play important roles in cell signaling. However, during oxidative stress-related states, ROS levels can increase dramatically. The accumulation of ROS results in significant damage to cell structures. The role of oxidative stress in cardiovascular disease, diabetes, osteoporosis, stroke, inflammatory diseases, a number of neurodegenerative diseases and cancer has been well established. The ROS measurement will help to determine how oxidative stress modulates varied intracellular pathways.

Related products

Review the oxidative stress marker and assay guide, or the full metabolism assay guide to learn about more assays for metabolites, metabolic enzymes, mitochondrial function, and oxidative stress, and also how to assay metabolic function in live cells using your plate reader.

To measure reactive oxygen species within cells, we recommend DCFDA / H2DCFDA - Cellular ROS Assay Kit ab113851. Alternative ROS assays are available in orange (ab186028), red (ab186027), and deep red (ab186029).  ab238535 is used to measure ROS in biofluids, culture supernatants and cell lysates.

For assays designed to differentiate ROS, superoxides, and reactive nitrogen species: to assay ROS and superoxides use ab139476; to assay ROS, superoxides, and reactive nitrogen species use ab139473; to assay superoxides use ab219943.

What's included?

{ "values": { "200Test": { "sellingSize": "200 Test", "publicAssetCode":"ab186029-200Test", "assetComponentDetails": [ { "size":"1 x 20 mL", "name":"Assay Buffer", "number":"AB186029-CMP01", "productcode":"" }, { "size":"1 x 100 µL", "name":"DMSO", "number":"AB186029-CMP02", "productcode":"" }, { "size":"1 x 1 Vial", "name":"ROS Deep Red Dye (Lyophilized)", "number":"AB186029-CMP03", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Publications (70)
