AB133406

ECL Substrate Kit (High Sensitivity)

5

(5 Reviews)

|

(58 Publications)

ECL Substrate Kit (High Sensitivity) (ab133406) is an enhanced chemiluminescent substrate designed for the detection of proteins with 23 pg-187 ng of protein per band.

- Long lasting, highly sensitivity substrate- strong signal with very low background
- Use for film imaging and compatible with CCD imaging
- Available in different sizes to fit your experimental needs
2 Images
Western blot - ECL Substrate Kit (High Sensitivity) (AB133406)
  • WB

Unknown

Western blot - ECL Substrate Kit (High Sensitivity) (AB133406)

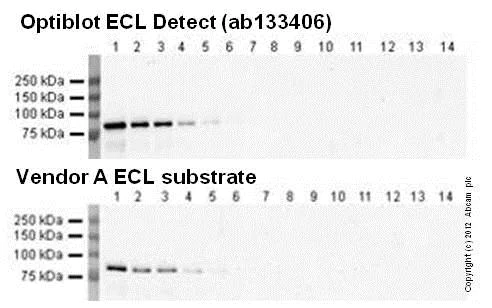

Western blot comparison 1/25000 anti-Transferrin primary antibody, 1/50000 secondary antibody, 20 second exposure.

Anti-Transferrin antibody (ab1223) at 1/25000 dilution. Lanes 1-14 Transferrin protein (ab91435), Loading dilution (Lanes 1-8) : 12.5, 6.2, 3.1, 1.6, 0.8, 0.3, 0.19μg protein.

Secondary

HRP conjugated polyclonal to Rabbit IgG (ab97080) at 1/50000 developed using Optiblot ECL Detect and Vendor A ECL subtrate.

Exposure time : 20 seconds

false

Western blot - ECL Substrate Kit (High Sensitivity) (AB133406)
  • WB

Supplier Data

Western blot - ECL Substrate Kit (High Sensitivity) (AB133406)

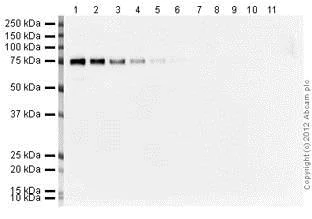

Western Blot 1/25000 primary antibody, 1/5000 secondary antibody, 20 second exposure.

Each lane contains the following amount of COX2 recombinant protein (ab58868) : 1) 100ng 2) 50ng 3) 25ng 4) 12.5ng 5) 6.25ng 6) 3.13ng 7) 1.56ng 8) 780pg 9) 390pg 10) 195pg 11) 98pg. The blot was probed with rabbit anti-COX2 antibody (ab15191) at 1/25000 dilution and with a rabbit secondary (ab97080) at 1/5000 dilution. The blot was developed with 20ml of Optiblot ECL Detect.

Exposure time : 20 seconds

false

Key facts

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "WB": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

You may be interested in:

AB119211

InstantBlue® Coomassie Protein Stain (ISB1L)

5

5 Reviews

View product

We recommend this product because it’s often used in the same experiment or related research.

We advise that you always check the datasheet to ensure it fits your experiments, or contact ourtechnical teamfor help.

style
left-column

Product details

High Sensitivity ECL Substrate Kit ab133406 is designed for the detection of proteins with 23pg-187ng of protein per band. It uses an enhanced chemiluminescent substrate for western blotting that was developed for film imaging and is also compatible with CCD imaging. The high sensitivity ECL substrate produces a strong signal with very low background. Additionally, the ECL signal is long lasting, allowing repeated exposures without fear of losing data.

Our ECL kits include our popular ECL Substrate Kit ab65623 and our high sensitivity ECL substrate kits:
- this kit (High Sensitivity ECL Substrate Kit ab133406) to detect 23pg-187ng of protein per band
- Very High Sensitivity ECL Substrate Kit ab133408 to detect 4.6pg-4.7ng of protein per band
- Ultra High Sensitivity ECL Substrate Kit ab133409 to detect 1.2pg-2ng of protein per band

Detection ranges in pg and ng stated above should be used for guidance only as detection range is dependent on the molecular weight of a protein.

This product was previously called Optiblot ECL Detect Kit (23pg-187ng).

Use:
- 200ml kit for 2000cm2 membrane
- 500ml kit for 5000cm2 membrane

The primary antibody can often be diluted 5 to 10 fold more than usual when using this ECL substrate. A typical primary antibody dilution range using the substrate is 1/5000 - 1/20,000, with a typical secondary antibody dilution range of 1/20,000 - 1/100,000. Some optimisation may be required.
