Estrogen Receptor Transcription Factor Assay Kit (Colorimetric) (ab207203) is a high throughput assay to quantify Estrogen Receptor (ER) activation in nuclear extracts.

Be the first to review this product! Submit a review

Images

Functional Studies - Estrogen Receptor Transcription Factor Assay Kit (Colorimetric) (AB207203), expandable thumbnail

Publications

Key facts

Detection method
Colorimetric
Sample types
Nuclear Extracts
Assay type
Semi-quantitative
Reactive species
Mouse, Rat, Human
Assay time
3h 30m
Sensitivity
< 600 ng/well

Target data

Function

The protein expressed by the gene ESR1 functions as a nuclear hormone receptor involved in regulating eukaryotic gene expression, affecting cellular proliferation and differentiation in target tissues. It mediates ligand-dependent nuclear transactivation either through direct homodimer binding to estrogen response elements (ERE) or by associating with other transcription factors like AP-1/c-Jun, c-Fos, ATF-2, Sp1, and Sp3, allowing ERE-independent signaling. Ligand binding triggers a conformational change, facilitating the interaction with coactivator complexes through LXXLL motifs. This interaction leads to mutual transrepression with NF-kappa-B in a cell-type-specific manner, reducing NF-kappa-B DNA-binding activity and transcription from the IL6 promoter while displacing coregulators like RELA/p65. It can antagonistically or synergistically interact with NF-kappa-B for transcription activation, involving recruitment to adjacent response elements, working with CREBBP. Additionally, it activates the transcription of TFF1 and mediates membrane-initiated signaling through kinase cascades. It's crucial for MTA1-mediated transcriptional regulation of BRCA1 and BCAS3. Isoform 3 specifically activates NOS3 and endothelial nitric oxide production, while isoforms lacking certain functional domains modulate transcriptional activity by competitive ligand or DNA binding and heterodimerization with the full-length receptor, capable of binding to ERE and inhibiting isoform 1. This supplementary information is collated from multiple sources and compiled automatically.

Alternative names

What's included?

5 x 96 Tests
Components
10X Antibody Binding Buffer
5 x 2.2 mL
10X Wash Buffer
5 x 22 mL
96-well ER assay plate
5 x 1 Unit
Anti-rabbit HRP-conjugated IgG
5 x 11 µL
Binding Buffer
5 x 10 mL
Developing Solution
5 x 11 mL
Dithiothreitol (DTT) (1 M)
5 x 100 µL
ERa antibody
5 x 11 µL
Lysis Buffer
5 x 10 mL
MCF-7 nuclear extract (2.5 µg/µL)
5 x 40 µL
Mutated oligonucleotide (10 pmol/µL)
5 x 100 µL
Plate sealer
5 x 1 Unit
Poly [d(l-c)] (17 µg/μL)
5 x 100 µL
Protease Inhibitor Cocktail
5 x 100 µL
Stop Solution
5 x 11 mL
Wild-type oligonucleotide (10 pmol/µL)
5 x 100 µL

Recommended products

Estrogen Receptor Transcription Factor Assay Kit (Colorimetric) (ab207203) is a high throughput assay to quantify Estrogen Receptor (ER) activation in nuclear extracts.

Key facts

Detection method
Colorimetric
Sample types
Nuclear Extracts
Assay type
Semi-quantitative
Reactive species
Mouse, Rat, Human
Assay time
3h 30m
Assay Platform
Microplate reader
Sensitivity
< 600 ng/well

Storage

Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
Multi
Appropriate long-term storage conditions
Multi
Storage information
Please refer to protocols

Notes

Estrogen Receptor Transcription Factor Assay Kit (Colorimetric) (ab207203) is a high throughput assay to quantify Estrogen Receptor (ER) activation in nuclear extracts. This assay combines a quick ELISA format with a sensitive and specific non-radioactive assay for transcription factor activation.

A specific double stranded DNA sequence containing the Estrogen Receptor consensus binding site (5' –GGTCACAGTGACC– 3') has been immobilized onto a 96-well plate. Active Estrogen Receptor present in the nuclear extract specifically binds to the oligonucleotide. Estrogen Receptor is detected by a primary antibody that recognizes an epitope of Estrogen Receptor accessible only when the protein is activated and bound to its target DNA. An HRP-conjugated secondary antibody provides sensitive colorimetric readout that at OD 450 nm. This product detects human, mouse and rat Estrogen Receptor.

Key performance and benefits:

  • Assay time: 3.5 hours (cell extracts preparation not included).
  • Detection limit: < 0.6 μg nuclear extract/well.
  • Detection range: 0.6 – 20 μg nuclear extract/well.

ER belongs to the superfamily of ligand-inducible transcription factors. Human ERa is comprised of 595 amino acids and displays an approximate molecular weight of 66-70 kDa. Six functional regions have been identified. A hypervariable domain (aa 1-184) contains activation function 1 (AF1). The DNA binding domain (DBD, aa 185-263) contains two zinc finger motifs and is highly conserved across the nuclear receptor superfamily. It is responsible for the binding of the receptor to estrogen response elements (EREs) and contributes to dimerization and activation. Typically, EREs consist of two inverted half-sites separated by 3 bp (5´-GGTCAnnnTGACC-3´). The region which separates the ligand binding domain (LBD) and the DBD is called the hinge region (aa 264-302).

The LBD (aa 303-553) consists of 12 a-helices, which form a hydrophobic pocket responsible for ligand binding. The function of the final domain (aa 554-595) is not clear but is thought to play a role in distinguishing between agonist and antagonist binding. Human ERb is expressed as multiple isoforms. Structure and function studies have shown that the DBD of ERa and ERb are highly homologous, approaching 96%, whereas the LBD showed only 59% homology. The general mechanism of action of ERb is thought to be similar to that of ERa. ERa and ERb have the ability to interact with target promoters in three different complexes: ERa homodimers, ERb homodimers and ERa/ERb heterodimers.

The transcriptional effects of ER can be mediated through several mechanisms other than E2-ER complexes binding to EREs. E2-ER complexes can also trans activate genes through protein-protein interactions with transcription factors such as AP-1 or Sp1 that bind DNA, with coaccessory proteins (Src, ACTR), some of which have histone acetylase activity, and with RNA Polymerase II complex proteins. In addition, ERs serve to repress genes, which also plays an important role in E2 action.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

The Estrogen Receptor (ER) also known by its alternate names NR3A1 (nuclear receptor subfamily 3 group A member 1) is a nuclear hormone receptor that binds estrogens such as the 17 beta estradiol molecule. Its molecular mass is approximately 66 kDa. This receptor locates mainly in the cytoplasm and nucleus of cells within tissues such as the breast uterus and bone. The ER exists in two primary subtypes ER alpha and ER beta which differ in their tissue distribution and functional roles.

Biological function summary

The Estrogen Receptor functions as a transcription factor that regulates gene expression when it binds to its ligand which is commonly estradiol. Upon binding 17 beta estradiol the receptor dimerizes and interacts with specific DNA sequences to influence transcription. It significantly regulates genes responsible for cell growth differentiation and reproductive functions. The estradiol chemical structure allows for specific interactions with ER altering the transcriptional regulation in a ligand-dependent manner. Though functioning mainly as a monomer ER can form heterodimers with other nuclear receptors affecting its biological role.

Pathways

The Estrogen Receptor is an important player in the genomic signaling pathway where it modulates the expression of numerous target genes by direct DNA binding. It also participates in the non-genomic signaling pathway where it involves the activation of second messengers and kinases. ER closely associates with important proteins such as coactivators and corepressors in these pathways. Estradiol chemical formula interactions facilitate molecular events involving ER-alpha to influence components of cell proliferation and survival.

Associated diseases and disorders

The Estrogen Receptor is intricately linked to breast cancer and osteoporosis. Dysfunction in ER signaling promotes the proliferation of breast cancer cells often requiring targeted therapies that inhibit its action. In osteoporosis ER activity impacts bone density and turnover through regulation of osteoclasts and osteoblasts. The receptor's interaction with growth factor receptors like HER2 in breast cancer further highlights its significance in disease pathogenesis.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

1 product image

  • Functional Studies - Estrogen Receptor Transcription Factor Assay Kit (Colorimetric) (ab207203), expandable thumbnail

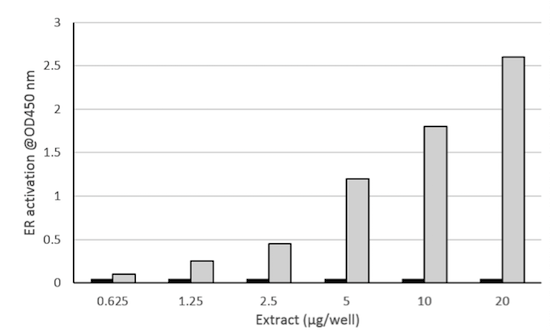

    Functional Studies - Estrogen Receptor Transcription Factor Assay Kit (Colorimetric) (ab207203)

    Different amounts of untreated (Gray) and H2O2 (Black) post-treated nuclear extracts from MCF-7 cells are tested for ERa activity.

    Different amounts of untreated (grey) and hydrogen peroxide treated (black) MCF-7 were tested for ERα activity. These results are provided for demonstration purposes only.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
