AB176743

Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation)

Be the first to review this product! Submit a review

|

(0 Publication)

Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (ab176743) is used to evaluate the viability of mammalian cells by flow cytometry.
3 Images
Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (AB176743)
  • Fluorescence Microscopy

Supplier Data

Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (AB176743)

Detection of Jurkat cell viability by Fixable Cell Viability Assay Kit (Fluorometric - Orange Ex 488 nm) - Cytopainter (ab176743). Jurkat cells were heat- treated at 60°C or left untreated, and stained by Orange Viability Dye. Live and heat-treated cells were imaged with fluorescence microscope using TRITC filter.

Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (AB176743)
  • Fluorescence Microscopy

Supplier Data

Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (AB176743)

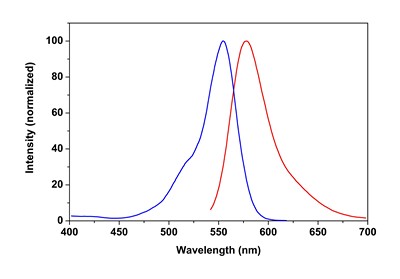

Excitation and Emission Spectra of CytoPainter Fixable Cell Viability Assay Kit (Fluorometric - Orange) (ab176743)

Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (AB176743)
  • Fluorescence Microscopy

Supplier Data

Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (AB176743)

Fluorescent imaging of HeLa cells fixed with formaldehyde and labeled with CytoPainter Fixable Cell Viability Assay Kit (Fluorometric-Orange) (ab176743) in a black wall/ clear bottom 96 well plate.

Key facts

Detection method

Fluorescent

Sample types

Suspension cells, Adherent cells

Assay type

Cell-based (quantitative)

Assay Platform

Flow cytometer

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Reactivity", "Dilution Info", "Notes"] }, "values": { "Fluorescence Microscopy": { "reactivity":"TESTED_AND_REACTS", "dilution-info":"", "notes":"<p></p>" } } }
style
left-column

Product details

Fixable Cell Viability Assay Kit (Orange Fluorescence, for 488 nm or 561 nm excitation) (ab176743) is used to evaluate the viability of mammalian cells by flow cytometry. The fluorescent dye provided in the kit is retained in cells by reacting with cellular components. For viable cells, only the cell-surface amines are available to react with the dye while for the necrotic cells or the other cells with compromised membranes, the reactive dye reacts with cell surface amines and intracellular amines, resulting in more intense fluorescent staining. The difference in fluorescence intensity between the live and dead cell populations is ~100-500 fold and can be completely preserved after fixation.

The dye is designed to label cells at Ex/ Em = 547/573 nm. The Excitation source is 488nm or 561 nm.

**Related assays** Review the to learn about kits to perform a , and .

style
left-column

What's included?

{ "values": { "200Test": { "sellingSize": "200 Test", "publicAssetCode":"ab176743-200Test", "assetComponentDetails": [ { "size":"1 x 1 Vial", "name":"Tracking dye Orange", "number":"AB176743-CMP02", "productcode":"" }, { "size":"1 x 200 µL", "name":"DMSO", "number":"AB176743-CMP01", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C
style
left-column
style
left-column

Product protocols

style
left-column

Target data

style
left-column
style
left-column
websiteProtocolBooklet
en
style
right-column

Complementary Products

Assay Kits

AB176741

Fixable Cell Viability Assay Kit ( Blue Fluorescence, for 335 nm excitation)

Flow Cytometry - Fixable Cell Viability Assay Kit ( Blue Fluorescence, for 335 nm excitation) (AB176741)

  • 0
  • 0
Assay Kits

AB176745

Fixable Cell Viability Assay Kit (Deep Red Fluorescence, for 633 nm excitation)

Flow Cytometry - Fixable Cell Viability Assay Kit (Deep Red Fluorescence, for 633 nm excitation) (AB176745)

  • 0
  • 0
Assay Kits

AB176740

Fixable Cell Viability Assay Kit (Orange Fluorescence, for 405 nm excitation)

Flow Cytometry - Fixable Cell Viability Assay Kit (Orange Fluorescence, for 405 nm excitation) (AB176740)

  • 0
  • 0
Assay Kits

AB176744

Fixable Cell Viability Assay Kit (Red Fluorescence, for 561 nm excitation)

Fluorescence Microscopy - Fixable Cell Viability Assay Kit (Red Fluorescence, for 561 nm excitation) (AB176744)

  • 0
  • 0

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
