HRV 3C Protease Inhibitor Screening Kit (Colorimetric) (ab211089) provides a rapid, simple, sensitive and reliable test suitable for high-throughput screening of HRV 3C Protease inhibitors.

Be the first to review this product! Submit a review

Images

Functional Studies - HRV 3C Protease Inhibitor Assay Kit (Colorimetric) (AB211089), expandable thumbnail

Publications

Key facts

Detection method

Colorimetric

Sample types

Inhibitor compounds

Assay type

Quantitative

Target data

Function

Capsid protein VP1Forms an icosahedral capsid of pseudo T=3 symmetry with capsid proteins VP2 and VP3 (By similarity). The capsid is 300 Angstroms in diameter, composed of 60 copies of each capsid protein and enclosing the viral positive strand RNA genome (By similarity). Capsid protein VP1 mainly forms the vertices of the capsid (By similarity). Capsid protein VP1 interacts with host cell receptor to provide virion attachment to target host cells (By similarity). This attachment induces virion internalization (By similarity). Tyrosine kinases are probably involved in the entry process (By similarity). After binding to its receptor, the capsid undergoes conformational changes (By similarity). Capsid protein VP1 N-terminus (that contains an amphipathic alpha-helix) and capsid protein VP4 are externalized (By similarity). Together, they shape a pore in the host membrane through which viral genome is translocated to host cell cytoplasm (By similarity).Capsid protein VP2Forms an icosahedral capsid of pseudo T=3 symmetry with capsid proteins VP2 and VP3 (By similarity). The capsid is 300 Angstroms in diameter, composed of 60 copies of each capsid protein and enclosing the viral positive strand RNA genome (By similarity).Capsid protein VP3Forms an icosahedral capsid of pseudo T=3 symmetry with capsid proteins VP2 and VP3 (By similarity). The capsid is 300 Angstroms in diameter, composed of 60 copies of each capsid protein and enclosing the viral positive strand RNA genome (By similarity).Capsid protein VP4Lies on the inner surface of the capsid shell (By similarity). After binding to the host receptor, the capsid undergoes conformational changes (By similarity). Capsid protein VP4 is released, Capsid protein VP1 N-terminus is externalized, and together, they shape a pore in the host membrane through which the viral genome is translocated into the host cell cytoplasm (By similarity).Capsid protein VP0Component of immature procapsids, which is cleaved into capsid proteins VP4 and VP2 after maturation (By similarity). Allows the capsid to remain inactive before the maturation step (By similarity).Protease 2ACysteine protease that cleaves viral polyprotein and specific host proteins (By similarity). It is responsible for the autocatalytic cleavage between the P1 and P2 regions, which is the first cleavage occurring in the polyprotein (By similarity). Cleaves also the host translation initiation factor EIF4G1, in order to shut down the capped cellular mRNA translation (By similarity). Inhibits the host nucleus-cytoplasm protein and RNA trafficking by cleaving host members of the nuclear pores (By similarity). Counteracts stress granule formation probably by antagonizing its assembly or promoting its dissassembly (By similarity).Protein 2BPlays an essential role in the virus replication cycle by acting as a viroporin. Creates a pore in the host reticulum endoplasmic and as a consequence releases Ca2+ in the cytoplasm of infected cell. In turn, high levels of cytoplasmic calcium may trigger membrane trafficking and transport of viral ER-associated proteins to viroplasms, sites of viral genome replication.Protein 2CInduces and associates with structural rearrangements of intracellular membranes. Displays RNA-binding, nucleotide binding and NTPase activities. May play a role in virion morphogenesis and viral RNA encapsidation by interacting with the capsid protein VP3.Protein 3ABLocalizes the viral replication complex to the surface of membranous vesicles. Together with protein 3CD binds the Cis-Active RNA Element (CRE) which is involved in RNA synthesis initiation. Acts as a cofactor to stimulate the activity of 3D polymerase, maybe through a nucleid acid chaperone activity.Protein 3ALocalizes the viral replication complex to the surface of membranous vesicles (By similarity). It inhibits host cell endoplasmic reticulum-to-Golgi apparatus transport and causes the disassembly of the Golgi complex, possibly through GBF1 interaction (By similarity). This would result in depletion of MHC, trail receptors and IFN receptors at the host cell surface (By similarity). Plays an essential role in viral RNA replication by recruiting ACBD3 and PI4KB at the viral replication sites, thereby allowing the formation of the rearranged membranous structures where viral replication takes place (By similarity).Viral protein genome-linkedActs as a primer for viral RNA replication and remains covalently bound to viral genomic RNA. VPg is uridylylated prior to priming replication into VPg-pUpU (By similarity). The oriI viral genomic sequence may act as a template for this. The VPg-pUpU is then used as primer on the genomic RNA poly(A) by the RNA-dependent RNA polymerase to replicate the viral genome (By similarity). Following genome release from the infecting virion in the cytoplasm, the VPg-RNA linkage is probably removed by host TDP2 (By similarity). During the late stage of the replication cycle, host TDP2 is excluded from sites of viral RNA synthesis and encapsidation, allowing for the generation of progeny virions (By similarity).Protein 3CDInvolved in the viral replication complex and viral polypeptide maturation. It exhibits protease activity with a specificity and catalytic efficiency that is different from protease 3C. Protein 3CD lacks polymerase activity. Protein 3CD binds to the 5'UTR of the viral genome.RNA-directed RNA polymeraseReplicates the viral genomic RNA on the surface of intracellular membranes. May form linear arrays of subunits that propagate along a strong head-to-tail interaction called interface-I. Covalently attaches UMP to a tyrosine of VPg, which is used to prime RNA synthesis. The positive stranded RNA genome is first replicated at virus induced membranous vesicles, creating a dsRNA genomic replication form. This dsRNA is then used as template to synthesize positive stranded RNA genomes. ss(+)RNA genomes are either translated, replicated or encapsidated.Protease 3CMajor viral protease that mediates proteolytic processing of the polyprotein (By similarity). Cleaves host EIF5B, contributing to host translation shutoff (By similarity). Cleaves also host PABPC1, contributing to host translation shutoff (By similarity). Cleaves host NLRP1, triggers host N-glycine-mediated degradation of the autoinhibitory NLRP1 N-terminal fragment (By similarity).

Alternative names

What's included?

100 Test
Components
HRV 3C Protease
2 x 100 µL
HRV 3C Protease Assay Buffer
1 x 25 mL
HRV 3C Protease Substrate
1 x 500 µL
Protease Inhibitor I
1 x 20 µL

Recommended products

HRV 3C Protease Inhibitor Screening Kit (Colorimetric) (ab211089) provides a rapid, simple, sensitive and reliable test suitable for high-throughput screening of HRV 3C Protease inhibitors.

Alternative names

Key facts

Detection method

Colorimetric

Sample types

Inhibitor compounds

Assay type

Quantitative

Assay Platform

Microplate reader

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

Multi

Appropriate long-term storage conditions

Multi

Storage information

Please refer to protocols

Notes

HRV 3C Protease Inhibitor Screening Kit (Colorimetric) (ab211089) provides a rapid, simple, sensitive and reliable test suitable for high-throughput screening of HRV 3C Protease inhibitors. The assay is based on the ability of a 3C Protease (derived from a HRV rhinovirus-14) to cleave a chromogenic peptide substrate to release a chromophore (pNA) which can be easily quantified using a microplate reader. In the presence of a HRV 3C Protease-specific inhibitor, the cleavage of the substrate is reduced/abolished resulting in decrease or total loss of the absorbance.

This simple and high-throughput adaptable assay kit can be used to screen/study/characterize potential inhibitors of HRV 3C Protease.

This product is manufactured by BioVision, an Abcam company and was previously called K215 HRV 3C Protease Inhibitor Screening Kit (Colorimetric). K215-100 is the same size as the 100 test size of ab211089.

Human rhinovirus (HRV) infections are the most frequent causative agents of common cold and various other upper respiratory tract infections. Rhinoviruses are members of the picornavirus family, which have a positive-sense, single-stranded RNA genome that is translated into a single polyprotein precursor. In the case of HRVs, the viral polyprotein is mainly processed by the proteases (2A and 3C) to generate functional proteins and enzymes.

Human rhinovirus 3C protease (EC: 3.4.22.28) is a cysteine protease that recognizes the cleavage site Leu-Glu-Val-Leu-Phe-Gln*Gly-Pro.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

1 product image

  • Functional Studies - HRV 3C Protease Inhibitor Assay Kit (Colorimetric) (ab211089), expandable thumbnail

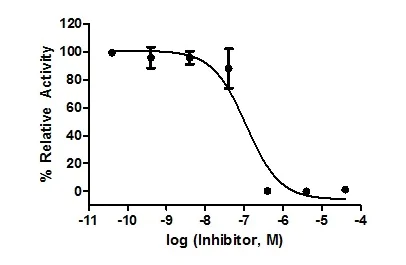

    Functional Studies - HRV 3C Protease Inhibitor Assay Kit (Colorimetric) (ab211089)

    Typical inhibition curve of HRV 3C protease activity by HRV 3C protease inhibitor (IC50 = 0.12 μM). Assay was performed following the kit protocol.
