Lysosomal Staining Reagent - NIR | Cytopainter (ab176824) is one of a series new fluorogenic probes to label lysosomes of live cells.


Images

Fluorescence Microscopy - Lysosomal Staining Reagent - NIR - Cytopainter (AB176824), expandable thumbnail
  • Fluorescence Microscopy - Lysosomal Staining Reagent - NIR - Cytopainter (AB176824), expandable thumbnail

Publications

Key facts

Sample types
Suspension cells, Adherent cells
Assay type
Cell-based (qualitative)
Reactive species
Mammals

Associated Products

Select an associated product type

5 products for Alternative Product

What's included?

500 Test
Components
CytoPainter LysoNIR Indicator Reagent
1 x 500 Test

Recommended products

Lysosomal Staining Reagent - NIR | Cytopainter (ab176824) is one of a series new fluorogenic probes to label lysosomes of live cells.

Key facts

Sample types
Suspension cells, Adherent cells
Assay type
Cell-based (qualitative)
Reactive species
Mammals
Assay Platform
Fluorescence microscope

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Notes

Lysosomal Staining Reagent - NIR | Cytopainter (ab176824) is one of a series new fluorogenic probes to label lysosomes of live cells. The proprietary lysotropic dye selectively accumulates in lysosomes probably via the lysosome pH gradient. The lysotropic indicator is a hydrophobic compound that easily permeates intact live cells and becomes trapped in lysosomes after it gets into cells. Its fluorescence is significantly enhanced upon entering lysosomes. The resulting fluorescence can be measured using fluorescence imaging, high-content imaging, microplate fluorometry, or flow cytometry. CytoPainter LysoNIR Indicator Reagent (ab176824) has extremely high photostability as well as excellent cellular retention making it useful for a variety of studies, including cell adhesion, chemotaxis, multidrug resistance, cell viability, apoptosis and cytotoxicity. It is suitable for proliferating and non-proliferating cells, and can be used for both suspension and adherent cells.

Review other dyes and kits for lysosomal staining, or the live cell staining fluorescent dyes guide

Lysosomes are cellular organelles which contain acid hydrolase enzymes to break up waste materials and cellular debris. Lysosomes digest excess or worn-out organelles, food particles, and engulfed viruses or bacteria. The membrane around a lysosome allows the digestive enzymes to work at pH 4.5. The interior of the lysosomes is acidic (pH 4.5-4.8) compared to the slightly alkaline cytosol (pH 7.2). The lysosome maintains this pH differential by pumping protons from the cytosol across the membrane via proton pumps and chloride ion channels.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Fluorescence Microscopy - Lysosomal Staining Reagent - NIR - Cytopainter (ab176824), expandable thumbnail

    Fluorescence Microscopy - Lysosomal Staining Reagent - NIR - Cytopainter (ab176824)

    HeLa cells stained with CytoPainter LysoNIR Indicator Reagent (ab176824) in a Costar black 96-well plate.

  • Fluorescence Microscopy - Lysosomal Staining Reagent - NIR - Cytopainter (ab176824), expandable thumbnail

    Fluorescence Microscopy - Lysosomal Staining Reagent - NIR - Cytopainter (ab176824)

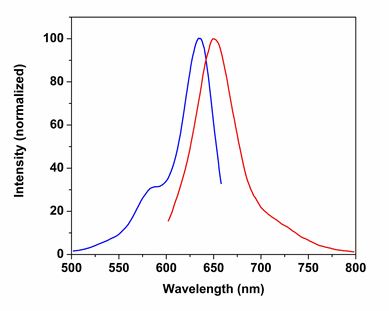

    Excitation and Emission spectra for CytoPainter LysoNIR Indicator Reagent (ab176824).

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
