AB176747

Mitochondrial Staining Kit - NIR Fluorescence - Cytopainter

Be the first to review this product! Submit a review

|

(3 Publications)

Mitochondrial Staining Kit - NIR Fluorescence | Cytopainter (ab176747) is designed to label mitochondria in live cells with red fluorescence.
2 Images
Fluorescence Microscopy - Mitochondrial Staining Kit - NIR Fluorescence - Cytopainter (AB176747)
  • Fluorescence Microscopy

Supplier Data

Fluorescence Microscopy - Mitochondrial Staining Kit - NIR Fluorescence - Cytopainter (AB176747)

CytoPainter Mitochondrial Staining Kit – NIR Fluorescence (ab176747). HeLa cells stained with Abcam's CytoPainter Mitochondrial Staining Kit – NIR Fluorescence in a Costar black 96-well plate.

Immunocytochemistry/ Immunofluorescence - Mitochondrial Staining Kit - NIR Fluorescence - Cytopainter (AB176747)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Mitochondrial Staining Kit - NIR Fluorescence - Cytopainter (AB176747)

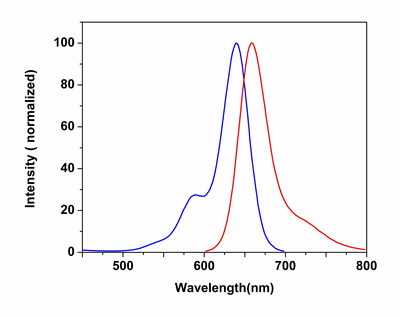

CytoPainter Mitochondrial Staning Kit - NIR Fluorescence (ab176747). Excitation and Emission spectra.

Key facts

Sample types

Suspension cells, Adherent cells

Assay type

Cell-based (qualitative)

Assay Platform

Fluorescence microscope

Product details

Mitochondrial Staining Kit - NIR Fluorescence | Cytopainter (ab176747) is designed to label mitochondria in live cells with red fluorescence. The kit uses our proprietary dye that selectively accumulates in mitochondria probably via the mitochondrial membrane potential gradient. The red fluorescent mitochondrial stain used in the kit has Ex/Em = 640/660 nm (Cy5 filter-compatible). The mitochondrial indicator, a hydrophobic compound, easily permeates intact live cells and trapped in mitochondria after it gets into cells. This fluorescent mitochondrial indicator is retained in mitochondria for a long time since it carries a cell-retaining group. This key feature significantly increases the staining efficiency.

The kit can be readily adapted for many different types of fluorescence platforms, such as microplate assays, immunocytochemistry and flow cytometry. It is useful for a variety of studies, including cell adhesion, chemotaxis, multidrug resistance, cell viability, apoptosis and cytotoxicity. The kit provides all the essential components and can be used for both proliferating and non-proliferating cells.

Abcam's fluorescence imaging kits are a set of fluorescence imaging tools for labeling sub-cellular organelles such as membranes, lysosomes, mitochondria, nuclei, etc. The selective labeling of live cell compartments provides a powerful method for studying cellular events in a spatial and temporal context.

Review other dyes and kits for mitochondrial staining, or the live cell staining fluorescent dyes guide.

Mitochondria are membrane-enclosed organelles found in most eukaryotic cells. Mitochondria are sometimes described as "cellular power plants" because they generate most of the cellular supply of ATP. In addition to supplying cellular energy, mitochondria are involved in a range of other processes, such as signalling, cellular differentiation, cell death, as well as the control of the cell cycle and cell growth. Mitochondria have been implicated in several human diseases, including mitochondrial disorders and cardiac dysfunction, and may play a role in the aging process. Although most of a cellular DNA is contained in the cell nucleus, the mitochondrion has its own independent genome.

What's included?

{ "values": { "500Test": { "sellingSize": "500 Test", "publicAssetCode":"ab176747-500Test", "assetComponentDetails": [ { "size":"1 x 100 µL", "name":"MitoNIR Indicator", "number":"AB176747-CMP02", "productcode":"" }, { "size":"1 x 50 mL", "name":"Live Cell Staining Buffer", "number":"AB176747-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

Nature communications 12:4997 PubMed34404774

2021

Human iPS-derived pre-epicardial cells direct cardiomyocyte aggregation expansion and organization in vitro.

Applications

Unspecified application

Species

Unspecified reactive species

Jun Jie Tan,Jacques P Guyette,Kenji Miki,Ling Xiao,Gurbani Kaur,Tong Wu,Liye Zhu,Katrina J Hansen,King-Hwa Ling,David J Milan,Harald C Ott

Nature communications 12:3596 PubMed34155205

2021

ERRγ enhances cardiac maturation with T-tubule formation in human iPSC-derived cardiomyocytes.

Applications

Unspecified application

Species

Unspecified reactive species

Kenji Miki,Kohei Deguchi,Misato Nakanishi-Koakutsu,Antonio Lucena-Cacace,Shigeru Kondo,Yuya Fujiwara,Takeshi Hatani,Masako Sasaki,Yuki Naka,Chikako Okubo,Megumi Narita,Ikue Takei,Stephanie C Napier,Tsukasa Sugo,Sachiko Imaichi,Taku Monjo,Tatsuya Ando,Norihisa Tamura,Kenichi Imahashi,Tomoyuki Nishimoto,Yoshinori Yoshida

Journal of immunology (Baltimore, Md. : 1950) 194:418-28 PubMed25404359

2014

Granzyme B-activated p53 interacts with Bcl-2 to promote cytotoxic lymphocyte-mediated apoptosis.

Applications

ICC/IF

Species

Unspecified reactive species

Thouraya Ben Safta,Linda Ziani,Loetitia Favre,Lucille Lamendour,Gwendoline Gros,Fathia Mami-Chouaib,Denis Martinvalet,Salem Chouaib,Jerome Thiery
View all publications
