NAD/NADH Assay Kit (Colorimetric) ab65348 provides a convenient and sensitive tool to quantify NAD+ and NADH, and measure their ratio, in samples from mammals and other species.

Individual kit components also available for purchase with a minimum order of 20 units. Contact us to discuss your needs.

Be the first to review this product! Submit a review

Images

Functional Studies - NAD/NADH Assay Kit (Colorimetric) (AB65348), expandable thumbnail
  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (AB65348), expandable thumbnail
  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (AB65348), expandable thumbnail
  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (AB65348), expandable thumbnail
  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (AB65348), expandable thumbnail

Publications

Key facts

Detection method
Colorimetric
Sample types
Tissue Lysate, Urine, Serum, Cell Lysate
Assay type
Quantitative
Range
400 - 2000 nM
Assay time
2h

Associated Products

Select an associated product type

2 products for Alternative Product

Additional Targets

1,4-Dihydronicotinamide adenine dinucleotide

What's included?

2000 Test
Components
Cycling Buffer I
20 x 15 mL
Developer Solution II
20 x 1 Vial
Extraction Buffer II
20 x 50 mL
NAD Cycling Enzyme Mix
20 x 1 Vial
NADH Standard II
20 x 1 Vial
Stop Solution II
20 x 1.2 mL

Recommended products

NAD/NADH Assay Kit (Colorimetric) ab65348 provides a convenient and sensitive tool to quantify NAD+ and NADH, and measure their ratio, in samples from mammals and other species.

Individual kit components also available for purchase with a minimum order of 20 units. Contact us to discuss your needs.

Key facts

Detection method
Colorimetric
Sample types
Tissue Lysate, Urine, Serum, Cell Lysate
Assay type
Quantitative
Range
400 - 2000 nM
Assay time
2h
Assay Platform
Microplate reader

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Notes

NAD/NADH Assay Kit (Colorimetric) ab65348 provides a convenient and sensitive tool to quantify NAD+ and NADH, and measure their ratio, in samples from mammals and other species.

How the assay works
The NAD cycling enzyme mix in the kit specifically acts on NADH/NAD in an enzyme cycling reaction which significantly increases sensitivity and specificity. There is no requirement to purify NADH/NAD from samples.

The levels of both NADt (total NAD+ and NADH) and NADH can be easily measured; the level of NAD+ can be easily calculated by subtracting NADH from NADt. The assay is read by absorbance at 450 nm.

This assay specifically detects NAD and NADH, but not NADP nor NADPH. If you would like to use a fluorometric reading, please refer to NAD/NADH Assay Kit (Fluorometric) (NAD/NADH Assay Kit (Fluorometric) ab176723). NAD/NADH Assay kit NAD/NADH Assay Kit II (colorimetric) ab221821 uses an alternative assay method that relies on purification of NAD and NADH from samples and may be more sensitive in some samples.

NAD / NADH assay protocol summary

  • - Extract samples from cells / tissues with extraction buffer and deproteinize with spin column
  • - For NADH measurement, heat samples to 60°C for 30 min to decompose NAD+, cool on ice (this step not necessary for measurement of total NAD+/NADH)
  • - Add samples and standards to wells
  • - Add reaction mix and incubate for 5 min at room temp to convert NAD to NADH
  • - Add NADH developer and incubate for 1-4 hrs while reaction cycles
  • - Analyze with microplate reader multiple times during the 1-4 hr incubation
  • - Reaction can be stopped with stop solution

How other researchers are using NAD/NADH Assay Kit ab65348
This NAD/NADH assay kit has been used in publications in a variety of sample types, including:

  • - Human: primary blood mononuclear cells1, epithelial ovarian cancer cells2, Jurkat cells3
  • - Mouse: cell culture lysates4, cardiomyocyte cell culture lysates5, liver6, liver and muscle7, primary hepatocyte cell cultures8, aorta tissue9
  • - Rat: brain tissue10 - Locust: thoraic muscle11 Bacteria: Z mobilis12, E coli13

References: 1 - Castro-Marrero J et al 2015; 2 - Zhu J et al 2019, Xia H et al 2015; 3 - Miller TW et al 2015; 4 - Mekala NK et al 2019, Ling S et al 2017; 5 - Zhang D et al 2019; 6 - Shao D et al 2017, Mukherji A et al 2015, Yu JH et al 2016; 7 - Karandrea S et al 2017; 8 - Traboulsi H et al 2014; 9 - Liu Y et al 2016; 10 - Rao G et al 2016; 11 - Ding D et al 2018; 12 - Wu B et al 2019; 13 - Long YM et al 2017

The Safety Datasheet for this product has been updated for certain countries. Please check the current version in the Support and downloads section.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

NAD/NADH often called nicotinamide adenine dinucleotide acts as an important coenzyme in redox reactions. It has a molecular mass of 663.43 g/mol. NAD/NADH exists widely across all living cells functioning predominantly in the cytoplasm and mitochondria. It is an important component in metabolic pathways serving as an electron carrier in processes that generate and use ATP. This coenzyme oscillates between oxidized (NAD⁺) and reduced (NADH) forms essential for energy production.

Biological function summary

The oscillation between NAD⁺ and NADH enables cells to maintain redox homeostasis. It is not part of a larger protein complex but plays an important role in several biological reactions by transferring electrons. NAD⁺ works as an electron acceptor while NADH serves as an electron donor. Their balance influences various cellular processes including DNA repair and gene expression regulation. This coenzyme is essential to the enzymatic activity of dehydrogenases which are pivotal for the energy metabolism.

Pathways

NAD+/NADH balance is vital in glycolysis and the citric acid cycle. Glycolysis uses NAD⁺ to help break down glucose into pyruvate while the citric acid cycle further processes acetyl-CoA producing NADH. NADH produced in these pathways then enters the electron transport chain driving ATP synthesis. This coenzyme also connects with sirtuins a family of proteins known for regulating cellular health and longevity through NAD⁺-dependent deacetylase activity.

Associated diseases and disorders

NAD/NADH imbalance links with metabolic conditions like diabetes and neurodegenerative diseases such as Alzheimer's. In diabetes altered NAD+/NADH ratio can impact insulin secretion and glucose metabolism. Alzheimer's disease associates with disrupted NAD+ levels that affect sirtuins' function leading to impaired cellular repair mechanisms. These connections illustrate the coenzyme's significant effect on human health and highlight its potential as a therapeutic target.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

6 product images

  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348), expandable thumbnail

    Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348)

    NAD and NADH (tNAD) or NADH alone measured cell lysates. 5e6 cells were lysed in 1 mL, spin filtered, and tested neat or 1/5 (duplicates +/- SD).

  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348), expandable thumbnail
    Karandrea, Shpetim et al., PloS one vol. 12,9 e0185374., Fig 6, doi:10.1371/journal.pone.0185374

    Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348)

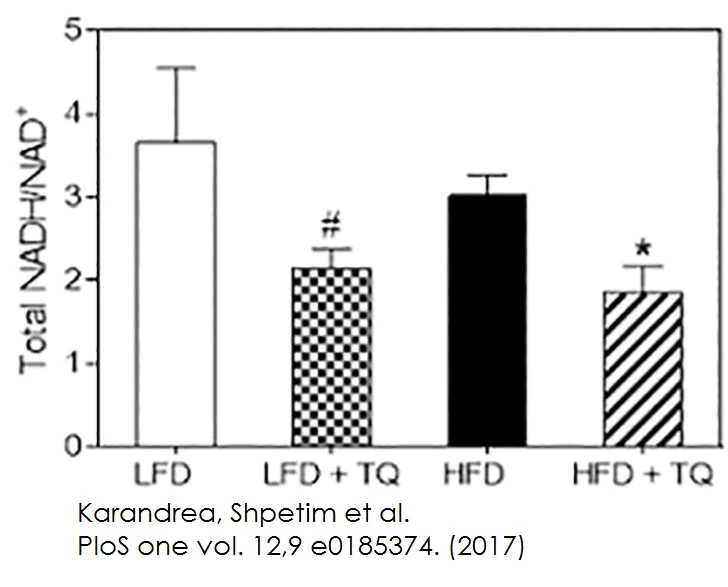

    NADH/NAD+ ratio in soleus muscle measured useing ab65348. p ? 0.05 when comparing (+) HFD and LFD, (*) HFD + TQ and HFD, and (#) LFD and LFD + TQ using independent t-tests. Results are means ± SEM (n = 8-10 mice per treatment group). LFD: low fat diet, HFD: high fat diet, TQ: thymoquinone.

  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348), expandable thumbnail
    Ren JG et al., PLoS One, 5, , 2010 Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

    Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348)

    NAD/NADH was measured in K562 ME2 knockdown cells(pLKO - empty vector; shME2-2 & shME2-3 - two selected knockdown clones). Data are expressed as mean ±: SD, n=3. NAD/NADH Ratio is calculated as described in the product protocol.
    Image obtained from Ren JG et al; PLOS one, 2010; 5(9): e12520 (DOI:10.1371/journal.pone.0012520)

  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348), expandable thumbnail

    Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348)

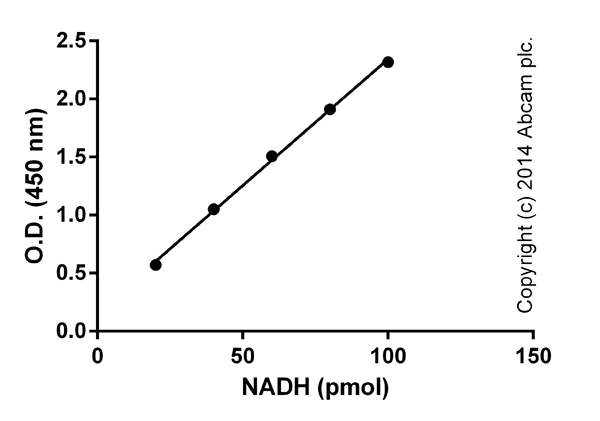

    Standard curve with background signal subtracted (duplicates; +/- SD).

  • Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348), expandable thumbnail

    Functional Studies - NAD/NADH Assay Kit (Colorimetric) (ab65348)

    NADH Standard calibration curve. Quantification of NAD (diamond) and NADH (open square) following product protocol and using NADH standard provided in the kit. No NADP (triangle) was detected in this reaction. Standard curve range: 20-100 pmol.

  • Biochemical assay - NAD/NADH Assay Kit (Colorimetric) (ab65348), expandable thumbnail

    Biochemical assay - NAD/NADH Assay Kit (Colorimetric) (ab65348)

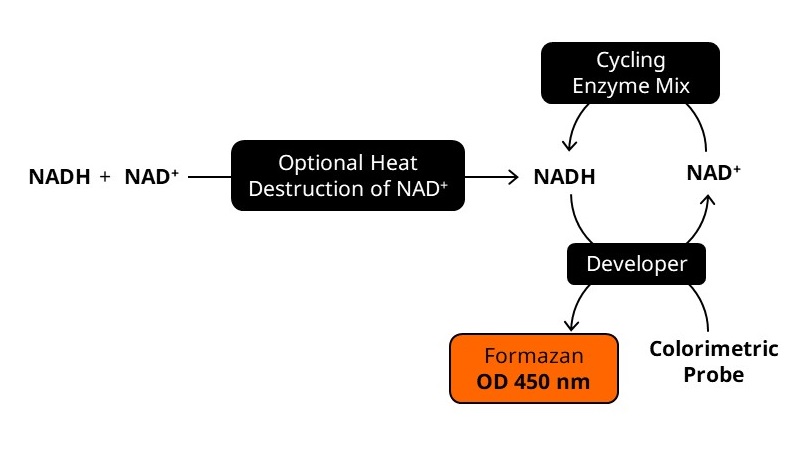

    Diagram showing the principles of the NAD NADH assay method.
