Nrf2 Transcription Factor Assay Kit (Colorimetric)

Be the first to review this product! Submit a review

|

(41 Publications)

Nrf2 Transcription Factor Assay Kit (Colorimetric) (ab207223) is a high throughput assay to quantify Nrf2 activation in nuclear extracts.

View Alternative Names

NRF2, NFE2L2, Nuclear factor erythroid 2-related factor 2, NF-E2-related factor 2, NFE2-related factor 2, Nrf-2

1 Images
Functional Studies - Nrf2 Transcription Factor Assay Kit (Colorimetric) (AB207223)
  • FuncS

Supplier Data

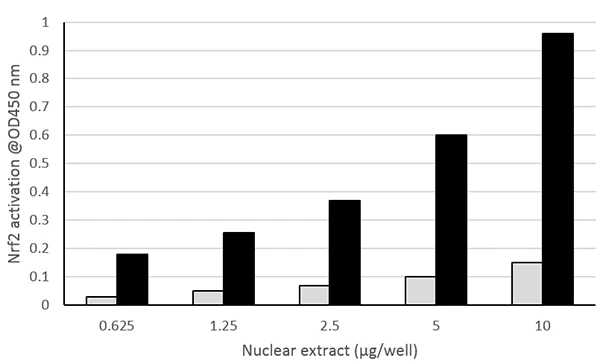

Functional Studies - Nrf2 Transcription Factor Assay Kit (Colorimetric) (AB207223)

Nuclear extracts from untreated HepG2 cells (Light gray) and HepG2 cells treated with D,L Sulforaphane (Black) were assayed from 0.625 to 10 µg/well for Nrf2 activation using ab207223. Different amounts of nuclear extracts from untreated HepG2 cells (light grey) and HepG2 cells treated with D,L-Sulforaphane (Black) were tested for Nrf2 activation. These results are provided for demonstration only.

Key facts

Detection method

Colorimetric

Sample types

Nuclear Extracts

Reacts with

Mouse, Rat, Human

Assay type

Semi-quantitative

Sensitivity

> 600 ng/well

Assay time

3h 30m

Assay Platform

Microplate reader

style
left-column

Product details

Nrf2 Transcription Factor Assay Kit (Colorimetric) (ab207223) is a high throughput assay to quantify Nrf2 activation in nuclear extracts. This assay combines a quick ELISA format with a sensitive and specific non-radioactive assay for transcription factor activation.

A specific double stranded DNA sequence containing the Nrf2 consensus binding site (5'-GTCACAGTGACTCAGCAGAATCTG-3') has been immobilized onto a 96-well plate. Active Nrf2 present in the nuclear extract specifically binds to the oligonucleotide. Nrf2 is detected by a primary antibody that recognizes an epitope of Nrf2 accessible only when the protein is activated and bound to its target DNA. An HRP-conjugated secondary antibody provides sensitive colorimetric readout at OD 450 nm. This product detects only human, mouse and rat Nrf2.

Key performance and benefits:

Assay time: 3.5 hours (cell extracts preparation not included).

Detection limit: < 0.6 ug nuclear extract/well.

Detection range: 0.6 - 10 ug nuclear extract/well.

Other Notes
Nrf2 (NF-E2 related factor, NFE2L2, from nuclear factor erythroid-derived 2-like 2) is a basic leucine zipper (bZIP) transcription factor. Nrf2 binds to the antioxidant response element (ARE) and positively regulates the expression of detoxifying enzyme genes (such as NAD(P)H:quinone oxidoreductase1, NQO1) in response to antioxidants and xenobiotics. Higher levels of NQO1 gene expression has been shown in liver, lung, colon, and breast tumors.

A cytosolic inhibitor of Nrf2, Keap1/INrf2, retains Nrf2 in the cytoplasm under normal conditions where the interaction of Nrf2 with INrf2 targets Nrf2 for ubiquitination and proteasomal degradation. However, after oxidative stress, Nrf2 is released from INrf2, translocates to the nucleus, and results in the activation of ARE-mediated gene expression. Nrf2 is also synthesized de novo after exposure to stress. In addition, Nrf2 controls its own degradation by regulating expression and induction of INrf2.

It has been shown that nuclear export and degradation pathways are activated by around two hours after treatment with tert-butylhydroquinone (t-BHQ).

Nrf2 activation and degradation are important sensing mechanisms in the cellular response for oxidative and electrophilic stressors.

style
left-column

What's included?

{ "values": { "5x96Tests": { "sellingSize": "5 x 96 Tests", "publicAssetCode":"ab207223-5x96Tests", "assetComponentDetails": [ { "size":"5 x 2.2 mL", "name":"10X Antibody Binding Buffer", "number":"AB207223-CMP01" }, { "size":"1 x 50 µL", "name":"Positive control extract (2.5 µg/µL)", "number":"AB207223-CMP13" }, { "size":"1 x 25 µL", "name":"Nrf2 antibody", "number":"AB207223-CMP11" }, { "size":"5 x 100 µL", "name":"Wild-type oligonucleotide (10 pmol/µL)", "number":"AB207223-CMP16" }, { "size":"5 x 11 mL", "name":"Stop Solution", "number":"AB207223-CMP15" }, { "size":"5 x 100 µL", "name":"Protease Inhibitor Cocktail", "number":"AB207223-CMP14" }, { "size":"5 x 100 µL", "name":"Dithiothreitol (DTT) (1 M)", "number":"AB207223-CMP10" }, { "size":"5 x 11 mL", "name":"Developing Solution", "number":"AB207223-CMP09" }, { "size":"5 x 10 mL", "name":"Binding Buffer", "number":"AB207223-CMP08" }, { "size":"5 x 10 µL", "name":"Anti-rabbit HRP-conjugated IgG", "number":"AB207223-CMP07" }, { "size":"5 x 100 µL", "name":"Mutated oligonucleotide (10 pmol/µL)", "number":"AB207223-CMP06" }, { "size":"5 x 10 mL", "name":"Lysis Buffer", "number":"AB207223-CMP05" }, { "size":"5 x 100 µL", "name":"Herring sperm DNA", "number":"AB207223-CMP04" }, { "size":"5 x 22 mL", "name":"10X Wash Buffer", "number":"AB207223-CMP02" }, { "size":"5 x 1 Unit", "name":"Plate sealer", "number":"AB207223-CMP12" }, { "size":"5 x 1 Unit", "name":"96-well Nrf2 assay plate", "number":"AB207223-CMP03" } ] }, "1x96Tests": { "sellingSize": "1 x 96 Tests", "publicAssetCode":"ab207223-1x96Tests", "assetComponentDetails": [ { "size":"1 x 2.2 mL", "name":"10X Antibody Binding Buffer", "number":"AB207223-CMP01", "productcode":"" }, { "size":"1 x 1 Unit", "name":"Plate sealer", "number":"AB207223-CMP12", "productcode":"" }, { "size":"1 x 100 µL", "name":"Mutated oligonucleotide (10 pmol/µL)", "number":"AB207223-CMP06", "productcode":"" }, { "size":"1 x 1 Unit", "name":"96-well Nrf2 assay plate", "number":"AB207223-CMP03", "productcode":"" }, { "size":"1 x 100 µL", "name":"Wild-type oligonucleotide (10 pmol/µL)", "number":"AB207223-CMP16", "productcode":"" }, { "size":"1 x 20 µL", "name":"Positive control extract (2.5 µg/µL)", "number":"AB207223-CMP13", "productcode":"" }, { "size":"1 x 100 µL", "name":"Dithiothreitol (DTT) (1 M)", "number":"AB207223-CMP10", "productcode":"" }, { "size":"1 x 10 µL", "name":"Anti-rabbit HRP-conjugated IgG", "number":"AB207223-CMP07", "productcode":"" }, { "size":"1 x 100 µL", "name":"Herring sperm DNA", "number":"AB207223-CMP04", "productcode":"" }, { "size":"1 x 100 µL", "name":"Protease Inhibitor Cocktail", "number":"AB207223-CMP14", "productcode":"" }, { "size":"1 x 10 µL", "name":"Nrf2 antibody", "number":"AB207223-CMP11", "productcode":"" }, { "size":"1 x 10 mL", "name":"Lysis Buffer", "number":"AB207223-CMP05", "productcode":"" }, { "size":"1 x 11 mL", "name":"Stop Solution", "number":"AB207223-CMP15", "productcode":"" }, { "size":"1 x 22 mL", "name":"10X Wash Buffer", "number":"AB207223-CMP02", "productcode":"" }, { "size":"1 x 10 mL", "name":"Binding Buffer", "number":"AB207223-CMP08", "productcode":"" }, { "size":"1 x 11 mL", "name":"Developing Solution", "number":"AB207223-CMP09", "productcode":"" } ] } } }
style
left-column

Properties and storage information

Shipped at conditions
Dry Ice
Appropriate short-term storage conditions
Multi
Appropriate long-term storage conditions
Multi
Storage information
Please refer to protocols
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Nrf2 also known as nuclear factor erythroid 2-related factor 2 is a transcription factor with a molecular weight of approximately 66 kDa. It plays a mechanical role in regulating the expression of antioxidant proteins that protect against oxidative damage triggered by injury and inflammation. Nrf2 is ubiquitously expressed in various tissues including the liver lungs and skin. Nrf2 activation occurs when it translocates from the cytoplasm to the nucleus to bind the antioxidant response element (ARE) in the DNA starting transcription of target genes.
Biological function summary

Nrf2 acts as an important regulator of the cellular antioxidant response. It works in conjunction with its partner protein Keap1 forming a complex that controls its stability and degradation. Under normal conditions Keap1 keeps Nrf2 in the cytoplasm where it is targeted for ubiquitination and degradation. Once activated by oxidative stress or electrophiles Nrf2 dissociates from Keap1 thereby avoiding degradation and relocates to the nucleus to activate the transcription of ARE-dependent genes. This activity boosts the cellular response to oxidative stress by inducing genes involved in detoxification and cellular defense.

Pathways

Nrf2 plays a significant role in the oxidative stress response and detoxification pathways. Nrf2 activation is linked closely to the PI3K/Akt signaling pathway which influences cell survival growth and metabolism. This pathway also interacts with other important proteins like GSK-3β which can modulate Nrf2 activity and stability. Through these pathways Nrf2 orchestrates a defense mechanism against reactive oxygen species (ROS) by boosting the expression of antioxidant enzymes and detoxifying proteins.

Nrf2 has been associated with conditions like cancer and neurodegenerative diseases. In cancer aberrant Nrf2 activation may lead to enhanced tumor survival by increasing expression of cytoprotective genes which makes cancer cells resistant to chemotherapy. Nrf2 also interacts with proteins such as p53 which play roles in tumor suppression and cellular stress responses. In neurodegenerative disorders reduced Nrf2 activity can contribute to oxidative stress leading to neuron damage and disease progression with proteins like amyloid-beta also being linked with oxidative processes affected by Nrf2 functionality.
