AB138899

Orange Mitochondrial Membrane Potential Assay Kit (Microplate)

Be the first to review this product! Submit a review

|

(0 Publication)

Orange Mitochondrial Membrane Potential Assay Kit (Microplate) is designed to detect cell apoptosis by measuring the loss of the mitochondrial membrane potential (MMP).
1 Images
Functional Studies - Orange Mitochondrial Membrane Potential Assay Kit (Microplate) (AB138899)
  • FuncS

Supplier Data

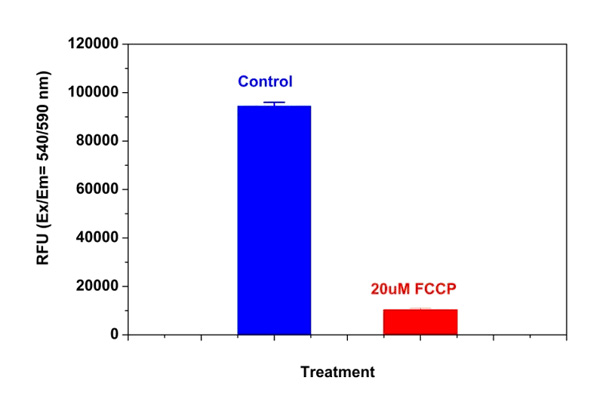

Functional Studies - Orange Mitochondrial Membrane Potential Assay Kit (Microplate) (AB138899)

Demonstation of decrease in MitoOrange Dye fluorescence with the addition of FCCP in HeLa cells. The decrease in MitoOrange Dye fluorescence with the addition of FCCP in HeLa cells. HeLa cells were dye loaded with MitoOrange Dye alone or in the presence of 20 µM FCCP for 15 minutes. The fluorescence intensity of MitoOrange Dye was measured 30 minutes after adding Assay Buffer B (Component C) with a microplate reader at Ex/Em = 540/590 nm (cut off 570 nm, bottom read).

Key facts

Detection method

Fluorescent

Sample types

Suspension cells, Adherent cells

Assay type

Direct

Assay Platform

Microplate reader

Product details

Orange Mitochondrial Membrane Potential Assay Kit (Microplate) is designed to detect cell apoptosis by measuring the loss of the mitochondrial membrane potential (MMP). The collapse of mitochondrial membrane potential coincides with the opening of the mitochondrial permeability transition pores, leading to the release of cytochrome C into the cytosol, which in turn triggers other downstream events in the apoptotic cascade.

ab138899 uses our proprietary cationic MitoOrange Dye for the detection of the mitochondrial membrane potential change in cells. In normal cells, the orange fluorescence intensity is increased when MitoOrange Dye is accumulated in the mitochondria. However, in apoptotic cells, the fluorescence intensity of MitoOrange Dye is decreased following the collapse of MMP. Cells stained with MitoOrange Dye can be fluorometrically monitored at Ex/Em = 540/590 nm. ab138899 provides all the essential components with an optimized assay method. The kit can be used for screening activators and inhibitors of apoptosis. And the assay can be performed in a convenient 96-well and 384-well fluorescence microtiter-plate format without a wash step.

What's included?

{ "values": { "5x96Tests": { "sellingSize": "5 x 96 Tests", "publicAssetCode":"ab138899-5x96Tests", "assetComponentDetails": [ { "size":"1 x 25 mL", "name":"Assay Buffer B", "number":"AB138899-CMP03", "productcode":"" }, { "size":"1 x 250 µL", "name":"MitoOrange Dye", "number":"AB138899-CMP02", "productcode":"" }, { "size":"1 x 50 mL", "name":"Assay Buffer A", "number":"AB138899-CMP01", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols

Target data

websiteProtocolBooklet
en

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
