AB270004

Phosphate Assay Kit - PiColorLockTM

Be the first to review this product! Submit a review

|

(3 Publications)

Phosphate Assay Kit ab270004 quantifies inorganic phosphate (Pi), with a colorimetric readout (max 635nm, range 590-660nm). The PiColorLock™ reagent at the core of the assay, changes colour in the presence of inorganic phosphate (Pi).
3 Images
Functional Studies - Phosphate Assay Kit - PiColorLockTM (AB270004)
  • FuncS

Supplier Data

Functional Studies - Phosphate Assay Kit - PiColorLockTM (AB270004)

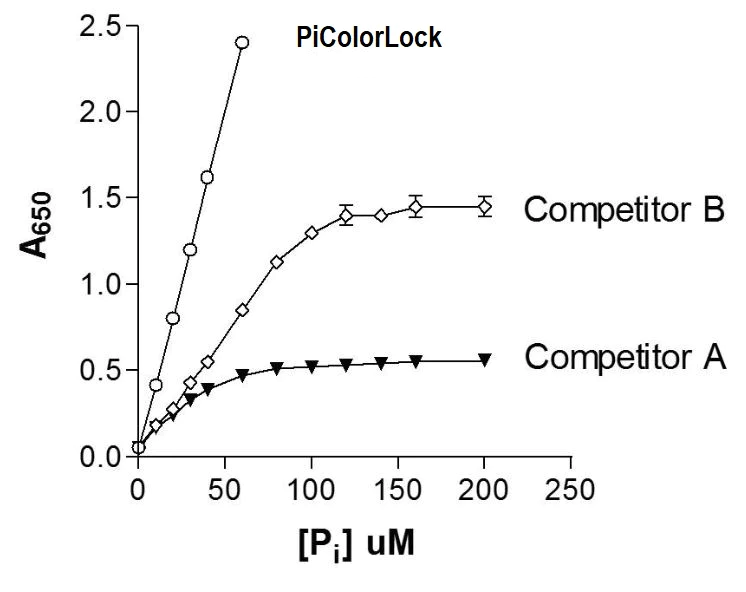

PIColorLockTM Linear range competitor graph.

PiColorLock™ has also been designed to have a large linear range, thus reducing the need for sample dilution. Competitors' products are linear over a much narrower range of concentrations.

Functional Studies - Phosphate Assay Kit - PiColorLockTM (AB270004)
  • FuncS

Supplier Data

Functional Studies - Phosphate Assay Kit - PiColorLockTM (AB270004)

Example Standard Curve

Functional Studies - Phosphate Assay Kit - PiColorLockTM (AB270004)
  • FuncS

Supplier Data

Functional Studies - Phosphate Assay Kit - PiColorLockTM (AB270004)

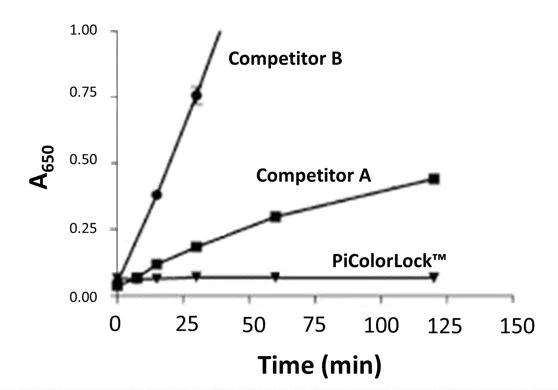

PIColorLockTM background signal competitor graph.

ATP has been incubated in three detection reagents. A steadily rising background signal is seen with competitor reagents, whereas PiColorLock™ provides baseline readings.

Key facts

Product details

Phosphate Assay Kit - PiColorLock™ (ab270004) changes colour in the presence of inorganic phosphate (Pi). This can be exploited to measure any enzyme that generates Pi including ATPases, GTPases, Phosphatases, heat shock proteins and DNA unwinding proteins.

The unique formulation of Phosphate Assay Kit - PiColorLock™ (ab270004) affords enhanced assay linearity, dynamic range and colour stability; it is also possible to work with unstable substrates (e.g. ATP, GTP) that give high nonenzymatic background signals with other acidic dye-based detection reagents.

Key benefits:

  • Colorimetric assay – Simple, scalable and nonradioactive
  • Compatible with almost any assay buffer – Flexibility over a wide range of existing assays
  • Stable reagent formulation – Long shelf life
  • Unique accelerator – Speeds up color development
  • Unique stabilizer – Suppresses nonenzymatic backgrounds with acid labile substrates (ATP or GTP)
  • PiColorLock™-Pi complex is very stable – No precipitation, results can be measured over several hours; ideal for HTS
  • Wide linear range – No inhibition of color development by high concentrations of protein
  • The unique PiColorLock™ Stabilizer prevents background drift with time.

General Notes

This product is manufactured by Expedeon, an Abcam company. It was previously called PiColorLock. Expedeon product code 303-0030 is the same as the 600 test size of this product and code 303-0125 is the same as the 2500 test size.

What's included?

{ "values": { "600Test": { "sellingSize": "600 Test", "publicAssetCode":"ab270004-600Test", "assetComponentDetails": [ { "size":"1 x 500 µL", "name":"Accelerator", "number":"AB270004-CMP01" }, { "size":"1 x 27500 µL", "name":"Stabilizer", "number":"AB270004-CMP02" }, { "size":"1 x 30 mL", "name":"PiColorLock", "number":"AB270004-CMP04" }, { "size":"1 x 5 mL", "name":"0.1 mM Pi Standard", "number":"AB270004-CMP03" } ] }, "2500Test": { "sellingSize": "2500 Test", "publicAssetCode":"ab270004-2500Test", "assetComponentDetails": [ { "size":"2 x 1 mL", "name":"Accelerator", "number":"AB270004-CMP01", "productcode":"" }, { "size":"1 x 11 mL", "name":"0.1 mM Pi Standard", "number":"AB270004-CMP03", "productcode":"" }, { "size":"1 x 125 mL", "name":"PiColorLock", "number":"AB270004-CMP04", "productcode":"" }, { "size":"1 x 55 mL", "name":"Stabilizer", "number":"AB270004-CMP02", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Ambient - Cannot Ship with Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
+4°C

Product protocols

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

iScience 26:107498 PubMed37664609

2023

Developing a peptide to disrupt cohesin head domain interactions.

Applications

Unspecified application

Species

Unspecified reactive species

Maria Elias,Samar Gani,Yana Lerner,Katreen Yamin,Chen Tor,Adarsh Patel,Avi Matityahu,Moshe Dessau,Nir Qvit,Itay Onn

Frontiers in immunology 14:1155090 PubMed37180168

2023

CD73 mediated host purinergic metabolism in intestine contributes to the therapeutic efficacy of a novel mesenchymal-like endometrial regenerative cells against experimental colitis.

Applications

Unspecified application

Species

Unspecified reactive species

Bo Shao,Shao-Hua Ren,Zhao-Bo Wang,Hong-da Wang,Jing-Yi Zhang,Hong Qin,Yang-Lin Zhu,Cheng-Lu Sun,Yi-Ni Xu,Xiang Li,Hao Wang

Frontiers in microbiology 12:788500 PubMed34975809

2021

LcpB Is a Pyrophosphatase Responsible for Wall Teichoic Acid Synthesis and Virulence in Clinical Isolate ST59.

Applications

Unspecified application

Species

Unspecified reactive species

Ting Pan,Jing Guan,Yujie Li,Baolin Sun
View all publications
