AB235634

Protein Synthesis Assay Kit (Red)

3

(2 Reviews)

|

(11 Publications)

Protein Synthesis Assay Kit (Red) ab235634 labels cells undergoing translation with a fluorescent red dye, using a method based on an alkyne-containing, cell-permeable analog of puromycin, O-Propargyl-puromycin (OP-puro). Readout on flow cytometer or fluorescence microscope.
4 Images
Functional Studies - Protein Synthesis Assay Kit (Red) (AB235634)
  • FuncS

Supplier Data

Functional Studies - Protein Synthesis Assay Kit (Red) (AB235634)

Inhibitory effect of Cycloheximide on nascent polypeptides synthesis.

Red fluorescence (upper panel) corresponds to de novo synthesized polypeptides whereas bottom panel shows the inhibitory effect of Cycloheximide on protein biosynthesis. Nuclear staining in both panels confirms that red signal is a result of Protein Label incorporation.

Functional Studies - Protein Synthesis Assay Kit (Red) (AB235634)
  • FuncS

Supplier Data

Functional Studies - Protein Synthesis Assay Kit (Red) (AB235634)

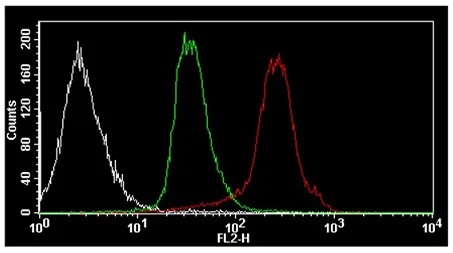

FACS analysis of the inhibitory effect of Cycloheximide.

FACS analysis of negative control (white), positive control (Protein Label, red) and Cycloheximide-treated (green) cell populations. Signal measured in FL-2 channel clearly shows the inhibitory effect of Cycloheximide on nascent polypeptides synthesis.

Functional Studies - Protein Synthesis Assay Kit (Red) (AB235634)
  • FuncS

Supplier Data

Functional Studies - Protein Synthesis Assay Kit (Red) (AB235634)

Analysis of protein biosynthesis in presence of Cycloheximide.

Jurkat cells (1X106 cells/mL) were pre-incubated either with vehicle or 1X Cycloheximide for 30 minutes at 37°C incubator to suppress protein synthesis followed media exchange. Cells were then incubated either with culture medium alone (white) or 1X Protein Label (red) or 1X Cycloheximide (green) for 30 minutes in the cell culture incubator. The cells were processed for protein synthesis detection by FACS according to the included protocol. Fluorescence measured in FL-2 channel clearly shows the inhibitory effect of Cycloheximide on nascent poppypeptides synthesis.

Other - Protein Synthesis Assay Kit (Red) (AB235634)
  • Other

Supplier Data

Other - Protein Synthesis Assay Kit (Red) (AB235634)

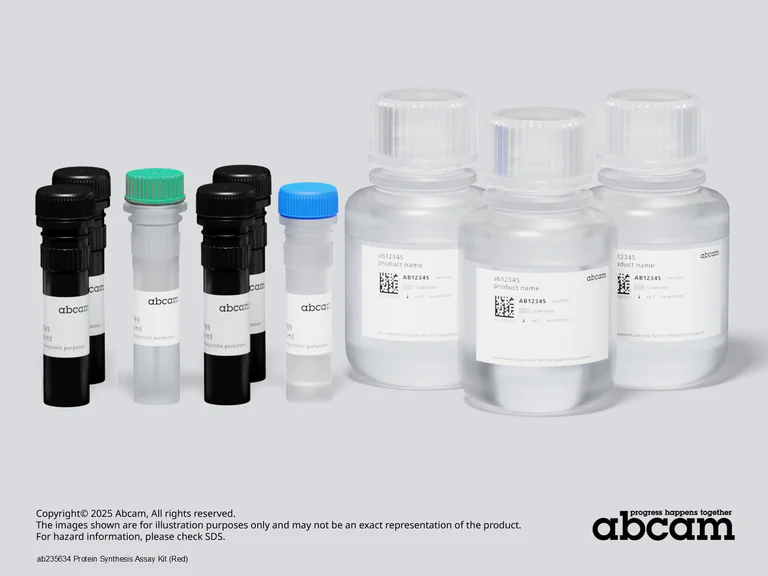

Representative image of Protein Synthesis Assay Kit (Red) ab235634

Components shown from left to right :

- 400X Protein Label

- 1000X DAPI

- 100X Cycloheximide

- 100X Fluorescent Azide I

- Reducing Agent

- 100X Copper Reagent

- Fixative Solution

- 10X Permeabilization Buffer

Note : The vial labels shown in this image use generic names for illustrative purposes only and may not exactly match the specific component names included in the kit.

Note : Colors of solutions in image may not precisely match the shade of colors in the actual kit.

Key facts

Detection method

Fluorescent

Sample types

Suspension cells, Adherent cells

Assay Platform

Flow cytometer, Fluorescence microscope

Product details

Protein Synthesis Assay Kit (Red) (ab235634) utilizes a novel and robust chemical method based on an alkyne-containing, cell-permeable analog of puromycin, O-Propargyl-puromycin (OP-puromycin).

Protein synthesis assay principle
In the protein synthesis assay, cultured cells are incubated with OP-puromycin. Once inside the cell, OP-puromycin stops translation by forming covalent conjugates with nascent polypeptide chains.
After incubation, cells are then fixed with formalin, washed, and permeabilized with detergent.
Truncated polypeptides bound to OP-puromycin are then labelled with a fluorescent dye, in a copper-dependent reaction using a fluorescent-azide.
Cycloheximide, an inhibitor of translation, is used as a negative control. Sytox Green is used as a nuclear counter-stain.

Unlike methionine analogs, OP-puromycin does not require methionine-free conditions and can be used to label nascent proteins directly in the cell culture.

Other protein synthesis assay kits
This kit ab235634 stains cells that have undergone protein synthesis with 5(6)-TAMRA (Rhodamine), which has a red fluorescence (Ex//Em 540/580 nm). It is designed for analysis by fluorescent microscopy or flow cytometry.
Protein Synthesis Assay Kit (Green) ab239725 stains cells that have undergone protein synthesis with 5(6)-FAM (Fluorescein), which has a green fluorescence. It is designed for analysis by fluorescent microscopy or flow cytometry.
Protein Synthesis Assay Kit (Green, Microplate) ab273286 is an alternative version that is designed for use with a fluorometric plate reader.

Other Notes
This product was previously called K715 Biovision EZClick™ Global Protein Synthesis Assay Kit (FACS/Microscopy), Red Fluorescence. Biovision was acquired by Abcam in 2021.

Cells generate a complete set of proteins during division. Protein synthesis is a tightly regulated process and many critical controls in gene expression occur at the level of translation to ensure that production of specific cellular proteins is quickly turned on/off under specific conditions (heat chock, starvation, etc.). Protein synthesis is essential in cell growth, proliferation, signaling, differentiation or death; therefore, the identity and amount of the synthesized proteins are critical parameters in determining the physiological state of the cell. Methods enabling detection and characterization of nascent proteins, or changes in spatial and temporal protein expression/degradation patterns during disease, drug treatment or environmental changes are important tools in assesment of cytotoxicity.

The Safety Datasheet for this product has been updated for certain countries. Please check the current version in the Support and downloads section.

REACH authorisation
Abcam has not and does not intend to apply for the REACH Authorisation of customers' uses of products that contain European Authorisation list (Annex XIV) substances.
It is the responsibility of our customers to check the necessity of application of REACH Authorisation, and any other relevant authorisations, for their intended uses.

What's included?

{ "values": { "100Test": { "sellingSize": "100 Test", "publicAssetCode":"ab235634-100Test", "assetComponentDetails": [ { "size":"1 x 1 Vial", "name":"Reducing Agent", "number":"AB235634-CMP10" }, { "size":"1 x 25 µL", "name":"400X Protein Label", "number":"AB235634-CMP06" }, { "size":"1 x 10 mL", "name":"Fixative Solution I", "number":"AB235634-CMP01" }, { "size":"1 x 10 µL", "name":"1000X Total DNA Stain", "number":"AB235634-CMP09" }, { "size":"1 x 10 µL", "name":"100X Cycloheximide", "number":"AB235634-CMP03" }, { "size":"1 x 25 mL", "name":"10X Wash Buffer IV", "number":"AB235634-CMP08" }, { "size":"1 x 100 µL", "name":"100X Fluorescent Azide I", "number":"AB235634-CMP02" }, { "size":"1 x 100 µL", "name":"100X Copper Reagent", "number":"AB235634-CMP04" }, { "size":"1 x 25 mL", "name":"10X Permeabilization Buffer", "number":"AB235634-CMP07" } ] }, "100Test": { "sellingSize": "100 Test", "publicAssetCode":"ab235634-100Test", "assetComponentDetails": [ { "size":"1 x 10 mL", "name":"Fixative Solution I", "number":"AB235634-CMP01", "productcode":"" }, { "size":"1 x 25 µL", "name":"400X Protein Label", "number":"AB235634-CMP06", "productcode":"" }, { "size":"1 x 25 mL", "name":"10X Wash Buffer IV", "number":"AB235634-CMP08", "productcode":"" }, { "size":"1 x 25 mL", "name":"10X Permeabilization Buffer", "number":"AB235634-CMP07", "productcode":"" }, { "size":"1 x 100 µL", "name":"100X Fluorescent Azide I", "number":"AB235634-CMP02", "productcode":"" }, { "size":"1 x 100 µL", "name":"100X Copper Reagent", "number":"AB235634-CMP04", "productcode":"" }, { "size":"1 x 10 µL", "name":"1000X Total DNA Stain", "number":"AB235634-CMP09", "productcode":"" }, { "size":"1 x 10 µL", "name":"100X Cycloheximide", "number":"AB235634-CMP03", "productcode":"" }, { "size":"1 x 500 µL", "name":"20X Reducing Agent", "number":"AB235634-CMP05", "productcode":"" } ] } } }

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
-20°C

Product protocols
