AB141170

AG 1296, protein tyrosine kinase inhibitor

Be the first to review this product! Submit a review

|

(4 Publications)

MW 266.29 Da, Purity >99%. Potent specific platelet-derived growth factor (PDGF) receptor tyrosine kinase inhibitor (IC50 values are 1.0 μM and 0.8 μM at PDGF α and β-receptors respectively). Cell-permeable.

View Alternative Names

AI838772, AW493413, BCD541, CD 140B, CD140A, CD140a antigen, CD140b antigen, Component of gems 1, FLJ11090, Gemin-1, JAK2_HUMAN, JTK 10, Janus Activating Kinase 2, Janus kinase 2, Janus kinase 2 (a protein tyrosine kinase), MGC104252, MGC112732, OTTHUMP00000043260, OTTHUMP00000125198, OTTHUMP00000223567, OTTHUMP00000223568, OTTHUMP00000224066, OTTHUMP00000226924, PDGF Receptor alpha + beta, PDGF-R-alpha, PDGF-R-beta, PDGFR 2, PDGFRA, PDGFRB, Platelet derived growth factor receptor alpha, Platelet derived growth factor receptor beta, RP24-311F12.2, SCAN1, SMA, SMA 1, SMA 2, SMA 3, SMA 4, SMN1, SMN2, SMNT, SMN_HUMAN, Survival motor neuron protein, Survival of motor neuron 1, telomeric, T-BCD541, THCYT3, TYDP, TYDP1_HUMAN, Tyr-DNA phosphodiesterase 1, Tyrosine-protein kinase JAK2, Tyrosyl-DNA phosphodiesterase 1, kinase Jak2

1 Images
Chemical Structure - AG 1296, protein tyrosine kinase inhibitor (AB141170)
  • Chemical Structure

Lab

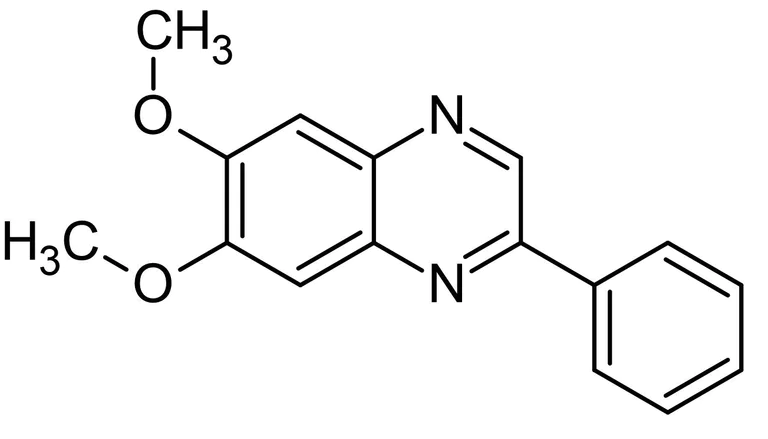

Chemical Structure - AG 1296, protein tyrosine kinase inhibitor (AB141170)

2D chemical structure image of ab141170, AG 1296, protein tyrosine kinase inhibitor

Key facts

CAS number

146535-11-7

Purity

>99%

Form

Solid

form

Molecular weight

266.29 Da

Molecular formula

C<sub>1</sub><sub>6</sub>H<sub>1</sub><sub>4</sub>N<sub>2</sub>O<sub>2</sub>

PubChem

2049

Nature

Synthetic

Solubility

Soluble in DMSO to 100 mM

Soluble in ethanol to 10 mM

Biochemical name

6,7-Dimethoxy-2-phenylquinoxaline

Biological description

Potent specific platelet-derived growth factor (PDGF) receptor tyrosine kinase inhibitor (IC50 values are 1.0 μM and 0.8 μM at PDGF α and β-receptors respectively). Cell-permeable.

Canonical smiles

COC1=C(C=C2C(=C1)N=CC(=N2)C3=CC=CC=C3)OC

InChi

InChI=1S/C16H14N2O2/c1-19-15-8-12-13(9-16(15)20-2)18-14(10-17-12)11-6-4-3-5-7-11/h3-10H,1-2H3

InChiKey

QNOXYUNHIGOWNY-UHFFFAOYSA-N

IUPAC Name

6,7-dimethoxy-2-phenylquinoxaline

Properties and storage information

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
It is important to note that this product is reported to be light sensitive|Store in the dark|Store under desiccating conditions

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

JAK2 also known as Janus kinase 2 is a non-receptor tyrosine kinase with a mass of approximately 130 kDa. It is involved in cytokine receptor signaling and is broadly expressed in hematopoietic cells including stem cells and progenitor cells. TDP1 or tyrosyl-DNA phosphodiesterase 1 functions in DNA repair and is expressed in various tissues notably the brain and muscle. PDGFR alpha and beta are receptor tyrosine kinases involved in cellular proliferation differentiation and development. They are expressed in the mesenchymal cells and skin tissues. SMN or survival motor neuron protein interacts with Gemin proteins to form a complex. This complex is highly expressed in motor neurons and aids in the assembly of spliceosomal snRNPs.
Biological function summary

JAK2 mediates the action of growth factors and cytokines important for cell proliferation and hematopoiesis. It commonly partners with STAT proteins to control gene expression. TDP1 fixes DNA single-strand breaks apart from functioning independently it sometimes partners with other DNA repair proteins. PDGFR alpha and beta drive pathways controlling cell growth and migration often forming dimers upon ligand binding. SMN often in association with Gemin 1 plays a critical role in RNA processing and the assembly of the spliceosome complex which is indispensable for mRNA splicing.

Pathways

JAK2 occupies a central role in the JAK-STAT signaling pathway which impacts cell survival and apoptosis and interacts closely with STAT5. TDP1 is involved in the base excision repair pathway maintaining genome integrity and relating to PARP1 protein functions. PDGFR alpha and beta contribute significantly to the PI3K/AKT pathway and MAPK/ERK signaling involved in cell growth and proliferation operating in conjunction with proteins like PI3K and RAS. SMN’s involvement in the SMN-Gemin complex is critical for the biogenesis of snRNPs impacting RNA splicing pathways.

Mutations in JAK2 are frequently linked to myeloproliferative neoplasms such as polycythemia vera often seen alongside mutations in the CALR gene. TDP1 when defective plays a role in neurological disorders including spinocerebellar ataxia with axonal neuropathy sometimes in conjunction with APTX mutations. PDGFR alpha and beta aberrations relate to cancers such as glioblastoma often found with IDH1 mutations. SMN mutations lead to spinal muscular atrophy where there is interaction with proteins like ubiquitin and survival-related factors in cells.

Product protocols

Publications (4)

Recent publications for all applications. Explore the full list and refine your search

Journal of neuroinflammation 20:267 PubMed37978545

2023

Pericytes are protective in experimental pneumococcal meningitis through regulating leukocyte infiltration and blood-brain barrier function.

Applications

Unspecified application

Species

Unspecified reactive species

Nina C Teske,Susanne Dyckhoff-Shen,Paul Beckenbauer,Jan Philipp Bewersdorf,Joo-Yeon Engelen-Lee,Sven Hammerschmidt,Roland E Kälin,Hans-Walter Pfister,Matthijs C Brouwer,Matthias Klein,Rainer Glass,Diederik van de Beek,Uwe Koedel

Journal of cellular biochemistry 124:89-102 PubMed36306470

2022

PDGF-AA activates AKT and ERK signaling for testicular interstitial Leydig cell growth via primary cilia.

Applications

Unspecified application

Species

Unspecified reactive species

Yung-Chieh Tsai,Tian-Ni Kuo,Yu-Ying Chao,Pei-Rong Lee,Ruei-Ci Lin,Xiao-Yi Xiao,Bu-Miin Huang,Chia-Yih Wang

Journal of cell science 132: PubMed31434718

2019

Cross-talk between TGF-β and PDGFRα signaling pathways regulates the fate of stromal fibro-adipogenic progenitors.

Applications

Unspecified application

Species

Unspecified reactive species

Osvaldo Contreras,Meilyn Cruz-Soca,Marine Theret,Hesham Soliman,Lin Wei Tung,Elena Groppa,Fabio M Rossi,Enrique Brandan

International journal of molecular sciences 18: PubMed29112159

2017

miR-1224-5p Mediates Mitochondrial Damage to Affect Silica-Induced Pulmonary Fibrosis by Targeting BECN1.

Applications

Unspecified application

Species

Unspecified reactive species

Qiuyun Wu,Tiantian Xu,Yi Liu,Yan Li,Jiali Yuan,Wenxi Yao,Qi Xu,Weiwen Yan,Chunhui Ni
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
