AB141870

ATX-II, NaV channel activator

Name: ATX-II, NaV channel activator (CAS 60748-45-0) | Abcam
Brand: Abcam Limited
SKU: AB141870
Price: 465 USD
Availability: InStock

Be the first to review this product! Submit a review

(2 Publications)

ATX-II (ab141870) is a NaV channel activator. Na+ channel modulator toxin. Alterntative name is Toxin II ( Anemonia sulcata). MW 4941, Purity >95%.

- Available in different sizes to fit your experimental needs

2 Images

Functional Studies - ATX-II, NaV channel activator (AB141870)

FuncS

Supplier Data

Functional Studies - ATX-II, NaV channel activator (AB141870)

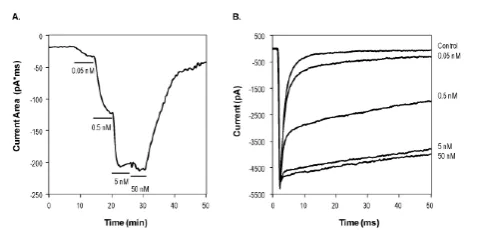

ATX-II (ab141870) enhances hNa_v1.5 currents in stably transfected HEK cells. hNa_v1.5 currents were elicited by a 50 ms voltage step from the holding potential of -100 mV to -20 mV, applied every 20 seconds, using whole-cell voltage clamp technique (bath solution contains TEA and pipette solution contains CsF). A. Time course, showing the effect of 0.05 nM, 0.5 nM, 5 nM and 50 nM ATX-II (ab141870) on the current area, indicating a dose-dependent slowing of the hNa_v1.5 inactivation. B. Superimposed traces of hNa_v1.5 currents under control conditions and after 4-6 min perfusion with 0.05 nM, 0.5 nM, 5 nM and 50 nM ATX-II, as indicated.

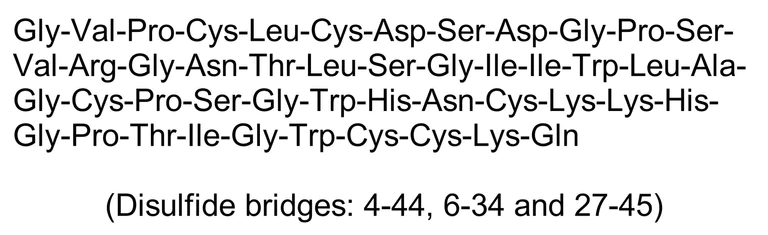

Chemical Structure - ATX-II, NaV channel activator (AB141870)

Chemical Structure

Lab

Chemical Structure - ATX-II, NaV channel activator (AB141870)

2D chemical structure image of ab141870, ATX-II, NaV channel activator

Key facts

CAS number

60748-45-0

Purity

>95%

Form

Solid

form

Source

Anemonia sp.

Molecular weight

4941 Da

Molecular formula

C213H329N63O61S6

PubChem

56841750

Nature

Native

Solubility

Soluble in water

Biochemical name

Toxin II (anemonia sulcata)

Canonical smiles

CCC(C)C(C(=O)NC(C(C)CC)C(=O)NC(CC1=CNC2=CC=CC=C21)C(=O)NC(CC(C)C)C(=O)NC(C)C(=O)NCC(=O)NC(CS)C(=O)N3CCCC3C(=O)NC(CO)C(=O)NCC(=O)NC(CC4=CNC5=CC=CC=C54)C(=O)NC(CC6=CN=CN6)C(=O)NC(CC(=O)N)C(=O)NC(CS)C(=O)NC(CCCCN)C(=O)NC(CCCCN)C(=O)NC(CC7=CN=CN7)C(=O)NCC(=O)

Isomeric smiles

CC[C@H](C)[C@@H](C(=O)N[C@@H]([C@@H](C)CC)C(=O)N[C@@H](CC1=CNC2=CC=CC=C21)C(=O)N[C@@H](CC(C)C)C(=O)N[C@@H](C)C(=O)NCC(=O)N[C@@H](CS)C(=O)N3CCC[C@H]3C(=O)N[C@@H](CO)C(=O)NCC(=O)N[C@@H](CC4=CNC5=CC=CC=C54)C(=O)N[C@@H](CC6=CN=CN6)C(=O)N[C@@H](CC(=O)N)C(=O)N[C@@H](CS)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CC7=CN=CN7)C(=O)NCC(=O)N8CCC[C@H]8C(=O)N[C@@H]([C@@H](C)O)C(=O)N[C@@H]([C@@H](C)CC)C(=O)NCC(=O)N[C@@H](CC9=CNC1=CC=CC=C19)C(=O)N[C@@H](CS)C(=O)N[C@@H](CS)C(=O)N[C@@H](CCCCN)C(=O)N[C@@H](CCC(=O)N)C(=O)O)NC(=O)CNC(=O)[C@H](CO)NC(=O)[C@H](CC(C)C)NC(=O)[C@H]([C@@H](C)O)NC(=O)[C@H](CC(=O)N)NC(=O)CNC(=O)[C@H](CCCNC(=N)N)NC(=O)[C@H](C(C)C)NC(=O)[C@H](CO)NC(=O)[C@@H]1CCCN1C(=O)CNC(=O)[C@H](CC(=O)O)NC(=O)[C@H](CO)NC(=O)[C@H](CC(=O)O)NC(=O)[C@H](CS)NC(=O)[C@H](CC(C)C)NC(=O)[C@H](CS)NC(=O)[C@@H]1CCCN1C(=O)[C@H](C(C)C)NC(=O)CN

InChi

InChI=1S/C213H329N63O61S6/c1-20-106(14)169(204(328)233-85-160(289)240-132(68-113-78-227-121-44-27-24-41-118(113)121)187(311)262-147(96-341)199(323)264-145(94-339)196(320)245-125(47-30-33-57-215)181(305)247-127(212(336)337)54-55-154(218)283)269-209(333)173(111(19)282)272-203(327)151-51-37-61-274(151)164(293)87-234-176(300)134(70-115-80-223-99-236-115)250-182(306)126(48-31-34-58-216)243-180(304)124(46-29-32-56-214)244-195(319)144(93-338)263-190(314)137(73-156(220)285)252-189(313)135(71-116-81-224-100-237-116)251-186(310)131(67-112-77-226-120-43-26-23-40-117(112)120)239-158(287)84-231-179(303)141(90-278)259-201(325)152-52-38-62-275(152)210(334)149(98-343)242-161(290)82-229-174(298)109(17)238-183(307)128(64-101(4)5)248-188(312)133(69-114-79-228-122-45-28-25-42-119(114)122)256-206(330)171(108(16)22-3)270-207(331)170(107(15)21-2)267-162(291)86-232-178(302)140(89-277)257-184(308)130(66-103(8)9)255-208(332)172(110(18)281)271-192(316)136(72-155(219)284)241-159(288)83-230-175(299)123(49-35-59-225-213(221)222)246-205(329)167(104(10)11)268-194(318)143(92-280)260-200(324)150-50-36-60-273(150)163(292)88-235-177(301)138(74-165(294)295)253-193(317)142(91-279)258-191(315)139(75-166(296)297)254-197(321)146(95-340)261-185(309)129(65-102(6)7)249-198(322)148(97-342)265-202(326)153-53-39-63-276(153)211(335)168(105(12)13)266-157(286)76-217/h23-28,40-45,77-81,99-111,123-153,167-173,226-228,277-282,338-343H,20-22,29-39,46-76,82-98,214-217H2,1-19H3,(H2,218,283)(H2,219,284)(H2,220,285)(H,223,236)(H,224,237)(H,229,298)(H,230,299)(H,231,303)(H,232,302)(H,233,328)(H,234,300)(H,235,301)(H,238,307)(H,239,287)(H,240,289)(H,241,288)(H,242,290)(H,243,304)(H,244,319)(H,245,320)(H,246,329)(H,247,305)(H,248,312)(H,249,322)(H,250,306)(H,251,310)(H,252,313)(H,253,317)(H,254,321)(H,255,332)(H,256,330)(H,257,308)(H,258,315)(H,259,325)(H,260,324)(H,261,309)(H,262,311)(H,263,314)(H,264,323)(H,265,326)(H,266,286)(H,267,291)(H,268,318)(H,269,333)(H,270,331)(H,271,316)(H,272,327)(H,294,295)(H,296,297)(H,336,337)(H4,221,222,225)/t106-,107-,108-,109-,110+,111+,123-,124-,125-,126-,127-,128-,129-,130-,131-,132-,133-,134-,135-,136-,137-,138-,139-,140-,141-,142-,143-,144-,145-,146-,147-,148-,149-,150-,151-,152-,153-,167-,168-,169-,170-,171-,172-,173-/m0/s1

InChiKey

CDLBKYQRFZOSNC-YZYMASRJSA-N

IUPAC Name

(2S)-5-amino-2-[[(2S)-6-amino-2-[[(2R)-2-[[(2R)-2-[[(2S)-2-[[2-[[(2S,3S)-2-[[(2S,3R)-2-[[(2S)-1-[2-[[(2S)-2-[[(2S)-6-amino-2-[[(2S)-6-amino-2-[[(2R)-2-[[(2S)-4-amino-2-[[(2S)-2-[[(2S)-2-[[2-[[(2S)-2-[[(2S)-1-[(2R)-2-[[2-[[(2S)-2-[[(2S)-2-[[(2S)-2-[[(2S,3S)-2-[[(2S,3S)-2-[[2-[[(2S)-2-[[(2S)-2-[[(2S,3R)-2-[[(2S)-4-amino-2-[[2-[[(2S)-2-[[(2S)-2-[[(2S)-2-[[(2S)-1-[2-[[(2S)-2-[[(2S)-2-[[(2S)-2-[[(2R)-2-[[(2S)-2-[[(2R)-2-[[(2S)-1-[(2S)-2-[(2-aminoacetyl)amino]-3-methylbutanoyl]pyrrolidine-2-carbonyl]amino]-3-sulfanylpropanoyl]amino]-4-methylpentanoyl]amino]-3-sulfanylpropanoyl]amino]-3-carboxypropanoyl]amino]-3-hydroxypropanoyl]amino]-3-carboxypropanoyl]amino]acetyl]pyrrolidine-2-carbonyl]amino]-3-hydroxypropanoyl]amino]-3-methylbutanoyl]amino]-5-carbamimidamidopentanoyl]amino]acetyl]amino]-4-oxobutanoyl]amino]-3-hydroxybutanoyl]amino]-4-methylpentanoyl]amino]-3-hydroxypropanoyl]amino]acetyl]amino]-3-methylpentanoyl]amino]-3-methylpentanoyl]amino]-3-(1H-indol-3-yl)propanoyl]amino]-4-methylpentanoyl]amino]propanoyl]amino]acetyl]amino]-3-sulfanylpropanoyl]pyrrolidine-2-carbonyl]amino]-3-hydroxypropanoyl]amino]acetyl]amino]-3-(1H-indol-3-yl)propanoyl]amino]-3-(1H-imidazol-5-yl)propanoyl]amino]-4-oxobutanoyl]amino]-3-sulfanylpropanoyl]amino]hexanoyl]amino]hexanoyl]amino]-3-(1H-imidazol-5-yl)propanoyl]amino]acetyl]pyrrolidine-2-carbonyl]amino]-3-hydroxybutanoyl]amino]-3-methylpentanoyl]amino]acetyl]amino]-3-(1H-indol-3-yl)propanoyl]amino]-3-sulfanylpropanoyl]amino]-3-sulfanylpropanoyl]amino]hexanoyl]amino]-5-oxopentanoic acid

style

left-column

Product details

Check out our range of NaV channel activator here

style

left-column

Properties and storage information

Shipped at conditions

Ambient - Can Ship with Ice

Appropriate short-term storage conditions

-20°C

Appropriate long-term storage conditions

-20°C

Storage information

Store under desiccating conditions|The product can be stored for up to 12 months

style

left-column

style

left-column

style

left-column

Product protocols

Visit the General protocols
Visit the Troubleshooting

style

left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Frontiers in cardiovascular medicine 11:1379930 PubMed39077112

2024

The inotropic and arrhythmogenic effects of acutely increased late I are associated with elevated ROS but not oxidation of PKARIα.

Applications

Unspecified application

Species

Unspecified reactive species

Theresa Gissibl,Laura Stengel,Daniel Tarnowski,Lars S Maier,Stefan Wagner,Anna-Lena Feder,Can Martin Sag

Scientific reports 14:15683 PubMed38977794

2024

Empagliflozin rescues pro-arrhythmic and Ca homeostatic effects of transverse aortic constriction in intact murine hearts.

Applications

Unspecified application

Species

Unspecified reactive species

Qiang Wen,Rui Zhang,Kejun Ye,Jun Yang,Hangchuan Shi,Zhu Liu,Yangpeng Li,Ting Liu,Shiyu Zhang,Wanpei Chen,Jingjing Wu,Weichao Liu,Xiaoqiu Tan,Ming Lei,Christopher L-H Huang,Xianhong Ou

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
