AB216311

AZD4547, FGFR inhibitor

Be the first to review this product! Submit a review

|

(3 Publications)

MW 463.6 Da, Purity >98%. Novel, selective inhibitor of the FGFR1, 2, and 3 tyrosine kinases. Binds to and inhibits FGFR, which may result in the inhibition of FGFR-related signal transduction pathways, thus resulting in the inhibition of tumor cell proliferation and tumor cell death.
1 Images
Chemical Structure - AZD4547, FGFR inhibitor (AB216311)
  • Chemical Structure

Lab

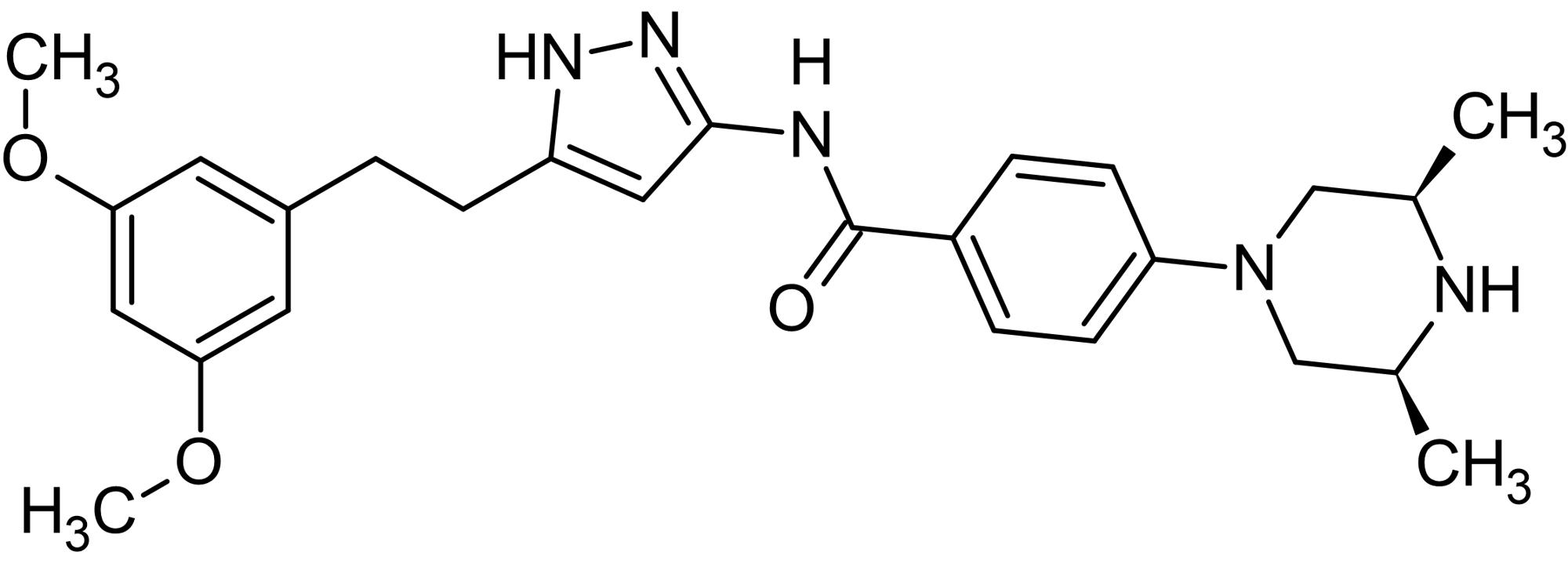

Chemical Structure - AZD4547, FGFR inhibitor (AB216311)

2D chemical structure image of ab216311, AZD4547, FGFR inhibitor

Key facts

CAS number

1035270-39-3

Purity

>98%

Form

Solid

form

Molecular weight

463.6 Da

Molecular formula

C<sub>2</sub><sub>6</sub>H<sub>3</sub><sub>3</sub>N<sub>5</sub>O<sub>3</sub>

PubChem

51039095

Nature

Synthetic

Solubility

DMSO (>80 mg/ml)

Biochemical name

Azd-4547

Biological description

Novel, selective inhibitor of the FGFR1, 2, and 3 tyrosine kinases. Binds to and inhibits FGFR, which may result in the inhibition of FGFR-related signal transduction pathways, thus resulting in the inhibition of tumor cell proliferation and tumor cell death.

Canonical smiles

CC1CN(CC(N1)C)C2=CC=C(C=C2)C(=O)NC3=NNC(=C3)CCC4=CC(=CC(=C4)OC)OC

Isomeric smiles

C[C@@H]1CN(C[C@@H](N1)C)C2=CC=C(C=C2)C(=O)NC3=NNC(=C3)CCC4=CC(=CC(=C4)OC)OC

InChi

InChI=1S/C26H33N5O3/c1-17-15-31(16-18(2)27-17)22-9-6-20(7-10-22)26(32)28-25-13-21(29-30-25)8-5-19-11-23(33-3)14-24(12-19)34-4/h6-7,9-14,17-18,27H,5,8,15-16H2,1-4H3,(H2,28,29,30,32)/t17-,18+

InChiKey

VRQMAABPASPXMW-HDICACEKSA-N

IUPAC Name

N-[5-[2-(3,5-dimethoxyphenyl)ethyl]-1H-pyrazol-3-yl]-4-[(3S,5R)-3,5-dimethylpiperazin-1-yl]benzamide

style
left-column

Complementary Products

Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB10646

Anti-FGFR1 antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-FGFR1 antibody (AB10646)

  • 4
  • 4
Biochemicals

AB146602

SU-5402 (DMSO solution), VEGFR and FGFR inhibitor

Chemical Structure - SU-5402 (DMSO solution), VEGFR and FGFR inhibitor (AB146602)

  • 0
  • 0
Primary Antibodies

AB18258

Anti-PSD95 antibody - Synaptic Marker

BOND RX™ Validated|Lab Essentials

Western blot - Anti-PSD95 antibody - Synaptic Marker (AB18258)

  • 5
  • 40
style
left-column

Product details

This product is manufactured by BioVision, an Abcam company and was previously called 9403 AZD-4547. 9403-25 is the same size as the 25 mg size of ab216311.
style
left-column

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
Store in the dark|Store under desiccating conditions
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

VEGF Receptor 2 also known as KDR or Flk-1 along with FGFR1 FGFR2 FGFR3 and FGFR4 are important targets in cellular signaling pathways. VEGFR2 with a molecular weight of approximately 150 kDa is a tyrosine kinase receptor prominently expressed in vascular endothelial cells. FGFRs share similar functional motifs and are expressed widely with variations in expression in tissue types like mesenchyme and oligodendrocytes. AZD-4547 is known as an FGFR inhibitor specifically targeting these receptors.
Biological function summary

VEGFR2 and FGFRs play roles in angiogenesis and tissue development. VEGFR2 mediates endothelial cell proliferation migration and new blood vessel formation. FGFRs form a complex with fibroblast growth factors and mediate signaling that controls cell differentiation proliferation and survival. Both VEGFR2 and FGFRs interact in ligand-receptor complexes to induce downstream signaling cascades for tissue vascular and development processes.

Pathways

VEGFR2 and FGFRs are integral to the MAPK and PI3K-Akt pathways. These pathways affect cellular responses such as growth and survival. VEGFR2's signaling interplays with proteins like PLCγ and Src to promote angiogenesis. FGFRs interact within the FGF signaling pathway connecting with proteins like SOS and Ras which regulate gene expression related to cell growth and differentiation.

VEGFR2 and FGFRs link to cancer and developmental syndromes. VEGFR2 is associated with pathological angiogenesis in various cancers and its overexpression can lead to tumor growth. Mutations in FGFRs cause disorders like skeletal dysplasia. Both VEGFR2 and FGFRs connect with other proteins such as PDGFR and EGFR influencing disease progression through altered signaling.
