Fluo-8 AM, a green fluorescent medium affinity calcium-binding dye binds to intracellular calcium (Kd = 390 nM). Fluorescence intensity increases upon Ca2+ binding.

- Cited in over 50 publications
- Cell-permeable
- Soluble in DMSO
- Brighter (1.5x) than Fluo-4 in cellular experiments


Images

Fluorescent Cell Imaging - Fluo-8 AM, green fluorescent calcium binding dye (AB142773), expandable thumbnail
  • Chemical Structure - Fluo-8 AM, green fluorescent calcium binding dye (AB142773), expandable thumbnail
  • Functional Studies - Fluo-8 AM, green fluorescent calcium binding dye (AB142773), expandable thumbnail
  • Functional Studies - Fluo-8 AM, green fluorescent calcium binding dye (AB142773), expandable thumbnail

Publications

Key facts

CAS number
1345980-40-6
Form
Solid
Molecular weight
1046.94 g/mol
Molecular formula
C50H50N2O23
Nature
Synthetic
Excitation/Emission
Ex: 490nm, Em: 520nm

Associated Products

Select an associated product type

2 products for Alternative Product

Recommended products

Fluo-8 AM, a green fluorescent medium affinity calcium-binding dye binds to intracellular calcium (Kd = 390 nM). Fluorescence intensity increases upon Ca2+ binding.

- Cited in over 50 publications
- Cell-permeable
- Soluble in DMSO
- Brighter (1.5x) than Fluo-4 in cellular experiments

Key facts

Solubility

Soluble in DMSO.

Biological description

Medium affinity green fluorescent calcium binding dye. Binds to intracellular calcium (Kd = 390 nM). Fluorescence intensity increases upon Ca2+ binding. Cell-permeable.

Fluo-8 (or Fluo-2 Medium Affinity) has been found to be brighter (1.5x) than Fluo-4 in cellular experiments. It offers improved cell loading and Ca2+ response while maintaining the convenient Fluo-3 and Fluo-4 spectral wavelength of maximum excitation at 490 nm and maximum emission at 520 nm. Fluo-8 loading can be performed at room temperature.

Canonical SMILES
CC(=O)OCOC(=O)CN(CC(=O)OCOC(C)=O)C5CCCCC5OCCOC1CC(CCC1N(CC(=O)OCOC(C)=O)CC(=O)OCOC(C)=O)C=2C4CCC(CC4OC3=CC(=O)C=CC=23)OCOC(C)=O
InChI
InChI=1S/C50H50N2O23/c1-30(53)65-25-70-37-12-14-39-44(20-37)75-43-19-36(58)11-13-38(43)50(39)35-10-15-41(52(23-48(61)73-28-68-33(4)56)24-49(62)74-29-69-34(5)57)45(18-35)64-17-16-63-42-9-7-6-8-40(42)51(21-46(59)71-26-66-31(2)54)22-47(60)72-27-67-32(3)55/h6-15,18-20H,16-17,21-29H2,1-5H3
InChIKey
BKYHTWFRZPRHNM-UHFFFAOYSA-N
IUPAC name
Bis(acetoxymethyl) 2,2'-((4-(6-(acetoxymethoxy)-3-oxo-3H-xanthen-9-yl)-2-(2-(bis(2-acetoxymethoxy)-2-oxoethyl)amino)phenoxy)ethoxy)phenyl)azanediyl)diacetate
Excitation/Emission
Ex: 490nm, Em: 520nm

Storage

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
Store under desiccating conditions, The product can be stored for up to 12 months

Notes

Fluo-8® AM Working Solution: On the day of the experiment, either dissolve Fluo-8® AM in DMSO or thaw an aliquot of the indicator stock solution to room temperature. Prepare a dye working solution of 2 to 20 µM in a buffer of your choice (e.g., Hanks and Hepes buffer) with 0.04% Pluronic® F-127. For most cell lines, Fluo-8® AM at a final concentration of 4-5 μM is recommended. The exact concentration of indicators required for cell loading must be determined empirically.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

  • Fluorescent Cell Imaging - Fluo-8 AM, green fluorescent calcium binding dye (ab142773), expandable thumbnail

    Fluorescent Cell Imaging - Fluo-8 AM, green fluorescent calcium binding dye (ab142773)

    U2OS cells were seeded overnight at 40,000 cells per 100 μL per well in a 96-well black wall/clear bottom costar plate. The growth medium was removed, and the cells were incubated with 100 μl of 4 μM Fluo-4 AM or Fluo-8® AM in HHBS at 37 °C, 5% CO2 incubator for 1 hour. The cells were washed twice with 200 μl HHBS, then imaged with a fluorescence microscope using FITC channel.

  • Chemical Structure - Fluo-8 AM, green fluorescent calcium binding dye (ab142773), expandable thumbnail

    Chemical Structure - Fluo-8 AM, green fluorescent calcium binding dye (ab142773)

    2D chemical structure image of ab142773, Fluo-8 AM, green fluorescent calcium binding dye

  • Functional Studies - Fluo-8 AM, green fluorescent calcium binding dye (ab142773), expandable thumbnail
    Cui et al PLoS One. 2013;8(3):e59921. doi: 10.1371/journal.pone.0059921. Epub 2013 Mar 20. Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

    Functional Studies - Fluo-8 AM, green fluorescent calcium binding dye (ab142773)

    FFA treatments increase Ca2+ influx to induce ERS in β-TC3 cells.

    β-TC3 cells were incubated with FFA or BSA for 16 h, and then stimulated with 4 μM thapsigargin for 20 min to activate store-operated Ca2+ entry. Fluorescence densities of Ca2+ change were monitored in Fluo-8/AM-loaded β-TC3 cells after FFA or BSA treatments.

    (From Figure 2B of Cui et al)

  • Functional Studies - Fluo-8 AM, green fluorescent calcium binding dye (ab142773), expandable thumbnail

    Functional Studies - Fluo-8 AM, green fluorescent calcium binding dye (ab142773)

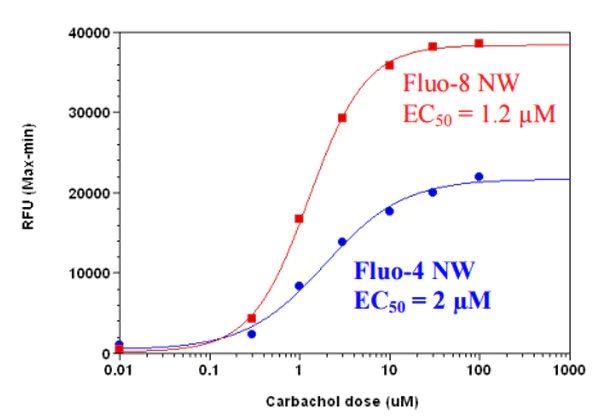

    Fluo-8 vs Fluo-4 sensitivity to calcium release in HEK-293 cells induced by Carbachol.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
