AB120284

KB-R7943, NCX inhibitor

5

(1 Review)

|

(4 Publications)

MW 427.5 Da, Purity >98%. Potent, selective inhibitor of the reverse mode of the Na+/Ca2+ exchanger (IC50 = ~0.32 μM in guinea pig ventricular cells). Also potent blocker of TRPC channels (IC50 values are 0.46, 0.71 and 1.38 μM at TRPC3, TRPC6 and TRPC5, respectively).

View Alternative Names

FLJ11098, FLJ14863, FSGS2, Htrp 3, Htrp-5, MGC124333, MTRP6, Mtrp3, Receptor activated cation channel TRP3, Short transient receptor potential channel 3, Short transient receptor potential channel 5, Short transient receptor potential channel 6, TRANSIENT RECEPTOR POTENTIAL DROSOPHILA HOMOLOG OF 3, TRP-5, TRP-6, TRP3, TRPC5_HUMAN, TRPC6_HUMAN, TRRP6, Transient receptor potential cation channel subfamily C member 3, Transient receptor potential cation channel subfamily C member 5, Transient receptor potential cation channel subfamily C member 6, Transient receptor potential channel 3, Transient receptor potential channel 5, Transient receptor protein 3, Transient receptor protein 5, Transient receptor protein 6, Trp related protein 3, Trrp3, bZ1P14.9, si:rp71-1p14.9, transient receptor potential cation channel subfamily C member 3 variant c

1 Images

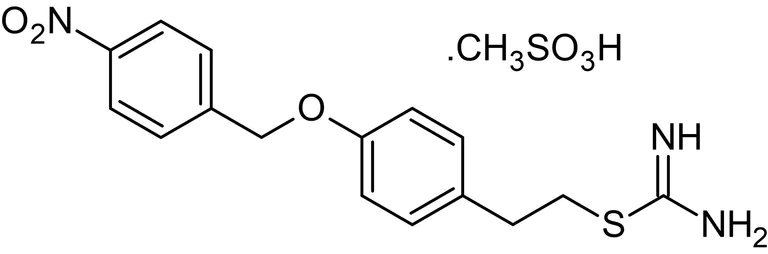

Chemical Structure - KB-R7943, NCX inhibitor (AB120284)
  • Chemical Structure

Lab

Chemical Structure - KB-R7943, NCX inhibitor (AB120284)

2D chemical structure image of ab120284, KB-R7943, NCX inhibitor

Key facts

CAS number

182004-65-5

Purity

>98%

Form

Solid

form

Molecular weight

427.5 Da

Molecular formula

C<sub>1</sub><sub>7</sub>H<sub>2</sub><sub>1</sub>N<sub>3</sub>O<sub>6</sub>S<sub>2</sub>

PubChem

9823846

Nature

Synthetic

Solubility

Soluble in DMSO to 100 mM

Biochemical name

2-[2-[4-(4-Nitrobenzyloxy)phenyl]ethyl]isothiourea mesylate

Biological description

Potent, selective inhibitor of the reverse mode of the Na+/Ca2+ exchanger (IC50 = ~0.32 μM in guinea pig ventricular cells). Also potent blocker of TRPC channels (IC50 values are 0.46, 0.71 and 1.38 μM at TRPC3, TRPC6 and TRPC5, respectively).

Canonical smiles

CS(=O)(=O)O.C1=CC(=CC=C1CCSC(=N)N)OCC2=CC=C(C=C2)[N+](=O)[O-]

InChi

InChI=1S/C16H17N3O3S.CH4O3S/c17-16(18)23-10-9-12-3-7-15(8-4-12)22-11-13-1-5-14(6-2-13)19(20)21;1-5(2,3)4/h1-8H,9-11H2,(H3,17,18);1H3,(H,2,3,4)

InChiKey

WGIKEBHIKKWJLG-UHFFFAOYSA-N

IUPAC Name

methanesulfonic acid;2-[4-[(4-nitrophenyl)methoxy]phenyl]ethyl carbamimidothioate

Properties and storage information

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
Ambient
Appropriate long-term storage conditions
Ambient
Storage information
The product can be stored for up to 12 months

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TRPC6 TRPC3 and TRPC5 are members of the transient receptor potential (TRP) channel family. These proteins function as non-selective cation channels allowing the passage of calcium ions and other cations such as sodium. TRPC channels often respond to various chemical and mechanical stimuli. TRPC6 TRPC3 and TRPC5 have molecular masses of approximately 106 kDa 97 kDa and 105 kDa respectively. They express widely in tissues such as the brain heart kidneys and to a lesser degree in the vasculature. Each of these proteins forms homo- or heteromeric complexes which modulate their functional diversity.
Biological function summary

These channels participate in important cellular processes maintaining ion homeostasis and influencing cellular responses. TRPC6 TRPC3 and TRPC5 contribute to receptor-operated calcium entry (ROCE) playing a significant role in the physiological regulation of calcium levels. They form part of multimeric channel complexes with other TRPC subunits influencing vascular smooth muscle contraction and neuronal signaling. These proteins also interact with other channels and cellular components including the NCX (sodium-calcium exchanger) which further delineates their role in cellular calcium handling.

Pathways

TRPC6 TRPC3 and TRPC5 integrate into the PIP2 pathway and calcium signaling pathways. These channels interact with phospholipase C to generate inositol trisphosphate and diacylglycerol key second messengers that propagate cellular signals. In the context of these pathways TRPC channels associate closely with proteins such as NCX and PLC modulating intracellular calcium dynamics. This interaction is critical for many cellular processes including smooth muscle contraction and neuronal activity.

TRPC channels particularly TRPC6 and TRPC3 are associated with disorders like focal segmental glomerulosclerosis (FSGS) and cardiac hypertrophy. Mutations or dysregulation of TRPC channels can lead to abnormal calcium signaling contributing to the pathophysiology of these conditions. In these disease states TRPC channels interact with key proteins such as podocin in kidney diseases or calcineurin in cardiac hypertrophy influencing cellular outcomes and tissue pathology. Understanding the detailed mechanisms of these interactions helps in developing targeted therapeutic strategies.

Product protocols

Publications (4)

Recent publications for all applications. Explore the full list and refine your search

PLoS pathogens 16:e1008307 PubMed32069328

2020

An activator of G protein-coupled receptor and MEK1/2-ERK1/2 signaling inhibits HIV-1 replication by altering viral RNA processing.

Applications

Unspecified application

Species

Unspecified reactive species

Raymond W Wong,Ahalya Balachandran,Peter K Cheung,Ran Cheng,Qun Pan,Peter Stoilov,P Richard Harrigan,Benjamin J Blencowe,Donald R Branch,Alan Cochrane

Scientific reports 8:850 PubMed29339801

2018

Cardiac glycoside/aglycones inhibit HIV-1 gene expression by a mechanism requiring MEK1/2-ERK1/2 signaling.

Applications

Unspecified application

Species

Unspecified reactive species

Raymond W Wong,Clifford A Lingwood,Mario A Ostrowski,Tyler Cabral,Alan Cochrane

The European journal of neuroscience 46:2108-2120 PubMed28715135

2017

Chronic pharmacological blockade of the Na /Ca exchanger modulates the growth and development of the Purkinje cell dendritic arbor in mouse cerebellar slice cultures.

Applications

Unspecified application

Species

Unspecified reactive species

Pradeep Sherkhane,Josef P Kapfhammer

Pflugers Archiv : European journal of physiology 469:1287-1299 PubMed28497275

2017

Na /Ca exchangers and Orai channels jointly refill endoplasmic reticulum (ER) Ca via ER nanojunctions in vascular endothelial cells.

Applications

Unspecified application

Species

Unspecified reactive species

Cristiana M L Di Giuro,Niroj Shrestha,Roland Malli,Klaus Groschner,Cornelis van Breemen,Nicola Fameli
View all publications
