MW 599 Da, Purity >99%. Potent, specific and cell-permeable calmodulin-dependent protein kinase (CaMK) II inhibitor (IC50 = 370 nM). Also a potent and direct extracellular open channel voltage-gated potassium channel blocker (IC50 = 307 nM for Kv1.5); independent of CaM kinase II inhibition. Water soluble.

Be the first to review this product! Submit a review

Images

Chemical Structure - KN-93 (water soluble), CaMK II inhibitor (AB120980), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - KN-93 (water soluble), CaMK II inhibitor (AB120980), expandable thumbnail

Publications

Key facts

CAS number
1188890-41-6
Purity
> 99%
Form
Solid
Molecular weight
599 Da
Molecular formula
C26H32ClN2O8PS
PubChem identifier
16760530
Nature
Synthetic

Target data

Recommended products

MW 599 Da, Purity >99%. Potent, specific and cell-permeable calmodulin-dependent protein kinase (CaMK) II inhibitor (IC50 = 370 nM). Also a potent and direct extracellular open channel voltage-gated potassium channel blocker (IC50 = 307 nM for Kv1.5); independent of CaM kinase II inhibition. Water soluble.

Key facts

Purity
> 99%
PubChem identifier
16760530
Solubility

Soluble in water to 100 mM.

Soluble in DMSO to 100 mM.

Biochemical name
KN-93 Phosphate
Biological description

Potent, specific and cell-permeable calmodulin-dependent protein kinase (CaMK) II inhibitor (IC50 = 370 nM). Also a potent and direct extracellular open channel voltage-gated potassium channel blocker (IC50 = 307 nM for Kv1.5); independent of CaM kinase II inhibition. Water soluble.

Canonical SMILES
CN(CC=CC1=CC=C(C=C1)Cl)CC2=CC=CC=C2N(CCO)S(=O)(=O)C3=CC=C(C=C3)OC.OP(=O)(O)O
Isomeric SMILES
CN(C/C=C/C1=CC=C(C=C1)Cl)CC2=CC=CC=C2N(CCO)S(=O)(=O)C3=CC=C(C=C3)OC.OP(=O)(O)O
InChI
InChI=1S/C26H29ClN2O4S.H3O4P/c1-28(17-5-6-21-9-11-23(27)12-10-21)20-22-7-3-4-8-26(22)29(18-19-30)34(31,32)25-15-13-24(33-2)14-16-25;1-5(2,3)4/h3-16,30H,17-20H2,1-2H3;(H3,1,2,3,4)/b6-5+;
InChIKey
NNKJTPOXLIILMB-IPZCTEOASA-N
IUPAC name
N-[2-[[[(E)-3-(4-chlorophenyl)prop-2-enyl]-methylamino]methyl]phenyl]-N-(2-hydroxyethyl)-4-methoxybenzenesulfonamide;phosphoric acid

Storage

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
It is important to note that this product is reported to be light sensitive, Store in the dark, Store under desiccating conditions

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

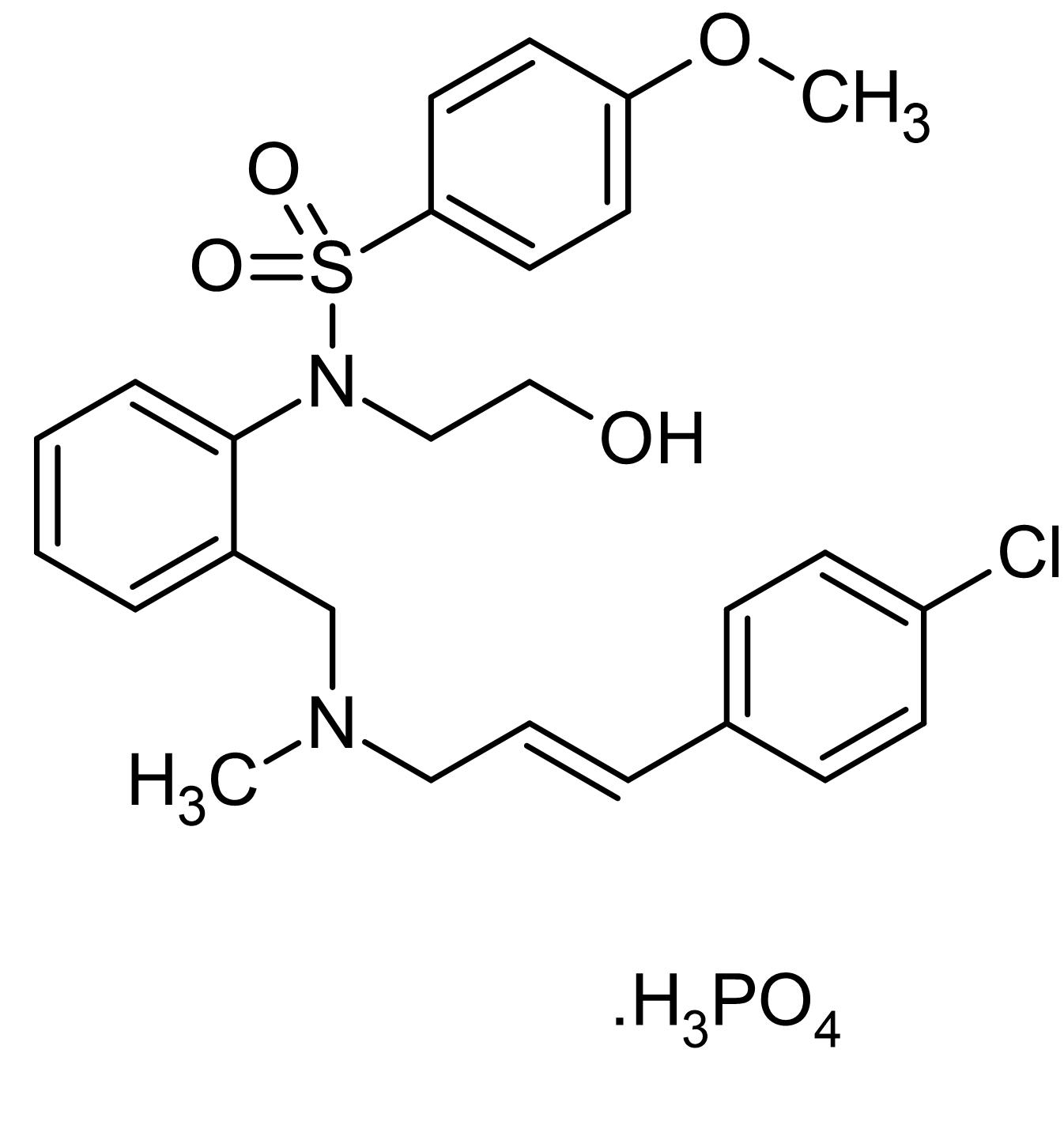

  • Chemical Structure - KN-93 (water soluble), CaMK II inhibitor (ab120980), expandable thumbnail

    Chemical Structure - KN-93 (water soluble), CaMK II inhibitor (ab120980)

    2D chemical structure image of ab120980, KN-93 (water soluble), CaMK II inhibitor

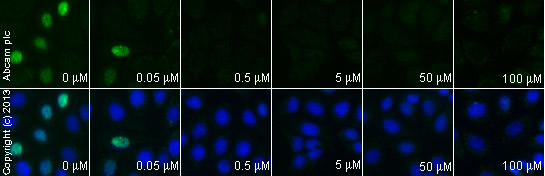

  • Immunocytochemistry/ Immunofluorescence - KN-93 (water soluble), CaMK II inhibitor (ab120980), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - KN-93 (water soluble), CaMK II inhibitor (ab120980)

    ab40754 staining cyclin D1 in MCF7 cells treated with KN-93 (water soluble) (ab120980), by ICC/IF. Decrease in cyclin D1 expression correlates with increased concentration of KN-93 (water soluble), as described in literature.
    The cells were incubated at 37°C for 24 hours in media containing different concentrations of ab120980 (KN-93 (water soluble)) in DMSO, fixed with 100% methanol for 5 minutes at -20°C and blocked with PBS containing 10% goat serum, 0.3 M glycine, 1% BSA and 0.1% tween for 2h at room temperature. Staining of the treated cells with ab40754 (1/100 dilution) was performed overnight at 4°C in PBS containing 1% BSA and 0.1% tween. A DyLight 488 goat anti-rabbit polyclonal antibody (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) at 1/250 dilution was used as the secondary antibody. Nuclei were counterstained with DAPI and are shown in blue.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
