AB230369

PD-1/PD-L1 inhibitor 1, small molecule inhibitor

Be the first to review this product! Submit a review

|

(2 Publications)

MW 475.6 Da, Purity >98%. PD-1/PD-L1 inhibitor 1 blocks the PD-1/PD-L1 interaction with an IC50 of 6 nM in a cell-free HTRF assay.

View Alternative Names

B7 H, B7 homolog 1, B7-H1, CD-274, CD274 antigen, CD274 molecule, MGC142294, MGC142296, OTTHUMP00000021029, PD-L1, PD1L1_HUMAN, PDCD1 ligand 1, PDCD1L1, PDCD1LG1, Programmed cell death 1 ligand 1, Programmed death ligand 1, RGD1566211

1 Images

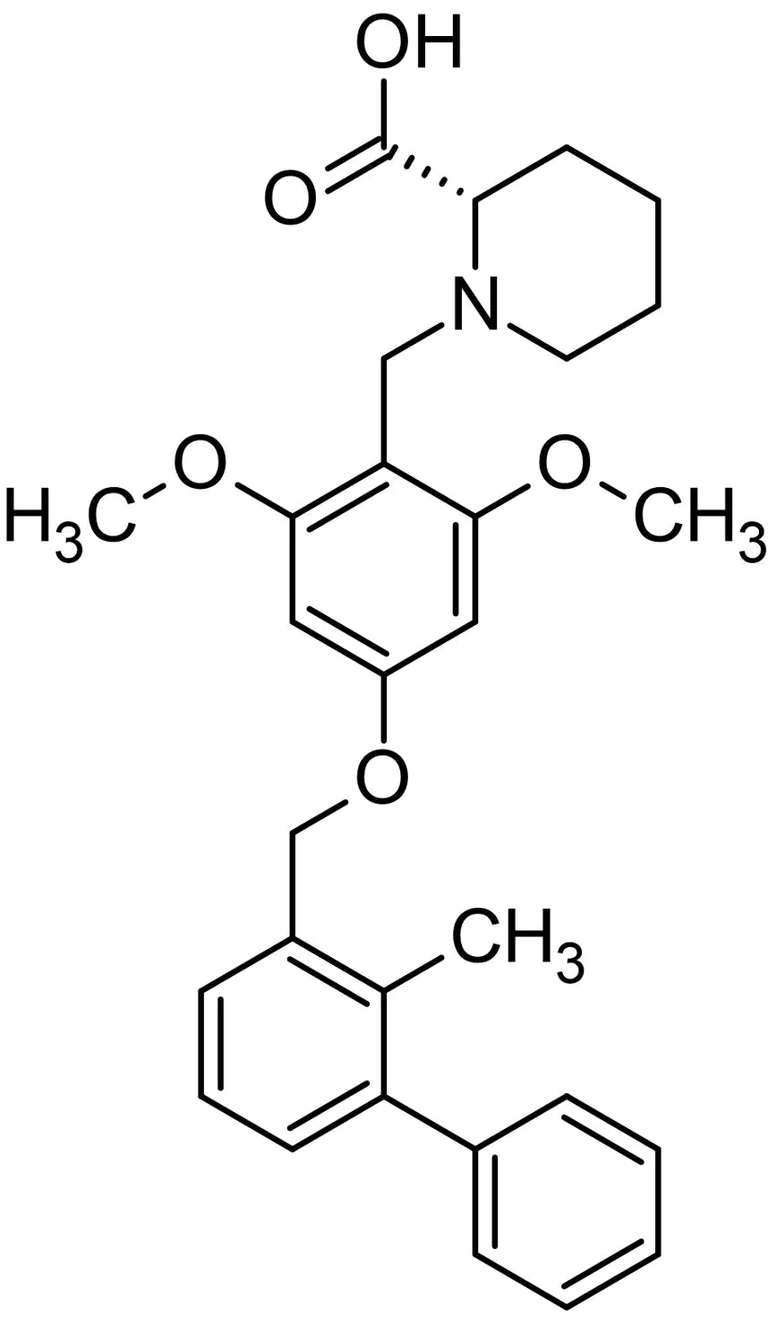

Chemical Structure - PD-1/PD-L1 inhibitor 1, small molecule inhibitor (AB230369)
  • Chemical Structure

Lab

Chemical Structure - PD-1/PD-L1 inhibitor 1, small molecule inhibitor (AB230369)

2D chemical structure image of ab230369, PD-1/PD-L1 inhibitor 1, small molecule inhibitor

Key facts

CAS number

1675201-83-8

Purity

>98%

Form

Solid

form

Molecular weight

475.6 Da

Molecular formula

C<sub>2</sub><sub>9</sub>H<sub>3</sub><sub>3</sub>NO<sub>5</sub>

PubChem

91663303

Nature

Synthetic

Solubility

200 mM in DMSO

200 mM in water

200 mM in ethanol

Biochemical name

Pd-1/pd-l1 inhibitor 1

Biological description

PD-1/PD-L1 inhibitor 1 blocks the PD-1/PD-L1 interaction with an IC50 of 6 nM in a cell-free HTRF assay.

Canonical smiles

CC1=C(C=CC=C1C2=CC=CC=C2)COC3=CC(=C(C(=C3)OC)CN4CCCCC4C(=O)O)OC

Isomeric smiles

CC1=C(C=CC=C1C2=CC=CC=C2)COC3=CC(=C(C(=C3)OC)CN4CCCC[C@H]4C(=O)O)OC

InChi

InChI=1S/C29H33NO5/c1-20-22(12-9-13-24(20)21-10-5-4-6-11-21)19-35-23-16-27(33-2)25(28(17-23)34-3)18-30-15-8-7-14-26(30)29(31)32/h4-6,9-13,16-17,26H,7-8,14-15,18-19H2,1-3H3,(H,31,32)/t26-/m0/s1

InChiKey

ZBOYJODMIAUJHH-SANMLTNESA-N

IUPAC Name

(2S)-1-[[2,6-dimethoxy-4-[(2-methyl-3-phenylphenyl)methoxy]phenyl]methyl]piperidine-2-carboxylic acid

Properties and storage information

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.

Product protocols

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

Frontiers in immunology 13:975762 PubMed36189226

2022

Regulatory T-cells-related signature for identifying a prognostic subtype of hepatocellular carcinoma with an exhausted tumor microenvironment.

Applications

Unspecified application

Species

Unspecified reactive species

Genhao Zhang

Frontiers in oncology 10:821 PubMed32537433

2020

PD-L1 Inhibitor Regulates the miR-33a-5p/PTEN Signaling Pathway and Can Be Targeted to Sensitize Glioblastomas to Radiation.

Applications

Unspecified application

Species

Unspecified reactive species

Wenzheng Xia,Jin Zhu,Yinda Tang,Xueyi Wang,Xiangyu Wei,Xuan Zheng,Meng Hou,Shiting Li
View all publications
