AB120617

PP3, Negative control for PP2

Be the first to review this product! Submit a review

|

(5 Publications)

MW 211.22 Da, Purity >97%. Negative control for the Src kinase inhibitor PP2 (ab120308). Inhibits EGFR kinase (IC50 = 2.7 μM).

View Alternative Names

2610042N09Rik, 4933409G22Rik, Avian erythroblastic leukemia viral (v erb b) oncogene homolog, Cell growth inhibiting protein 40, Cell proliferation inducing protein 61, DKFZp686O1820, EGFR_HUMAN, ERBB, ERBB1, Epidermal growth factor receptor, Epidermal growth factor receptor (avian erythroblastic leukemia viral (v erb b) oncogene homolog), Epidermal growth factor receptor (erythroblastic leukemia viral (v erb b) oncogene homolog avian), Errp, FLJ11105, FLJ30129, HER1, NISBD2, NPIK, Oncogen ERBB, P4K2A_HUMAN, P4K2B_HUMAN, PI4 kinase alpha, PI4K 2 beta, PI4K IIb, PI4K alpha, PI4K-beta, PI4K92, PI4KB_HUMAN, PI4KII, PI4KII-BETA, PI4KIIIbeta, PIG61, PIK4, PIK42B, PIK4CA, PIK4CB, Phosphatidylinositol 4 kinase alpha, Phosphatidylinositol 4 kinase catalytic beta, Phosphatidylinositol 4 kinase catalytic beta polypeptide, Phosphatidylinositol 4 kinase wortmannin sensitive, Phosphatidylinositol 4-kinase beta, Phosphatidylinositol 4-kinase type 2-alpha, Phosphatidylinositol 4-kinase type 2-beta, Phosphatidylinositol 4-kinase type II-alpha, Phosphatidylinositol 4-kinase type II-beta, Proto-oncogene c-ErbB-1, PtdIns 4 kinase, PtdIns 4 kinase alpha, PtdIns 4-kinase beta, Receptor tyrosine-protein kinase ErbB-1, SA7, Species antigen 7, Type II phosphatidylinositol 4 kinase beta isoform, Type III phosphatidylinositol 4 kinase beta, Urogastrone, Wa5, erb-b2 receptor tyrosine kinase 1, mENA, phosphatidylinositol 4 kinase 230, phosphatidylinositol 4 kinase, catalytic, alpha polypeptide, phosphatidylinositol 4 kinase, type III, alpha, pi4K230, v-erb-b Avian erythroblastic leukemia viral oncogen homolog, wa2

2 Images
Functional Studies - PP3, Negative control for PP2 (AB120617)
  • FuncS

Unknown

Functional Studies - PP3, Negative control for PP2 (AB120617)

ab11512 staining E cadherin in SW480 cells treated with PP3 (ab120617), by ICC/IF. No change of E cadherin expression with increased concentration of PP3 is observed, as described in literature, since PP3 is the negative control for PP2.
The cells were incubated at 37°C for 24h in media containing different concentrations of ab120617 (PP3) in DMSO, fixed with 4% formaldehyde for 10 minutes at room temperature and blocked with PBS containing 10% goat serum, 0.3 M glycine, 1% BSA and 0.1% tween for 2h at room temperature. Staining of the treated cells with ab11512 (5 μg/ml) was performed overnight at 4°C in PBS containing 1% BSA and 0.1% tween. A DyLight 488 anti-rat polyclonal antibody (ab98386) at 1/250 dilution was used as the secondary antibody. Nuclei were counterstained with DAPI and are shown in blue.

Chemical Structure - PP3, Negative control for PP2 (AB120617)
  • Chemical Structure

Lab

Chemical Structure - PP3, Negative control for PP2 (AB120617)

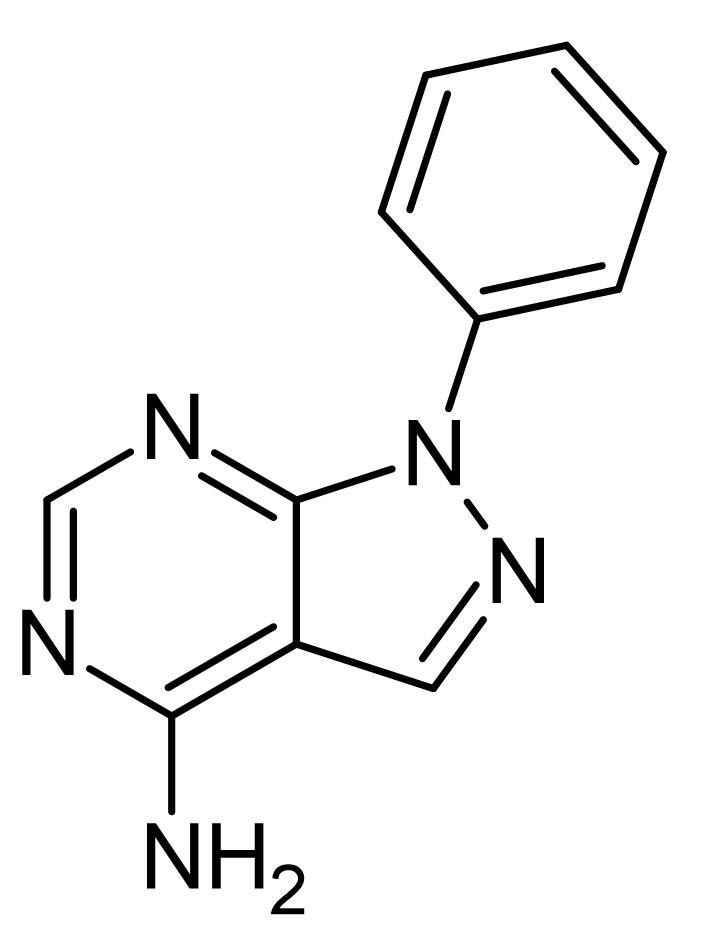

2D chemical structure image of ab120617, PP3, Negative control for PP2

Key facts

CAS number

5334-30-5

Purity

>97%

Form

Solid

form

Molecular weight

211.22 Da

Molecular formula

C<sub>1</sub><sub>1</sub>H<sub>9</sub>N<sub>5</sub>

PubChem

4879

Nature

Synthetic

Solubility

Soluble in ethanol to 25 mM

Soluble in DMSO to 100 mM

Biochemical name

1-Phenyl-1h-pyrazolo[3,4-d]pyrimidin-4-amine

Biological description

Negative control for the Src kinase inhibitor PP2 (ab120308). Inhibits EGFR kinase (IC50 = 2.7 μM).

Canonical smiles

C1=CC=C(C=C1)N2C3=NC=NC(=C3C=N2)N

InChi

InChI=1S/C11H9N5/c12-10-9-6-15-16(11(9)14-7-13-10)8-4-2-1-3-5-8/h1-7H,(H2,12,13,14)

InChiKey

KKDPIZPUTYIBFX-UHFFFAOYSA-N

IUPAC Name

1-phenylpyrazolo[3,4-d]pyrimidin-4-amine

style
left-column
style
left-column

Properties and storage information

Shipped at conditions
Ambient - Can Ship with Ice
Appropriate short-term storage conditions
-20°C
Appropriate long-term storage conditions
-20°C
Storage information
Store under desiccating conditions|The product can be stored for up to 12 months
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

EGFR also known as epidermal growth factor receptor is a membrane-bound protein with a mass of approximately 170 kDa. It is expressed in many cell types including epithelial tissues. EGFR has tyrosine kinase activity and plays an important role in the regulation of cell growth and differentiation. PI4K2B PI4 kinase beta also known as PI4KB shares a similar functional landscape. With a mass of about 92 kDa PI4KB localizes mainly in the cytoplasm and trans-Golgi network and participates in phosphatidylinositol (PI) phosphorylation converting PI to phosphatidylinositol 4-phosphate (PI4P). PI4K2A has a function similar to PI4KB in lipid-mediated signaling.
Biological function summary

EGFR participates in signal transduction cascades that promote cellular proliferation and survival. It often forms homodimers or heterodimers with other receptors in the cell membrane upon ligand binding. PI4K2B acting within lipid microdomains regulates membrane trafficking and assignation of signaling proteins to various cell functions. It does not necessarily work alone and could be a component of larger protein complexes that control phosphorylation dynamics. Both PI4KB and PI4K2A have recognized roles in the maintenance of PI4P levels within cells affecting vesicular trafficking.

Pathways

EGFR primarily associates with the MAPK and PI3K-Akt signaling pathways influencing cell cycle progression and apoptosis. Key interactions with proteins such as Src enhance downstream signaling and functional outcomes. PI4K2B and PI4KB integrate into pathways that involve phosphatidylinositol metabolism playing roles alongside proteins such as PIP kinase and serving as important nodes in PI3P-related pathways. These connections influence cellular trafficking and organelle function.

EGFR overexpression or mutations relate to cancers notably lung cancer and glioblastoma through altered signaling pathways resulting in unchecked cell division. Its interaction with Src renders it a target for inhibitors like PP2 Src inhibitors in therapeutic investigations. PI4KB dysregulation associates with neurological diseases where disruptions in PI4P balance affect neurodegenerative disease progression. Therefore EGFR and PI4K enzymes are linked to cancer and neurological disorders where their pathways intertwine with disease-specific alterations in protein networks.
style
left-column
style
left-column

Product protocols

style
left-column

Publications (5)

Recent publications for all applications. Explore the full list and refine your search

JCI insight 10: PubMed40493407

2025

Csk-mediated Src family kinase regulation dampens neutrophil infiltration during pulmonary infection.

Applications

Unspecified application

Species

Unspecified reactive species

Wida Amini,Lena Schemmelmann,Jan-Niklas Heming,Marina Oguama,Katharina Thomas,Helena Block,Pia Lindental,Bernadette Bardel,Andreas Margraf,Oliver Soehnlein,Anika Cappenberg,Alexander Zarbock

Mediators of inflammation 2021:6639252 PubMed33927570

2021

Toll-Like Receptor 4 Mediated Oxidized Low-Density Lipoprotein-Induced Foam Cell Formation in Vascular Smooth Muscle Cells via Src and Sirt1/3 Pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Zhongli Chen,Qiqi Xue,Lijuan Cao,Yanpin Wang,Yuanyuan Chen,Xiaojie Zhang,Fan Xiao,Ying Yang,Melvin R Hayden,Yan Liu,Ke Yang

Cell reports 33:108245 PubMed33086058

2020

LPS-Induced Acute Kidney Injury Is Mediated by Nox4-SH3YL1.

Applications

Unspecified application

Species

Unspecified reactive species

Jung-Yeon Yoo,Dae Ryong Cha,Borim Kim,Eun Jung An,Sae Rom Lee,Jin Joo Cha,Young Sun Kang,Jung Yeon Ghee,Jee Young Han,Yun Soo Bae

The EMBO journal 36:3120-3138 PubMed28864542

2017

Somatodendritic accumulation of Tau in Alzheimer's disease is promoted by Fyn-mediated local protein translation.

Applications

Unspecified application

Species

Unspecified reactive species

Chuanzhou Li,Jürgen Götz

Nature communications 6:7168 PubMed25981743

2015

Trans-synaptic zinc mobilization improves social interaction in two mouse models of autism through NMDAR activation.

Applications

Unspecified application

Species

Unspecified reactive species

Eun-Jae Lee,Hyejin Lee,Tzyy-Nan Huang,Changuk Chung,Wangyong Shin,Kyungdeok Kim,Jae-Young Koh,Yi-Ping Hsueh,Eunjoon Kim
View all publications
